SEESII Mini Chainsaw & Pruning Shears User Manual

Sarrera

This user manual provides comprehensive instructions for the safe and efficient operation, assembly, maintenance, and troubleshooting of your SEESII Mini Chainsaw and Electric Pruning Shears combo. Please read this manual thoroughly before first use to ensure optimal performance and safety.

Segurtasun Informazioa

Always prioritize safety when operating power tools. Wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection. Ensure the work area is clear of obstructions and bystanders. Keep hands and body parts away from moving parts. Disconnect batteries before performing any maintenance or assembly.

Components (Packing List)

Your SEESII Mini Chainsaw & Pruning Shears combo includes the following items:

• 1 x 6-inch Mini Chainsaw
• 1 x Pruning Shears
• 2 x 2.0Ah litio-ioizko bateria
• 1 x Kargagailu azkarra
• 1 x 6-Inch Chain
• 2 x Installation Wrenches
• 1 x Empty Oil Bottle (for chainsaw chain oil)
• 1 x Extra Auxiliary Handle
• 1 x bihurkin
• 1 x Zorrozteko harria
• 1 x eskularru pare
• 1 x Erabiltzailearen eskuliburua

Irudia: Produktua amaitutaview
This image displays the complete SEESII Mini Chainsaw and Pruning Shears combo, including the two tools and their accompanying batteries.

Konfigurazioa

1. Bateria kargatzea

Before first use, fully charge both 2000mAh lithium-ion batteries. Connect the fast charger to a power outlet and then to the battery. The charging time is approximately 2-3 hours per battery. A full charge provides a runtime of 50-60 minutes, depending on usage intensity.

Image: Rechargeable Batteries
Two 2000mAh lithium-ion batteries are included, providing extended power for your tools. Ensure they are fully charged before use.

2. Mini Chainsaw Assembly

To assemble the mini chainsaw, first ensure the battery is removed. Follow these steps for chain removal and installation:

1. Loosen the chain cover knob and remove the cover.
2. Carefully remove the old chain and guide bar if replacing.
3. Place the new chain around the guide bar, ensuring the cutting teeth are facing the correct direction (away from the motor).
4. Align the chain and guide bar with the sprocket on the chainsaw body.
5. Replace the chain cover and tighten the knob to secure the chain and guide bar. Adjust chain tension as needed using the tensioning screw.

Image: 2-in-1 Garden Tool Set
The SEESII combo offers both a mini chainsaw for larger cuts and electric pruning shears for precise trimming, providing versatile cutting power.

3. Electric Pruning Shears Assembly

The electric pruning shears come largely pre-assembled. If blade replacement is necessary, follow these steps:

1. Ziurtatu bateria kenduta dagoela.
2. Loosen the screw with a hex screwdriver in a counterclockwise direction.
3. Remove the screw and the locking pin.
4. Kontu handiz kendu pala zaharra.
5. Install the new blade, ensuring proper alignment.
6. Install the locking pin and tighten the screws securely.

Image: Electric Pruning Shears in Action
The electric pruning shears are designed for efficient and precise cutting of branches, featuring a brushless motor for smooth operation.

Funtzionamendua

1. Mini Chainsaw Operation

Once assembled and the battery is inserted, the mini chainsaw is ready for use. Always hold the chainsaw firmly with both hands, using the main handle and the auxiliary handle. Ensure the chain is properly tensioned before each use. The chain speed is 25.6 ft/s, providing efficient cutting for wood and branches up to 6 inches in diameter. Apply steady pressure and let the saw do the work.

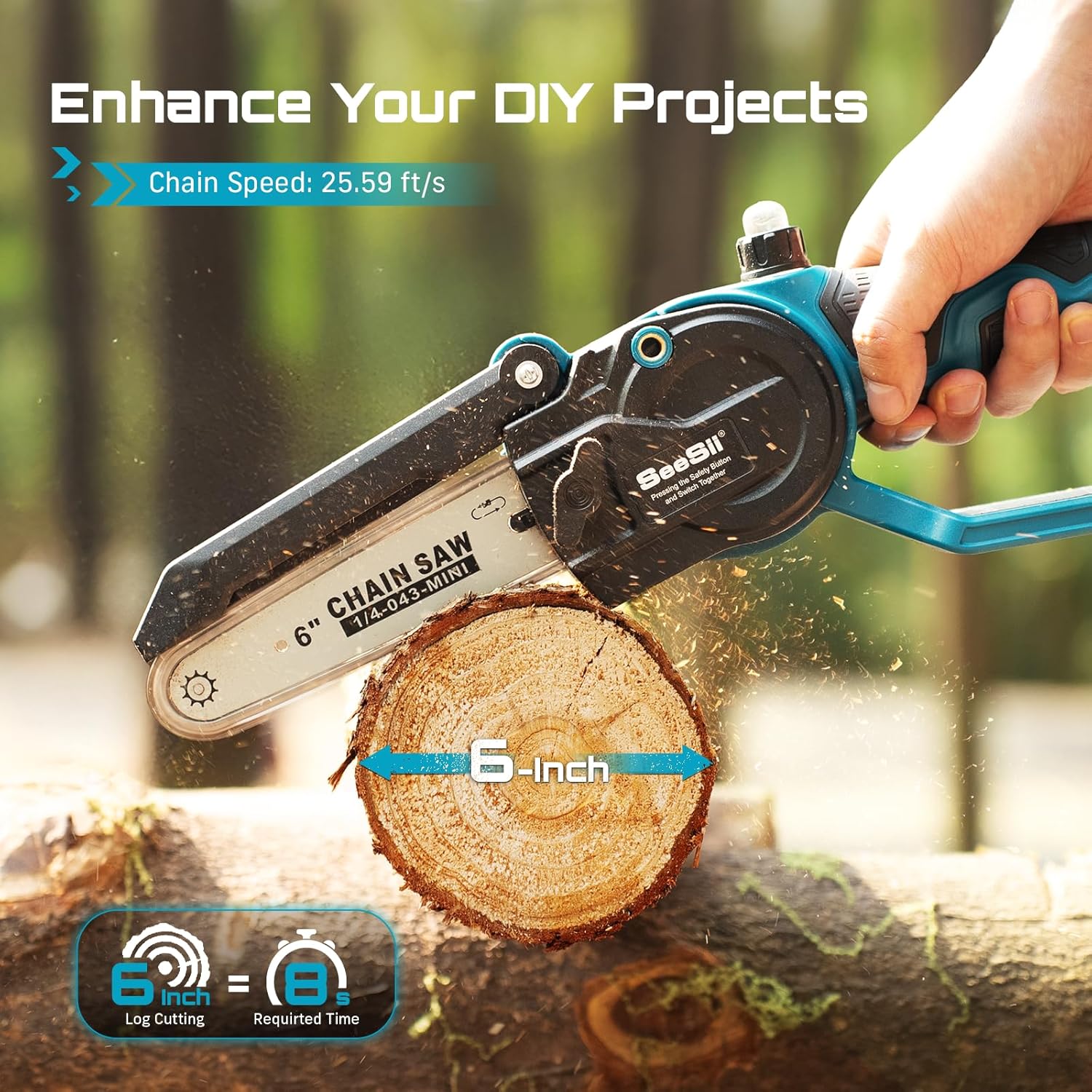

Image: Mini Chainsaw Cutting Performance
The 6-inch mini chainsaw is capable of cutting through logs and branches with ease, making it suitable for various wood cutting tasks.

2. Electric Pruning Shears Operation

Insert a charged battery into the pruning shears. The shears feature adjustable cutting diameters for precise control: 10mm, 20mm, and 33mm. Select the appropriate setting based on the branch thickness. Squeeze the trigger to activate the blades. The brushless motor ensures efficient and smooth pruning.

Image: Pruning Shears Adjustable Modes
The electric pruning shears offer three adaptive modes (10mm, 20mm, 33mm) for precise control across a wide range of pruning tasks.

Mantentzea

1. Mini Chainsaw Chain Lubrication

The mini chainsaw features a built-in automatic oiling system. Regularly check the oil level in the 30ml oil tank and refill with appropriate chain lubricant as needed. Effortless oil refilling is achieved with light pressure on the cap. Proper lubrication ensures consistent, fast, and easy cutting, and prolongs chain life.

Image: Chainsaw Chain Lubrication System
The chainsaw features a 30ml oil tank and an automatic chain lubrication system for continuous performance. Refill the tank with chain oil as required.

2. Pruning Shears Blade Cleaning

After each use, clean the blades of the pruning shears to remove sap, debris, and dirt. Use a damp cloth and mild detergent if necessary. Ensure the blades are dry before storage. Regularly inspect the blades for sharpness and signs of wear. Sharpen or replace as needed.

3. Bateria zaintzea

Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods. Charge batteries periodically if not in use to maintain their health. Avoid overcharging or deep discharging.

Arazoak konpontzea

Zehaztapenak

Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation included with your product or visit the official Seesii website. Protection plans may be available for purchase separately to extend coverage beyond the manufacturer's warranty. For direct inquiries, you may also visit the Seesii Store on Amazon.
