VEVOR Steam Cleaner CB-108A User Manual

1. Sarrera

Thank you for choosing the VEVOR Steam Cleaner, Model CB-108A. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your steam cleaner. Please read this manual thoroughly before first use and retain it for future reference.

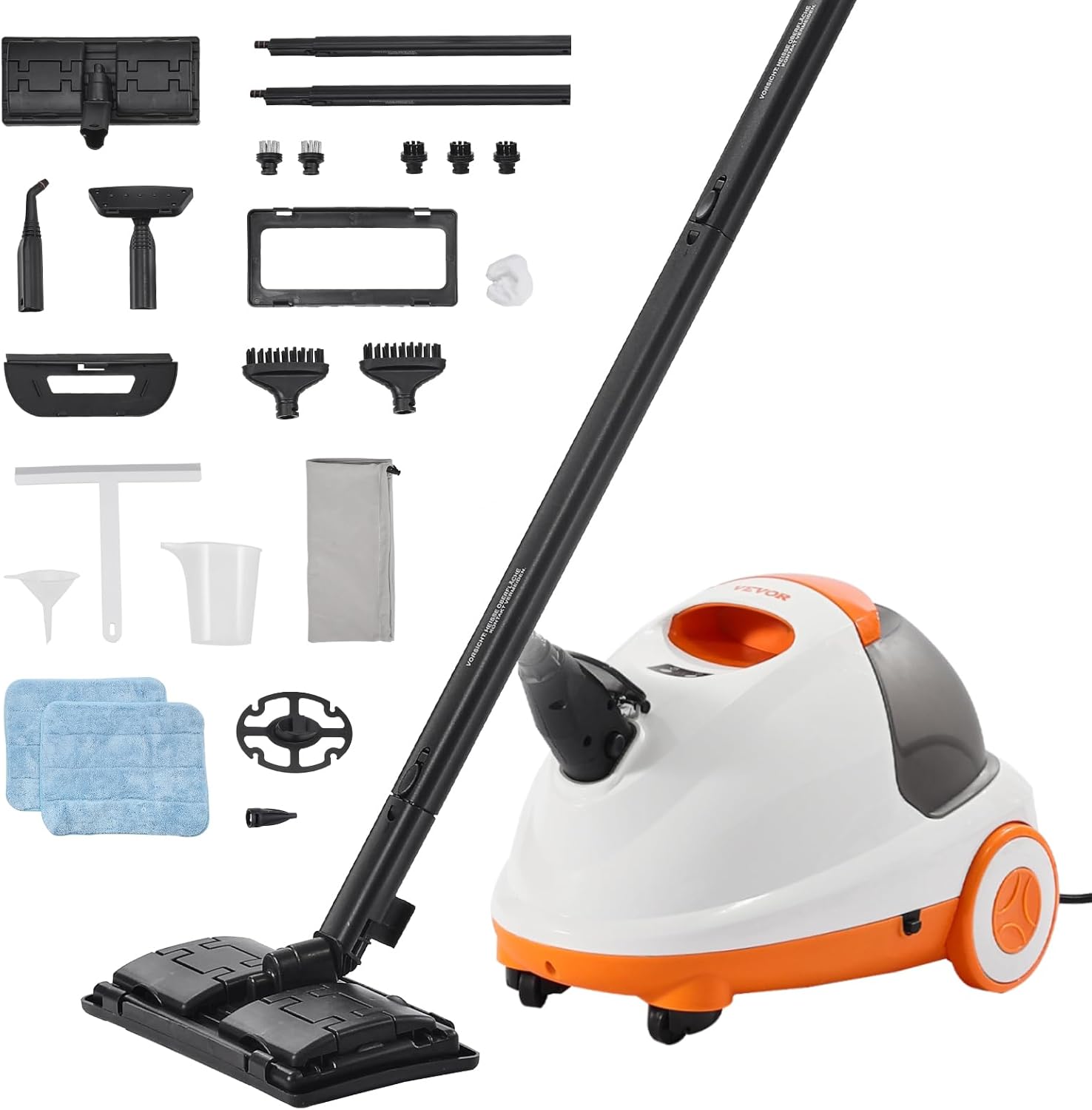

This image displays the VEVOR Steam Cleaner unit, model CB-108A, alongside its comprehensive set of accessories, including various brushes, nozzles, and cleaning pads.

2. Segurtasun-argibideak

To ensure safe operation and prevent injury or damage, always adhere to the following safety precautions:

• Irakurri arretaz argibide guztiak aparatua erabili aurretik.
• Mantendu aparatua haurren eta animalien eskura.
• Do not direct steam at people, animals, or electrical appliances. Steam is extremely hot and can cause severe burns.
• Erabili tresna eskuliburu honetan deskribatutako helbururako soilik.
• Always unplug the steam cleaner from the electrical outlet when not in use, before cleaning, or before performing any maintenance.
• Never open the water tank cap when the appliance is hot or under pressure. Allow it to cool down completely before refilling.
• Use only distilled or demineralized water to prevent mineral buildup and extend the life of the appliance.
• Ensure adequate ventilation when operating the steam cleaner.
• Ez sartu unitate nagusia uretan edo beste likido batean.
• Inspect the power cord and hose for any damage before each use. Do not operate if damaged.

3. Produktua amaitu daview

3.1 Osagaiak eta Osagarriak

Your VEVOR Steam Cleaner comes with a comprehensive set of 23 accessories designed for various cleaning tasks. Familiarize yourself with each component:

Diagrama zehatz batek erakusten duasing each of the 23 accessories provided with the steam cleaner, with labels for easy identification.

• A. Extension Tube (x2): For extended reach, especially with the floor brush.
• B. Floor Brush: For cleaning large floor surfaces.
• C. Mop Pad (x2): Attaches to the floor brush for absorbing dirt and moisture.
• D. Carpet Glider: Used with the floor brush for refreshing carpets.
• E. Round Brush (Nylon) (x3): For general scrubbing of various surfaces.
• F. Round Brush (Stainless) (x2): Garbiketa-lan gogor eta urratzaileagoetarako.
• G. Magnetic Seam Brush (x2): Specialized brushes for cleaning narrow gaps and seams.
• H. Flat Brush: For broader, flat surfaces.
• I. Cloth Cover: For use with certain brushes to protect delicate surfaces.
• J. Glass Brush: For streak-free cleaning of glass surfaces.
• K. Wiper: For squeegeeing liquids from smooth surfaces.
• L. Big Nozzle: For concentrated steam output on stubborn dirt.
• M. Straight Nozzle: For precise steam application in tight spaces.
• N. Funnel: For easy and spill-free water refilling.
• O. Measuring Cup: For accurate water measurement during refilling.
• P. Cord Rewinder: Kable elektrikoarentzako biltegiratze integratua.
• Q. Bag: For convenient storage of accessories.

4. Konfigurazioa

4.1 Desontziratzea eta muntatzea

1. Kontu handiz kendu osagai guztiak ontzitik.
2. Inspect the unit and accessories for any signs of damage. Do not use if damaged.
3. Attach the desired accessory (e.g., extension tubes, floor brush) by aligning and twisting until secure.

4.2 Ur depositua betetzea

1. Ensure the steam cleaner is unplugged and cool.
2. Askatu ur deposituaren tapa.
3. Using the provided measuring cup and funnel, carefully pour up to 85 oz (2.5 L) of distilled or demineralized water into the tank. Do not overfill.
4. Itxi ondo ur-deposituaren tapoia.

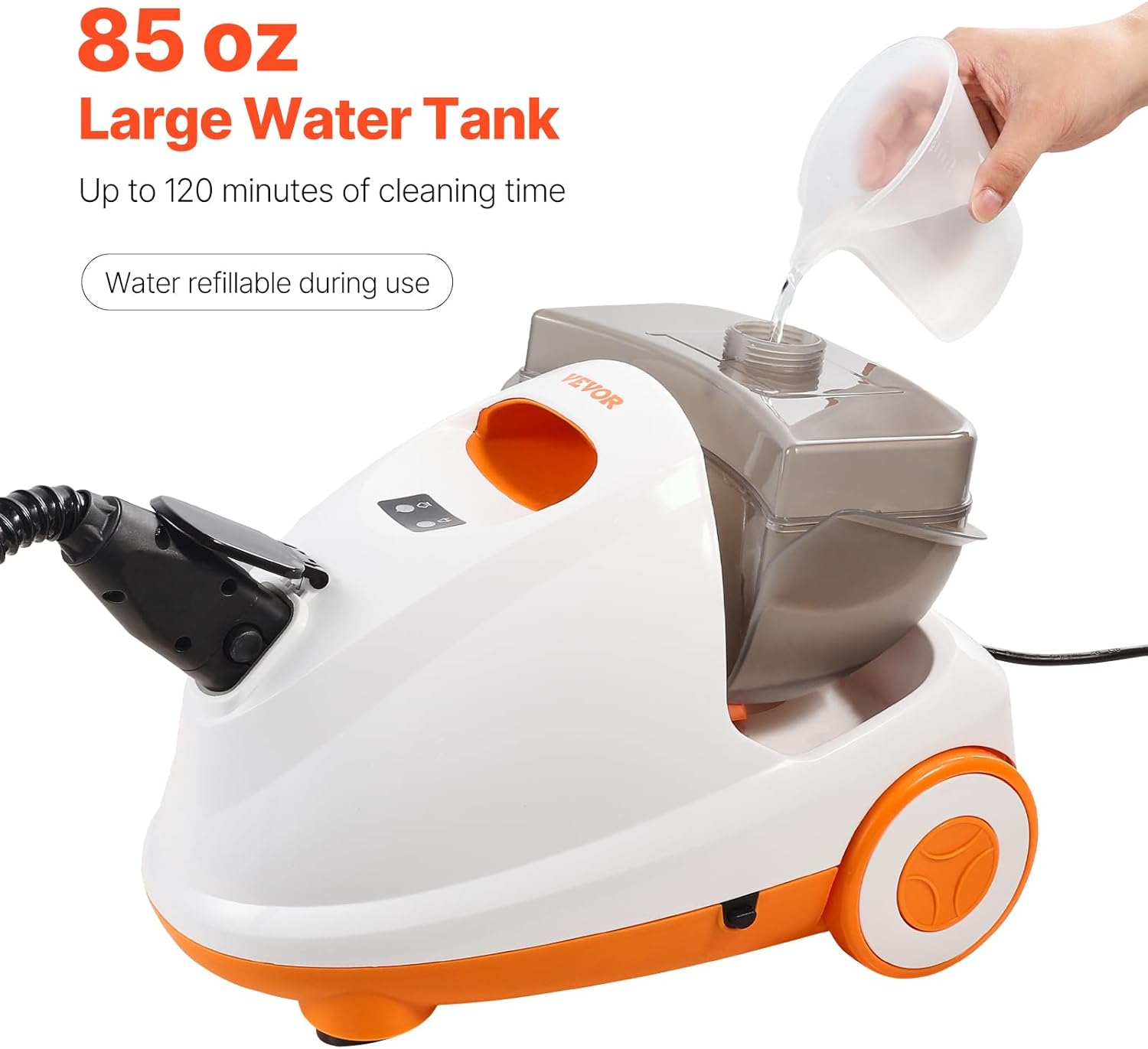

An image demonstrating the process of refilling the large 85 oz (2.5 L) water tank of the steam cleaner, which allows for extended cleaning sessions.

5. Funtzionamendu-argibideak

5.1 Piztea eta berotzea

1. Entxufatu elikatze-kablea lurrera konektatutako entxufe elektriko batera (110 Volt).
2. The indicator light will turn red, signifying that the unit is heating.
3. Allow approximately 5-8 minutes for the steam cleaner to reach its operating temperature. The indicator light will turn green when ready for use.

This image highlights the rapid heat-up capability of the VEVOR Steam Cleaner, demonstrating its ability to reach 212°F steam temperature in approximately 2 minutes, significantly faster than typical steam cleaners.

5.2 Steam Application

1. Once the green indicator light is on, press the steam trigger on the handle to release steam.
2. Adjust the steam flow as needed for different cleaning tasks.
3. For effective cleaning, ensure the nozzle or brush head is in direct contact with the surface. The steam temperature is highest at the point of contact.

This diagram illustrates the principle of steam cleaning, showing that the highest temperature (212°F) is achieved when the nozzle is directly on the surface. It also serves as a safety reminder to avoid touching the hot nozzle or brush during use.

5.3 Garbiketa aplikazioak

The VEVOR Steam Cleaner is versatile for various surfaces:

• Floors (Tile, Marble, Wood): Use the floor brush with a mop pad. For wood floors, test a small inconspicuous area first and use steam sparingly.
• Letxa: Use a nylon or stainless brush with concentrated steam.
• Alfonbrak: Use the carpet glider with the floor brush to refresh and deodorize.
• Appliances & Kitchen Surfaces: Use the big nozzle or various brushes for grease and grime.
• Beira: Use the glass brush or wiper for streak-free results.
• Iritsi ezin diren eremuak: Utilize the straight nozzle or magnetic seam brushes.

Irudi konposatuaren erakustaldiaasing the versatility of the VEVOR Steam Cleaner, with individual pictures demonstrating how different attachments are used for specific cleaning challenges around the home, including kitchens, windows, upholstery, and floors.

The large 85 oz (2.5 L) water tank provides 62-120 minutes of continuous steam, and water can be added during use without waiting for the unit to cool down.

6. Mantentzea

6.1 Erabilera bakoitzaren ondoren

1. Deskonektatu gailua eta utzi hozten.
2. Carefully unscrew the water tank cap and drain any remaining water.
3. Clean all used accessories with water and mild detergent, then allow them to air dry.
4. Garbitu unitate nagusia iragarkiarekinamp oihal.

6.2 Biltegiratzea

Store the steam cleaner and its accessories in a cool, dry place. Utilize the integrated cord reel for tidy power cord storage and the steam head storage rack for convenience.

This image highlights the convenient design features of the steam cleaner, including a built-in power cord reel for tidy storage and a dedicated rack for the steam head.

7. Arazoak

If you encounter issues with your VEVOR Steam Cleaner, refer to the following common problems and solutions:

8. Zehaztapenak

Key technical specifications for the VEVOR Steam Cleaner CB-108A:

A comprehensive diagram providing an overview of the VEVOR Steam Cleaner model CB-108A, detailing its dimensions and technical specifications.

• Ereduaren izena: Lurrun garbigailua
• Modelo zenbakia: CB-108A
• Marka: ZABALTZA
• Potentzia: 1500 Watt
• liburukiatage: 110 Volt
• Ur deposituaren edukiera: 85 oz / 2.5 litro
• Berotze-denbora: 5-8 minutu inguru
• Etengabeko lurrun denbora: 62-120 minutes (depending on usage)
• Lurrunaren tenperatura: 212 °F (100 °C)
• Lurrun-presioa: 6.5 BAR / 94.2 PSI
• Hodiaren luzera: 4.9 oin / 1.5 m
• Elikatze-kablearen luzera: 16.4 oin / 5 m
• Produktuaren neurriak: 15.75 x 11.02 x 11.02 hazbete (400 x 280 x 280 mm)
• Elementuaren pisua: 13.01 kilo / 5.9 kg
• Kolorea: White+Orange
• Ezaugarri bereziak: Large Capacity Tank, Dry Burn Prevention, Power Cut Security, Auto-Reset

9. Bermea eta Laguntza

Produktuaren bermeari eta bezeroarentzako laguntzari buruzko informazioa normalean erosketa-dokumentazioarekin edo fabrikatzailearen liburu ofizialean ematen da. website. Please refer to those resources for details on warranty coverage, service, and contact information for technical assistance.
