Bellemave Full Size Murphy Bed User Manual

1. Sarrera eta Produktuaren Azalpenaview

Thank you for choosing the Bellemave Full Size Murphy Bed. This innovative furniture piece is designed to maximize your living space by combining a comfortable full-size bed with a versatile storage and display unit. When not in use, the bed conveniently folds away, transforming into a stylish cabinet with integrated shelves, drawers, and a wardrobe. This manual provides essential information for safe assembly, operation, and maintenance of your new Murphy bed.

This space-saving Murphy bed can be used as a bed, desk, display cabinet, and wardrobe, perfectly adapting to various styles. We use high-quality materials and pay attention to every detail to create. Whether you want to maximize indoor space or add a guest bed, our Murphy bed can provide you with the most comfortable experience.

Figure 1.1: Bellemave Full Size Murphy Bed in extended bed configuration.

This image shows the Murphy bed fully extended, ready for use as a bed. The integrated shelving unit above the bed and the side wardrobe with drawers are visible, demonstrating the multi-functional design.

2. Segurtasun informazioa

Produktu hau muntatu edo erabili aurretik, irakurri eta ulertu segurtasun-abisu eta argibide guztiak. Argibide hauek ez jarraitzeak lesio larriak edo ondasunen kalteak eragin ditzake.

• Wall Mounting is Crucial: This Murphy bed BEHAR be securely anchored to a structural wall stud using the provided hardware. Do not attempt to use the bed without proper wall mounting. Consult a professional if you are unsure about your wall type or mounting procedure.
• Pisu-gaitasuna: Do not exceed the maximum bed weight capacity of 600 LBS. This includes the weight of the mattress and occupants.
• Koltxoiaren lodiera: Use a mattress with a recommended thickness of 8-10 inches (maximum 12 inches). An incorrect mattress thickness may affect the bed's operation and safety.
• Sakea: Ensure adequate clearance around the bed when extending and retracting. Keep children and pets away from the bed during operation.
• Helduen batzarra behar da: Assembly should be performed by at least two adults. Some components are heavy and require careful handling.
• Ohiko ikuskapena: Periodically check all fasteners and connections to ensure they remain tight. Retighten as necessary.
• Ez aldatu: Ez aldatu produktua inola ere. Baimenik gabeko aldaketek segurtasuna arriskuan jar dezakete eta bermea baliogabetu.

3. Konfigurazioa eta Muntaketa

Some assembly is required. We have provided clear instructions and tools. It is highly recommended to have at least two adults for assembly due to the size and weight of the components.

3.1. Hasi aurretik

• Unpack all components and verify against the parts list (usually included in the separate installation manual).
• Clear a large, open area for assembly.
• Gather necessary tools (a Phillips head screwdriver, level, stud finder, and drill may be required in addition to provided tools).
• Identify the wall where the Murphy bed will be installed. This wall must be capable of supporting the weight and forces exerted by the bed.

3.2. Muntaketa Urratsakview

Refer to the detailed step-by-step instructions provided in the separate "Installation Manual" included with your product. The general steps involve:

1. Assembling the main cabinet frame.
2. Assembling the bed frame and mechanism.
3. Attaching the bed frame to the cabinet.
4. Crucially, securely anchoring the entire unit to the wall studs.
5. Installing shelves, drawers, and wardrobe components.
6. Placing the mattress.

3.1 irudia: Produktuaren neurriak.

This diagram provides detailed measurements for the Murphy bed, including its length, width, and height when configured as a bed and as a cabinet. It also shows internal dimensions for shelves and drawers, which are crucial for planning placement and understanding component sizes during assembly.

Figure 3.2: Bed Mechanism Detail.

Irudi honek hurbileko irudia eskaintzen du view of the hydraulic lift mechanism that assists in the smooth operation of the Murphy bed, highlighting the engineering behind its space-saving functionality.

4. Funtzionamendu-argibideak

The Bellemave Murphy Bed is designed for easy and safe operation. Always ensure the area around the bed is clear before extending or retracting.

4.1. Extending the Bed (From Cabinet to Bed)

1. Ensure the front panel of the cabinet is unlocked (if applicable).
2. Gently pull the handle located on the front panel downwards. The bed frame will begin to pivot out.
3. Continue to guide the bed downwards until the legs fully extend and the bed rests securely on the floor.
4. Verify that the bed is stable before use.

Figure 4.1: Bed Extended in Room Setting.

This image shows the Murphy bed fully extended within a room, illustrating how it functions as a sleeping space while still integrating with the surrounding furniture and decor.

4.2. Retracting the Bed (From Bed to Cabinet)

1. Remove all bedding, pillows, and any items from the bed surface.
2. Lift the bed frame from the foot end. The hydraulic mechanism will assist in lifting.
3. Guide the bed upwards until it is fully vertical and flush with the cabinet.
4. Ensure the bed is securely latched or locked into its upright cabinet position.

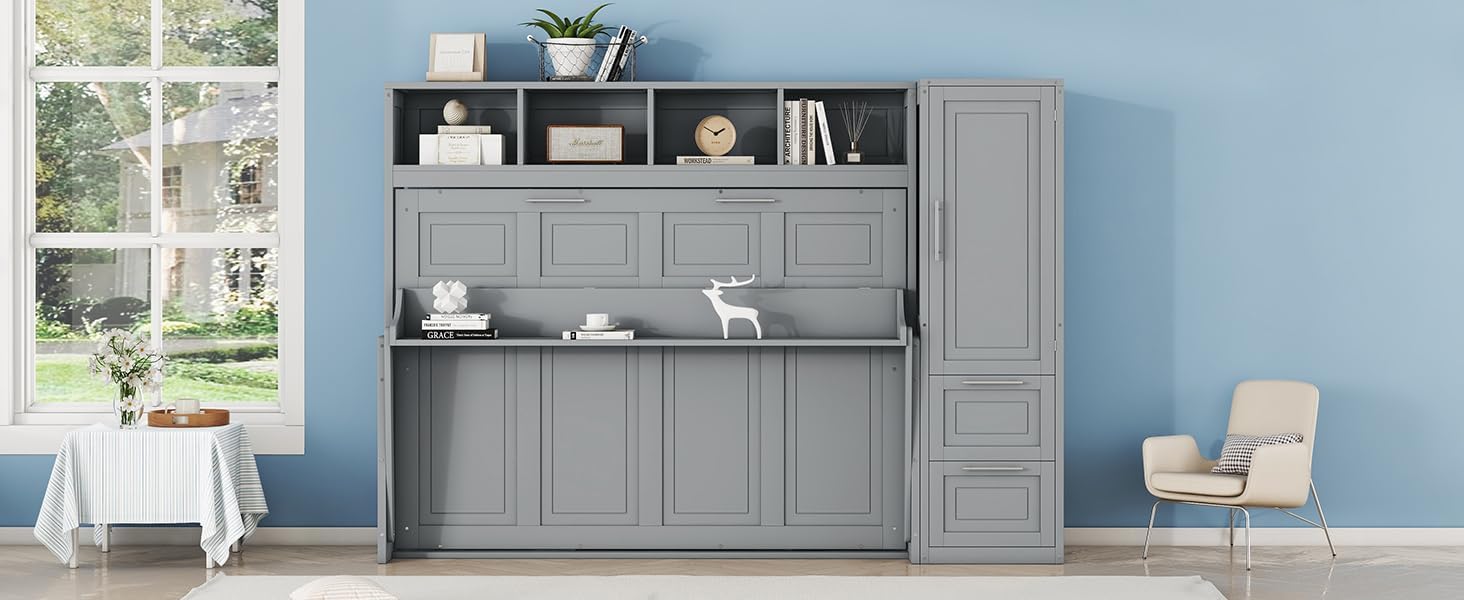

Figure 4.2: Bed Retracted in Room Setting.

This image displays the Murphy bed in its retracted, cabinet form within a room, showcasing its ability to blend seamlessly into the living space and free up floor area.

4.3. Using Integrated Storage

• Apalategiak: The top shelf and other integrated shelves can be used for displaying decorative items, books, or small storage bins.
• Jantziak: The side wardrobe provides hanging space for clothes.
• Tiraderak: The two storage drawers are ideal for personal items, bedding, or out-of-season clothing.

Figure 4.3: Storage Drawers.

Irudi honek xehetasunak eskaintzen ditu view of the open storage drawers integrated into the Murphy bed unit, highlighting their capacity and construction.

5. Mantentzea

Proper maintenance will ensure the longevity and safe operation of your Murphy bed.

• Garbiketa: Garbitu gainazalak leun batekin, damp oihal. Saihestu akabera kaltetu dezaketen produktu kimiko gogorrak edo garbitzaile urratzaileak.
• Hardwarearen egiaztapena: Periodically (e.g., every 3-6 months) inspect all screws, bolts, and connections. Tighten any loose hardware. Pay special attention to the wall mounting anchors.
• Mechanism Inspection: Check the hydraulic lift mechanism for any signs of wear, damage, or unusual noise. Do not lubricate the mechanism unless specifically instructed by the manufacturer.
• Lastaiaren zaintza: Follow your mattress manufacturer's care instructions. Ensure the mattress is not too heavy or thick for the bed's specifications.

6. Arazoak

If you encounter issues with your Murphy bed, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Bellemave customer support.

7. Zehaztapenak

8. Bermea eta Laguntza

For warranty information, please refer to the documentation included with your purchase or visit the official Bellemave website. If you require assistance with assembly, parts, or troubleshooting that is not covered in this manual, please contact Bellemave customer support:

• Fabrikatzailea: Lindsay
• Marka Denda: Bellemave Amazon Store
• Please have your model number (B0DSL321MP) and purchase date ready when contacting support.
