VEVOR Table Saw 210mm 1200W

1. Sarrera

Thank you for choosing the VEVOR Table Saw 210mm 1200W (Model WTS210F). This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new table saw. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage. This portable table saw is designed for various woodworking projects, offering a 225mm max cutting capacity and a 4800 RPM cutting speed, making it suitable for DIY enthusiasts and professional workshops.

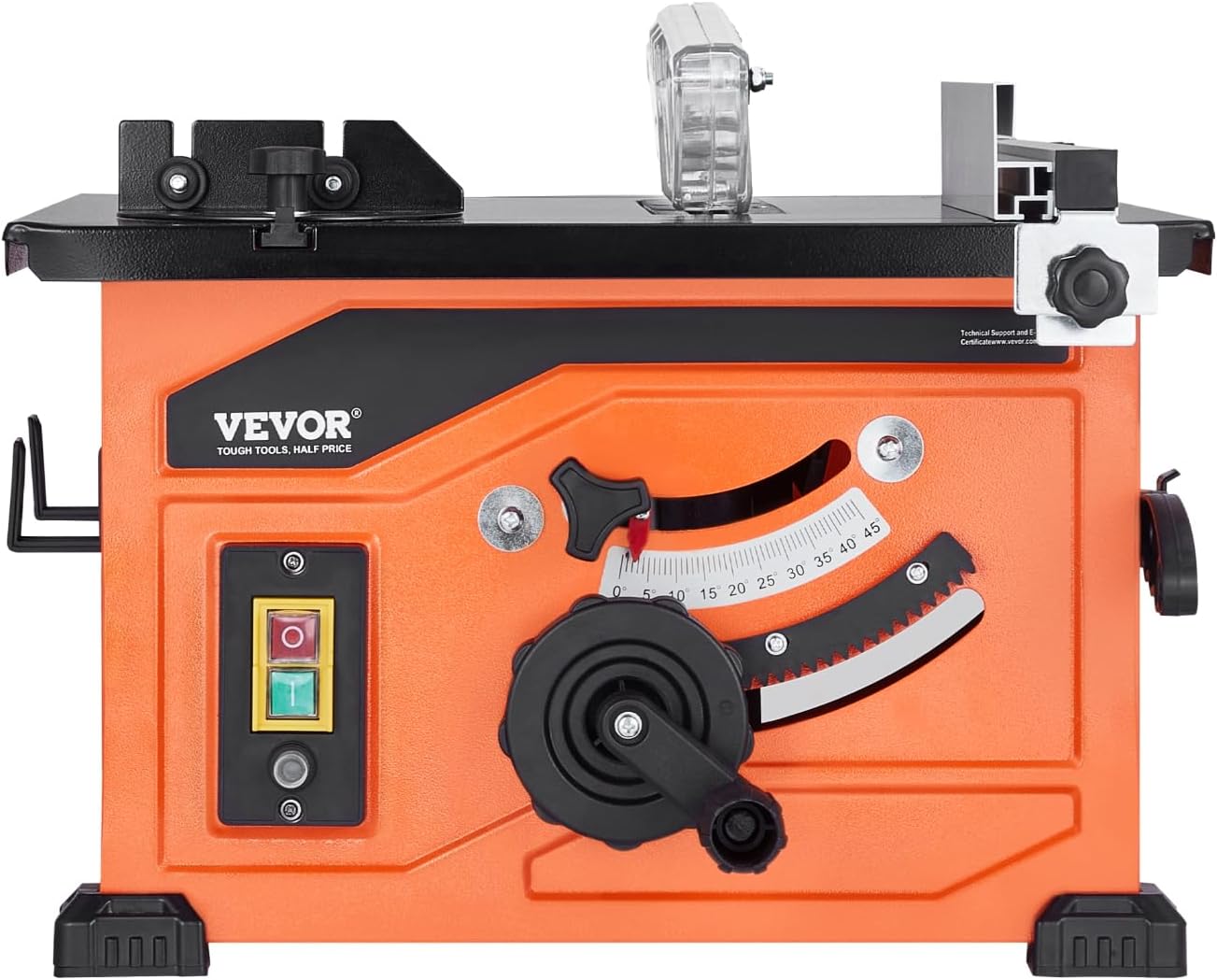

1 Irudia: Gainetikview of the VEVOR Table Saw 210mm 1200W.

2. Segurtasun-argibide garrantzitsuak

Beti beti oinarrizko segurtasun neurriak sute, deskarga elektriko eta lesio pertsonalak murrizteko.

• Irakurri eskuliburua: Read and understand all instructions before operating the table saw.
• Erabili begien babesa: Beti eraman segurtasun-betaurrekoak edo babes-babesak begiak hegan doazen hondakinetatik babesteko.
• Use Hearing Protection: Wear ear protection during operation to prevent hearing damage.
• Mantendu lan eremua garbi: Gune nahasiek istripuak ekartzen dituzte. Ziurtatu zure lan-eremua ondo argiztatuta dagoela eta oztoporik gabe dagoela.
• Saihestu ingurune arriskutsua: Ez erabili erreminta elektrikoa damp edo leku hezeak, edo euriaren eraginpean jartzea. Mantendu lan-eremua ondo argiztatuta.
• Utzi haurrak urrun: Do not let visitors contact the saw or extension cord. All visitors should be kept away from the work area.
• Lan-pieza segurua: Beti finkatu ondo lan-pieza moztu aurretik.
• Use Push Stick: Always use a push stick when making narrow cuts to keep hands away from the blade.
• Zaindariak mantendu: Ensure all guards are in place and functioning correctly before operation. The protective shield prevents wood chips from splashing, and the saw blade guard ensures the blade stays securely in place.
• Gainkarga babesa: The machine features an automatic overload protection system. If the saw stops due to overload, turn it off, unplug it, and allow it to cool before restarting.
• Deskonektatu doikuntzak egin aurretik: Deskonektatu beti zerra energia-iturritik doikuntzak egin, palak aldatu edo mantentze-lanak egin aurretik.
• Ikuskatu pala: Before each use, inspect the saw blade for damage or dullness. Replace if necessary.

Figure 2: Safety features including blade protection and automatic shut-off.

3. Osagaiak eta piezak

The VEVOR Table Saw comes with the following main components and accessories:

• Table Saw Unit (main body with motor and table)
• Saw Blade (24-tooth)
• Rip Fence (1x)
• Push Stick (1x)
• Upper Guard (1x)
• Miter Gauge (1x)
• Pala babeslea
• Adjustable Parallel Stop
• Neurtzeko Gida
• Irristagaitza Oinak

Figure 3: Key components and accessories included with the table saw.

4. Konfigurazioa eta Muntaketa

Follow these steps for initial setup and assembly of your table saw:

1. Despaketatzea: Kontu handiz atera osagai guztiak paketetik. Begiratu bidalketa-kalterik dagoen.
2. Lekua: Place the table saw on a stable, level surface. Ensure the non-slip feet are securely positioned to prevent movement during operation.
3. Install Blade Guard: Attach the upper guard and blade guard securely over the saw blade. Ensure it moves freely and provides adequate protection.
4. Attach Rip Fence: Install the rip fence onto the table. Ensure it slides smoothly and locks firmly in place for accurate cuts.
5. Connect Miter Gauge: The miter gauge can be inserted into the miter slot for angled cuts.
6. Potentzia-konexioa: Konektatu korronte-kablea korronte-hargune egoki batera. Ziurtatu liburukiatage matches the saw's requirements (230V AC).

Figure 4: The compact design allows for easy setup and portability.

5. Funtzionamendu Gida

This section outlines the general procedures for operating your VEVOR Table Saw.

1. Piztu/Itzali: Use the green button to turn the saw ON and the red button to turn it OFF.
2. Palaren altuera doitzea: Use the hand crank to adjust the blade height for different material thicknesses. The adjustable saw blade can be set to 1.77 inches / 45 mm.
3. Bevel angelua doitzea: The saw blade can be adjusted for cross sections to the desired angle in a range of -45° to 45°. Use the angle adjustment mechanism to set the desired bevel.
4. Using the Rip Fence: For longitudinal cuts, position the adjustable, continuous parallel stop (rip fence) according to the desired cutting width using the measuring guide. Lock it firmly in place.
5. Using the Miter Gauge: For cross-cuts or angled cuts, use the miter gauge. Set the desired angle and guide the workpiece through the blade.
6. Ebaketa prozedura:
   • Ziurtatu lan-pieza egonkorra eta behar bezala euskarria dagoela.
   • Turn on the saw and allow the blade to reach full speed (4800 RPM).
   • Slowly and steadily feed the workpiece into the blade, maintaining firm contact with the fence or miter gauge.
   • Always use the push stick for narrow cuts or when your hands are close to the blade.
   • The saw can handle a maximum cutting capacity of 225mm and is suitable for wood, plastic, aluminum, and mild steel.
7. Hauts bilketa: Connect a dust collection system to the saw's dust port for a cleaner working environment.

Figure 5: Demonstrating the large cutting capacity of the table saw.

Figure 6: The table saw is capable of cutting wood, plastic, aluminum, and mild steel.

Figure 7: The table saw in operation, showing connection for dust extraction.

6. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your VEVOR Table Saw.

• Garbiketa: After each use, unplug the saw and clean off sawdust and debris from the table, blade, and motor housing. Use a brush or compressed air.
• Palan ikuskatzea: Regularly inspect the saw blade for sharpness and damage. A dull or damaged blade can cause kickback and poor cut quality. Replace blades as needed.
• Lubrifikazioa: Periodically lubricate moving parts such as the blade height adjustment mechanism and bevel adjustment mechanism according to manufacturer recommendations (if any specific points are mentioned in a full manual).
• Lotzeko elementuak egiaztatu: Periodically check all nuts, bolts, and screws for tightness. Tighten any loose fasteners.
• Kableen ikuskapena: Inspect the power cord for any signs of damage, cuts, or fraying. Replace if damaged.
• Biltegiratzea: Store the table saw in a dry, clean, and secure location, out of reach of children.

7. Arazoak

Atal honek zure mahai-zerraren bidez izan ditzakezun arazo ohikoenak jorratzen ditu.

8. Zehaztapen Teknikoak

Key technical specifications for the VEVOR Table Saw 210mm 1200W:

Figure 8: Key features including adjustable saw blade, 1200W motor, and non-slip feet.

9. Bermea eta Laguntza

VEVOR products are designed for durability and performance. For warranty information, technical support, or service inquiries, please contact VEVOR customer support directly. Keep your purchase receipt as proof of purchase.

For the most up-to-date support information, please visit the official VEVOR webgunea edo kontsultatu zure produktuarekin batera datorren berme-txartela.
