fishkeeper FK056-6W Submersible Aquarium Bubble Light User Manual

Sarrera

The fishkeeper 3-in-1 aquarium bubble light is designed to enhance your aquarium by providing aeration, illumination, and decorative effects. It features a fine-pore air stone that produces a dense curtain of oxygen-rich bubbles when connected to an external air pump (not included). The integrated color-changing LEDs offer dynamic lighting to beautify your tank environment.

Kutxan dagoena

Mesedez, egiaztatu osagai guztiak daudela instalazioarekin jarraitu aurretik.

1x fishkeeper 6W Submersible Aquarium Bubble Light
1x Erabiltzailearen eskuliburua
1x DC korronte egokitzailea
2x 2m Air Tubes
2x L-shaped Tube Connectors
1x Y-shaped Tube Connector

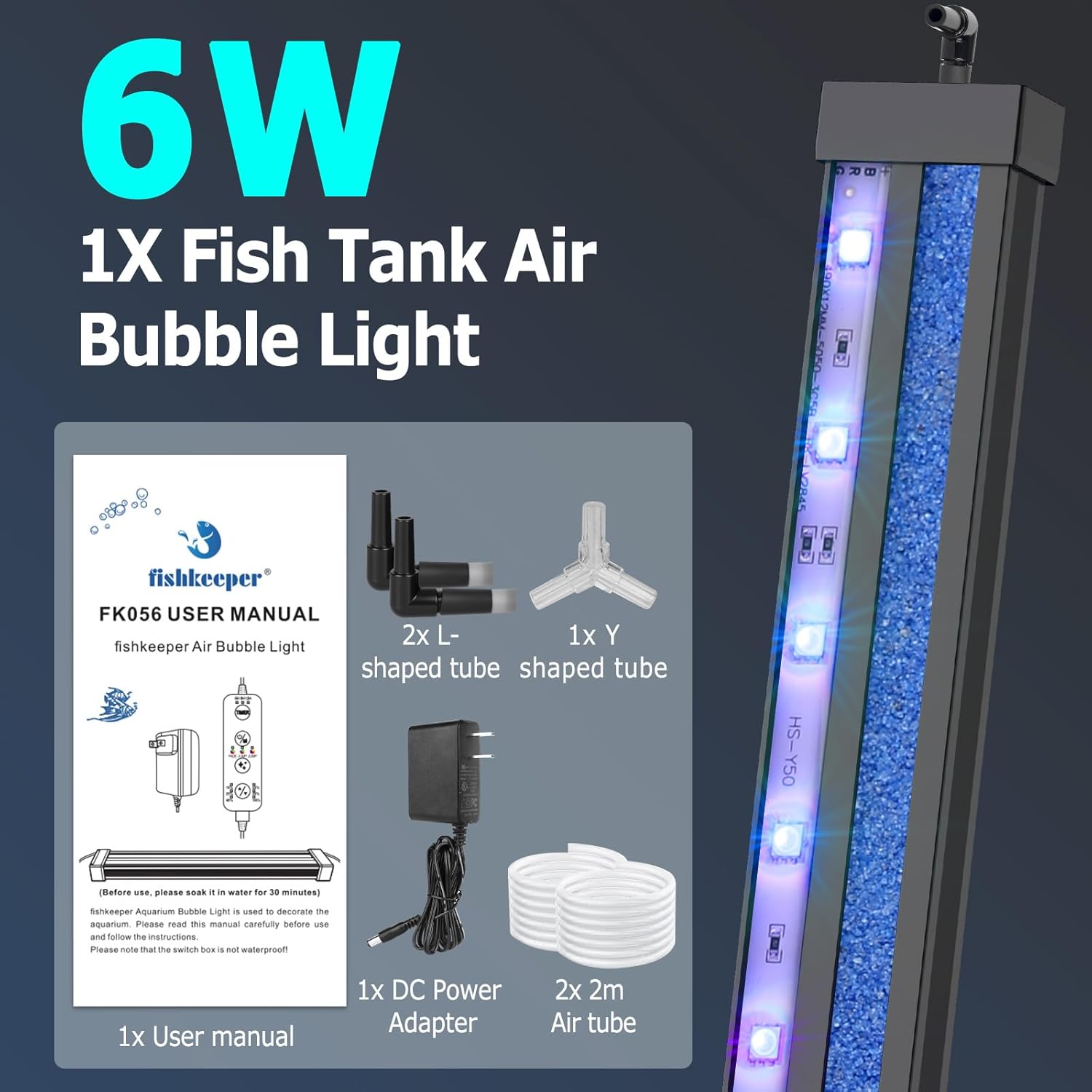

Contents of the fishkeeper 6W Fish Tank Air Bubble Light package, including the light bar, user manual, power adapter, air tubes, and connectors.

Image: Contents of the fishkeeper 6W Fish Tank Air Bubble Light package.

Konfigurazio Argibideak

Follow these steps for proper installation and initial use of your aquarium bubble light.

Initial Soak: Before first use, soak the fish tank LED light air bubbler in water for 2 hours. This prepares the air stone for optimal bubble production.
Aire-hodia konektatu: Connect the provided air tubing to both L-ports of the bubble light.
Connect to Air Pump: Connect the other end of the air tubing to an external air pump (not included). Ensure the air pump is rated 5W or higher for optimal performance. If using a Y-shaped connector, connect both air tubes from the light to the Y-connector, then a single tube from the Y-connector to the air pump.
Position in Tank: Place the bubble light flat on the bottom of your fish tank. Its self-sinking design eliminates the need for suction cups.
Potentzia-konexioa: Connect the DC power adapter to the light and then plug it into a power outlet.

Ohar garrantzitsua:

An air pump is required for bubble generation and is not included with this product.
If the air pump is placed below the water level of the tank, a check valve (not included) must be used to prevent water backflow into the pump.

Diagram showing how to set up the aquarium bubble light, connecting it to an air pump and placing it in the tank.

Image: Setup diagram for the fishkeeper Aquarium Bubble Light.

Four steps illustrating the 'Before Use' process: soaking the light, connecting to an air pump, laying it flat in the tank, and showing the 4mm air intake hole.

Image: Detailed steps for preparing and installing the light.

Video: Demonstrates the installation process of the fishkeeper Fish Tank Bubbler with Lights.

Funtzionamendu-argibideak

The fishkeeper aquarium bubble light features a wired multi-function controller for easy adjustments.

Power and Color Selection

Power On/Change Color: Short press the power/mode button (labeled with a power symbol and 'M') to turn on the light or cycle through the 9 single-color modes.
Itzali: Press and hold the power/mode button to turn off the light.
Eskuragarri dauden koloreak: Red, Blue, Green, Orange, Purple, Full Spectrum, Warm White, Cool White, and Green-White.

Image of the multi-color light controller with 9 color options displayed in an aquarium setting.

Image: Multi-Color Light (9 Colors) with Power Switch controller overview.

Distira doitzea

Adjust brightness in 6 levels: 10%, 25%, 40%, 65%, 85%, and 100%.
Use the brightness control buttons (up/down arrows with percentage labels) on the controller.
Note: Brightness cannot be adjusted when in cycling modes.

Image showing the controller with 3 timer settings and 6 brightness levels, demonstrating the visual effect of different brightness percentages in an aquarium.

Image: 3 Timer Settings & 6 Brightness Levels on the controller.

Color Cycling Modes

Press the cycle button (labeled with a circular arrow and 'FADE JUMP JUMP') to switch between three unique cycling modes:

Cycle 1 (Fade): Smooth, gradual transitions across 11 colors for a soft and dreamy effect.
Cycle 2 (Jump): Dynamic jumps between 9 distinct colors for a lively and colorful show.
Cycle 3 (Jump): Classic red, green, and blue jumps for a timeless and bold look.

Diagram illustrating three color cycle modes: a full color wheel, a 7-color cycle, and a 3-color cycle, with the controller shown.

Image: Color Cycle Mode for Various Decorative Needs.

Tenporizadorearen ezarpenak

The light features 3 preset timer options for automatic operation:

Aukeratu 6, 9 edo 12 ordu.
The light will automatically turn on and off at the same time daily.
Includes 5-minute buffer periods at the start and end of the cycle for a smooth transition.

Diagram showing the timer settings on the controller and a graph illustrating the 5-minute buffer periods at the start and end of the timed operation.

Image: Timer Settings 6H-9H-12H explanation.

Video: Demonstrates the color cycling, brightness adjustment, and timer functions of the fishkeeper Fish Tank Bubbler with Lights.

Mantentzea

Regular maintenance ensures optimal performance and longevity of your fishkeeper aquarium bubble light.

Garbiketa: Periodically clean the light bar and air stone to prevent algae buildup and maintain efficient bubble production. Use a soft brush or cloth and aquarium-safe cleaning solutions if necessary.
Air Stone Performance: If bubble production decreases, ensure the air pump is functioning correctly and the air tubing is free of kinks. The initial 2-hour soak before each use is recommended for optimal bubble effect.
Kableen ikuskapena: Regularly check the power cable and controller for any signs of damage. Discontinue use if damage is found.

Arazoak konpontzea

If you encounter issues with your fishkeeper aquarium bubble light, refer to the following common solutions:

Burbuilarik ez:
- Ensure the air pump is connected and powered on.
- Check for kinks or blockages in the air tubing.
- Verify the air stone is properly soaked (2 hours recommended before each use).
- Confirm the air pump wattage meets the minimum requirement (5W or higher).
No Light/Light Flickering:
- Check if the power adapter is securely connected to both the light and the power outlet.
- Ziurtatu korronte-hartunea funtzionala dela.
- Press the power/mode button on the controller to turn on the light.
- Ikuskatu elikatze-kablea kalterik ikusten den ikusteko.
Kontrolatzaileak ez du erantzuten:
- Ensure the controller cable is securely connected to the light.
- Verify the light is receiving power.
Brightness Not Adjustable in Cycle Mode:
- This is normal operation. Brightness adjustment is only available in single-color modes.

Zehaztapenak

Ezaugarri	Xehetasuna
Modelo zenbakia	FK056-6W
Boterea	6 Watt
Produktuaren neurriak	31.95"L x 3.35"Z x 2.6"A
Kolorea	Beltza
Materiala	Polibinilo kloruroa (PVC)
Argi iturri mota	Argi-igorle-diodoa (LED)
Bonbillaren ezaugarriak	Color-changing, adjustable brightness, cycling modes
Muntatze Mota	Submersible (Self-sinking)
Iragazgaitzaren balorazioa	IP68 (Argi-barra bakarrik)
Energia iturria	Kable elektrikoa
Elementuaren pisua	1.9 kilo
Aplikagarria den deposituaren tamaina	Ideal for 34"+ fish tanks

Product specifications table and diagrams showing different wattage models and their corresponding lengths.

Image: Product Specs table and size variations.

Segurtasun Informazioa

The light bar is IP68 waterproof and designed for submersible use.
WARNING: The controller is NOT waterproof. Do not immerse the controller in water.
Always unplug the device from the power outlet before performing any maintenance or cleaning.
Ensure your hands are dry when handling the power adapter and controller.
Mantendu haurren eskura.
Ez saiatu produktua zeuk aldatzen edo konpontzen. Jarri harremanetan bezeroarentzako arreta-zerbitzuarekin laguntza jasotzeko.

Warning image stating 'IP68 Waterproof' for the light, but explicitly warning that the 'Controller is not waterproof. Do not immerse in water'.

Image: IP68 Waterproof rating and controller warning.

Bermea eta Laguntza

For warranty information, technical support, or any questions regarding your fishkeeper product, please refer to the contact details provided on the product packaging or visit the official fishkeeper webgunea. Gorde erosketaren egiaztagiria bermearen erreklamazioetarako.
