K&F CONCEPT KF-V99 Pro 99Wh V-Mount Battery

1. Sarrera

This manual provides detailed instructions for the safe and efficient use of your K&F CONCEPT KF-V99 Pro 99Wh V-Mount Battery. This high-capacity battery is designed to power professional cameras, camcorders, monitors, video lights, and other compatible devices, offering versatile connectivity and fast charging capabilities.

Image: The K&F CONCEPT KF-V99 Pro 99Wh V-Mount Battery.

2. Zer dago kutxan

Egiaztatu elementu guztiak zure paketean daudela:

• 1 x K&F CONCEPT V99 Pro V Mount Battery
• 1 x 240W USB-C Charging Cable (39.3")
• 1 x Erabiltzailearen eskuliburua

Image: The K&F CONCEPT V-Mount Battery, 240W USB-C charging cable, and user manual, shown next to the product packaging.

3. Ezaugarri nagusiak

• Edukiera Handia eta Aireko Bidaia Egokia: 99Wh (14.8V/6700mAh) capacity, suitable for carry-on luggage on airplanes.
• Konexio aukera zabalak: Features two USB-C ports, one USB-A port, one DC (12V, 5.5x2.5mm) port, and one D-Tap port for powering various devices simultaneously.

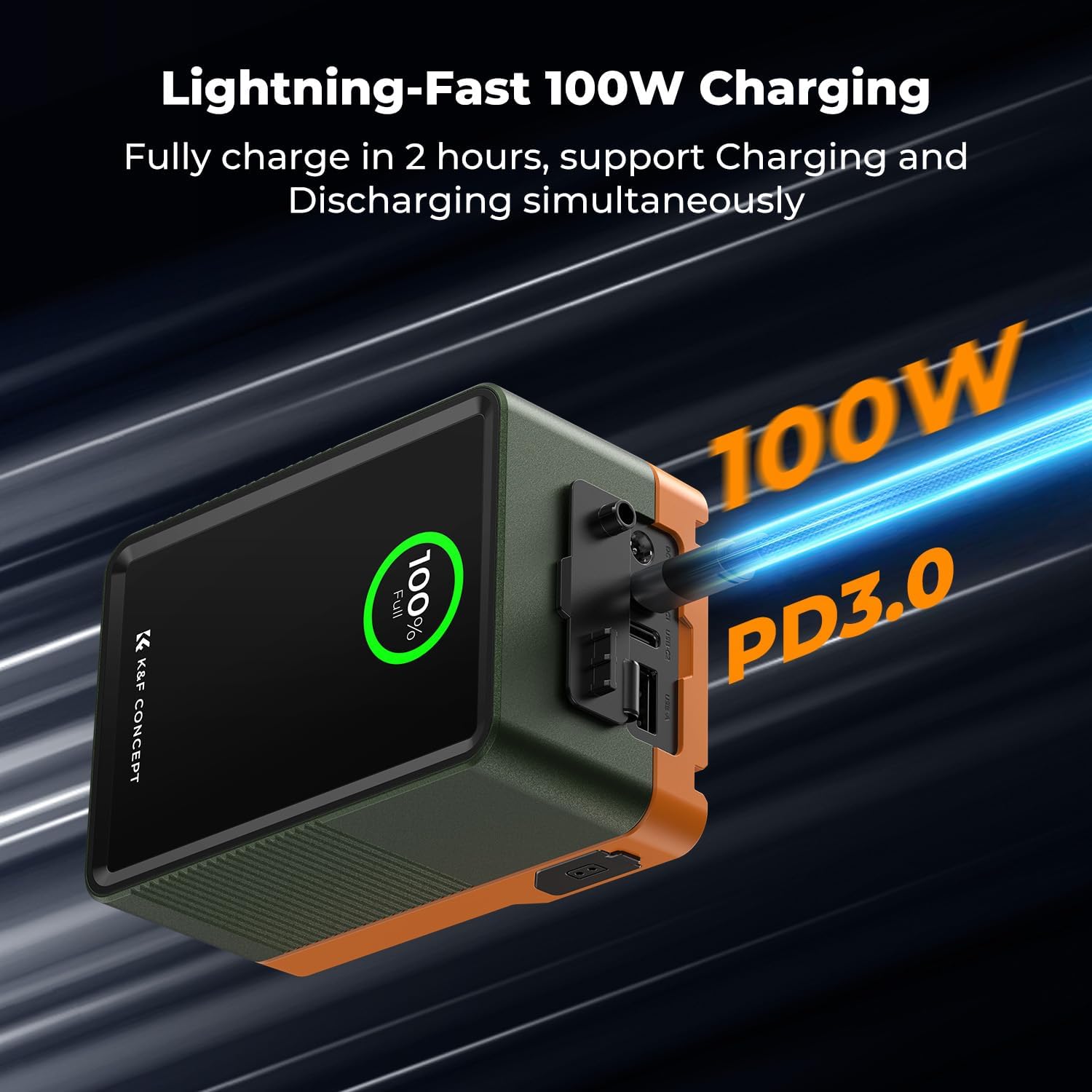

• 100W-ko bi norabideko PD kargatze azkarra: USB-C ports support 100W Power Delivery for rapid charging of the battery (approx. 2.5 hours) and efficient charging of laptops, smartphones, and other devices.
• Denbora errealeko TFT koloretako pantaila: A clear display shows the output power for each port and the overall battery status, aiding in effective power management.
• Robust Construction with Emergency Lighting: Constructed from durable aluminum alloy and fire-resistant PC with a scratch-resistant acrylic cover. Includes an emergency night light for low-light conditions.

4. Produktua amaitu daview

4.1 Portuak eta interfazeak

The KF-V99 Pro battery offers a variety of input and output ports for maximum compatibility:

• USB-C1: PD3.0 100W In/Out
• USB-C2: PD3.0 65W Out
• USB-A: Max 24W Out
• DC: 12V Out (5.5x2.5mm)
• D-Tap: 7A In; 16.8V 12A (Max) Out
• PO: 7A In; 16.8V 12A (Max) Out

Image: Detailed diagram highlighting the various input and output ports on the K&F CONCEPT V-Mount Battery.

4.2 TFT Color Display

The integrated TFT color display provides real-time information on the battery's status, including:

• Total Distribution of Power (TDP)
• Kargatzearen egoera
• Real-time Battery Level (percentage)
• Individual port output/input voltage eta wattage

Image: The K&F CONCEPT V-Mount Battery's TFT display showing battery percentage and power distribution across ports.

5. Bateria kargatzea

The KF-V99 Pro battery can be charged using its USB-C1 port or a D-Tap charger.

1. Connect the provided 240W USB-C charging cable to the USB-C1 port on the battery.
2. Connect the other end of the USB-C cable to a compatible PD100W or higher power adapter (not included).
3. The TFT display will indicate the charging status and current battery level. A full charge takes approximately 2.5 hours with a 100W PD adapter.

Alternatively, use a D-Tap charger (not included) connected to the D-Tap port for charging.

Image: The K&F CONCEPT V-Mount Battery providing 100W output, charging both a laptop and a camera.

6. Funtzionamendu-argibideak

6.1 Piztu/Itzaltzea

• To power on the battery and activate the TFT display, press the power button located on the side.
• Itzatzeko, eduki sakatuta pizteko botoia pantaila itzali arte.

6.2 Gailuak konektatzea

Connect your camera, monitor, video light, or other compatible devices to the appropriate output ports (USB-C, USB-A, DC, D-Tap) on the battery. The battery can power multiple devices simultaneously.

Image: The K&F CONCEPT V-Mount Battery mounted on a camera rig, demonstrating its use in a professional setup.

6.3 Emergency Light Function

The battery includes an emergency light. To activate or deactivate it, refer to the specific instructions in the included user manual or press the designated button if available.

Video: A demonstration of the K&F CONCEPT V-Mount Battery's ports and display, showing how to connect and power various devices like a label maker, e-reader, and game controller.

7. Segurtasun informazioa

Please read and follow these safety guidelines to ensure proper operation and prevent damage or injury:

• Do not disassemble, modify, or attempt to repair the battery.
• Avoid exposing the battery to extreme temperatures, direct sunlight, or fire.
• Keep the battery away from water and other liquids.
• Erabili kargatzeko kable eta egokitzaile bateragarriak soilik.
• Gorde bateria leku fresko eta lehor batean erabiltzen ez duzunean.
• The built-in BMS (Battery Management System) provides protection against over-temperature, over-voltage, over-discharge, over-current, over-charging, and short-circuits.

Image: A visual representation of the K&F CONCEPT V-Mount Battery's built-in safety features, including temperature, over-voltage, over-current, over-charging, short-circuit, and over-discharge protection.

8. Zehaztapenak

9. Arazoak

If you encounter issues with your KF-V99 Pro battery, consider the following:

• Bateria ez da kargatzen: Ensure the charging cable is securely connected to both the battery's USB-C1 port and a compatible power adapter. Verify the power adapter is functioning correctly.
• Gailua ez da pizten: Check that the battery is sufficiently charged. Ensure the device is correctly connected to the appropriate output port on the battery. Confirm the device's power requirements are within the battery's output capabilities.
• Pantaila ez dabil: Press the power button to activate the display. If it remains unresponsive, the battery may be fully discharged or require a reset (disconnect all cables and reconnect after a few minutes).

10. Bermea eta Laguntza

For warranty information, technical support, or service inquiries, please refer to the official K&F CONCEPT webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzura. Gorde erosketa-agiria berme-erreklamazioetarako.
