1. Sarrera
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ZVLHZYUL Draft Fan Blower Replacement for Dayton Model 1TDR3 PSC. This blower is designed as a direct replacement for Dayton Model 1TDR3 PSC, 4C447, operating at 115 Volts and providing 273 CFM. Please read this manual thoroughly before attempting to install or operate the unit.

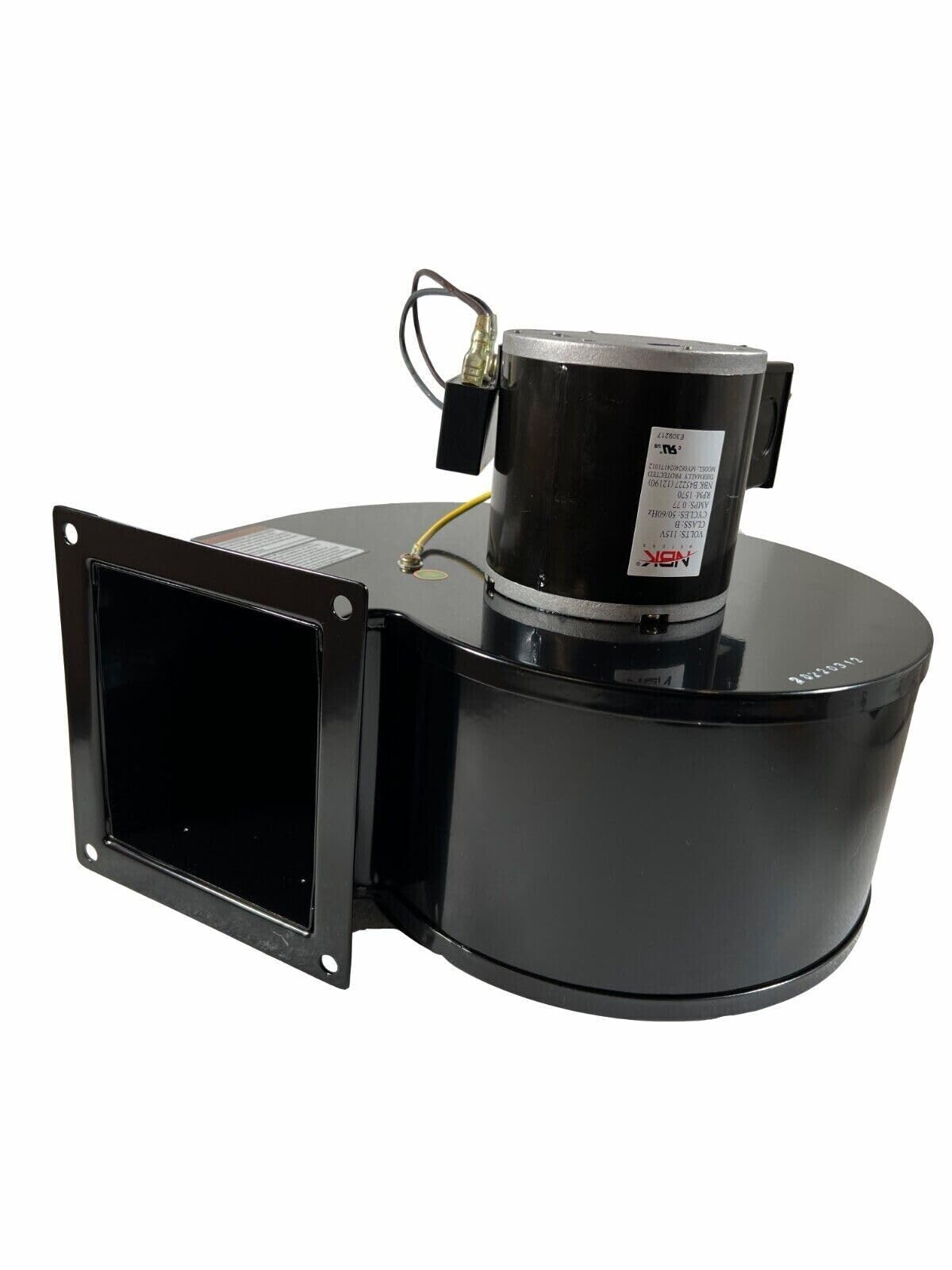

Figure 1: ZVLHZYUL Draft Fan Blower Replacement. This image shows the complete blower unit with its housing and motor.
2. Segurtasun informazioa
OHARRA: Sutea, deskarga elektrikoa edo pertsonei lesio arriskua murrizteko, kontuan hartu honako hau:
- Deskonektatu beti korrontea unitatea konpondu edo garbitu aurretik.
- Installation and wiring must be performed by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction.
- Erabili unitate hau fabrikatzaileak nahi duen moduan soilik. Galderarik baduzu, jarri harremanetan fabrikatzailearekin.
- Do not use this blower with any solid-state speed control device unless specifically approved by the manufacturer.
- Ziurtatu konexio elektriko guztiak ondo isolatuta eta seguruak direla.
- Keep hands and foreign objects away from the blower inlet and outlet during operation.
- Erabili babes pertsonaleko ekipamendu (BPE) egokia instalazioan eta mantentze-lanetan zehar.
3. Konfigurazioa eta instalazioa
- Potentzia deskonexioa: Before beginning installation, ensure that the power supply to the existing unit is completely disconnected at the circuit breaker or fuse box. Verify with a voltage probatzailea.
- Remove Old Blower: Carefully disconnect any wiring from the old blower. Note the wiring configuration for proper re-connection. Unbolt and remove the old blower unit from its mounting location.
- Ikuskatu muntaketa eremua: Clean the mounting surface and inspect for any damage or obstructions. Ensure the area is stable and capable of supporting the new blower.
- Mount New Blower: Position the ZVLHZYUL replacement blower in the designated mounting location. Secure it using appropriate bolts, screws, or mounting hardware. Ensure the blower is firmly attached and level.
- Konexio elektrikoa: Connect the electrical wiring to the new blower. Match the wiring configuration to the original setup. Typically, this involves connecting the live (hot), neutral, and ground wires. If unsure, consult a qualified electrician.
- Egiaztatu konexioak: Double-check all electrical connections for tightness and proper insulation. Ensure no bare wires are exposed.
- Berrezarri boterea: Once installation is complete and verified, restore power to the unit at the circuit breaker or fuse box.
4. Funtzionamendu-argibideak
The ZVLHZYUL Draft Fan Blower is designed for continuous operation within its specified parameters. Once properly installed and powered, the blower will activate according to the control system it is connected to (e.g., furnace control board, thermostat).
- Hasierako hasiera: After installation and power restoration, the blower should start automatically when a call for heat or air circulation is initiated by the connected system.
- Behatu eragiketa: During the first few minutes of operation, listen for any unusual noises or vibrations. If excessive noise or vibration occurs, immediately shut off power and re-check installation and mounting.
- Aire-fluxuaren egiaztapena: Verify that the blower is moving air effectively through the system.
Note: This blower is a component part and its operation is dictated by the primary appliance it serves. Refer to the primary appliance's manual for specific operational sequences.
5. Mantentzea
Regular maintenance ensures optimal performance and extends the lifespan of your blower. Always disconnect power before performing any maintenance.
- Urteko ikuskapena: At least once a year, inspect the blower for any signs of wear, damage, or loose connections.
- Garbiketa:
- Buldatzailea: Over time, dust and debris can accumulate on the impeller blades, reducing efficiency. Carefully clean the impeller blades using a soft brush or vacuum cleaner. Avoid bending or damaging the blades.
- Etxebizitza: Wipe down the exterior of the blower housing with a damp oihal.
- Motoreko errodamenduak: This blower features sealed bearings that typically do not require lubrication. Do not attempt to lubricate sealed bearings unless specifically instructed by the manufacturer.
- Kableatua: Check all wiring connections for corrosion or looseness. Tighten as necessary.
6. Arazoak
Before troubleshooting, always disconnect power to the unit.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Blower ez da martxan jartzen | Ez dago elikadura hornidurarik Kableatu konexio soltea Motor akastuna | Egiaztatu zirkuitu-hauslea/fusiblea Verify all electrical connections Jarri laguntzarekin ordezkatzeko |
| Gehiegizko zarata edo bibrazioa | Muntatzeko hardware solteak Hondakinak bultzadorean Damaged impeller/bearings | Estutu muntatzeko torlojuak Clean impeller blades Jarri harremanetan laguntzarekin ikuskapena/ordezkapena egiteko |
| Aire-fluxua murriztu | Paleta estalia Hodi-sareetan oztopoak | Clean impeller blades Hodiak egiaztatu eta garbitu |
7. Zehaztapenak
- Eredua: ZVLHZYUL Draft Fan Blower Replacement for Dayton Model 1TDR3 PSC
- liburukiatage: 115 Volt
- Aire-fluxua (CFM): 273
- Ordezkatzen du: Dayton Model 1TDR3 PSC, 4C447
- Fabrikatzailea: ZVLHZYUL
- ASIN: B0DV4GDM6B
8. Bermea eta Laguntza
For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase. Specific warranty terms may vary.
Laguntza gehiago lortzeko, erosketa puntuan edo produktuaren ontzian emandako harremanetarako informazioa kontsultatu.
