CURECURE FDP29-2025V1R3 Portable Air Conditioner Instruction Manual

1. Sarrera

Thank you for choosing the CURECURE FDP29-2025V1R3 Portable Air Conditioner. This 3-in-1 unit provides powerful cooling, efficient dehumidification, and effective fan functions, designed for comfort in various indoor environments such as living rooms, bedrooms, small rooms, studies, and offices.

With a 10,000 BTU cooling capacity, it quickly cools rooms up to 250 sq.ft. Key features include an adjustable air flow direction (130° up/down manual swing), a humanized sleep mode for quiet operation (as low as 56 dB), a 24-hour timer, a smart LED touch panel, and a remote control. For safety, a child lock feature is integrated. The unit also includes a drain plug and hose for easy water removal, and a window kit for simple installation in vertical or horizontal sliding windows (24.4"-48").

Image 1: The CURECURE Portable Air Conditioner in a modern living room setting, demonstrating its compact design and cooling capability.

2. Segurtasun informazio garrantzitsua

Mesedez, irakurri arretaz argibide guztiak tresna hau erabili aurretik. Gorde eskuliburu hau etorkizunean erreferentzia gisa.

• Ziurtatu elikadura hornidura bolumenarekin bat datorrelatagUnitatearen balorazio-etiketan zehaztuta dago.
• Ez erabili unitatea hondatutako kable edo entxufe batekin.
• Deskonektatu beti unitatea garbitu edo zaindu aurretik.
• Ez blokeatu aire-sarrerak edo irteerak. Mantendu gutxienez 30 cm-ko (12 hazbeteko) distantzia hormetatik eta beste objektuetatik.
• Do not use the unit in wet areas such as bathrooms or laundries.
• Keep children away from the appliance. The child lock feature helps prevent accidental changes to settings.
• Dispose of the unit properly in accordance with federal and local regulations for flammable refrigerants.

3. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela:

• 1 x CURECURE Portable Air Conditioner Unit
• 1 x Air Exhaust Duct
• 1 x Connector of Air Exhaust Duct
• 1 x Leihoko ihes-egokitzailea
• 1 x Remote Control (with 1 Lithium Metal battery included)
• 1 x Baffle Plate (Window Kit)
• 1 x Hustubide-hodia
• Argibide eskuliburua (dokumentu hau)

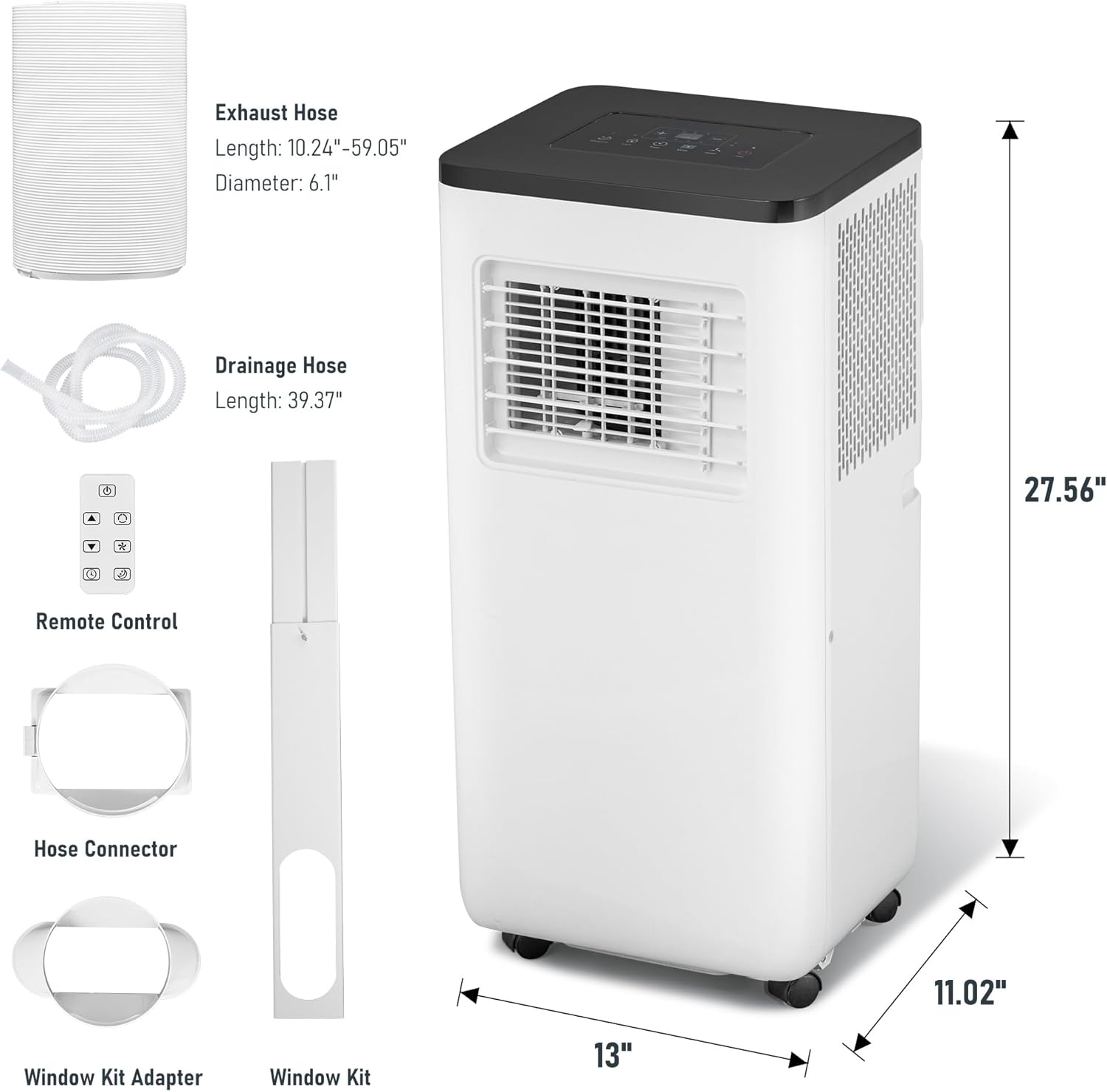

Image 2: Visual representation of the portable air conditioner unit, exhaust hose, drainage hose, remote control, hose connector, and window kit components.

4. Konfigurazio gida

Jarraitu urrats hauek zure aire girotu eramangarria konfiguratzeko:

1. Unitatea kokatzea: Place the air conditioner on a flat, stable surface near a window and a power outlet. Ensure there is at least 30 cm (12 inches) of space around the unit for proper airflow. The unit features four rolling casters for easy movement.
2. Ihes-hodia lotzea: Connect the air exhaust duct to the connector, then attach the connector to the exhaust outlet on the back of the air conditioner unit. Ensure a secure fit to prevent air leakage.
3. Leiho kitaren instalazioa: The included baffle plate (window kit) is designed for vertical or horizontal sliding windows with a size range of 24.4" to 48". Adjust the baffle plate to fit your window opening. Insert the window exhaust adapter into the opening of the baffle plate.
4. Connecting to Window: Extend the air exhaust duct and connect it to the window exhaust adapter. Ensure the hose is relatively straight to avoid blocking airflow, which can lead to overheating. Close the window securely against the baffle plate to seal the opening.
5. Potentzia-konexioa: Plug the unit into a standard 115 Volt electrical outlet.

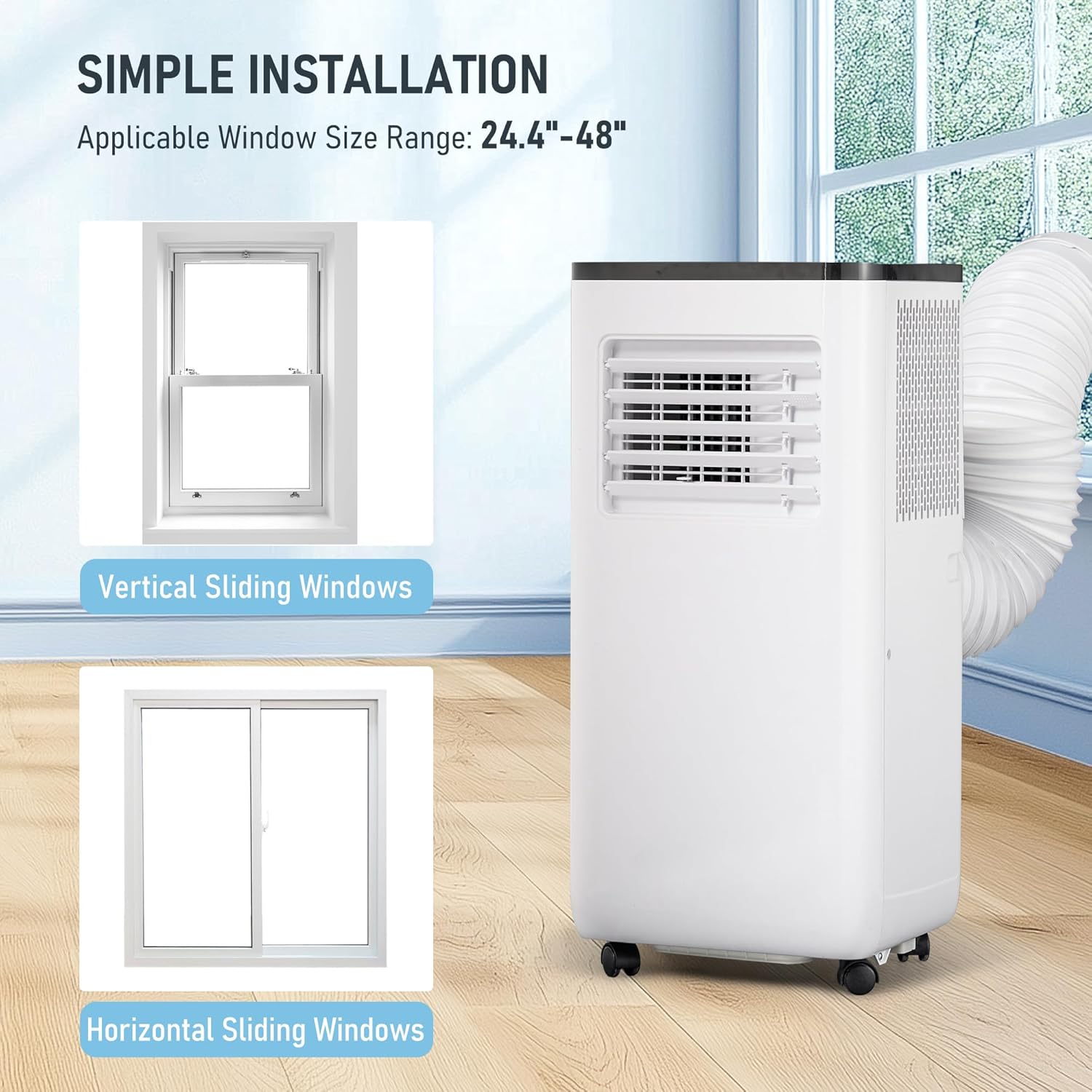

Image 3: Illustration of how to install the exhaust hose into the portable air conditioner and secure the window kit in both vertical and horizontal sliding windows.

5. Funtzionamendu-argibideak

Your CURECURE Portable Air Conditioner can be operated using the smart LED touch panel on the unit or the included remote control.

5.1 Kontrol-panela amaituview

4 irudia: Xehetasun zehatza view of the LED touch control panel, showing buttons for Sleep Mode, Child Lock, Timer, Modes, Speed, Power, and Swing.

• Pizteko botoia: Unitatea pizten edo itzaltzen du.
• Modu botoia: Hozte, Hezetasun-kentzaile eta Haizagailu moduen artean txandakatzen da.
• Tenperatura doikuntza (+/-): Increases or decreases the desired temperature. Press '+' and '-' simultaneously to switch between Fahrenheit and Celsius.
• Abiadura botoia: Haizagailuaren abiadura doitzen du (Altua/Baxua).
• Tenporizadorearen botoia: 24 orduko tenporizadorea automatikoki pizteko/itzaltzeko ezartzen du.
• Lo egiteko modua: Activates sleep mode, where the temperature gradually increases by 1.8°F/1°C per hour for comfortable sleep and energy saving.
• Haurrentzako blokeoa: Engages or disengages the child lock to prevent unintended changes to settings.
• swing: Manually adjust the air flow direction (130° up/down).

5.2 Funtzionamendu moduak

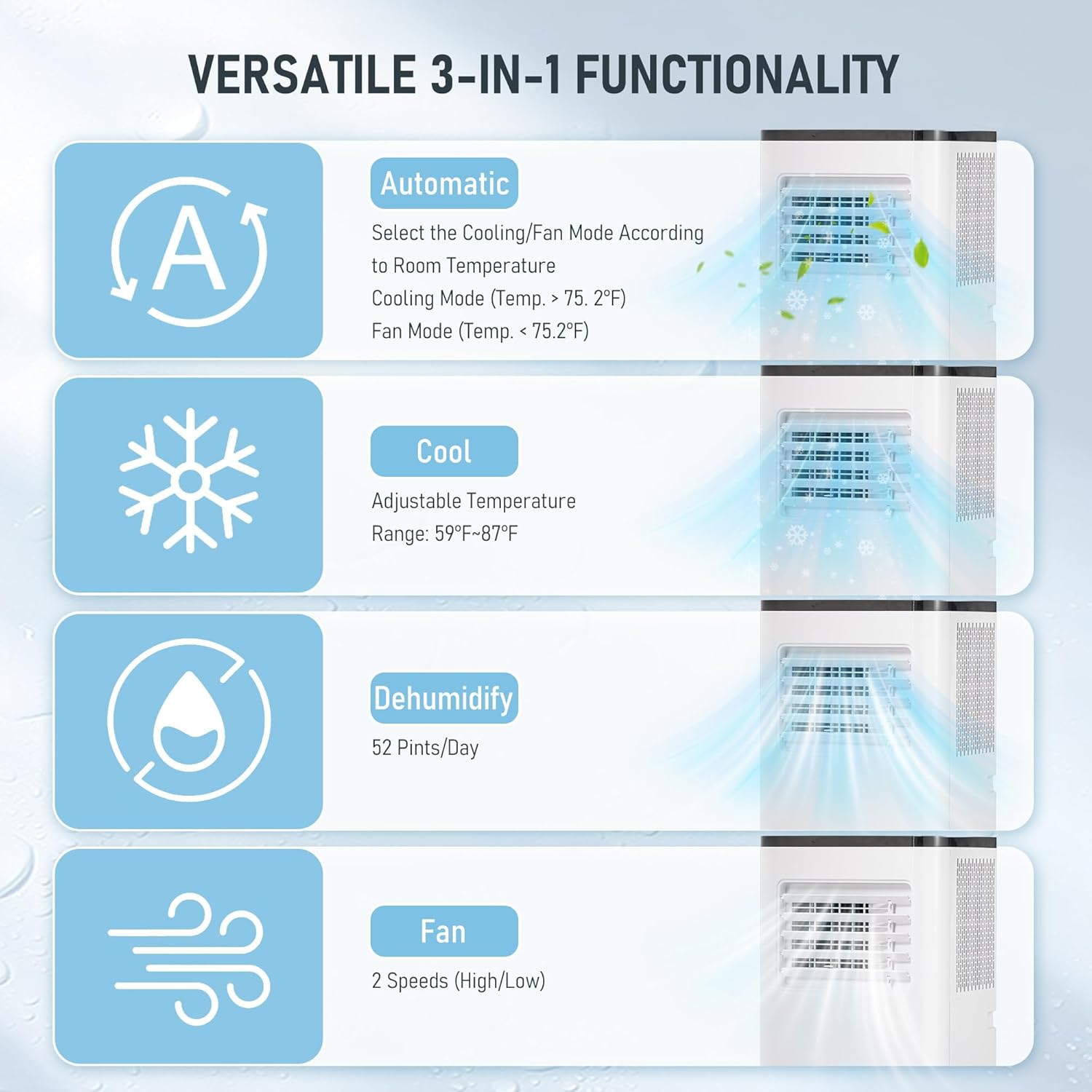

Image 5: Visual explanation of the unit's versatile 3-in-1 functionality, including Automatic, Cool, Dehumidify, and Fan modes with their respective functions.

• Hozte modua: Provides powerful cooling with an adjustable temperature range of 59°F-87°F (15°C-30°C).
• Deshezegailu modua: Removes up to 51 pints of moisture per day, reducing humidity in the room.
• Fan modua: Circulates air with two-speed settings (High/Low) for ventilation without cooling.
• Modu automatikoa: Selects either cooling or fan mode based on the room temperature.

5.3 Lo modua

Activate Sleep Mode for a comfortable night's rest. In this mode, the set temperature will automatically increase by 1.8°F (1°C) per hour to prevent overcooling and save energy. The unit operates at a low noise level of 56 dB.

Image 6: A person sleeping comfortably in a bedroom with the portable air conditioner running in its quiet Sleep Mode.

6. Mantentzea

Mantentze-lan erregularrak zure aire girotuaren errendimendu optimoa eta iraupen luzea bermatzen ditu.

6.1 Aire-iragazkia garbitzea

The air filter should be cleaned regularly (at least once a month, or more frequently depending on usage and air quality) to maintain cooling efficiency and air quality.

1. Deskonektatu aire girotua entxufetik.
2. Aurkitu aire-iragazkiaren panela (normalean unitatearen atzealdean edo alboan).
3. Kendu iragazkia astiro-astiro tiratuz.
4. Garbitu iragazkia ur epel eta xaboitsuarekin. Garbitu ondo eta utzi airean guztiz lehortzen berriro sartu aurretik.
5. Reinsert the dry filter back into the unit and close the panel.

6.2 Drainatzea

The unit has a drain plug at the bottom for easy water removal, especially when operating in dehumidifier mode or before storing the unit. Connect the provided drain hose to the drain outlet and direct it to a suitable container or floor drain.

7. Arazoak

Aire girotuarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

8. Zehaztapenak

9. Bermea eta Laguntza

Bermea: The product comes with NO stated warranty. Please refer to your retailer's return policy for details on returns or replacements.

Fabrikatzailea: YIYOUYI

For further assistance or inquiries, please contact your point of purchase or refer to the contact information provided by the retailer.
