Electactic Countertop Ice Maker User Manual

Sarrera

Thank you for choosing the Electactic Countertop Ice Maker. This compact and portable ice machine is designed to provide fresh bullet-shaped ice cubes quickly and efficiently, making it ideal for home, office, camping, and parties. Please read this manual thoroughly before operation to ensure safe and optimal performance of your ice maker.

Segurtasun-argibide garrantzitsuak

Sute, deskarga elektriko edo lesio arriskua murrizteko, jarraitu beti oinarrizko segurtasun neurri hauek:

• Irakurri argibide guztiak aparatua erabili aurretik.
• Ez ukitu lurrungailua edo izotz kuboak izotz-makina martxan dagoenean.
• Ez murgildu kablea, entxufea edo unitatearen edozein atal uretan edo beste likido batzuetan.
• Gainbegiratzea beharrezkoa da aparaturen bat umeek edo umeen ondoan erabiltzen dutenean.
• Saihestu fabrikatzaileak gomendatzen ez dituen eranskinak erabiltzea.
• Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
• Ziurtatu tresna gainazal egonkor eta mailakatu batean jartzen dela, iraultzea saihesteko.
• Do not block any ventilation openings. Ensure adequate air circulation around the unit.
• Erabili ura edangarria soilik izotz-makina.
• Deskonektatu aparatua entxufetik erabiltzen ez duzunean eta garbitu aurretik.

Produktuaren osagaiak

Familiarize yourself with the parts of your Electactic Ice Maker:

1. irudia: The Electactic Countertop Ice Maker, showing its compact design, handle, and included ice basket and scoop.

• Estalki gardena: Aukera ematen dizu view the ice-making process and ice level without opening the unit.
• Kontrol-panela: Features indicator lights for "ADD WATER", "ICE FULL", and "POWER", along with an ON/OFF button.
• Izotz saskia: Removable basket for collecting and storing newly made ice cubes.
• Izotz-pilota: Included for convenient and hygienic ice retrieval.
• Ur biltegia: Internal tank for holding water for ice production.
• Hustuketa tapoia: Located at the bottom for easy water drainage during cleaning.

2. irudia: Xehetasuna view of the ice maker's simple operation panel, showing the "ADD WATER", "ICE FULL", and "POWER" indicator lights, and the ON/OFF button.

Konfigurazioa

1. Desegin: Kontu handiz atera izotz-makina bere ontzitik. Kendu ontziratzeko material guztiak, zinta edo babes-filma barne.
2. Lekua: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure there is at least 4 inches of space around the unit for proper ventilation.
3. Hasierako garbiketa: Before first use, clean the interior of the ice maker. Refer to the "Cleaning and Maintenance" section for detailed instructions.
4. Potentzia-konexioa: Entxufatu korronte-kablea lurreko hartune elektriko batean.

Funtzionamendu-argibideak

Operating your Electactic Ice Maker is a simple two-step process:

1. Gehitu ura: Open the lid and pour potable water into the water reservoir up to the MAX fill line. Do not overfill.
2. Izotz ekoizpena hasi: Close the lid and press the "ON/OFF" button on the control panel. The "POWER" indicator light will illuminate, and the ice maker will begin the ice-making cycle.

Izotz Ekoizpen Zikloa:

• The ice maker will produce 9 bullet-shaped ice cubes in approximately 6-8 minutes per cycle.
• The "ICE FULL" indicator light will illuminate when the ice basket is full, and the machine will automatically pause ice production. Remove ice to resume operation.
• The "ADD WATER" indicator light will illuminate when the water reservoir is low. Add more water and press the "ON/OFF" button to restart the cycle.

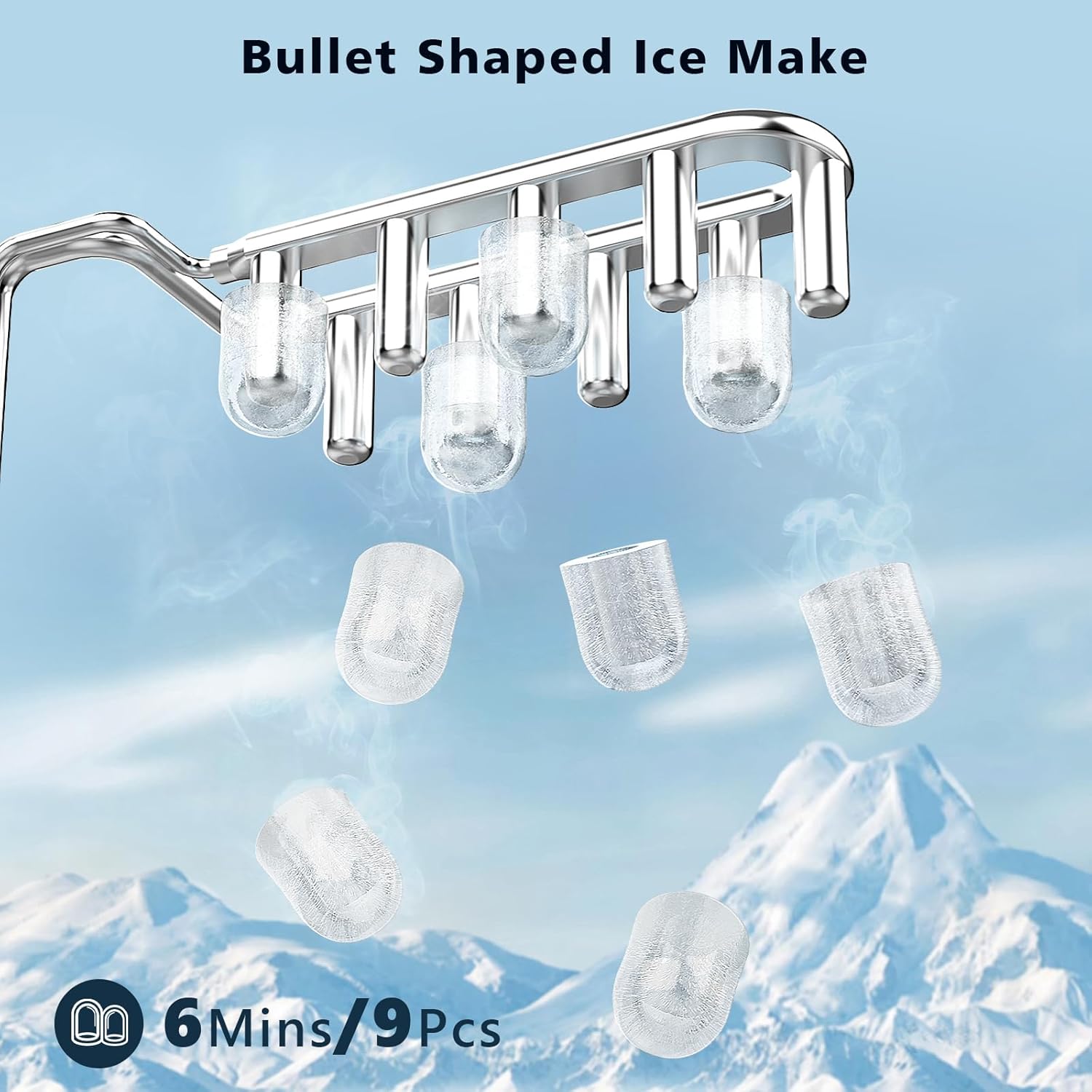

3. irudia: Illustration of the rapid ice production, showing ice cubes being dispensed into the basket.

4. irudia: Gertutik view of the bullet-shaped ice cubes produced by the machine.

The ice maker operates quietly, with noise levels below 45dB, making it suitable for various environments.

5. irudia: The ice maker's low noise operation, suitable for quiet environments.

Garbiketa eta Mantentze-lanak

Regular cleaning ensures hygienic ice production and extends the lifespan of your ice maker. This unit features a convenient self-cleaning function.

Autogarbiketa funtzioa:

1. Ziurtatu izotz-makina izotzik eta urik gabe dagoela.
2. Add clean water to the reservoir up to the MAX fill line.
3. Press and hold the "ON/OFF" button for 5 seconds. The machine will enter self-cleaning mode.
4. The cleaning cycle will run for approximately 20 minutes. Once complete, the machine will stop.
5. Drain the water by removing the drain plug at the bottom of the unit.
6. Rinse the interior with fresh water and drain again.

6. irudia: Barnekoa view illustrating the self-cleaning water circulation system.

Eskuzko garbiketa:

• Deskonektatu izotz-makina garbitu aurretik.
• Kendu izotz saskia.
• Garbitu barrualdea zapi leun batekin dampened with a mild detergent solution. Rinse thoroughly with clean water.
• Garbitu kanpoaldea leun batekin, damp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Ziurtatu pieza guztiak guztiz lehor daudela gorde edo berrerabili aurretik.

Arazoak konpontzea

Izotz-makinarekin arazorik baduzu, kontsultatu taula hau:

Zehaztapenak

7. irudia: Dimensions of the compact and space-saving ice maker.

Bermea eta Laguntza

Electactic products are manufactured to the highest quality standards. For warranty information or technical support, please refer to the product packaging or contact Electactic customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Electactic store or contact their customer support channels.

8. irudia: The portable design of the ice maker makes it suitable for various outdoor and indoor gatherings.
