Tekswamp Ordezko urrutiko agintearen erabiltzailearen eskuliburua

Sarrera

Eskuliburu honek zure Teksw-ren erabilera eta mantentze egokia egiteko argibideak ematen ditu.amp Replacement Remote Control. This remote is designed to function with various Onkyo audio system models, including A-807, A-809, TX-840, TX-840M, TX-860, TX-860M, TX-900, and TX-902. No additional programming is required for its operation.

The remote control provides most of the original commands for your device, ensuring core functionalities such as power on/off, menu navigation, and input signal selection are readily available. Please note that some specific functions, such as page flip, keystone correction, video adjustment, and number pad functions, may not work properly with all compatible devices in rare cases. This remote does not include a laser pointer function.

Produktua amaituview

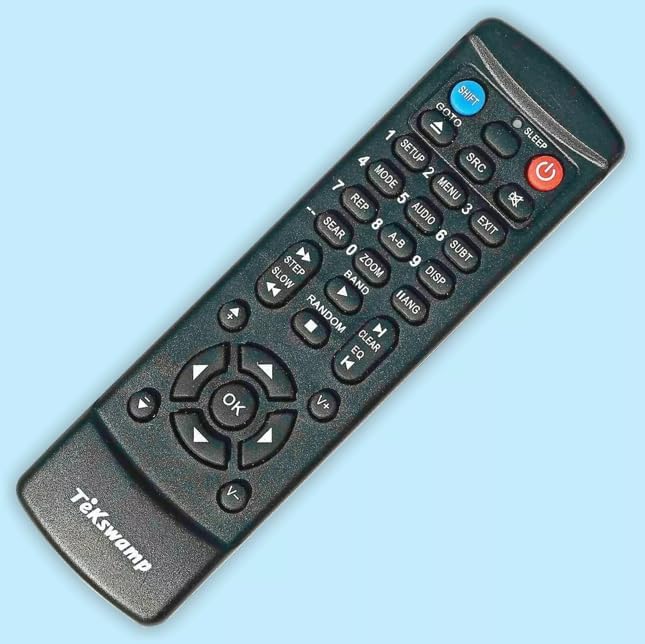

Image: Tekswamp Replacement Remote Control. This image displays the black remote control with various buttons for power, input selection, menu navigation, and numerical input, featuring the 'Tekswamp' logo at the bottom.

Teksw-aamp Replacement Remote Control features a compact, rectangular body with comfortable, easy-to-reach buttons. Its design prioritizes everyday usability and portability.

Ezaugarri nagusiak:

• Diseinu ergonomikoa: Comfortable, easy-to-reach buttons in a compact, rectangular body for convenient daily use and transportation.
• Energia-kontsumo baxua: The electrical circuit is designed for minimal power usage, allowing operation even when batteries are low.
• IR seinalearen adierazlea: An "ON" indicator light illuminates when any active button is pressed, confirming proper remote function and IR signal transmission.
• Eraikuntza iraunkorra: Plastiko sendo eta iraunkorrez egina, haustura saihesteko. Botoiak erosoak izateko diseinatuta daude, baina ez oso sentikorrak, ustekabeko seinaleak eta higadura saihestuz.
• Haurren aurkako babes-funtzioa: Includes a security screw to prevent unauthorized access to internal small parts, addressing potential choking hazards.

Konfigurazioa

Bateriaren instalazioa:

1. Kokatu bateriaren konpartimentuaren estalkia urrutiko agintearen atzealdean.
2. If present, loosen the security screw using a small screwdriver to open the battery compartment.
3. Insert two AAA batteries (not included) into the compartment, ensuring the correct polarity (+ and -) as indicated inside the compartment.
4. Replace the battery compartment cover and tighten the security screw if applicable.

Oharra: This remote control does not require any programming. It is ready for use once batteries are installed.

Funtzionamendu-argibideak

Point the remote control directly at the infrared receiver on your Onkyo audio system. Ensure there are no obstructions between the remote and the device.

Oinarrizko funtzioak:

• Boterea (⏻): Press the red power button to turn your Onkyo device on or off.
• Input Selection (SRC): Use the 'SRC' button to cycle through available input sources (e.g., CD, Tuner, AUX).
• Bolumenaren kontrola (V+, V-): Use the 'V+' button to increase volume and 'V-' to decrease volume.
• Mututu (🔇): Press the mute button to temporarily silence the audio. Press again to restore sound.
• Menu Navigation (Arrow buttons, OK): Use the directional arrow buttons (Up, Down, Left, Right) to navigate through menus. Press 'OK' to confirm selections.
• Irteera (EXIT): Press 'EXIT' to leave the current menu or screen.
• Numerical Input (0-9): Use the numbered buttons for direct input or channel selection where applicable.

Advanced Functions (Refer to your Onkyo device manual for specific functionality):

• KONFIGURAZIOA: Access the setup menu of your device.
• JARRAIBIDEAK: Aldatu funtzionamendu moduak.
• AUDIOA: Access audio settings.
• AZKIA: Subtitle control.
• REP: Errepikatu funtzioa.
• AB: AB errepikatu funtzioa.
• DISP: Bistaratu informazioa.
• ZOOM: Zoom function.
• GOTO: Go to specific time/track.
• SHIFT: Access secondary functions of buttons.
• LO: Ezarri lo egiteko tenporizadorea.
• URRATS/MOTEL: Step-by-step playback or slow motion.
• BANDA: Select radio band.
• AUSAZKOA: Random playback.
• GARBITU: Clear input or selection.
• EQ: Ekualizadorearen ezarpenak.

Mantentzea

• Garbiketa: Garbitu urrutiko agintea oihal leun eta lehor batekin. Ez erabili garbitzaile likidorik edo material urratzailerik.
• Bateria ordezkatzea: Replace batteries when the remote's response becomes sluggish or the "ON" indicator light fails to illuminate consistently. Always replace both batteries at the same time with new AAA batteries.
• Biltegiratzea: Urrutiko agintea denbora luzez erabiliko ez baduzu, kendu pilak isuriak eta kalteak saihesteko.
• Saihestu muturreko baldintzak: Do not expose the remote to direct sunlight, high temperatures, humidity, or water.

Arazoak konpontzea

Urruneko gailuak ez du erantzuten:

• Egiaztatu bateriak behar bezala sartuta dauden polaritate egokiarekin.
• Ordeztu bateriak AAA bateria berriekin.
• Ensure there are no obstructions between the remote control and the Onkyo device's infrared receiver.
• Confirm that the remote is pointed directly at the device.

Funtzio batzuk ez dira funtzionatzen:

• While this remote provides most original commands, some specific or advanced functions (e.g., page flip, keystone correction, video adjustment, certain number pad functions) may not be fully compatible with all Onkyo models. Refer to your original Onkyo device manual for specific button mappings.
• Ziurtatu nahi duzun funtziorako botoia zuzena sakatzen ari zarela.

"ON" indicator light does not illuminate:

• This indicates a battery issue. Replace the batteries.
• Ziurtatu bateriak behar bezala sartuta daudela.

Zehaztapenak

Bermea eta Laguntza

For warranty information or technical support, please refer to the seller's return policy or contact Tekswamp customer service directly through their official channels. The product is typically covered by a standard return policy, which may include a refund or replacement within a specified duration (e.g., 30 days).

Laguntza gehiago behar baduzu, bisitatu Tekswamp Denda Amazonen.
