imuto Rechargeable AA Lithium Batteries with Charger (Model AA833) - User Manual

Sarrera

Thank you for choosing the imuto Rechargeable AA Lithium Batteries with Charger. This manual provides essential information for the safe and efficient use of your new battery and charging system. Please read it thoroughly before operation.

Kutxan dagoena

• 8 Pack Rechargeable Lithium AA Batteries
• 8 Slots Lithium AA Batteries Charging Case

Konfigurazioa

Pilak kargatzea

The imuto charging case is designed for fast charging of 1 to 8 AA lithium batteries. Ensure you use a 5V/3A adapter for optimal quick charging performance.

1. Insert the imuto AA lithium batteries into the designated slots in the charging case.
2. Connect the charging case to a 5V/3A power adapter using the provided USB-C cable.
3. The LED indicators on the case will blink green to show that charging is in progress.
4. Once fully charged, the LED indicators will turn solid green. A full charge for 8 batteries takes approximately 2.5 hours.

Image: The imuto 8-slot charging case with batteries inserted and connected via USB-C for charging.

LED adierazleen egoera

• Berdea keinuka: Kargatzen ari da.
• Berde trinkoa: Bateriak guztiz kargatuta daude.
• Gorri keinuka: Battery is not compatible or improperly inserted.
• Stable Red: Over-temperature warning. Disconnect and allow to cool.

Over-Discharged Battery Re-activation

The charging case features a microcurrent function. A smart chip can identify and reactivate excessively discharged batteries by applying a gentle microcurrent, restoring them to a usable condition.

Funtzionamendua

1.5V konstante voltage Irteera

imuto 1.5V rechargeable AA lithium batteries provide a consistent and stable 1.5V voltage output throughout their discharge cycle. This offers a stronger energy output compared to 1.2V NiMH batteries, making them suitable for a wider range of devices.

Image: A comparison chart showing the stable 1.5V output of imuto lithium batteries versus the declining voltage of NiMH batteries over their discharge cycle.

Aplikazio polifazetikoak

These 3000mWh rechargeable AA lithium batteries are suitable for various household devices, including:

• Xbox kontrolagailuak
• VR controllers
• High-speed 4WD remote control cars
• LED linternak
• Larrialdi-argiak
• Camping lanterns
• Urruneko kontrolak

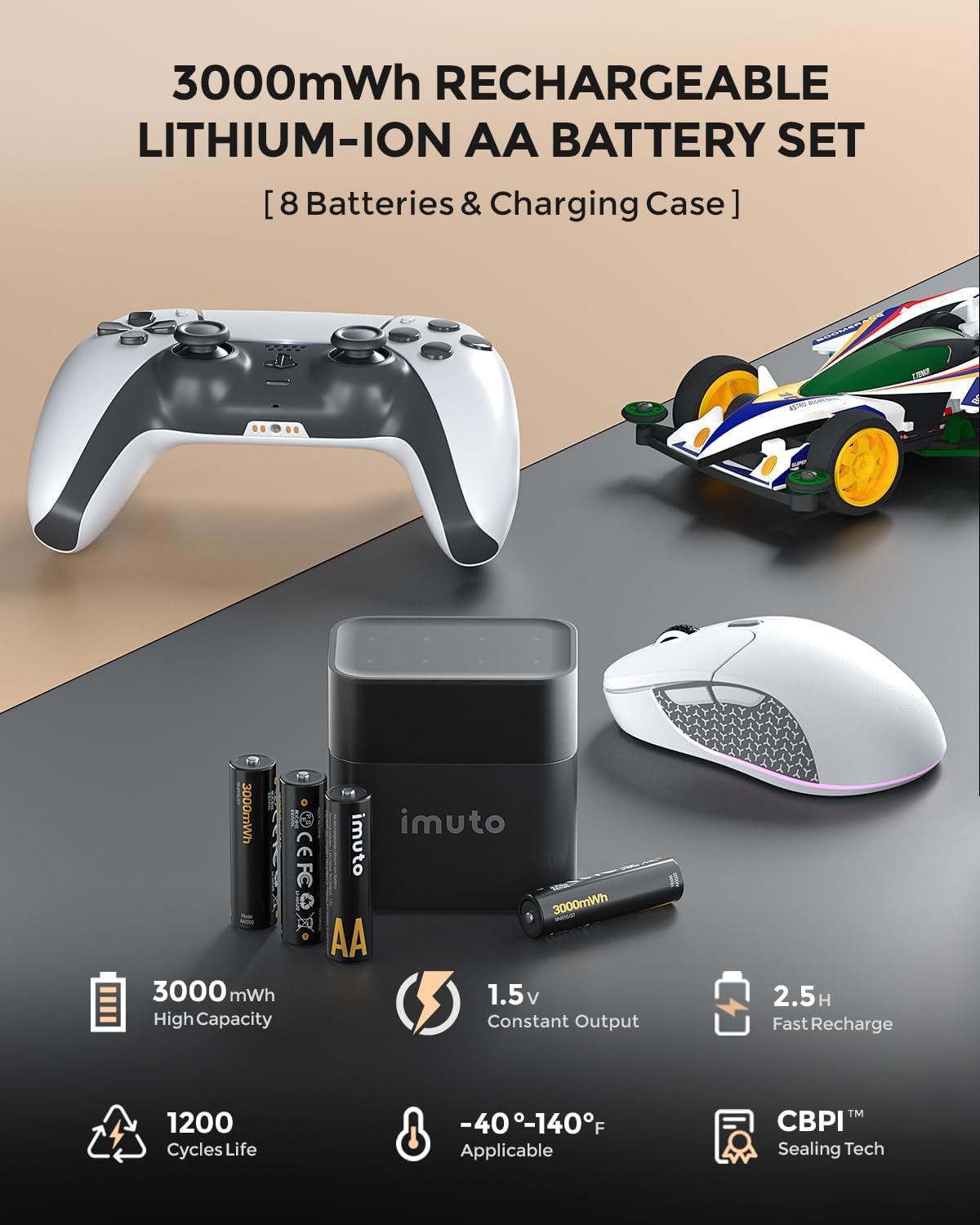

Image: An illustration showing imuto AA batteries being used in a game controller, a remote control car, and a computer mouse, highlighting their versatile applications.

Autodeskarga baxua

imuto rechargeable AA lithium-ion batteries have a lower self-discharge rate than NiMH batteries, allowing them to retain energy effectively over longer periods. This makes them ideal for devices used intermittently, as they maintain power supply between charges.

Image: A graph illustrating the low self-discharge rate of imuto lithium batteries compared to alkaline and NiMH batteries over time.

Excellent Temperature Adaptability

These batteries can operate reliably in a wide temperature range of -40°F to 140°F (-40°C to 60°C), offering superior performance compared to alkaline and NiMH batteries in extreme conditions.

Image: Visual representation of imuto batteries' ability to function across a broad temperature range, from -40°F to 140°F.

Mantentzea

Charging, Storage, and Protection

The imuto AA lithium battery charging case features a magnetic closure and independent battery slots. It serves not only for fast charging but also as a storage box, protecting batteries from moisture, dust, pressure, and splashes, making them easy to carry.

Image: A comparison showing the organized storage of imuto batteries in their charging case versus loose batteries in a drawer.

Bizitza Zikloa

imuto AA rechargeable lithium batteries offer a cycle life of up to 1600 charging cycles with no memory effect. This significantly reduces battery costs and environmental impact.

Image: A visual comparison highlighting the 1600+ cycle life of imuto rechargeable batteries against the single-use nature of alkaline batteries.

CBPI Sealing Technology

The batteries incorporate self-developed CBPI sealing technology, providing excellent leak-proof performance and improving battery space utilization by 15%. The materials used are environmentally conscious and free from harmful substances like lead, mercury, and cadmium.

Irudia: Leherketa bat view diagram detailing the internal structure of an imuto AA battery, emphasizing the CBPI sealing technology for safety and efficiency.

Arazoak konpontzea

If you encounter issues with your imuto batteries or charger, please refer to the following:

• Bateriak kargatzen ez dira: Ensure the charging cable is securely connected to both the case and a 5V/3A power adapter. Check if the LED indicators are blinking green. If a red blinking light appears, re-insert the battery correctly or check for compatibility.
• Gehiegizko tenperatura: If the LED indicator shows a stable red light, the charger is experiencing an over-temperature condition. Disconnect the charger from power and allow it to cool down in a well-ventilated area before attempting to charge again.
• Gailua ez da pizten: Ensure batteries are fully charged (solid green LED) and correctly inserted into your device with the correct polarity.
• Errendimendu murriztua: While imuto batteries have a long cycle life, performance may gradually decrease after many cycles. If performance is significantly reduced, consider replacing the batteries.

Zehaztapenak

Produktu Ofizialaren Bideoak

Bermea eta Laguntza

The imuto Rechargeable AA Lithium Batteries and Charger come with a 1 urteko fabrikatzailearen bermea. For any support or warranty claims, please contact imuto-Direct through their official channels or visit their store on Amazon.

Visit the official imuto Store: imuto denda
