Argibide eskuliburua

Sarrera

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Single Truss Arch Storage Shelter. Designed for durability and versatility, this shelter offers reliable protection for industrial, architectural, and recreational storage needs. Please read this manual thoroughly before beginning assembly or operation to ensure safe and correct usage.

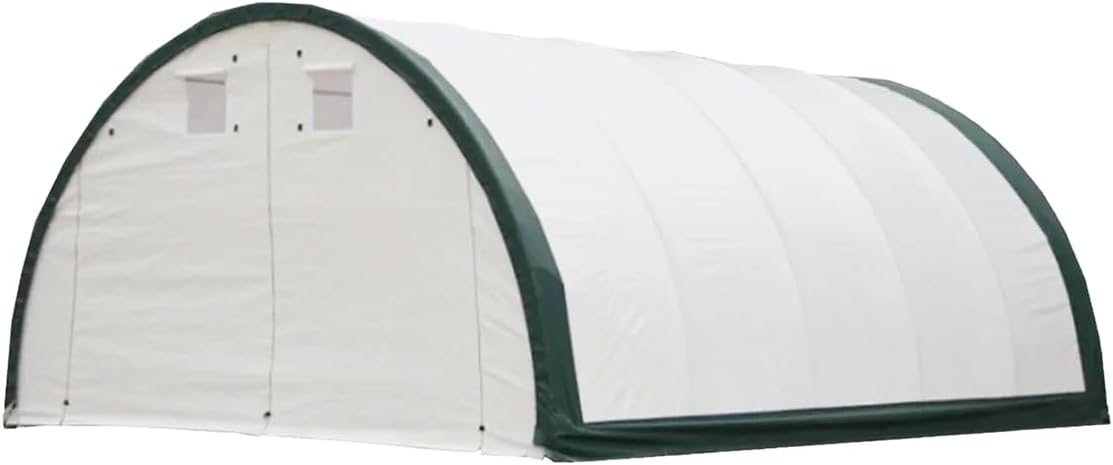

1 Irudia: Gainetikview of the Single Truss Arch Storage Shelter.

Segurtasun Informazioa

Adherence to safety guidelines is crucial during the assembly and use of this storage shelter. Failure to follow these instructions may result in injury or damage to the product.

• Gunearen hautaketa: Choose a level, well-drained site free from overhead obstructions (e.g., power lines, tree branches). Ensure adequate clearance around the shelter for assembly and access.
• Ainguraketa: Always securely anchor the shelter to the ground using appropriate methods for your soil type. Inadequate anchoring can lead to the shelter being lifted or damaged by strong winds.
• Eguraldi-baldintzak: Do not attempt assembly during high winds, heavy rain, or lightning. In areas prone to heavy snow, regularly remove snow accumulation from the roof to prevent collapse. The shelter is designed to withstand 42 lbs/ft² snow load and 50 mph wind load, but extreme conditions may require additional precautions.
• Erremintak eta ekipoak: Use appropriate safety gear, including gloves and eye protection, during assembly. Ensure all tools are in good working condition.
• Objektu zorrotzak: Keep the fabric cover away from sharp objects or abrasive surfaces to prevent tears or punctures.
• Aireztapena: While the shelter provides protection, ensure adequate ventilation if storing items that require air circulation or produce fumes.
• Haurrak eta maskotak: Mantendu haurrak eta maskotak muntaketa gunetik urrun.

Piezen zerrenda

Before beginning assembly, verify that all components are present and undamaged. Refer to the packing list included with your shipment for specific quantities. Typical components include:

• Alloy Steel Frame Components (Arches, Purlins, Base Plates, Connectors)
• 11oz PE Fabric Cover (Main Cover, Front Door Panel, Rear Panel)
• Anchoring Hardware (Ground Anchors, Ropes/Straps)
• Lotzeko elementuak (torlojuak, azkoinak, arandelak)
• Tensioning System Components

Konfigurazioa eta Muntaketa

Assembly typically requires two or more people. Follow these general steps. Refer to the detailed assembly diagrams provided in your packaging for precise instructions.

1. Gunea prestatu: Clear and level the chosen area. Ensure proper drainage.
2. Oinarrizko markoa muntatu: Lay out and connect the base rails according to the dimensions.
3. Construct the Arch Sections: Assemble individual arch sections by connecting the alloy steel frame components.
4. Erect the Arches: Carefully raise and secure the assembled arch sections to the base frame. Ensure they are plumb and evenly spaced.
5. Install Purlins: Konektatu orurlins (horizontal support beams) between the arch sections to create the rigid frame structure.
6. Drape the Main Cover: Carefully unroll and drape the 11oz PE fabric cover over the assembled frame. Ensure it is centered and aligned.
7. Secure and Tension the Cover: Attach the cover to the frame using the provided fasteners and tensioning system. Ensure the cover is taut and wrinkle-free to prevent water pooling and wind damage.
8. Instalatu muturreko panelak: Attach the front and rear end panels, including the door mechanism.
9. Aterpea ainguratu: Securely anchor the entire structure to the ground using the provided anchoring hardware. This is a critical step for stability.

2. irudia: Aurrealdea view of the shelter, illustrating the entrance and internal space.

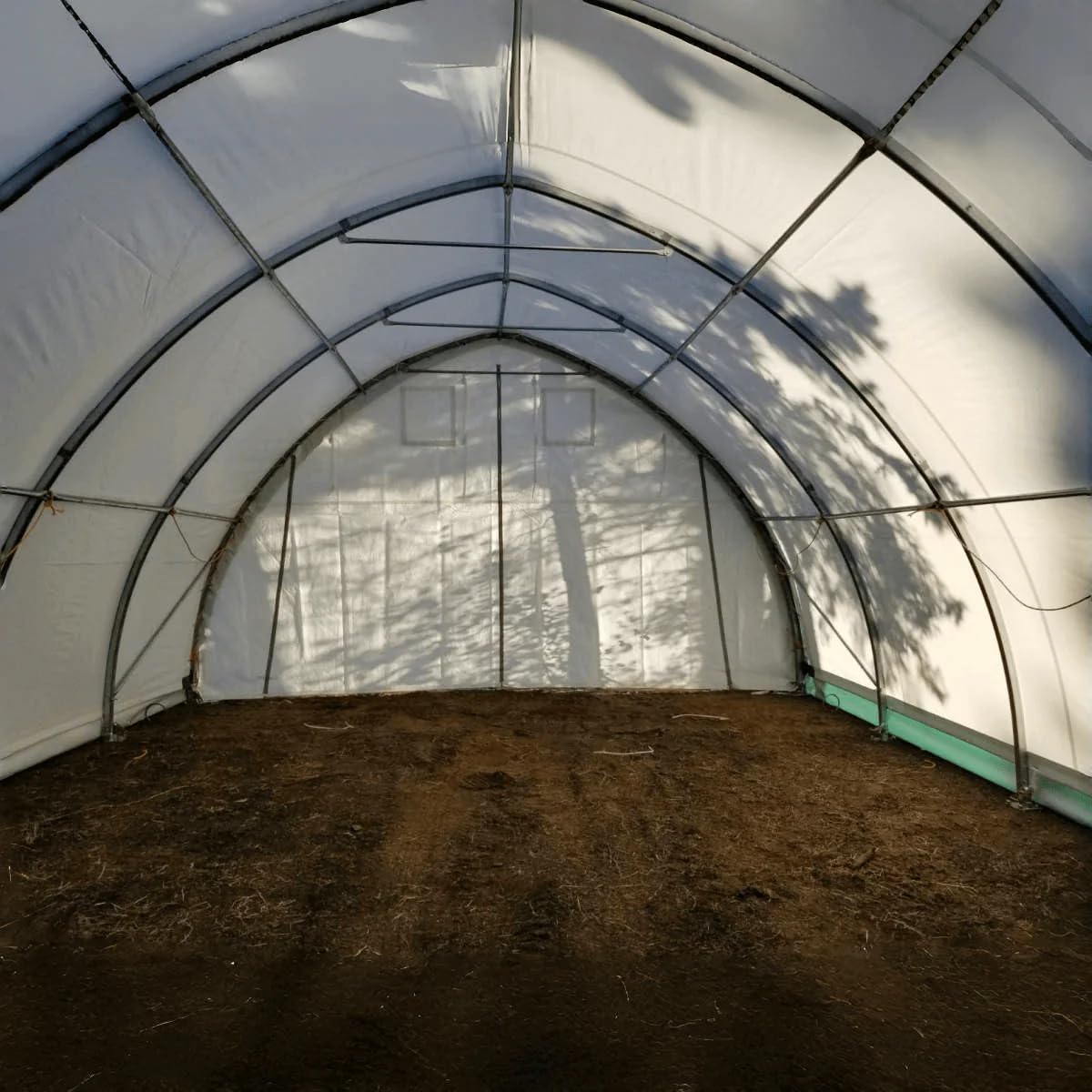

3. Irudia: Barrualdea view erakutsiasing the robust alloy steel truss frame construction.

Funtzionamendu-argibideak

Your storage shelter is designed for versatile use. To operate effectively:

• Sarbidea: Utilize the roll-up door mechanism for easy entry and exit of vehicles or equipment. Ensure the door is securely fastened when closed to protect contents.
• Aireztapena: The shelter features small windows or vents on the end panels. Open these as needed to facilitate air circulation and reduce condensation, especially in humid conditions.
• Biltegiratzea: Store items centrally within the shelter to maximize space and avoid contact with the fabric walls, which could cause wear or damage.

4. irudia: Aldea view of the shelter, demonstrating its full enclosure.

Mantentzea

Regular maintenance will extend the lifespan of your storage shelter.

• Ehunen garbiketa: Clean the PE fabric cover periodically with mild soap and water. Avoid harsh chemicals or abrasive brushes that could damage the UV-resistant coating. Rinse thoroughly.
• Markoaren ikuskapena: Annually inspect the alloy steel frame for any signs of rust, bending, or loose connections. Tighten all bolts and fasteners as needed.
• Ainguratze-egiaztapena: Regularly check the ground anchors for security, especially after strong winds or heavy rainfall. Re-tension ropes or straps if they become loose.
• Elurra kentzea: In snowy regions, promptly remove heavy snow accumulation from the roof to prevent excessive load on the structure. Use a soft broom or brush to avoid damaging the fabric.
• Konponketa: Promptly repair any small tears or punctures in the fabric cover using a suitable repair kit to prevent them from enlarging.

Arazoak konpontzea

Hona hemen aurki ditzakezun arazo ohikoen irtenbideak:

Zehaztapenak

Key specifications for your Single Truss Arch Storage Shelter:

• Eredua: W20'xL30'xH12' 11oz PE
• Produktuaren neurriak (L x W x H): 360 x 240 x 144 hazbete (30 oin x 20 oin x 12 oin)
• Markoaren materiala: Altzairu aleazioa
• Estalkiaren materiala: 11oz PE (Polyethylene) Fabric
• Cover Properties: Waterproof, Fire Retardant, UV Resistant
• Kolorea: White+Green
• Elurraren karga-ahalmena: 42 lb/oin²
• Wind Load Capacity: 50 mph
• Fabrikatzailea: AnhuaUSA

Figure 5: Dimensional diagram of the storage shelter.

Bermea eta Laguntza

For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt and product model information handy when contacting support.

Fabrikatzailea: AnhuaUSA
