Outsunny 15' x 10' Electric Retractable Awning User Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 15' x 10' Electric Retractable Awning. Designed for patios, decks, and outdoor living spaces, this motorized awning offers adjustable shade and UV protection with convenient remote control operation and a manual crank override.

The awning features a robust aluminum frame and a durable cream white polyester fabric with PU coating, engineered for longevity and resistance to sun fading and rust.

Image 1.1: The Outsunny 15' x 10' Electric Retractable Awning and its remote control.

Image 1.2: The awning providing shade over an outdoor dining area.

2. Segurtasun informazioa

Please read and understand all safety warnings and instructions before installation and operation. Failure to follow these instructions may result in property damage or personal injury.

• Ensure the awning is securely mounted to a solid structure capable of supporting its weight and the forces exerted by wind.
• Do not operate the awning in strong winds, heavy rain, or snow. Retract the awning fully during adverse weather conditions.
• Mantendu eskuak eta arropa solteak mugikorreko piezen aurka lanean ari den bitartean.
• Ez zintzilikatu objektuak toldoaren markotik edo oihaletik.
• Regularly inspect the awning for any signs of wear, damage, or loose fasteners. Address any issues promptly.
• Only use the provided remote control or hand crank for operation.

3. Konfigurazioa eta instalazioa

Assembly of the awning is required. The awning is designed for mounting on concrete or solid brick walls. Proper installation is crucial for safety and performance.

• Horma mota: Suitable for installation on concrete or solid brick walls only. Do not install on hollow walls or siding without proper reinforcement.
• Instalazioaren altuera: The wall height must be between 8.2 feet (2.5 meters) and 11.5 feet (3.5 meters) to properly accommodate the motorized awning.
• Sakea: Maintain a minimum clearance of 11.8 inches (30 cm) above doors or windows when mounting the awning.
• Beharrezko tresnak: Ensure you have all necessary tools for drilling, measuring, and securing the awning.
• Instalazio profesionala: If you are unsure about the installation process, it is recommended to seek professional assistance.

Image 3.1: Installation suggestions including required wall height and clearance.

4. Funtzionamendu-argibideak

Your Outsunny electric retractable awning offers dual operation modes for convenience and reliability.

4.1. Dual Operate Modes

You can extend or retract the awning using either the included remote control or the manual hand crank.

• Urruneko kontrola: Use the buttons on the remote to extend or retract the awning. Ensure the remote has fresh batteries and is within operational range.
• Eskuko biradera: Potentziaren kasuantage or remote malfunction, the 59.1-inch (150 cm) hand crank can be used to manually extend or retract the awning. Insert the crank into the designated slot and turn clockwise to extend, counter-clockwise to retract.

Image 4.1: The awning can be operated via remote control or manual hand crank.

4.2. Adjustable Shade Angle

The angle of the awning can be adjusted to optimize shading throughout the day, adapting to the sun's trajectory.

• The awning's angle can be modified between 45° and 85° from the wall.
• Refer to the installation guide for instructions on how to adjust the pitch of the awning arms.

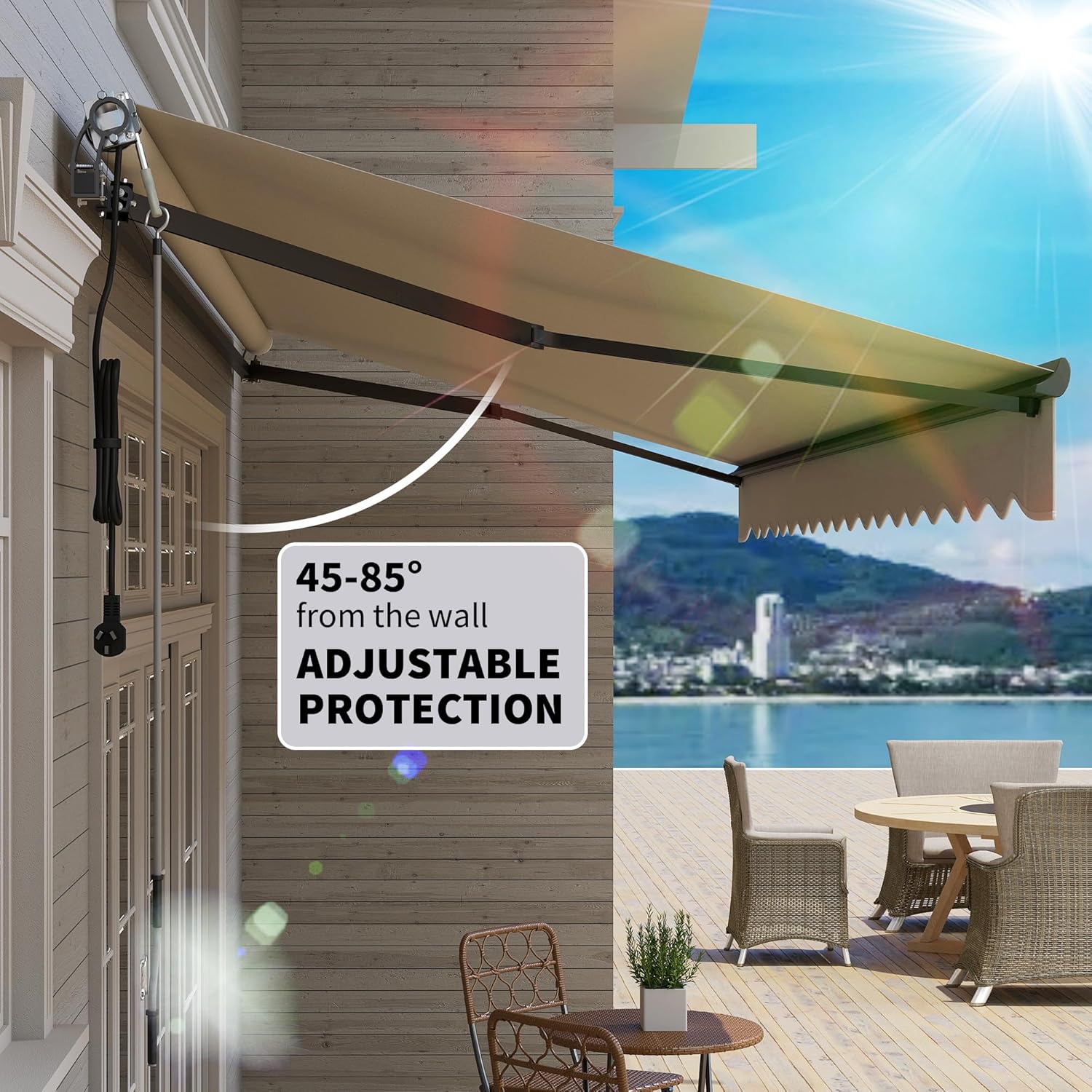

Image 4.2: The awning offers adjustable protection with an angle range of 45-85 degrees.

5. Mantentzea

Regular maintenance will ensure the longevity and optimal performance of your awning.

5.1. Ehunen zaintza

The awning fabric is made from 280G polyester with a PU coating, providing UV50+ protection and resistance to sun fading.

• Clean the fabric periodically with mild soap and water. Use a soft brush or cloth.
• Garbitu ondo ur garbiarekin xaboi hondakin guztiak kentzeko.
• Allow the fabric to dry completely before retracting the awning to prevent mildew.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the fabric and coating.

5.2. Markoaren zaintza

The robust aluminum frame is powder-coated to resist breakdown and rust.

• Garbitu aluminiozko markoa iragarkiarekinamp oihala zikinkeria eta hondakinak kentzeko.
• Inspect all bolts and fasteners regularly and tighten if necessary.
• Lubricate moving parts, such as the arm joints, annually with a silicone-based lubricant to ensure smooth operation.

Image 5.1: Details on the durable 280G polyester fabric with PU coating and the rust-resistant powder-coated aluminum frame.

6. Arazoak

If you encounter issues with your awning, refer to the following common troubleshooting tips:

• Awning not extending/retracting: Check power supply to the motor. Ensure the remote control batteries are not depleted. Try operating with the manual hand crank.
• Awning making unusual noises: Inspect for any obstructions in the arms or fabric path. Check if any fasteners are loose and tighten them. Lubricate moving parts if necessary.
• Fabric sagging or uneven: This may indicate an issue with the arm tension or fabric alignment. Consult the installation guide for adjustment procedures or contact customer support.
• Urruneko kontrola ez dabil: Replace batteries. Ensure there are no obstructions between the remote and the awning's receiver.

For persistent issues not resolved by these steps, please contact Outsunny customer support.

7. Zehaztapenak

Image 7.1: Detailed dimensions of the awning.

8. Bermea eta Laguntza

For warranty information or technical support, please contact Outsunny customer service. Keep your purchase receipt and model number handy for faster service.

Normalean fabrikatzailearen laguntza-harremanetarako informazioa aurki dezakezu webgunearen bidez edo produktua erosi zen dendariaren bidez.
