WOODBRIDGE Frameless Bathtub Shower Doors User Manual

Sarrera

Thank you for choosing the WOODBRIDGE Frameless Bathtub Shower Doors. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new shower door. Please read this manual thoroughly before beginning installation to ensure proper setup and long-lasting performance. Keep this manual for future reference.

Segurtasun Informazioa

• Erabili beti segurtasun-betaurrekoak instalazioan.
• Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
• Ensure all walls are plumb and at right angles for proper installation. This door does not allow for adjustment for out-of-plumb walls.
• Do not overtighten screws, as this may damage components or glass.
• Ensure the installation area is clean and dry before beginning.
• Instalazio prozesuaren edozein atalen inguruan ziur ez bazaude, kontsultatu profesional kualifikatu bati.

Paketearen edukia

Your WOODBRIDGE Frameless Bathtub Shower Door package includes the following components:

• 1 Ate lerragarria
• 1 Fixed panel
• Hardware pack (including large solid stainless steel rollers, pull handle, and other necessary fittings)
• Illustrated step-by-step guide

Oharra: Shower base and wall kit are NOT included. These must be purchased separately or already be present in your bathroom setup.

Zehaztapenak

Garrantzitsua: All measurements should be taken only after walls are finished (tile, back walls, etc.).

Konfigurazioa eta Instalazioa

This section outlines the general steps for installing your WOODBRIDGE Frameless Bathtub Shower Door. Refer to the detailed illustrated guide included in your package for precise measurements and specific hardware instructions.

Instalazio aurreko egiaztapen-zerrenda:

• Verify all package contents against the packing list.
• Ensure walls are finished (tiled, painted, etc.) and are plumb and square.
• Gather necessary tools (e.g., drill, level, measuring tape, silicone sealant).

Instalazio urratsak:

1. Neurtu eta markatu: Carefully measure your bathtub opening. Mark the positions for the wall profiles and top guide bar according to the provided diagram (Figure 2).
2. Instalatu Wall Profiles: Seguru horma profiles to the finished walls using appropriate fasteners. Ensure they are perfectly vertical.
3. Install Top Guide Bar: Attach the top guide bar. This bar can be trimmed up to 4 inches for width adjustment if needed.
4. Install Fixed Panel: Carefully place the fixed glass panel into its designated position within the wall profile eta ziurtatu.

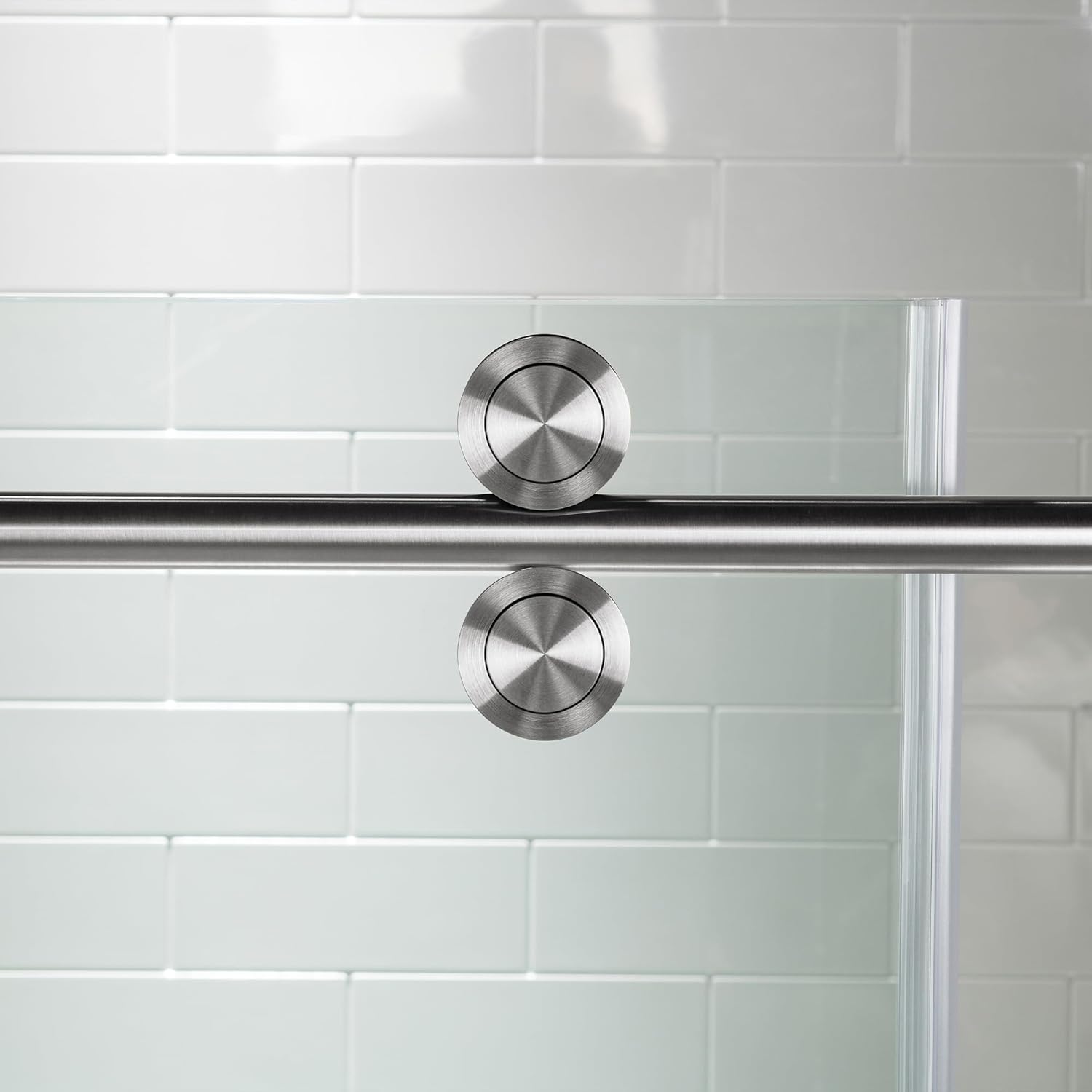

5. Attach Rollers to Sliding Door: Secure the large solid stainless steel rollers to the top edge of the sliding door panel.





6. Hang Sliding Door: Carefully hang the sliding door panel onto the top guide bar, ensuring the rollers engage smoothly with the track.
7. Install Pull Handle: Attach the pull handle to the sliding door.





8. Silikonazko zigilatzailea aplikatu: Apply a high-quality silicone sealant along the bottom and vertical edges where the fixed panel meets the wall and bathtub to ensure a watertight seal. Allow adequate drying time before use.

Instalazio alderantzikagarria: The shower door is designed for reversible installation, meaning it can be configured for either a left or right wall setup. The fixed panel is always positioned on the outside, regardless of the chosen configuration.

Important Note on Walls: The doors DO NOT allow for any adjustment for out of plumb walls. For proper installation, all walls must be at right angles and be plumb.

Funtzionamendu-argibideak

Your WOODBRIDGE Frameless Bathtub Shower Door is designed for smooth and effortless operation.

• Irekiera/Itxiera: Gently grasp the pull handle and slide the door along the top guide bar. The double rollers ensure a quiet and smooth motion.
• Uraren edukiontzia: The anti-splash threshold at the bottom is designed to prevent water spills outside the shower area. Ensure the door is fully closed during showering.

Mantentzea

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your shower door.

• Beira garbiketa: For daily cleaning, wipe the glass with a soft cloth or squeegee after each use to prevent water spots. For deeper cleaning, use a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage the finish.
• Hardwarearen garbiketa: Clean the brushed nickel hardware with a soft, damp cloth. Do not use abrasive cleaners, ammonia-based products, or scouring pads, as these can damage the finish. The EnduraClean finish is designed to resist rust, chips, and scratches.
• Arrabolen mantentze-lanak: Periodically check the rollers for any debris or buildup. Clean them gently to ensure continued smooth operation.
• Zigilatzaileen ikuskapena: Inspect the silicone sealant periodically for any signs of wear or mold. Reapply sealant if necessary to maintain a watertight seal.

Arazoak konpontzea

Dutxako atearekin arazorik baduzu, jo ezazu honako arazo eta irtenbide ohikoenei:

Bermea eta Laguntza

WOODBRIDGE stands behind the quality of its products.

• Bermea: Lifetime warranty on glass components and a 1-Year limited warranty on other hardware. Products are approved and meet the Massachusetts Plumbing & Gas Code.
• Bezeroarentzako arreta: For installation questions, warranty claims, or any other inquiries, please contact our dedicated customer service team.

Posta elektronikoa: help@woodbridgebath.com
Telefonoa: 562-229-0088

Our well-trained customer service team is always here to help with any question or inquiry.
