1. Sarrera
Thank you for choosing the Hazel 3-Drawer Side Table. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new furniture. Please read these instructions carefully before assembly and retain them for future reference.
The Hazel Side Table features a natural finish, splayed bracket feet, flute molding, and three drawers, including a felt-lined hidden space for valuables. It is constructed from solid pine wood and MDF with mindi veneers, complemented by pewter hardware and full extension metal glides for smooth drawer operation.
1.1. irudia: Aurrealdea view of the Hazel 3-Drawer Side Table.
2. Segurtasun informazioa
Produktuari kalterik edo lesiorik ez egiteko, jarraitu segurtasun neurri hauek:
- Irakurri argibide guztiak: Ensure you understand all assembly steps before beginning.
- Helduen batzarra behar da: Produktu hau helduek muntatu behar dute.
- Gainazal lauan erabili: Jarri beti mahaia gainazal lau eta egonkor batean, iraultzea saihesteko.
- Ez gehiegi kargatu: The top weight capacity is 220 LBS, and each drawer has a weight capacity of 90 LBS. Exceeding these limits may cause damage or injury.
- Mantendu pieza txikiak haurren eskura ez dauden lekuetan: During assembly, ensure all small parts are out of reach of children to prevent choking hazards.
- Check connections regularly: Periodically inspect all screws and fasteners to ensure they remain tight.
- Avoid climbing: Do not allow children to climb on or play with the furniture.
3. Paketearen edukia
Muntaketa hasi aurretik, egiaztatu pieza guztiak daudela eta kalterik gabe daudela. Pieza bat falta bada edo kaltetuta badago, ez jarraitu muntaketarekin eta jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
- Side Table Body (Pre-assembled)
- Hankak (4x)
- Drawer Knobs (6x)
- Assembly Hardware (Screws, Washers, Allen Wrench - if applicable)
Note: Specific hardware quantities may vary. Refer to the included hardware pack for exact counts.
4. Muntatzeko jarraibideak
The Hazel 3-Drawer Side Table requires minimal assembly, primarily attaching the legs and drawer knobs. It is recommended to assemble on a soft, clean surface to prevent scratching.
- Prepare the Table Body: Carefully unbox the main table body and place it upside down on a soft, protected surface (e.g., a blanket or carpet).
- Hankak erantsi: Locate the four legs and the corresponding attachment points on the underside of the table. Align each leg with its designated corner and secure it using the provided screws and an Allen wrench (if applicable). Ensure all legs are firmly tightened.
- Install Drawer Knobs: From the inside of each drawer, insert the knob screw through the pre-drilled hole. Attach the drawer knob to the screw on the outside of the drawer and tighten until secure. Repeat for all six knobs.
- Position the Table: Carefully turn the assembled table upright and place it in its desired location. Ensure it is stable and level.

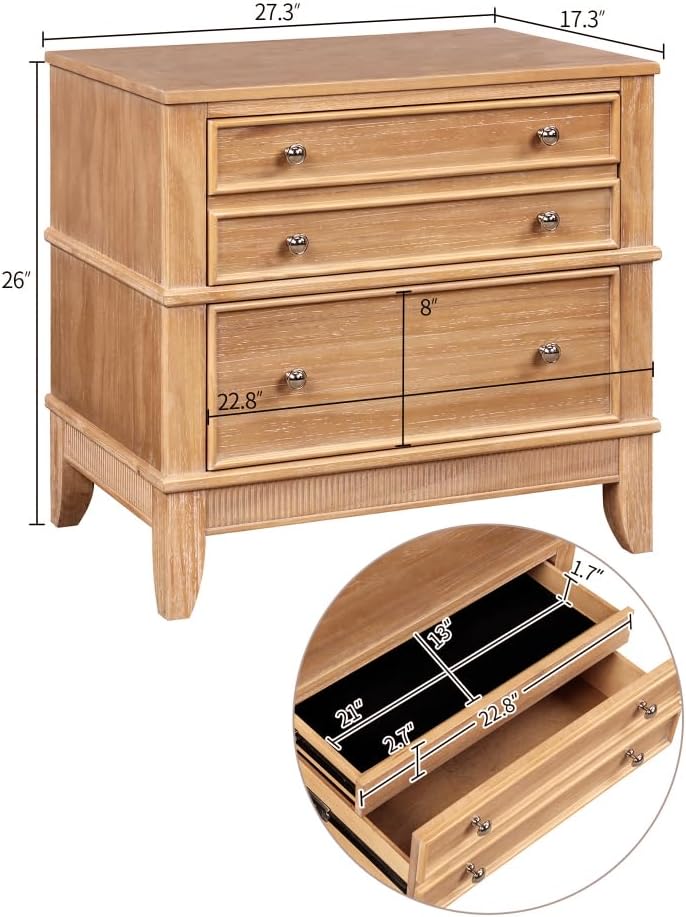

Image 4.1: Dimensional diagram of the side table, useful for planning placement.
5. Funtzionamendu-argibideak
The Hazel Side Table is designed for straightforward use. Its three drawers provide ample biltegiratze.
- Tiraderaren erabilera: Gently pull the knobs to open the drawers. The full extension metal glides ensure smooth operation. Push firmly to close.
- Felt-Lined Drawer: The top drawer includes a felt-lined hidden space, ideal for storing delicate items or valuables.
- Pisu-gaitasuna: Do not exceed the maximum weight capacity of 220 LBS for the top surface and 90 LBS per drawer.
5.1. irudia: View of the open drawers, highlighting the felt-lined compartment.
6. Mantentzea
Proper care will extend the life and beauty of your Hazel Side Table.
- Garbiketa: Garbitu gainazalak leun batekin, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the natural wood finish.
- Isurketak: Isurketak berehala garbitu zapi garbi eta lehor batekin.
- Eguzkiaren argiaren esposizioa: Saihestu eguzki-argiaren eraginpean denbora luzez, kolorea galtzea edo aldatzea eragin baitezake.
- Hezetasuna: Maintain a consistent humidity level in the room to prevent wood from cracking or warping.
- Hardwarea: Aldian-aldian egiaztatu eta estutu torloju eta lotura guztiak egonkortasuna bermatzeko.
7. Arazoak
If you encounter any issues with your side table, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Mahaia dardarka dago. | Loose leg connections or uneven floor. | Ensure all leg screws are tightened. Move the table to a level surface or use furniture glides/shims to stabilize. |
| Tiraderak itsatsita geratzen dira edo ez dira leunki irristatzen | Drawer glides may be misaligned or dirty. Overloaded drawer. | Empty the drawer and check for obstructions. Inspect glides for debris and clean if necessary. Ensure the drawer is not overloaded. |
| Knobs are loose | Knob screws have loosened over time. | Tighten the knob screws from the inside of the drawer. |
Irtenbide hauek arazoa konpontzen ez badute, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | 11 |
| Produktuaren neurriak | 27.3"S x 17.3"Z x 26"A (69.3 cm S x 43.9 cm Z x 66 cm A) |
| Elementuaren pisua | 55 libra (24.9 kg) |
| Material nagusia | Solid Wood (Pine) + MDF with Mindi Veneers |
| Kolore Nagusia | Naturala |
| Gehienezko pisu-ahalmena | 220 LBS (100 kg) |
| Tiraderaren Pisu Edukiera | 90 LBS (40.8 kg) per drawer |
| Muntaia Beharrezkoa | Handle and Legs need assembly |
| Heldulekuaren akabera | Silver (Pewter Hardware) |
| Goiko lodiera | 30 mm |
9. Bermea eta laguntza
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer.
For technical support, missing parts, or any questions regarding your Hazel 3-Drawer Side Table, please contact the retailer or manufacturer's customer service department. Please have your model number (11) and purchase information ready when contacting support.
Harremanetarako informazioa:
- Marka: generikoa
- Eredua: 11
- (Please refer to your purchase receipt or retailer's website for specific customer service contact details.)
