IDEALHOUSE Full Size Metal Platform Bed Frame Instruction Manual

1. Produktua amaitu daview

This manual provides detailed instructions for the assembly, operation, and maintenance of your IDEALHOUSE Full Size Metal Platform Bed Frame. Designed for durability and convenience, this bed frame features a robust 3-in-1 steel support system, ample under-bed storage, and a noise-free design, eliminating the need for a box spring.

Figure 1.1: IDEALHOUSE Full Size Metal Platform Bed Frame. This image shows the complete metal bed frame structure, highlighting its sturdy design and open space underneath for storage.

2. Segurtasun informazioa

• Pisu muga: Do not exceed the maximum weight limit of 800 lbs (approximately 363 kg) for this bed frame. Exceeding this limit may cause damage to the frame and potential injury.
• Muntaia: It is recommended that two adults assemble the bed frame to ensure safety and ease of construction.
• Konexio seguruak: Ensure all bolts and screws are tightened securely before use. Periodically check and re-tighten connections to maintain stability.
• Zoruaren babesa: The bed frame includes protective footpads to prevent scratches on your floor. Ensure these are properly installed.
• Haurrak eta maskotak: Mantendu pieza txikiak eta ontziratzeko materialak haurren eta animalien eskura urrun muntaketa bitartean, itotzea saihesteko.

3. Paketearen edukia

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.

• Metal Bed Frame Components (various beams, legs, and slats)
• Hardware Pack (screws, bolts, washers, nuts)
• Muntaketa tresnak (Allen giltza)
• Installation Instruction Manual (this document)

Figure 3.1: Illustration of various bed frame components. This image displays the different metal sections that make up the bed frame, including the main frame pieces and support bars.

4. Muntatzeko jarraibideak

Assembly typically takes 30-60 minutes. Follow these steps carefully. All parts are well-labeled for easier identification.

1. Deskonprimitu eta identifikatu: Lay out all components on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Identify each part using the labels and the provided parts list.
2. Muntatu marko nagusia: Connect the main side rails and end rails using the provided hardware. Ensure all connections are aligned correctly before tightening.

Figure 4.1: Detail of a bed frame connection point. This image shows how two metal frame pieces connect, illustrating the secure fastening mechanism.
3. Install Center Support Rods: Attach the center support rods to the main frame. These rods are crucial for the bed frame's stability and noise reduction. The foam seal tape on the center support rod should face upwards to reduce friction noise.
4. Lotu listoiak: Securely attach the metal slats across the frame. Ensure they are evenly spaced and firmly connected to provide adequate mattress support.
5. Add Mattress Stoppers (Optional): If desired, install the plastic mattress stoppers on the edges of the frame to prevent the mattress from slipping. These are easily removable.


Figure 4.2: Close-up of a mattress stopper. This image highlights the small plastic pieces designed to keep the mattress from sliding off the frame.

6. Azken estutzea: Once all components are in place, go back and ensure all bolts and screws are fully tightened using the provided Allen wrench. Do not overtighten.

Note: Some users have reported minor issues with weld beads obstructing connections. If you encounter this, carefully inspect the parts and ensure proper alignment. Do not force connections.

5. Funtzionamendu-argibideak

The IDEALHOUSE Metal Platform Bed Frame is designed for straightforward use.

• Koltxoiaren kokapena: Once assembled, simply place your full-size mattress directly onto the metal slats. A box spring is not required due to the robust slat support system.
• Ohe azpiko biltegia: Utilize the 13 inches of clearance beneath the frame for convenient storage of boxes, bins, or other items.

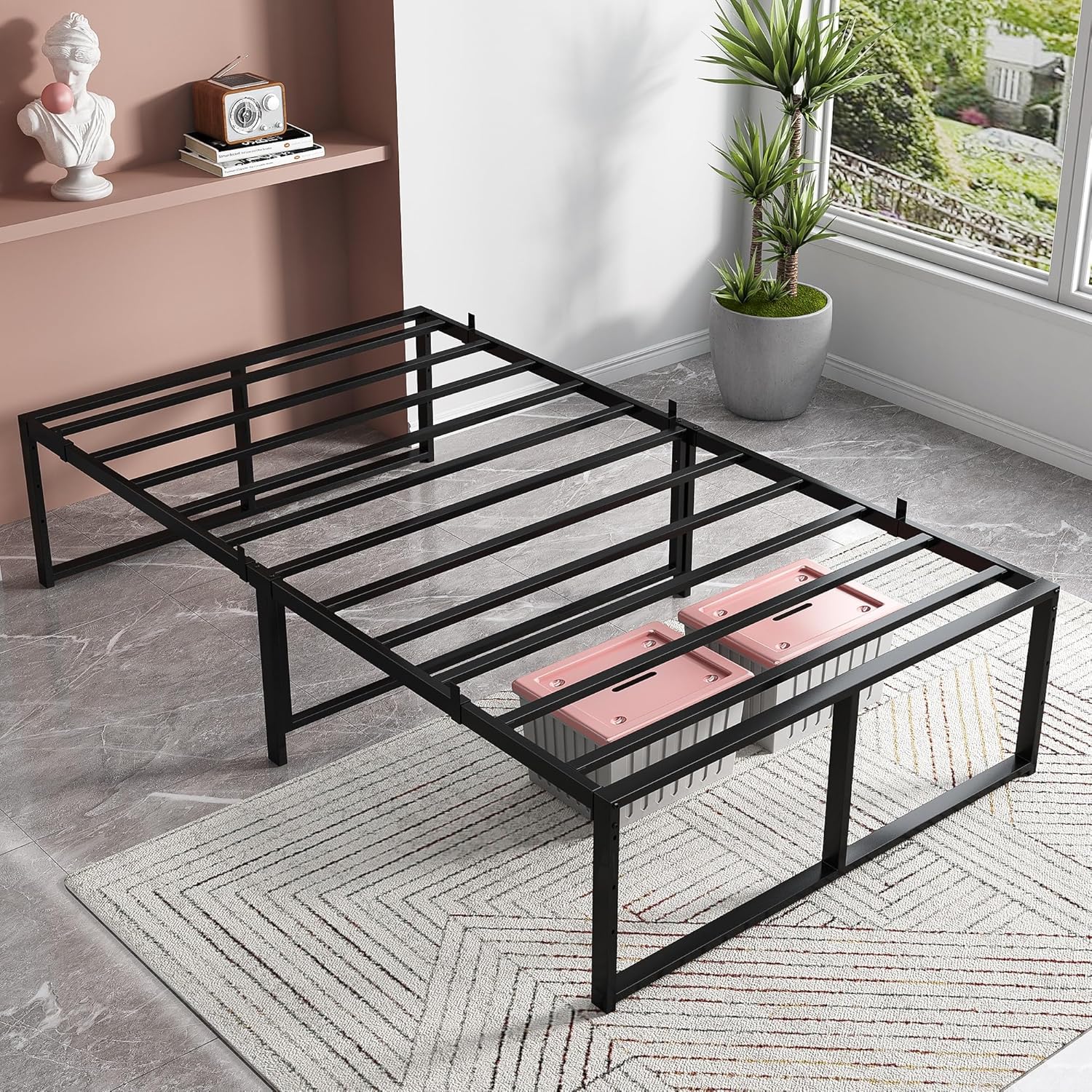

Figure 5.1: Bed frame showcasing ample under-bed storage. This image demonstrates how storage containers can be neatly placed beneath the bed frame, maximizing room utility.


Figure 5.2: Diagram illustrating 13 inches of under-bed storage space. This graphic clearly indicates the height available for storage under the bed frame.

6. Mantentzea eta Zainketa

• Garbiketa: Garbitu metalezko markoa oihal leun batekin,amp oihal. Saihestu produktu kimiko gogorrak edo garbitzaile urratzaileak erabiltzea, akabera kaltetu baitezakete.
• Ohiko ikuskapena: Periodically check all bolts and connections to ensure they remain tight. Re-tighten as necessary to maintain the frame's stability and prevent squeaking.
• Zoruaren babesa: Ensure the protective footpads remain intact to prevent scratching your flooring.

7. Arazoak

• Txirrin-hotsa:

  Kausa: Lotura solteak edo marruskadura metalezko piezen artean.

  Irtenbidea: Ensure all bolts are securely tightened. The center support rod is equipped with foam seal tape to reduce noise; verify it is properly positioned. If squeaking persists, apply a small amount of lubricant (e.g., silicone spray) to connection points.



  Figure 7.1: Detail of the noise-free design. This image shows the foam seal tape on the center support rod, designed to minimize friction and noise.

• Difficulty Assembling / Parts Not Fitting:

  Kausa: Misalignment of parts, or manufacturing variations (e.g., weld beads).

  Irtenbidea: Double-check the instruction manual and part labels to ensure correct orientation. If a part seems obstructed (e.g., by a weld bead), try gently wiggling it into place or contacting customer support for assistance. Do not force parts, as this may cause damage.

• Koltxoiaren irristatzea:

  Kausa: Mattress stoppers not installed or ineffective.

  Irtenbidea: Ensure the plastic mattress stoppers are correctly installed on the frame. If your mattress still slips, consider using a non-slip pad between the mattress and the slats.

8. Zehaztapenak

Figure 8.1: Product information including dimensions and weight capacity. This graphic provides a visual representation of the bed frame's measurements and its maximum supported weight.

9. Bermea eta bezeroarentzako laguntza

IDEALHOUSE is committed to providing high-quality products and excellent customer service. While specific warranty details are not provided in this manual, we offer professional customer service to assist you with any inquiries.

• Jarri gurekin harremanetan: For any questions regarding assembly, missing parts, product issues, or general inquiries, please contact us via message.
• Erantzun denbora: We aim to respond to all inquiries within 24 hours and provide the best possible solution.
