Sarrera
This manual provides comprehensive instructions for the installation, operation, and maintenance of your new Generic Replacement Fill Valve, designed for compatibility with Duravit 0074112200 toilet systems. Please read this manual thoroughly before beginning installation to ensure proper function and safety.
The fill valve is a critical component in your toilet tank, responsible for refilling the tank with water after each flush and maintaining the correct water level. This replacement part is engineered for reliable performance.
Segurtasun Informazioa
- Itxi beti komuneko ur-hornidura edozein instalazio edo mantentze-lan hasi aurretik.
- Wear appropriate personal protective equipment, such as gloves and eye protection, when working with plumbing.
- Ensure all connections are tight to prevent leaks. Do not overtighten plastic components.
- Urrats baten inguruan ziur ez bazaude, kontsultatu iturgin kualifikatu bati.
Paketearen edukia
Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela:
- 1 x Generic Replacement Fill Valve (Model NY-0074112200)
- 1 x Shank Washer
- 1 x Blokeo-azkoina
- 1 x Refill Tube
- 1 x Refill Clip
Konfigurazioa eta Instalazioa
Follow these steps to install the replacement fill valve:
- Itzali uraren hornidura: Locate the shut-off valve behind or near the toilet and turn it clockwise until the water flow stops completely. Flush the toilet to empty the tank.
- Deskonektatu ur-hornikuntza hodia: Place a towel or small bucket under the toilet tank. Disconnect the water supply line from the bottom of the old fill valve.
- Kendu betegarri-balbula zaharra: Inside the tank, unscrew the lock nut from the bottom of the old fill valve. Carefully lift the old fill valve out of the tank.
- Clean Tank Opening: Clean any debris or mineral buildup around the fill valve opening in the bottom of the tank.
- Betetze-balbula berria instalatu: Insert the new fill valve into the tank opening from the inside. Ensure the shank washer is properly seated on the outside of the tank, under the tank opening.
- Betetze Balbula Segurua: From underneath the tank, thread the lock nut onto the fill valve shank. Hand-tighten the nut, then use a wrench to tighten it an additional quarter to half turn. Do not overtighten.
- Konektatu berriz betetzeko hodia: Attach one end of the refill tube to the small port on the top of the fill valve. Secure the other end of the refill tube to the overflow pipe using the refill clip. Ensure the tube is positioned above the water line.
- Ur-hornikuntzaren hodia berriro konektatu: Reconnect the water supply line to the bottom of the new fill valve. Hand-tighten, then use a wrench for a final snug turn.
- Uraren hornidura piztu: Slowly turn the water supply valve counter-clockwise to restore water flow to the toilet. Check for leaks at all connections.
- Uraren maila egokitu: The fill valve typically has an adjustment mechanism (e.g., a screw or clip) to set the water level in the tank. Adjust it so the water level is approximately 1 inch below the top of the overflow pipe.

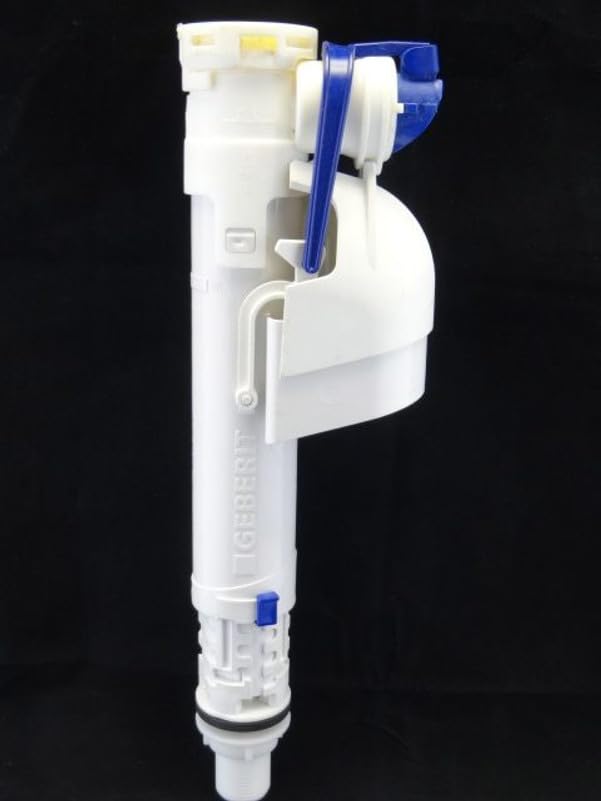

Image: Generic Replacement Fill Valve. This image shows the main components of the fill valve, including the float cup, shank, and refill tube connection point, essential for understanding the installation process.
Funtzionamendua
After installation, the fill valve operates automatically. When the toilet is flushed, the water level in the tank drops, causing the float cup on the fill valve to descend. This opens the valve, allowing fresh water to enter the tank and refill it. Simultaneously, a small amount of water flows through the refill tube into the overflow pipe, refilling the toilet bowl trap.
As the water level rises, the float cup ascends, gradually closing the valve. Once the preset water level is reached, the valve completely shuts off the water flow, preventing overflow and conserving water.
Mantentzea
Regular maintenance can extend the life of your fill valve and ensure efficient operation:
- Ikuskatu urtero: Periodically check the fill valve for signs of wear, leaks, or mineral buildup.
- Mineral-gordailu garbiak: If you notice slow refilling or incomplete shut-off, mineral deposits may be affecting the valve. Turn off the water, remove the fill valve cap (if applicable), and gently clean any visible mineral buildup with a soft brush and white vinegar solution.
- Check Refill Tube: Ensure the refill tube is securely attached and not kinked or obstructed.
- Egiaztatu ur-maila: Confirm the water level in the tank remains at the correct height (approximately 1 inch below the overflow pipe). Adjust if necessary.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Komuna etengabe dabil edo txandaka piztu eta itzali. | Water level too high; faulty flapper; fill valve not shutting off completely. | Adjust water level. Check flapper for proper seal. Clean or replace fill valve diaphragm/seal. |
| Toilet fills slowly. | Low water pressure; clogged fill valve inlet; mineral buildup. | Check water supply valve is fully open. Clean fill valve inlet screen. Clean fill valve components. |
| Ontziko ur-maila baxuegia da. | Refill tube disconnected or improperly positioned. | Ensure refill tube is securely attached to the overflow pipe and directs water into it. |
| Leaking from tank connections. | Loose connections; worn washers. | Tighten nuts (do not overtighten). Replace washers if damaged. |
Zehaztapenak
- Modelo zenbakia: NY-0074112200
- Parte-zenbakia: NY-0074112200
- Bateragarritasuna: Designed for Duravit 0074112200 fill valve systems
- Fabrikatzailea: WorChess
- ASIN: B0F99P13D
- Lehen eskuragarri dagoen data: 20ko maiatzaren 2025a
Bermea eta Laguntza
This Generic Replacement Fill Valve is typically covered by a limited manufacturer's warranty against defects in materials and workmanship. Please refer to the packaging or contact your retailer for specific warranty terms and conditions.
For technical support or assistance with installation, please contact the seller or manufacturer. Keep your purchase receipt as proof of purchase for warranty claims.
