1. Sarrera
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your ECO-WORTHY 1600W Dual-Axis Solar Tracker System. This system is designed to maximize solar energy capture for various applications, including homes, farms, sheds, and cabins.
The 1600W system includes 8 pieces of 195W monocrystalline solar panels, an expanded version dual-axis solar tracking kit, a power box, and a controller. It is engineered to provide an ideal daily output of approximately 8.68KWh under 4 hours of full sunlight conditions.

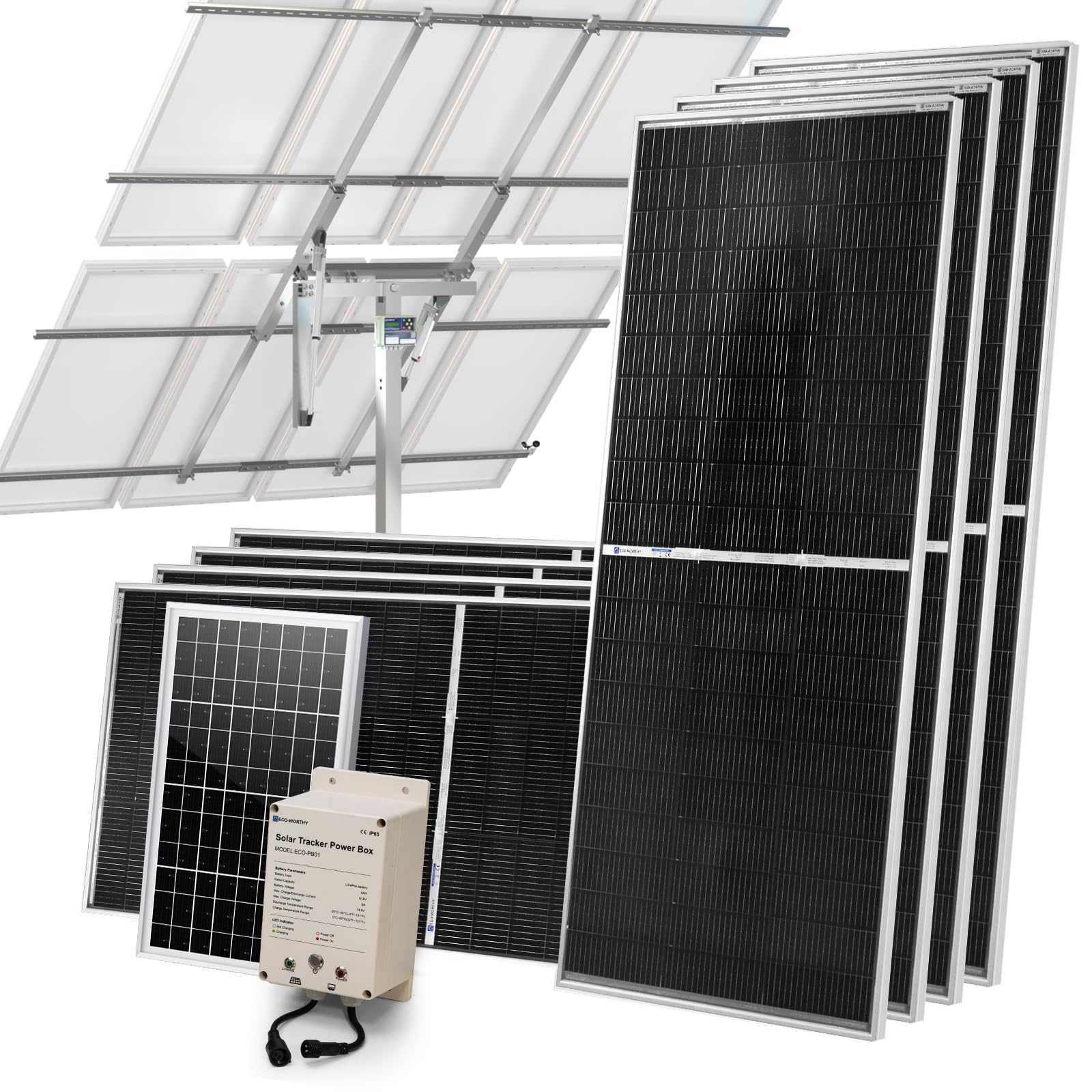

Figure 1: ECO-WORTHY 1600W Dual-Axis Solar Tracker System.
2. irudia: Sistema amaituview showing the 10W 18V solar panel for equipment power supply, the main tracker unit, and the 12V 6AH power box.
2. Konfigurazioa eta instalazioa
Careful assembly and correct installation are crucial for the optimal performance and longevity of your solar tracker system. Refer to the detailed parts diagram and follow all instructions precisely.
2.1 Osagaien identifikazioa
Before beginning assembly, identify all components using the provided parts diagram.
Figure 3: Product Spare Parts Display Diagram. Ensure all listed components are present before assembly.
2.2 Eragingailuen Instalazioa
Proper installation of the linear actuators is critical. Incorrect orientation can lead to water damage and reduced lifespan. Ensure the high end of the triangular brackets faces the actuators, and the actuators face upwards towards the sky.
Figure 4: Attention for Actuator Installation. Follow the correct orientation to prevent damage.
2.3 Expanded Version Improvements
The expanded version of this solar tracker includes several improvements for enhanced performance and ease of use:
- Increased Main Pole Height: The main pole height has been increased to 5.35ft, providing more clearance between the solar panels and the ground.
- Increased C-Beam Count: The number of C-beams has been increased to 5, allowing for the installation of up to 8 solar panels.
- Flexible Controller Installation: The solar tracker controller now supports both horizontal and vertical installation for greater convenience.
Figure 5: Main Pole Height Comparison (New vs. Before).
Figure 6: C-Beam Configuration Comparison (New vs. Before).
Figure 7: Controller Installation Flexibility (New vs. Before).
2.4 Panel Capacity
The tracker's capacity for solar panels depends on their dimensions. Refer to the table below for guidance.
Figure 8: Solar Panel Capacity Chart.
3. Funtzionamendu-argibideak
The ECO-WORTHY Dual-Axis Solar Tracker is designed for automated operation, continuously adjusting the solar panels to optimize sun exposure.
3.1 Jarraipen automatikoa
Equipped with a sensitive sunshine sensor and a 2-axis driving system, the tracker can rotate up to 270°. This allows the panels to consistently face the sun at the optimal angle, potentially gaining up to 39.2% more sunlight energy compared to fixed brackets.
Figure 9: Efficiency Improvement through Solar Tracking.
Figure 10: 270° Rotation Capability.
3.2 LED adierazlea
The power box features an LED indicator to show the charging status and power state.
- LED berdea: Kargatzen
- LED gorria: Piztu
- LED berderik ez: Ez kargatzen
- No Red LED: Itzali
Figure 11: Power Box LED Indicator.
4. Mantentzea
Regular maintenance ensures the longevity and optimal performance of your solar tracker system.
4.1 Eguraldiaren babesa
The system features automatic leveling in high winds. When wind speeds exceed 17.2 m/s (0.0107 miles/s), the tracker can automatically adjust to a horizontal position to withstand extreme weather. This feature is adjustable. Additionally, the direction of the bracket can be manually adjusted via the controller to intelligently remove snow from the panel surface on snowy days.
Figure 12: Auto-Return to Horizontal for Weather Protection.
4.2 Garbiketa orokorra
Periodically inspect and clean the solar panels to remove dust, dirt, and debris that may accumulate and reduce efficiency. Use a soft cloth and water; avoid abrasive cleaners or harsh chemicals.
4.3 Osagaien ikuskapena
Regularly check all mechanical and electrical connections for tightness and signs of wear or corrosion. Ensure actuators move freely and sensors are clear of obstructions.
5. Arazoak
If you encounter issues with your solar tracker system, refer to the following common problems and solutions.
5.1 Tracker Not Moving
- Arazoa: The tracker does not move after sunrise.
- Irtenbidea: Manually move the tracker slightly in any direction (east, west, south, or north) using the controller, then reset the system. This can re-engage the tracking mechanism.
5.2 Reduced Power Output
- Arazoa: The system is generating less power than expected.
- Irtenbidea:
- Check if panels are clean and free of obstructions (e.g., snow, leaves, dirt).
- Verify that the tracker is correctly following the sun's path.
- Inspect all electrical connections for secure contact.
5.3 Actuator Malfunction
- Arazoa: Actuators are not moving or making unusual noises.
- Irtenbidea:
- Ensure actuators are installed correctly as per Section 2.2.
- Mugimendua eragozten duten oztopo fisikorik dagoen egiaztatu.
- Verify power supply to the actuators and controller.
6. Zehaztapenak
Detailed technical specifications for the ECO-WORTHY 1600W Dual-Axis Solar Tracker System.
| Ezaugarri | Zehaztapena |
|---|---|
| Marka | EKO-MEREZIA |
| Modelo zenbakia | US-L02M195TM-TZDYH-8 |
| Gehienezko potentzia | 1600 Watt |
| Eguzki Panel mota | Monocrystalline (N-Type) |
| Panel kantitatea | 8 pcs (195W each) |
| Daily Output (Ideal) | ~8.68 KWh (under 4 hours full sunlight) |
| Tracker Rotation | Up to 270° (Dual-Axis) |
| Haizearen Erresistentzia | Automatic leveling above 17.2 m/s |
| Materiala | Aluminioa, Silizio monokristalinoa, Beira tenplatua |
| Konektore mota | MC4 |
| Power Box IP Rating | IP65 |
| Eguzki-panelaren IP balorazioa | IP67 |
| UPC | 810127139626 |
6.1 Power Box and 10W Solar Panel Parameters
Figure 13: Power Box and 10W Solar Panel Parameters.
6.2 Panel Technology
The system utilizes N-Type solar cells with 18 busbars and a bifacial backsheet design, enhancing efficiency and power generation.
Figure 14: N-Type Panel Efficiency and Comparison.
Figure 15: Advanced Panel Technology Features.
Figure 16: Dual-Sided Power Generation.
6.3 Material and Durability
The system components are constructed from high-quality, durable materials designed for outdoor use.
Figure 17: Upgraded Materials for Performance and Durability.
Figure 18: Waterproof Performance Ratings.
7. Bermea eta Laguntza
ECO-WORTHY is committed to providing reliable customer service and support for your solar tracker system.
7.1 Salmenta osteko laguntza
For any product issues or concerns, please contact ECO-WORTHY customer service through your order details. Our engineers will provide diagnostics and support. If a product defect is confirmed, a hassle-free replacement will be provided. Your satisfaction is our priority, and we aim to resolve issues swiftly.
Figure 19: Reliable Customer Service Process.
7.2 Erantzun denbora
Expect a quick response from ECO-WORTHY customer service within 24 hours for your inquiries.
Figure 20: 24-Hour Customer Service Response.
7.3 Local Support
ECO-WORTHY maintains local warehouses to facilitate fast delivery and efficient after-sales service.
Figure 21: Local Warehouse and Support Network.
