OLIGHT Perun 3 Mini & Oclip Pro Instruction Manual

1. Sarrera

This manual provides detailed instructions for the safe and effective use of your OLIGHT Perun 3 Mini rechargeable headlamp and OLIGHT Oclip Pro EDC flashlight. Please read this manual thoroughly before operation and retain it for future reference.

Image: The OLIGHT Perun 3 Mini headlamp attached to its elastic headband, ready for use.

2. Paketearen edukia

• OLIGHT Perun 3 Mini Headlamp
• OLIGHT Oclip Pro EDC linterna
• Headband with quick-detach bracket
• Kargatzeko kable magnetikoa
• Erabiltzailearen eskuliburua (dokumentu hau)

3. Konfigurazioa

3.1. Perun 3 Mini Headlamp

1. Attaching to Headband: Insert the Perun 3 Mini into the quick-detach bracket on the headband. Ensure it clicks securely into place.
2. Buruko banda doitzea: Adjust the elastic straps for a comfortable and secure fit on your head.
3. Eskuko erabilera: The quick-detach bracket allows for easy removal of the Perun 3 Mini for handheld operation. Press the release button on the bracket to detach.

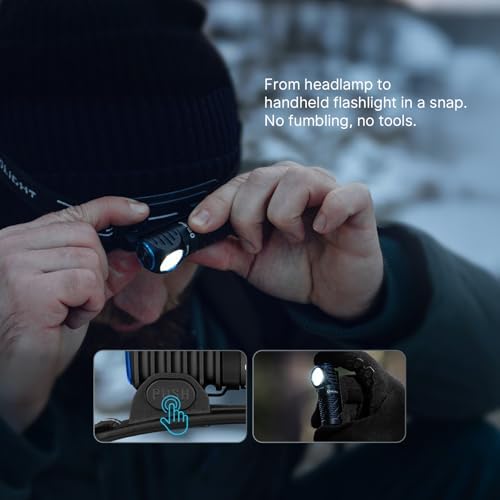

Image: Transitioning the Perun 3 Mini from headlamp to handheld flashlight by pressing the release button on the bracket.

3.2. Oclip Pro EDC Flashlight

1. Desblokeatzea: Before first use, press and hold the main button for approximately 1 second to unlock the Oclip Pro. A visual indicator may confirm unlocking.
2. Mozketa: Use the integrated clip to attach the Oclip Pro to clothing, gear, or other suitable surfaces.

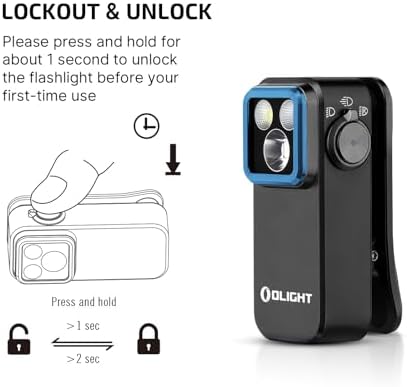

Image: Instructions for unlocking the Oclip Pro by pressing and holding the button for 1 second.

4. Funtzionamendu-argibideak

4.1. Perun 3 Mini Headlamp

The Perun 3 Mini features multiple white light modes and red light modes for various applications.

• Argi Zuriaren Moduak: Offers 5 different white light output levels, including a Moonlight mode for extended use.
• Argi Gorriaren Moduak: Provides 3 red light modes, suitable for preserving night vision or as an emergency signal.
• Modu aldaketa: Refer to the device's specific button press sequences for cycling through modes (e.g., single press, double press, press and hold).

Image: The Perun 3 Mini in use, demonstrating both white light for general tasks and red light for night vision preservation.

4.2. Oclip Pro EDC Flashlight

The Oclip Pro offers three distinct lighting solutions controlled by a user-friendly interface.

• Lighting Solutions:
  • Floodlight: For wide area illumination (up to 500 lumens).
  • Fokua: For focused, long-range illumination (up to 120-meter range).
  • Argi gorria: For night vision preservation or signaling (40/4 lumens).
• Erabiltzaile Interfazea: Modes are switched by toggling the selector.
• Bateria adierazlea: A battery indicator located in the center of the switch displays the current battery level.

Image: Visual representation of the Oclip Pro's floodlight for daily routines, spotlight for focused tasks, and red light for night vision.

5. Mantentzea

5.1. Kargatzea

Both the Perun 3 Mini and Oclip Pro are rechargeable. Use the provided magnetic charging cable to recharge the devices. Connect the magnetic charging end to the flashlight's charging port and the USB end to a compatible power source.

The Perun 3 Mini's rechargeable battery offers up to 10 days of continuous use in Moonlight mode, reducing the frequency of recharging.

5.2. Garbiketa eta Biltegiratzea

• Garbiketa: Garbitu gailuak zapi leun batekin,amp oihal bat erabili zikinkeria edo hondakinak kentzeko. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Biltegiratzea: Store the flashlights in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is partially charged (e.g., 50%) to prolong battery life.

6. Arazoak

• Argia ez pizten:
  • Egiaztatu bateriaren maila eta kargatu behar izanez gero.
  • Ensure the device is unlocked (refer to Setup section for Oclip Pro).
  • Verify proper connection if using the Perun 3 Mini with the headband bracket.
• Argiaren irteera txikia:
  • Bateria baxua izan daiteke; kargatu gailua.
  • Lens may be dirty; clean according to maintenance instructions.
• Gailua gainberotzea:
  • High output modes can generate heat. If the device becomes excessively hot, switch to a lower mode or turn it off to cool down.

7. Zehaztapenak

7.1. OLIGHT Perun 3 Mini Headlamp

• Gehienezko irteera: Gehienez 920 lumen
• Beam Distantzia: Gehienez 133 metro
• Argi-moduak: 5 white light modes, 3 red light modes
• Battery Life (Moonlight Mode): 10 egun arte
• Buruko diadema: Lightweight with breathable holes, anti-sweat strip, reflective material. Quick-detach bracket.

Image: Key specifications of the Perun 3 Mini, highlighting its compact size, lumen output, and beam distance.

7.2. OLIGHT Oclip Pro EDC Flashlight

• Floodlight Output: Gehienez 500 lumen
• Spotlight Range: Gehienez 120 metro
• Red Light Output: 40/4 lumen
• Clip Durability: 10,000-open-close-cycle tested
• Erabiltzaile Interfazea: Toggle selector for mode switching, integrated battery indicator.

Irudia: Hainbat views of the Oclip Pro, showcasing its design and compact form factor.

Image: The Oclip Pro emphasizing its versatile lighting options and the robust, tested clip mechanism.

8. Bermea eta Laguntza

For detailed warranty information, please refer to the official OLIGHT website or contact OLIGHT customer service. OLIGHT products typically come with a manufacturer's warranty covering defects in materials and workmanship.

Laguntza gehiago, euskarri teknikoa edo view other OLIGHT products, please visit the official OLIGHT store:

OLIGHT Denda Ofiziala
