FLEXISPOT OC8 Ergonomic Office Chair Instruction Manual

Sarrera

Thank you for choosing the FLEXISPOT OC8 Ergonomic Office Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair. Please read this manual thoroughly before use and retain it for future reference.

Segurtasun Informazioa

Please read the assembly instructions carefully before assembling the chair. Do not exceed the maximum weight capacity of 136 kg (299 lbs). Exercise caution when using adjustment mechanisms to avoid injury. Ensure all screws and bolts are securely tightened before use. Regularly check for loose parts and tighten them as needed. Keep children away from the chair during assembly.

Paketearen edukia

Muntatu aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela. Piezarik falta edo kaltetuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• Bizkarraldeko muntaia
• Eserlekuaren kuxinen muntaia
• Buru-euskarria
• Beso-euskarriak (ezkerrekoa eta eskuinekoa)
• Gas Igogailuaren Zilindroa
• Izar Oinarria
• Gurpilak (5 pieza)
• Mechanism Control Unit
• Hardware kita (torlojuak, arandelak, Allen giltza)
• Argibide eskuliburua

Muntatzeko jarraibideak

Assembly instructions are provided in detail within the included manual. Please follow the step-by-step guide carefully. Typically, assembly involves attaching the casters to the base, inserting the gas lift, mounting the seat and backrest, and finally attaching the headrest and armrests. Ensure all connections are firm and secure.

Image: Overall dimensions of the FLEXISPOT OC8 chair, including height, width, and depth measurements, along with a 136 KG (299 lbs) weight capacity rating.

Funtzionamendu Argibideak (Doikuntzak)

The FLEXISPOT OC8 chair offers multiple adjustment options for personalized comfort and ergonomic support.

1. Dual-Wing Lumbar Support

The dual-wing lumbar support provides adaptive support in multiple dimensions: forward/backward, up/down, and at various angles. It locks into place and adapts to individual back needs. The ergonomic C-curve conforms to the natural shape of the spine, offering optimal comfort.

Irudia: Gertutik view of the chair's dual-wing dynamic lumbar support, highlighting its adaptive movement with blue arrows, designed to wrap and adapt as you move.

2. 3D Ergonomic Headrest

The headrest is height-adjustable, can be tilted forward or backward, and its angle can be precisely adjusted. This provides personalized neck support and optimal relief for the neck and shoulders, especially during prolonged sitting.

Image: A user sitting in the FLEXISPOT OC8 chair, demonstrating the various adjustments of the 3D ergonomic headrest, including height and tilt options.

3. Adjustable Seat Depth

The individually adjustable seat depth ensures optimal thigh support, reduces pressure points, and promotes a healthy, ergonomic sitting posture. This feature is ideal for long periods of focused work.

Image: Technical diagram illustrating the 3-level height adjustment and the adjustable seat depth feature of the chair, with blue silhouettes demonstrating the range of motion.

4. 3-Position Reclining Backrest & 3D Backrest Height

The backrest can be adjusted to three reclining angles to adapt to different working postures. Its height is also adjustable via a 3D function, offering personalized back support. This dual flexibility promotes a healthy, ergonomic posture perfectly suited to your individual needs.

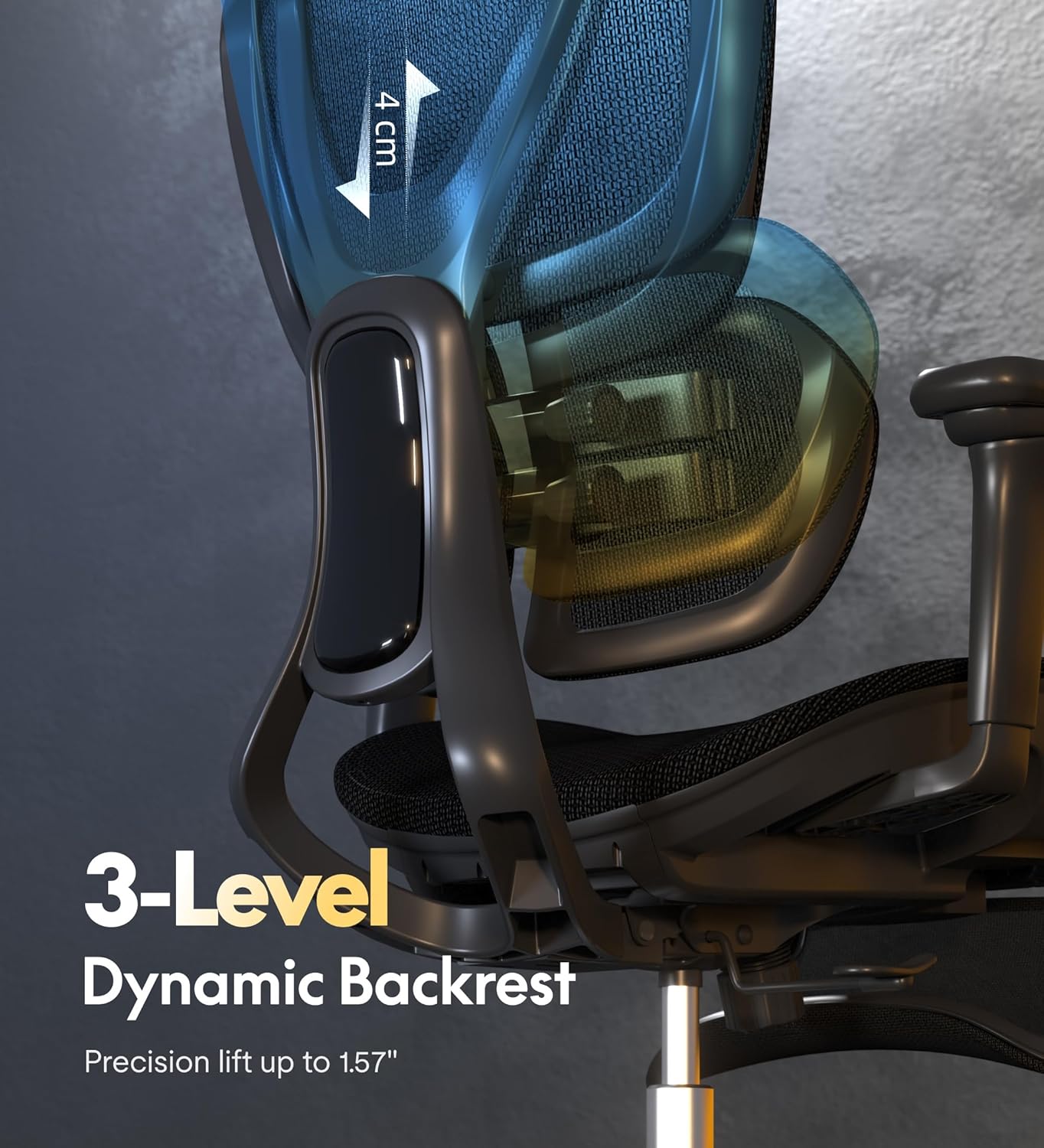

Irudia: Gertutik view of the chair's backrest, showing the 3-level dynamic adjustment mechanism with an arrow indicating a 4 cm precision lift.

Image: A diagram illustrating the chair's recline function, showing angles from 90 to 130 degrees, along with controls for adjustable tension and locking the recline position.

5. 3D Adjustable Armrests

The armrests can be adjusted in three directions: height, depth, and lateral rotation. They adapt to different sitting postures, promote a relaxed arm position, and meet your ergonomic needs for maximum freedom of movement.

Irudia: Gertutik view of the chair's 3D adjustable armrest, showing its flexible movement options for optimal arm support.

6. Eserlekuaren altuera doitzea

Use the lever located under the seat to adjust the chair's height. Pull the lever up to raise or lower the seat. Release the lever at your desired height.

Image: A close-up of the chair's AeroWeave 3.0 Air Mesh seat, demonstrating its hollow weave design for maximum breathability and heat dissipation.

Mantentzea

To ensure the longevity and optimal performance of your FLEXISPOT OC8 chair, follow these maintenance guidelines:

• Garbiketa: Wipe mesh and plastic surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and dry immediately. Avoid abrasive cleaners or solvents.
• Ikuskapena: Periodically check all screws and bolts to ensure they are tight. Re-tighten any loose fasteners to prevent instability and wear.
• Gurpilak: Keep casters free of hair and debris to ensure smooth movement. Clean them regularly.
• Gas Igogailua: Do not lubricate the gas lift cylinder. If the gas lift malfunctions, contact customer support for assistance.

Arazoak konpontzea

If you encounter any issues with your FLEXISPOT OC8 chair, refer to the following common problems and solutions:

• Aulkia dardarka dago: Check all assembly screws and bolts. Ensure they are fully tightened. Verify that the star base is correctly attached to the gas lift.
• Aulkiak ez du altuera doitzen: Ensure the gas lift lever is fully engaged. If the gas lift is unresponsive, it may need replacement. Contact customer support.
• Casters are not rolling smoothly: Inspect casters for trapped debris (hair, lint, etc.) and clean them thoroughly. Ensure casters are fully inserted into the star base.
• Bizkarraldea ez da etzan edo blokeatzen: Check the recline tension knob and the recline lock lever. Ensure they are correctly positioned.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact FLEXISPOT customer support.

Zehaztapenak

Bermea eta Laguntza

The FLEXISPOT OC8 Ergonomic Office Chair comes with a 3 urteko bermea, ensuring quality and reliability. For any warranty claims, technical support, or inquiries regarding your product, please contact FLEXISPOT customer service through their official webproduktua erosi zen gunea edo dendaria.

Image: Certifications and warranty information for FLEXISPOT products, including BIFMA compliance, SGS certification, and a 3-year warranty badge.
