M02 TOKQI AI Kit Handheld 3-Axis Gimbal Stabilizer User Manual

Sarrera

This manual provides comprehensive instructions for the safe and effective use of your M02 TOKQI AI Kit Handheld 3-Axis Gimbal Stabilizer. Please read this manual thoroughly before operating the device to ensure optimal performance and to prevent damage.

Produktua amaituview

The M02 TOKQI AI Kit Handheld 3-Axis Gimbal Stabilizer, shown here with a smartphone attached, is designed to provide stable and smooth video recording and photography.

Bat baino gehiagoview of the M02 gimbal stabilizer and its included accessories, including the mini tripod, charging cable, and storage bag.

Paketearen edukia

• 1 x Gimbal Stabilizer
• 1 x Mini Tripode
• 1 x Kargatzeko kablea (C motakoa)
• 1 x Users Manual (English)
• 1 x Biltegiratzeko poltsa

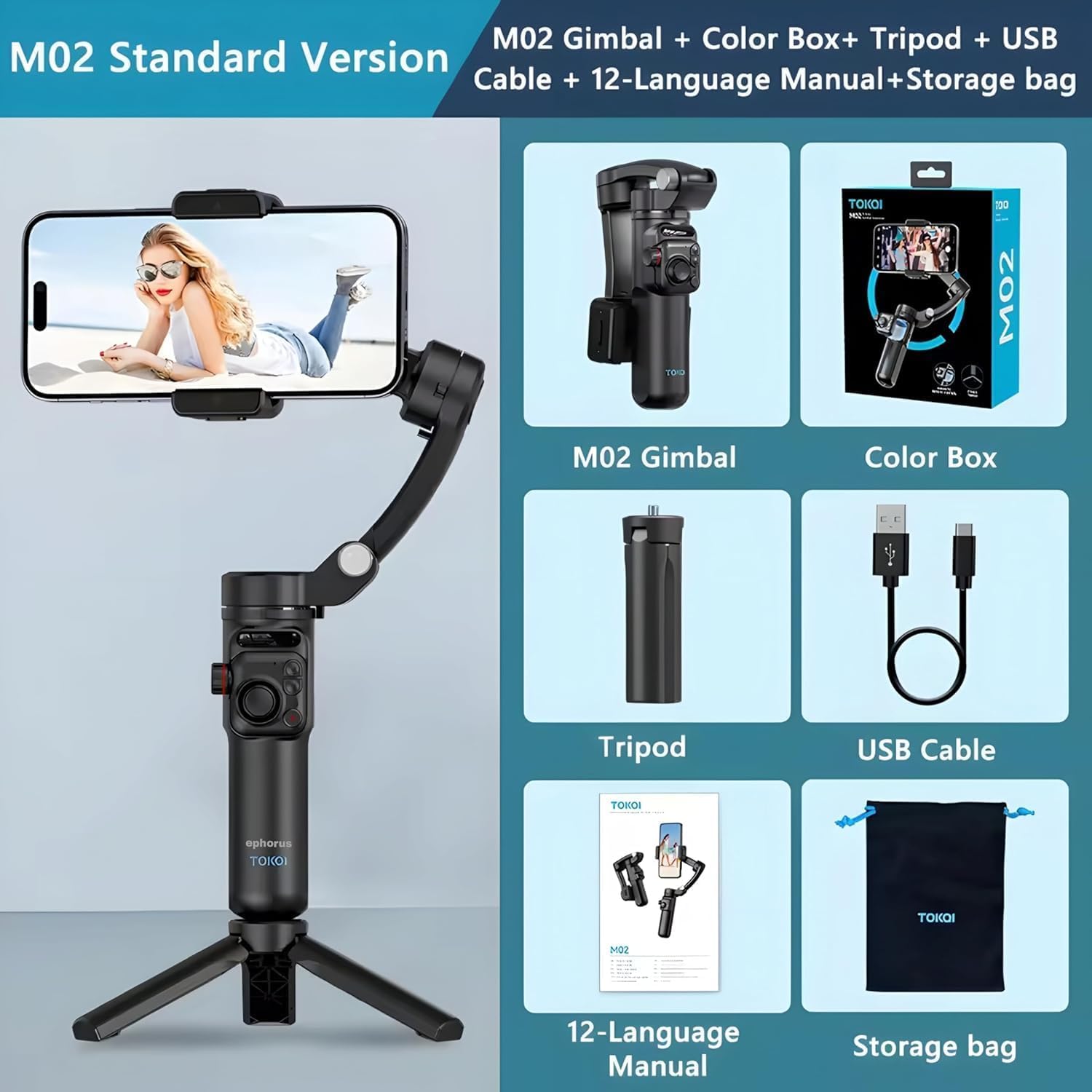

Xehetasuna view of the M02 Standard Version package contents, illustrating each component included in the box.

Ezaugarri nagusiak

• 3 ardatzeko egonkortzea: Utilizes three motors for balance, ensuring stable pictures and smooth video recording.
• 360° Rotatable Phone Holder: Allows easy switching between horizontal and vertical modes without manual adjustment.
• Seven Gimbal Modes: Includes Semi Follow, Full Follow, Fully Locked, POV, Inception Space, Semi-Follow Go, and Full Follow Go modes.
• Edukiera handiko bateria: Built-in 2600mAh battery provides long working time and recharges via Type-C cable.
• Detachable Remote Control & Mini Tripod: Enables remote operation and hands-free video recording/live streaming.

Visual representation of the gimbal's smart tracking, three-axis stabilization, and wireless remote capabilities.

An explanatory diagram detailing the three axes (Horizontal, Pitch, and Heading) that contribute to the gimbal's stabilization.

Konfigurazioa

1. Gimbala kargatzea

Before first use, fully charge the gimbal. Connect the provided Type-C charging cable to the gimbal's charging port and a 5V 2A power adapter (not included). The battery indicator will show charging status. A full charge provides approximately 6 hours of runtime.

2. Attaching the Mini Tripod

Screw the mini tripod onto the 1/4-inch screw hole at the bottom of the gimbal handle. Ensure it is securely fastened for stable placement on flat surfaces.

3. Zure telefonoa muntatzea

1. Zabaldu gimbala bere funtzionamendu-posiziora.
2. Luzatu telefonoaren itxieraamp and carefully place your smartphone into the clamp.
3. Ensure the phone is centered and balanced within the clamp to prevent strain on the motors. The mounting clamp supports phones with a range of 50mm-90mm width and thickness less than 11mm.
4. For optimal performance, balance the phone manually before powering on the gimbal.

Funtzionamendu-argibideak

1. Piztu/Itzaltzea

• Piztu: Press and hold the power button (usually the 'M' button) for a few seconds until the indicator lights illuminate.
• Itzali: Sakatu eta eutsi berriro pizteko botoia adierazle-argiak itzali arte.

2. Gimbal Controls

Xehetasuna view of the gimbal's control panel, indicating the function of each button and control.

• M Button/Remote Control Power Button: Used for powering on/off and switching between front and rear lenses (if supported by the connected app).
• Lockout Button: Locks the gimbal's current orientation.
• Kameraren botoia: Triggers photo capture or video recording in the connected app.
• joystick: Controls the stabilizer's rotation (pan and tilt).
• Zoom/Multiplier Control Wheel: Adjusts zoom or focus, depending on the app and phone model. Note: Zoom function may not be supported for all models.

3. Gimbal Modes

The M02 gimbal supports seven distinct modes to cater to various shooting scenarios:

• Semi Follow Mode: The gimbal follows your pan movements while keeping the tilt and roll axes locked.
• Full Follow Mode: The gimbal follows both your pan and tilt movements.
• Fully Locked Mode: All three axes are locked, maintaining the camera's orientation regardless of gimbal movement.
• POV Mode (Point of View): All three axes follow your movements, providing a dynamic first-person perspective.
• Inception Space Mode: Allows for a 360° rotation along the roll axis, creating a spinning effect.
• Semi-Follow Go Mode: A faster semi-follow mode for quick transitions.
• Full Follow Go Mode: A faster full-follow mode for dynamic shots.

Refer to the specific app instructions for how to switch between these modes.

4. Detachable Remote Control

The detachable remote control allows for convenient remote operation of the gimbal, attaching magnetically to the handle.

The M02 features a detachable remote control for convenient one-handed operation from a distance of up to 10 meters. To use, ensure the remote is charged and paired with the gimbal (refer to the app's pairing instructions). The remote mirrors the main controls on the gimbal handle.

Mantentzea

• Garbiketa: Erabili zapi leun eta lehor bat gimbala garbitzeko. Ez erabili garbitzaile likidorik edo disolbatzailerik.
• Biltegiratzea: When not in use, fold the gimbal to its compact size (157x106x65mm) and store it in the provided storage bag in a cool, dry place.
• Bateria zaintzea: To prolong battery life, avoid fully discharging the battery frequently. Charge the gimbal at least once every three months if not in regular use.
• Saihestu gainkargatzea: Do not exceed the maximum payload range of 280g.

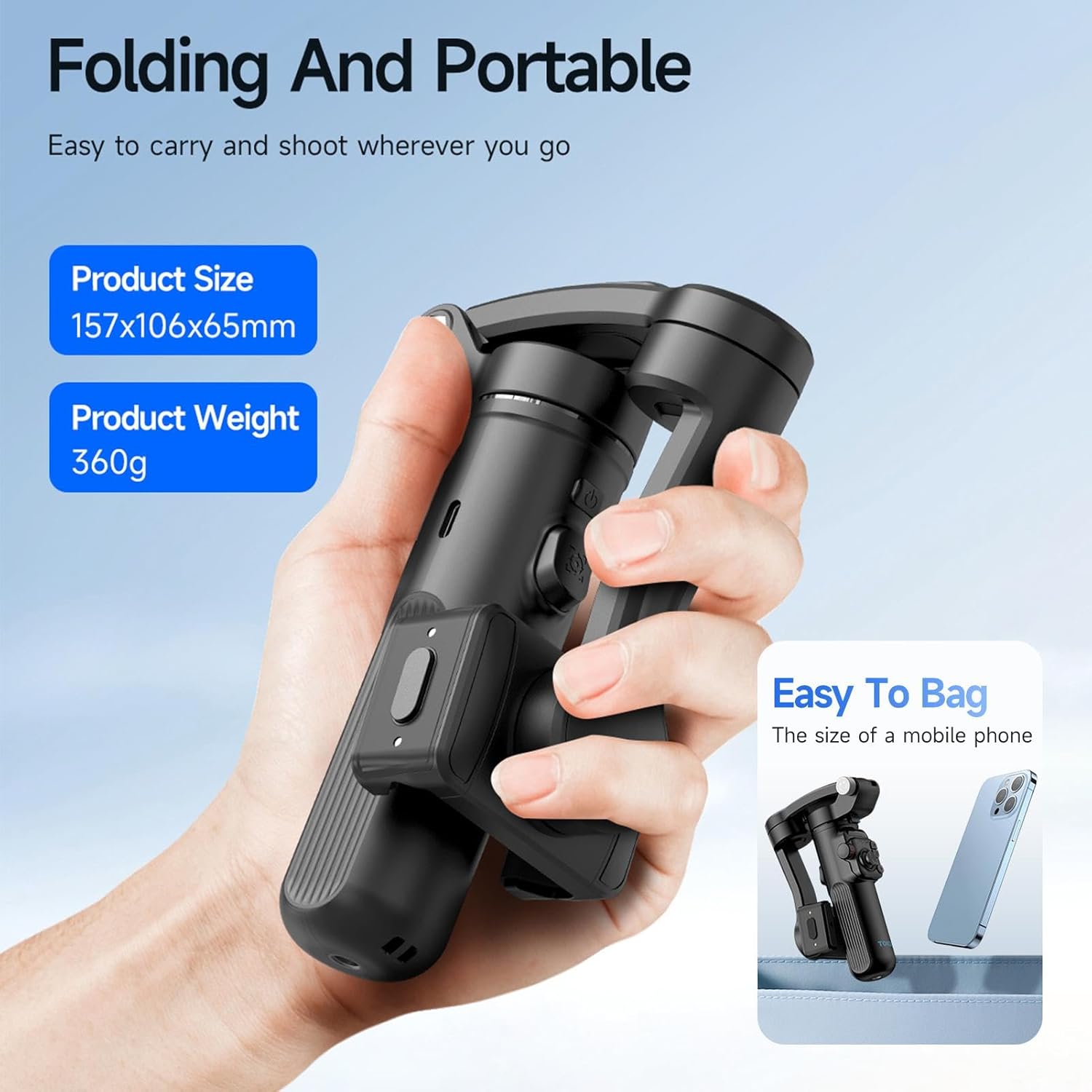

The M02 gimbal is designed to be foldable and portable, making it easy to carry and store.

Arazoak konpontzea

Zehaztapenak

Bermea eta Laguntza

Bermeari buruzko informazioa, laguntza teknikoa edo zerbitzu-kontsultak egiteko, jo fabrikatzailearen webgune ofizialera. website or contact their customer service directly. This manual does not contain specific warranty terms or support contact details.
