1. Produktua amaitu daview
This document provides instructions for the Generic replacement 38-inch deck pulley, model number diep#1725-06222. This pulley is designed as a replacement component for various Murray lawn mower models, including 38500, 38501, 38502, 38502x51B, 38502x66A, and 38500x83A. It is crucial to verify compatibility with your specific equipment before installation.
The pulley plays a vital role in the lawn mower's deck system, guiding and tensioning the drive belt that powers the cutting blades. Proper functioning of the deck pulley ensures efficient and consistent cutting performance.
2. Konfigurazioa eta instalazioa
Installation of this replacement deck pulley requires careful attention to safety and proper procedure. If you are unsure about any step, it is recommended to seek assistance from a qualified service technician.
Segurtasun neurriak:
- Always turn off the engine and remove the spark plug wire(s) to prevent accidental starting.
- Ensure the equipment is on a stable, level surface.
- Erabili babes pertsonaleko ekipamendu egokia, hala nola eskularruak eta begien babesgarriak.
- Utzi osagai beroak hozten manipulatu aurretik.
Instalazio urratsak:
- Plataformara sartzeko: Depending on your Murray model, you may need to remove the mower deck from the tractor or lift the tractor to gain access to the underside of the deck.
- Gerrikoaren tentsioa arintzea: Carefully release the tension on the drive belt that runs over the pulley you are replacing. This may involve disengaging a tensioning spring or lever.
- Remove Old Pulley: Identify the worn or damaged pulley. Use appropriate tools to loosen and remove the retaining bolt or nut that secures the pulley to its mounting post or bracket. Keep all fasteners for reuse.
- Install New Pulley: Place the new Generic replacement pulley onto the mounting post or bracket. Ensure it is seated correctly and aligned with the other pulleys and the belt path.
- Secure Pulley: Reinstall the retaining bolt or nut and tighten it securely. Do not overtighten, as this can damage the bearing or mounting hardware.
- Re-tension Belt: Carefully re-engage the belt tensioning mechanism, ensuring the belt is properly routed around all pulleys.
- Egiaztatu lerrokatzea: Manually rotate the blades or deck components to ensure the belt runs smoothly and the pulley rotates freely without wobbling or binding.
- Azken egiaztapenak: Reinstall any removed covers or components. Reconnect the spark plug wire(s).
3. Funtzionamendu-kontuan hartu beharrekoak
As a component, the deck pulley does not have direct operating controls. Its function is integral to the overall operation of the mower deck. Proper installation and maintenance ensure its optimal performance.
- Gerriko tentsioa: Ensure the drive belt has the correct tension as specified in your Murray lawn mower's owner's manual. Incorrect tension can lead to premature pulley wear, belt slippage, or excessive strain on other components.
- Funtzionamendu leuna: After installation, observe the pulley during operation (from a safe distance) to ensure it spins smoothly and quietly without any noticeable wobble or unusual noise.
4. Mantentzea
Regular inspection and basic maintenance can extend the life of your replacement deck pulley and ensure reliable mower performance.
- Ikus-ikuskapena: Periodically inspect the pulley for signs of wear, cracks, chips, or damage to the flanges. Check for any accumulation of grass clippings or debris around the pulley and bearing.
- Errodamenduaren egiaztapena: With the engine off and spark plug disconnected, manually spin the pulley. It should rotate freely and smoothly without excessive play or grinding noises. A noisy or stiff bearing indicates potential failure.
- Garbitasuna: Keep the pulley and surrounding area free of dirt, grass, and other debris. Excessive buildup can interfere with belt movement and cause premature wear.
- Lubrifikazioa: This pulley typically features sealed bearings that do not require external lubrication. Do not attempt to lubricate sealed bearings unless specifically instructed by the manufacturer, as this can introduce contaminants.
- Ordezkoa: Replace the pulley if any signs of significant wear, damage, or bearing failure are observed. Timely replacement prevents further damage to the drive belt or other deck components.
5. Arazoak
If you experience issues with your mower deck after installing the replacement pulley, consider the following troubleshooting steps:
- Belt Slipping or Coming Off:
- Check if the belt tension is correct.
- Verify the belt is properly routed around all pulleys.
- Inspect the pulley for damage to the flanges that might allow the belt to escape.
- Ensure the pulley is securely fastened and not wobbling.
- Unusual Noise (Grinding, Squealing):
- A grinding noise often indicates a failing bearing within the pulley.
- Squealing might suggest a loose or worn belt, or a pulley that is not spinning freely.
- Inspect for debris caught around the pulley or belt.
- Bibrazioa:
- Excessive vibration can be caused by a bent or damaged pulley, or an improperly installed pulley.
- Ensure all mounting bolts are tightened correctly.
- Ebaketa irregularra:
- While less common for a single pulley, issues with belt tension or pulley function can indirectly affect blade speed and lead to uneven cutting.
- Check other deck components, such as blade sharpness and deck leveling.
If troubleshooting does not resolve the issue, consult your mower's service manual or contact a professional.
6. Zehaztapenak
The following specifications apply to the Generic replacement 38 Deck Pulley, model diep#1725-06222:
- Modelo zenbakia: diep#1725-06222
- Fabrikatzailea: DiepParts
- Bateragarritasuna: Murray 38500, 38501, 38502, 38502x51B, 38502x66A, 38500x83A
Neurriak:

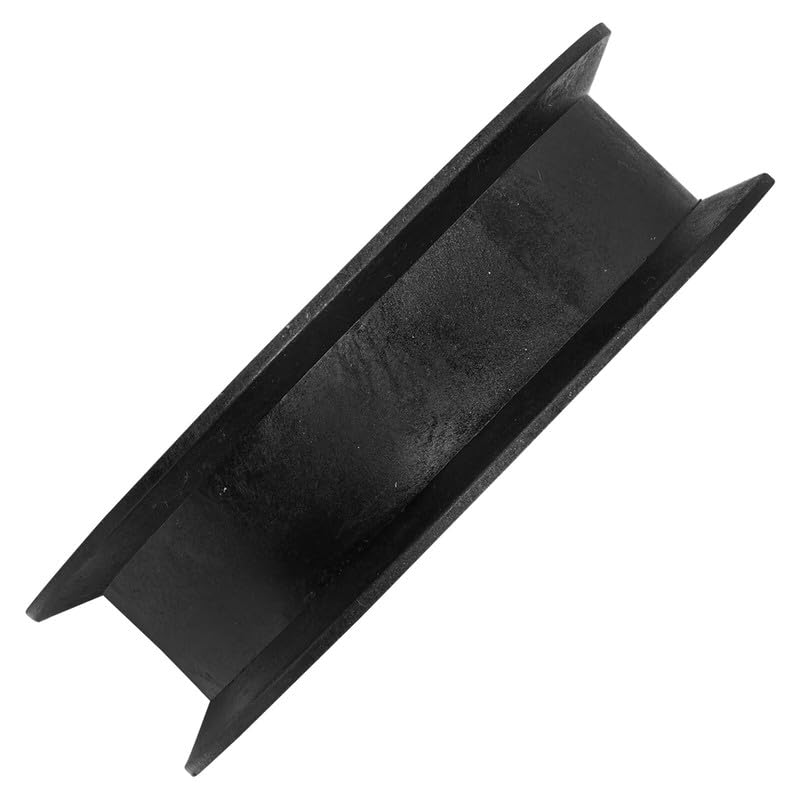

Irudia: Goiko eta alboko views of the pulley with key dimensions labeled.
- Kanpoko diametroa: Gutxi gorabehera 4.78 hazbete (121.5 mm)
- Inner Bore Diameter: Gutxi gorabehera 0.49 hazbete (12.5 mm)
- Altuera orokorra: Gutxi gorabehera 1.33 hazbete (34 mm)
- Belt Groove Depth: Gutxi gorabehera 1.14 hazbete (29 mm)
7. Bermea eta Laguntza
For warranty information regarding this replacement deck pulley, please refer to the specific terms provided by the seller at the time of purchase. General return policies may apply, such as a 30-day refund/replacement period, but this does not constitute a manufacturer's warranty.
If you require technical support or have questions about the product, please contact the seller, Canslim, or the manufacturer, DiepParts, directly. When contacting support, please provide the product model number (diep#1725-06222) and details of your Murray lawn mower model for efficient assistance.
