Beko Top Freezer Refrigerator User Manual

1. Sarrera

Thank you for choosing a Beko appliance. This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your new Beko RDSG550M20SEG Top Freezer Refrigerator. Please read these instructions thoroughly before using your appliance to ensure proper function and to prevent potential hazards.

1.1. Segurtasun informazioa

• Deskonektatu beti aparatua elikadura-iturritik garbiketa edo mantentze-lanak egin aurretik.
• Ziurtatu gailua behar bezala lurrarekin lotuta dagoela.
• Ez erabili etxetresna elektrikoak elikagaiak biltegiratzeko konpartimentuen barruan fabrikatzaileak gomendatutako motakoak ez badira.
• Mantendu aireztapen-zuloak oztoporik gabe.
• Ez kaltetu hozte-zirkuitua.
• Tresna hau etxeko erabilerarako soilik da.

2. Produktua amaitu daview

The Beko RDSG550M20SEG is a top-freezer refrigerator designed for efficient food preservation. It features a total net capacity of 410L, with 325L for fresh food and 85L for the freezer compartment. This model includes a static cooling system, LED side wall illumination, and mechanical controls for straightforward operation.

2.1. irudia: Aurrealdea view of the Beko RDSG550M20SEG Top Freezer Refrigerator. This image displays the silver exterior of the appliance with its two doors, the smaller top door for the freezer and the larger bottom door for the refrigerator compartment.

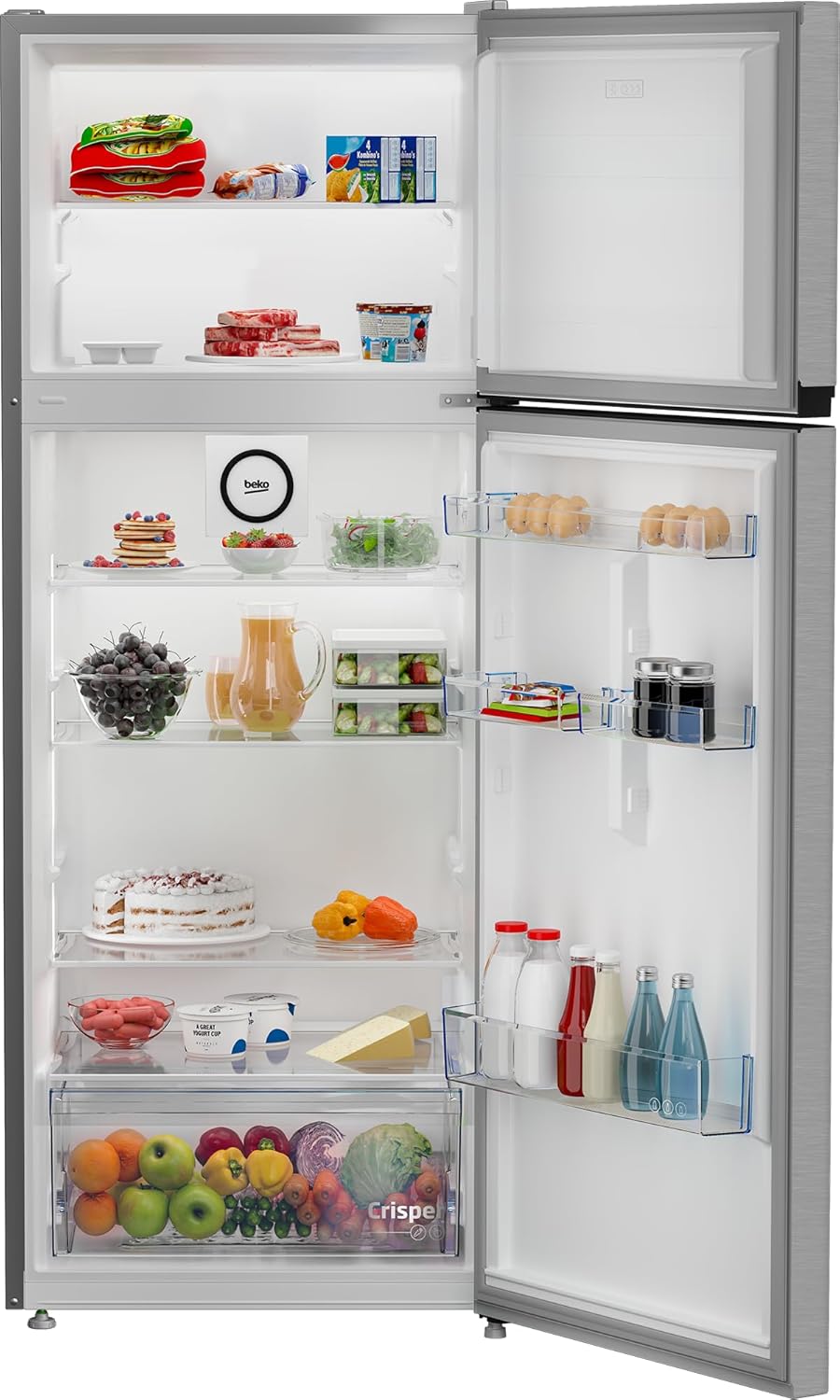

2.2. irudia: Barrualdea view of the Beko RDSG550M20SEG Top Freezer Refrigerator. This image shows the refrigerator compartment with glass shelves, door bins, a dedicated crisper drawer for fruits and vegetables, and the freezer compartment above, all stocked with various food items.

2.1. Ezaugarri nagusiak

• Neurriak: 185 cm (height) x 70 cm (width) x 66.5 cm (depth).
• Edukiera: 410L net capacity (325L fresh food, 85L freezer).
• Energia-eraginkortasuna: A+ rated.
• Hozteko sistema: Static cooling with top freezer configuration.
• Argiztapena: LED side wall illumination.
• Kontrolak: Mechanical control system.
• Apalategiak: Durable glass shelves.
• Biltegiratzea: Dedicated fruit and vegetable drawer, 6-capacity egg tray.
• Izotza egitea: Up to 1.5 kg daily ice making capacity.
• Zarata maila: 44 dBA.
• Diseinua: Integrated handle design.

3. Konfigurazioa eta instalazioa

3.1. Deskargatzea

1. Kendu ontziratzeko material guztiak, aparra eta zinta itsasgarria barne.
2. Egiaztatu etxetresna elektrikoak garraioan izandako kalterik. Jakinarazi berehala kalteren bat zure saltzaileari.
3. Mantendu ontziratzeko materialak haurren eskura.

3.2. Kokapen

• Jarri hozkailua zoru sendo eta mailakatu batean.
• Ensure adequate ventilation around the appliance. Leave at least 5 cm clearance on the sides and back, and 10 cm at the top for proper air circulation.
• Avoid placing the refrigerator in direct sunlight or near heat sources like ovens, dishwashers, or radiators, as this will increase energy consumption.
• The appliance is rated for SN-T climate conditions, suitable for ambient temperatures between 10°C and 43°C.

3.3. Berdinketa

Adjust the front leveling feet to ensure the appliance is stable and level. A level refrigerator operates more efficiently and prevents door alignment issues.

3.4. Konexio elektrikoa

• Connect the refrigerator to a dedicated grounded power outlet (220 Volts).
• Ez erabili luzapen-kableak edo entxufe anitzeko egokigailuak.
• Allow the refrigerator to stand upright for at least 4 hours before plugging it in to allow the refrigerant to settle.

3.5. Lehen erabilera

1. Clean the interior of the refrigerator with a mild detergent and warm water before first use.
2. After plugging in, allow the appliance to run for several hours (e.g., 6-8 hours) before loading it with food to ensure it reaches the optimal operating temperature.

4. Funtzionamendu-argibideak

4.1. Tenperatura Kontrola

Your Beko refrigerator features mechanical controls, typically a dial or knob located inside the fresh food compartment. Turn the dial to adjust the cooling intensity. Higher numbers usually indicate colder temperatures. Start with a medium setting and adjust as needed based on ambient temperature and food load.

4.2. Elikagaiak gordetzeko jarraibideak

• Hozkailuaren konpartimendua: Store fresh foods such as fruits, vegetables, dairy products, and cooked meals. Utilize the dedicated crisper drawer for fruits and vegetables to maintain their freshness.
• Izozkailuaren konpartimendua: Ideal for long-term storage of frozen foods. The freezer can freeze up to 6 kg of fresh food per day and has an ice-making capacity of 1.5 kg daily.
• Ensure food items are properly wrapped or sealed to prevent moisture loss and odor transfer.
• Ez jarri janari beroa zuzenean hozkailuan edo izozkailuan; utzi lehenik hozten.

4.3. LED argiztapena

The LED side wall illumination provides clear visibility of the contents inside the fresh food compartment, consuming less energy and lasting longer than traditional bulbs.

5. Mantentzea

5.1. Garbiketa

• Barrualdea: Clean the interior regularly with a solution of baking soda and warm water (one tablespoon of baking soda to two liters of water). Rinse thoroughly and dry.
• Kanpoaldea: Wipe the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
• Ateko zigiluak: Clean door seals regularly to ensure a tight seal. A dirty or damaged seal can lead to inefficient operation.
• Deskonektatu beti hozkailua garbitu aurretik.

5.2. Desizozketa

This refrigerator features a static defrost system. The freezer compartment will accumulate frost over time. When the frost layer reaches approximately 5 mm (1/4 inch) thick, it is recommended to manually defrost the freezer. For the refrigerator compartment, defrosting occurs automatically.

1. Deskonektatu aparatua.
2. Remove all food items from the freezer and store them in a cool place.
3. Utzi izozkailuaren atea irekita izotza naturalki urtu dadin. Jarri eskuoihalak behean ura xurgatzeko.
4. Behin desizoztuta, garbitu eta lehortu barrualdea ondo gailua berriro konektatu eta janaria itzuli aurretik.

6. Arazoak

Zerbitzuarekin harremanetan jarri aurretik, egiaztatu honako arazo eta irtenbide ohikoenak:

• Refrigerator is not operating: Check if the power cord is properly plugged in. Verify the circuit breaker or fuse. Ensure the temperature control is not set to 'Off'.
• Appliance is not cooling sufficiently: Check if the doors are fully closed. Ensure the temperature setting is appropriate. Avoid overloading the compartments. Verify adequate ventilation around the appliance.
• Ezohiko zaratak: Konpresorearen edo hozgarriaren fluxuaren zarata txikiak normalak dira. Ziurtatu gailua maila berean dagoela eta ez duela horma edo beste objekturik ukitzen.
• Ura lurrean: Check if the drain hole in the refrigerator compartment is clear. Ensure the drip tray (if applicable) is correctly positioned.
• Atea ez da ondo ixten: Check for obstructions. Ensure the door seals are clean and intact. Verify the appliance is level.

7. Zehaztapenak

8. Bermea eta Laguntza

Your Beko RDSG550M20SEG Refrigerator comes with a manufacturer's warranty. For specific details regarding the warranty period and terms, please refer to the warranty card included with your appliance or contact Beko Egypt customer service. The product is covered by Beko Egypt Warranty 16165.

8.1. Bezeroarentzako arreta

For technical assistance, spare parts, or service requests, please contact Beko customer support. Ensure you have your appliance model number (RDSG550M20SEG) and serial number ready when contacting support.
