Allewie Queen Size Upholstered Bed Frame Instruction Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your Allewie Queen Size Upholstered Bed Frame. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation. Keep this manual for future reference.

Image 1.1: The Allewie Queen Size Upholstered Bed Frame in Dark Green, featuring a vertical channel tufted headboard and corduroy fabric.

2. Segurtasun informazioa

• Irakurri arretaz argibide guztiak muntatu aurretik.
• Ensure all parts are present and undamaged before starting. Do not use if any parts are missing or broken.
• Muntatu ohe-egitura gainazal leun eta garbi batean (adibidez, alfonbra) marradurak saihesteko.
• Ez estutu gehiegi torlojuak muntatzen ari zaren bitartean, materiala kaltetu baitezake.
• Periodically check all connections and tighten them as needed to maintain stability.
• This bed frame is designed to support a maximum weight of 900 pounds. Do not exceed this limit.
• Mantendu pieza txikiak haurren eskura urrun muntaketa bitartean, itotzearen arriskua saihesteko.

3. Paketearen edukia

Muntatu aurretik, egiaztatu behean zerrendatutako osagai guztiak paketean sartuta daudela. Piezarik falta edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• Oheburua (tapizatua)
• Alboko errailak (tapizatuak)
• Oin-ohola (tapizatua)
• Egurrezko listoiak
• Erdiko euskarri barra(k)
• Laguntza Hankak
• Burdineria paketea (torlojuak, arandelak, Allen giltza)
• Instalazio eskuliburua (dokumentu hau)

Image 3.1: An illustration showing the various components of the bed frame, including the headboard, side rails, footboard, and support structure.

4. Muntatzeko jarraibideak

Muntaketa egiteko normalean bi heldu behar dira eta gutxi gorabehera 60-90 minutu irauten du. Jarraitu beheko urratsak arretaz.

1. Piezak desontziratu eta identifikatu: Lay out all components on a soft, clean surface. Refer to the parts list to ensure everything is present.
2. Lotu alboko barandak oheburura: Connect the upholstered side rails to the headboard using the provided bolts and washers. Do not fully tighten yet.
3. Lotu alboko barandak oin-oholera: Connect the other end of the side rails to the footboard. Ensure all connections are aligned before gently tightening all bolts.
4. Install Center Support Bar(s): Secure the center support bar(s) to the designated points on the side rails. Attach any additional support legs to the center bar(s) if included.
5. Jarri zurezko oholak: Unroll or individually place the wooden slats across the bed frame. Many slats feature a Velcro design for easy, noise-free installation. Ensure they are evenly spaced and secured.


4.1 irudia: Gertuko planoa view of wooden slats being installed onto the bed frame, highlighting the Velcro attachment for secure and silent support.

6. Azken estutzea: Osagai guztiak lekuan eta lerrokatuta daudenean, torloju eta torloju guztiak guztiz estutu.
7. Lotu euskarri-hankak: Screw in the main support legs to the corners and any central support points.

5. Funtzionamendu-argibideak

This bed frame features an adjustable headboard to accommodate various mattress heights.

Oheburuaren altuera doitzea:

• The headboard can be adjusted to heights between 47 and 51 inches.
• To adjust, locate the pre-drilled holes on the headboard supports.
• Loosen the bolts connecting the headboard to the side rails.
• Carefully raise or lower the headboard to your desired height.
• Align the holes and re-insert and tighten the bolts securely.
• This adjustment allows compatibility with mattresses ranging from 8 to 14 inches in thickness.

Image 5.1: An illustration demonstrating the adjustable height feature of the headboard, showing a range of 47 to 51 inches.

6. Mantentzea

Cleaning the Corduroy Fabric:

• For general cleaning, gently vacuum the corduroy fabric using an upholstery attachment to remove dust and debris.
• For spills, blot immediately with a clean, dry cloth. Avoid rubbing, as this can spread the stain.
• For tougher stains, use a mild fabric cleaner specifically designed for upholstery. Test on an inconspicuous area first.
• Allow the fabric to air dry completely. Do not use heat.

Arreta orokorra:

• Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary to maintain the bed frame's stability and prevent squeaks.
• Avoid exposing the bed frame to direct sunlight or extreme humidity, which can affect the fabric and wood.
• The bed frame offers 7.9 inches of under-bed clearance, facilitating easy cleaning underneath.

6.1 irudia: A view showing the 7.9-inch clearance beneath the bed frame, indicating ample space for storage or robotic vacuum cleaners.

7. Arazoak

Image 7.1: A composite image highlighting the no-noise strip for silent support, the sturdy foundation with metal framework and wooden slats, and the heavy-duty legs for stability.

8. Zehaztapenak

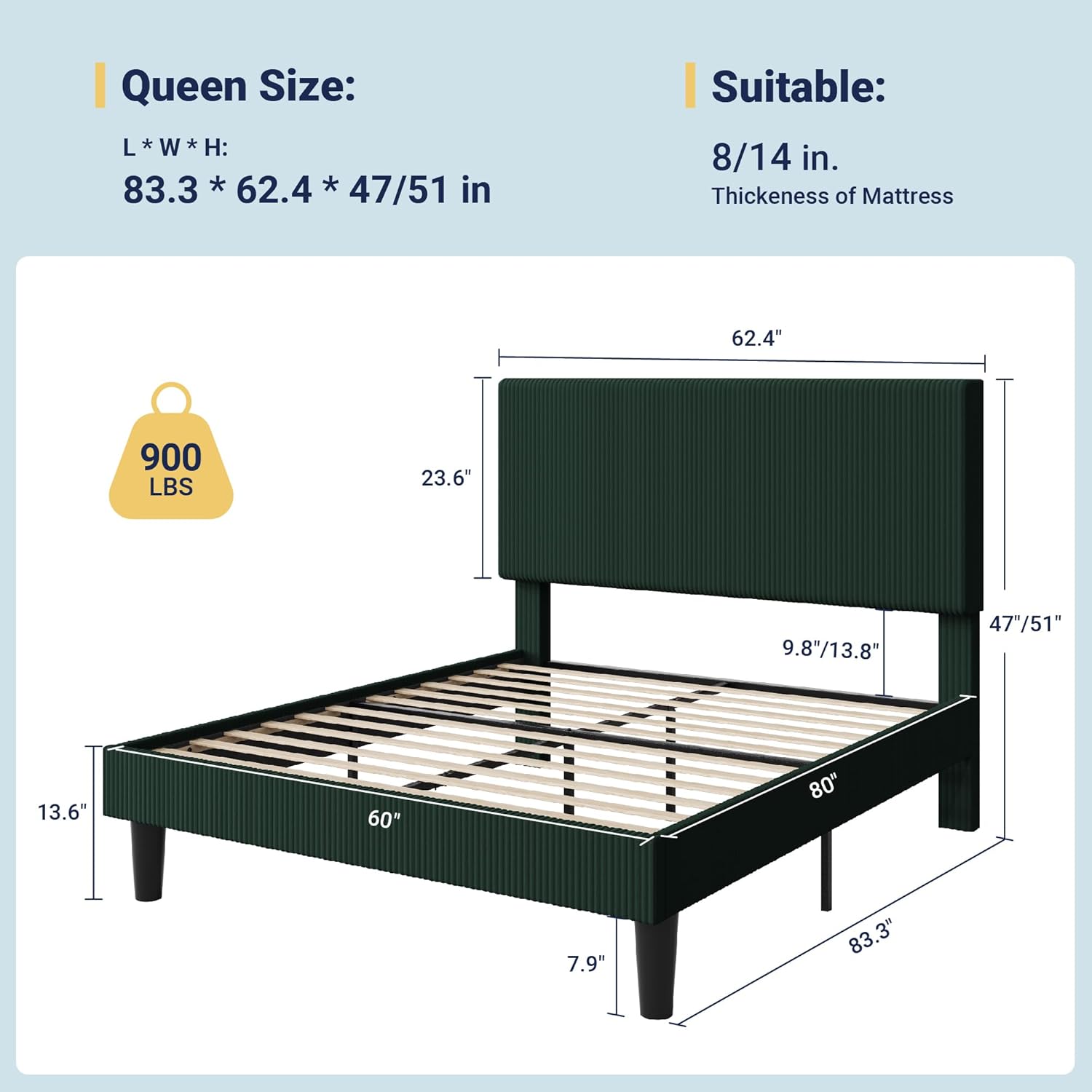

Image 8.1: A diagram illustrating the key dimensions (length, width, height, under-bed clearance) and weight capacity (900 lbs) of the Queen size bed frame.

Image 8.2: An illustration showing the recommended mattress thickness range (8-14 inches) for optimal fit with the adjustable headboard, whether using only a mattress or a mattress with a box spring.

9. Bermea eta Laguntza

Allewie provides a standard manufacturer's warranty for this product. For specific warranty details, claims, or technical support, please refer to the warranty card included in your package or contact Allewie customer service directly through their official webproduktua erosi zen gunea edo dendaria.

Laguntza gehiago behar baduzu, bisita dezakezu Allewie Store on Amazon.
