OLAKIDS 12V Ride-On Fire Truck User Manual

Sarrera

The OLAKIDS 12V Ride-On Fire Truck is designed to provide an engaging and realistic firefighting experience for children aged 3 and above. This electric vehicle features a water gun with a tank, megaphone, siren, alarm lamps, and a shovel, allowing for immersive role-play. It also includes a remote control for parental supervision and control.

Segurtasun Informazioa

WARNING: To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes, and never allow more than one rider.

• This product complies with US CPSIA and ASTM safety standards.
• Ziurtatu osagai guztiak ondo muntatuta daudela erabili aurretik.
• The vehicle is equipped with a slow start function for smooth acceleration and a seat belt for child safety.
• Maximum load capacity is 55 pounds (approximately 25 kg).
• The remote control allows parents to override manual operation and activate the emergency brake (P button) for immediate stopping.
• Mantendu haurrak mugikorreko piezen eskura funtzionamenduan zehar.
• Ez aldatu sistema elektrikoa.

Kutxan dagoena

Your OLAKIDS 12V Ride-On Fire Truck package includes:

• 1x Ride-On Car (main body)
• Gurpilak (4x)
• Motors (2x)
• Eserlekua
• Bolantea
• Alarma Lamps / Light Bar
• Water Gun with Hose
• Ur depositua
• Pala
• Giltza
• Remote Control (requires 2 x 1.5V AAA batteries, not included)
• Kargagailua
• Assembly Hardware (screws, washers, nuts, caps)

Konfigurazioa eta Muntaketa

Follow these steps to assemble your OLAKIDS 12V Ride-On Fire Truck. Refer to the assembly video for visual guidance.

Muntaketa Bideo Gida

Step 1: Install Wheels and Motors

Turn the main body of the fire truck upside down. Attach the motors to the rear axle. Secure the wheels onto the axles using the provided washers and caps. Ensure all wheels spin freely after installation.

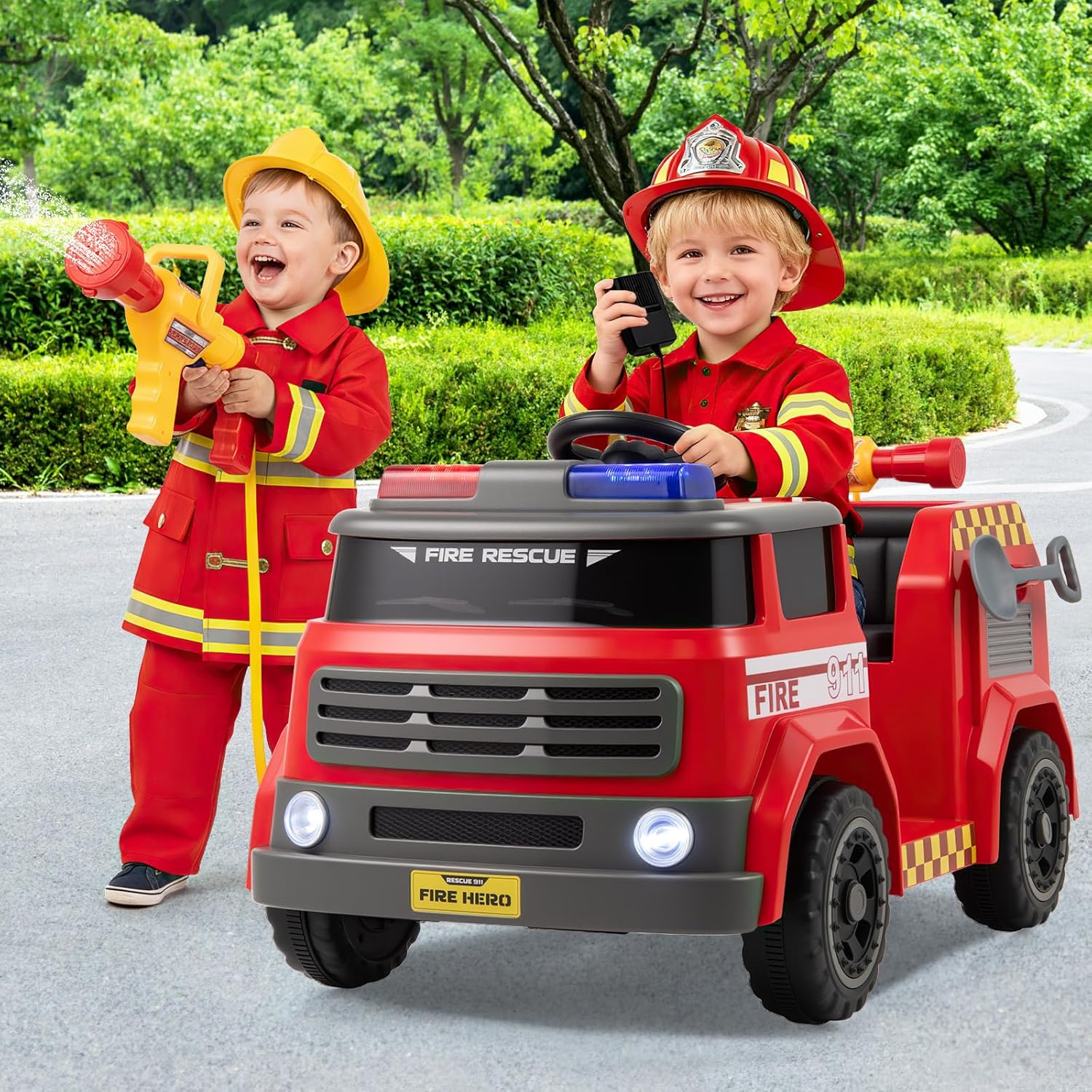

Image showing the OLAKIDS 12V Ride-On Fire Truck with two children, demonstrating its use.

Image illustrating the 'Real Firefighting Experience' feature, detailing water tank filling and water gun operation.

Step 2: Connect Alarm Lamps and Steering Wheel

Connect the wiring for the alarm lamps and secure them to the front of the truck. Connect the steering wheel's wiring and then attach the steering wheel to the steering column, ensuring it is fastened with the provided screw.

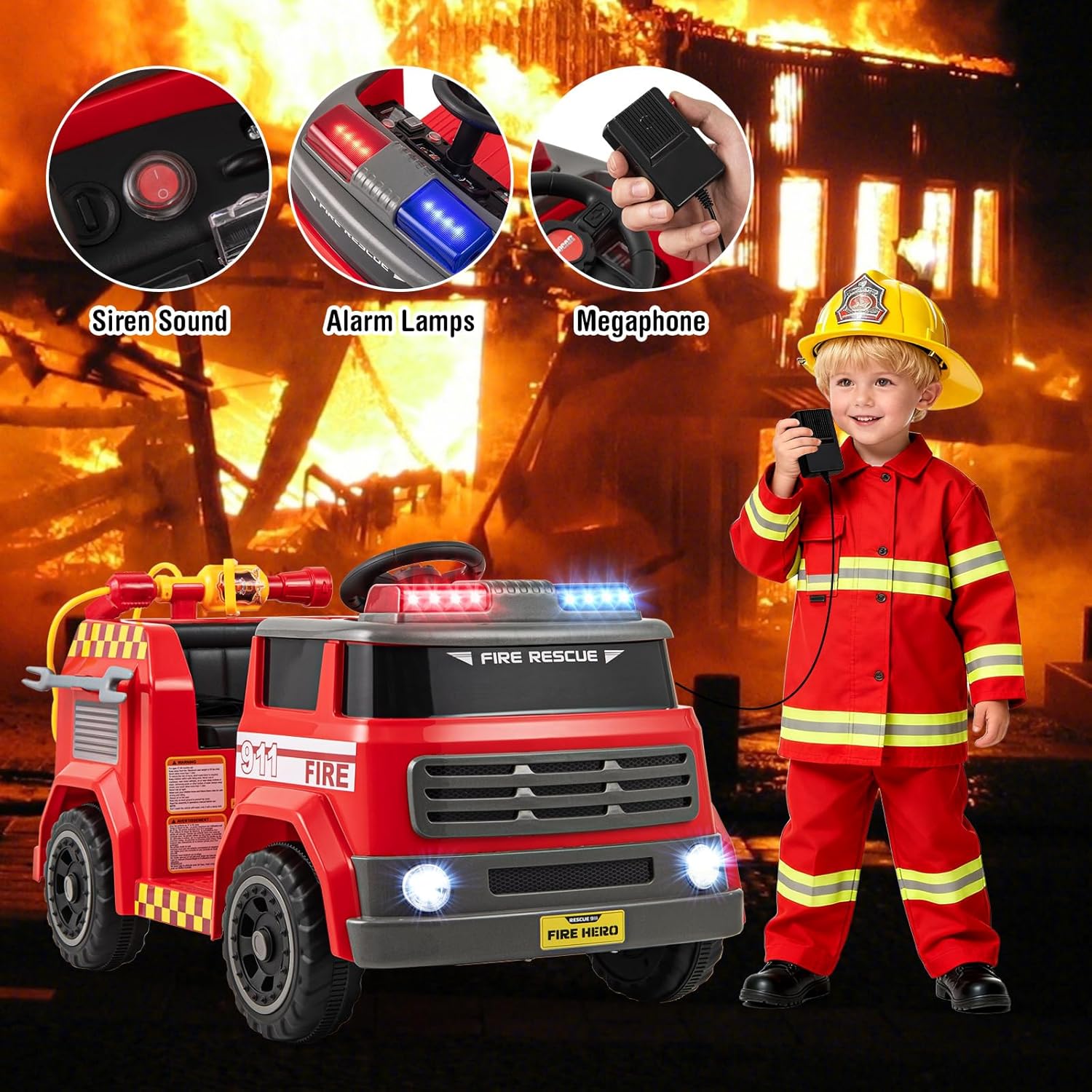

Irudiaren erakustaldiaasing the interactive features: siren sound, alarm lamps, and megaphone.

Step 3: Connect Battery and Install Seat

Locate the battery compartment. Connect the battery terminals (red to red, black to black). Place the seat into position and secure it with the appropriate screws.

Image demonstrating the parental remote control feature, highlighting the emergency brake (P button).

Step 4: Attach Water Tank and Accessories

Secure the water tank to the rear of the truck using the designated fasteners. Attach any other accessories like the shovel and wrench to their storage points.

Step 5: Final Accessory Placement

Place the water gun in its holder and connect its hose to the water tank. Ensure all tools and accessories are properly stored.

Funtzionamendu-argibideak

Ibilgailua martxan jartzea

Press the power button to turn on the fire truck. The alarm lamps will flash, and the siren may sound.

Gidatzea

Use the foot pedal to accelerate and the steering wheel to steer. The vehicle features a slow start for a smooth ride. Always ensure the child is wearing the seat belt.

Using the Water Gun

1. Fill the water tank at the back of the vehicle with water.
2. Connect the water hose of the water gun to the tank.
3. Pull the handle on the water gun to spray water.

Remote Control Operation (for Parents)

The remote control allows parents to guide the vehicle and ensure safety. It requires 2 x 1.5V AAA batteries (not included).

• Sartu bateriak urrutiko agintean.
• Pair the remote control with the vehicle according to the instructions in the remote control manual (if provided separately).
• Use the remote to control forward/backward movement and steering.
• Press the emergency brake button (P button) on the remote to stop the vehicle immediately. The remote mode can override the manual mode.

Ezaugarri interaktiboak

• Siren and Alarm Lamps: Activate these features for a realistic fire truck experience.
• Megafonoa: Use the megaphone for vocal interaction during play.
• Musika: Enjoy built-in music during the ride.

Image demonstrating the wear-resistant wheels suitable for various surfaces.

Image illustrating the powerful performance features: motors, battery, and speed.

Mantentzea

• Garbiketa: Garbitu ibilgailua iragarkiarekinamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Bateria zaintzea: Charge the 12V battery for 4-6 hours before first use and after each play session. Do not overcharge. Disconnect the battery if storing for extended periods.
• Biltegiratzea: Store the fire truck in a dry, cool place away from direct sunlight and moisture.
• Ikuskapena: Regularly check all screws, nuts, and connections to ensure they are tight. Inspect wheels and axles for wear.

Image highlighting the 12V battery, charging time, and playing time.

Arazoak konpontzea

If you encounter issues with your OLAKIDS 12V Ride-On Fire Truck, consider the following common solutions:

Arazoak jarraitzen badute, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

Zehaztapenak

Image detailing the product dimensions and recommended age/weight capacity.

Bermea eta Laguntza

For warranty information, product support, or to purchase replacement parts, please contact Olakids customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Fabrikatzailea: Olakids

Argitaratze data: 5ko azaroaren 2025a
