VINGLI Full Platform Bed Instruction Manual

1. Produktua amaitu daview

This manual provides detailed instructions for the assembly, operation, and maintenance of your VINGLI Full Platform Bed. This bed frame features a sturdy metal construction, an integrated headboard with a charging station and LED lights, and four large under-bed storage drawers. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

Figure 1: VINGLI Full Platform Bed - Overall View

2. Segurtasun informazioa

Produktuari kalterik edo lesiorik ez egiteko, jarraitu segurtasun neurri hauek:

• Mantendu pieza txiki guztiak eta ontziratzeko materialak haurren eskura ez dauden lekuetan.
• Erabili aurretik, ziurtatu torloju eta torloju guztiak ondo estututa daudela. Aldian-aldian egiaztatu eta berriro estutu behar izanez gero.
• Do not exceed the maximum weight capacity of 880 lbs for the bed frame and 55 lbs per storage drawer.
• Use the provided EVA mute strips to reduce friction noise and ensure stability.
• Exercise caution around sharp edges during assembly and use to prevent injury.
• Ez jarri zutik ohe-egituraren edo oheburuaren gainean.
• Ensure the bed is placed on a level surface.
• Only use a mattress within 10-12 inches thickness for optimal fit with the headboard.

3. Paketearen edukia

Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela. Piezarik falta edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

Figure 2: Product Dimensions and Weight Limits. Max bed weight: 880 lbs.

Dakarten osagaiak:

• Headboard (with integrated charging station and LED light strip)
• Bed Frame Components (side rails, support legs, slats)
• 4 Under-bed Storage Drawers (with wheels)
• Muntaketa-tresneria (torlojuak, arandelak, Allen giltza)
• LED Light Kit (remote control, LED strip)
• EVA Mute Strips

4. Muntatzeko jarraibideak

Jarraitu urrats hauek arretaz muntaketa egokia egiteko. Gomendagarria da bi pertsona egotea muntaketa egiteko.

4.1. Muntaketa bideo gida

4.2. Urratsez urratseko muntaketa

1. Muntatu oheburua: Attach the wooden panels to the metal headboard frame using the provided screws. Ensure the charging station slot is correctly aligned.


Figure 3: Components for easy assembly.

2. Kargatzeko estazioa instalatu: Insert the charging station into the designated slot on the headboard and secure it with screws.


Figure 4: Integrated charging station with multiple ports.

3. Ohe-egitura muntatu: Connect the side rails and footboard to the headboard. Ensure all connections are firm.
4. Attach Support Legs and Slats: Secure the central support legs and then lay out and attach the metal slats to the frame. Apply EVA mute strips to the slats as instructed to prevent noise.

Figure 5: Sturdy metal frame with slats and drawer compartments.
5. Biltegiratze tiraderak muntatzea: Assemble the wire mesh drawers and attach the wheels. Then, attach the wooden drawer fronts to the assembled drawers.


Figure 6: Four large capacity drawers with wheels for smooth gliding.

6. Txertatu tiraderak: Slide the assembled drawers into the designated spaces under the bed frame. The keyhole slot design helps align and secure the drawers.

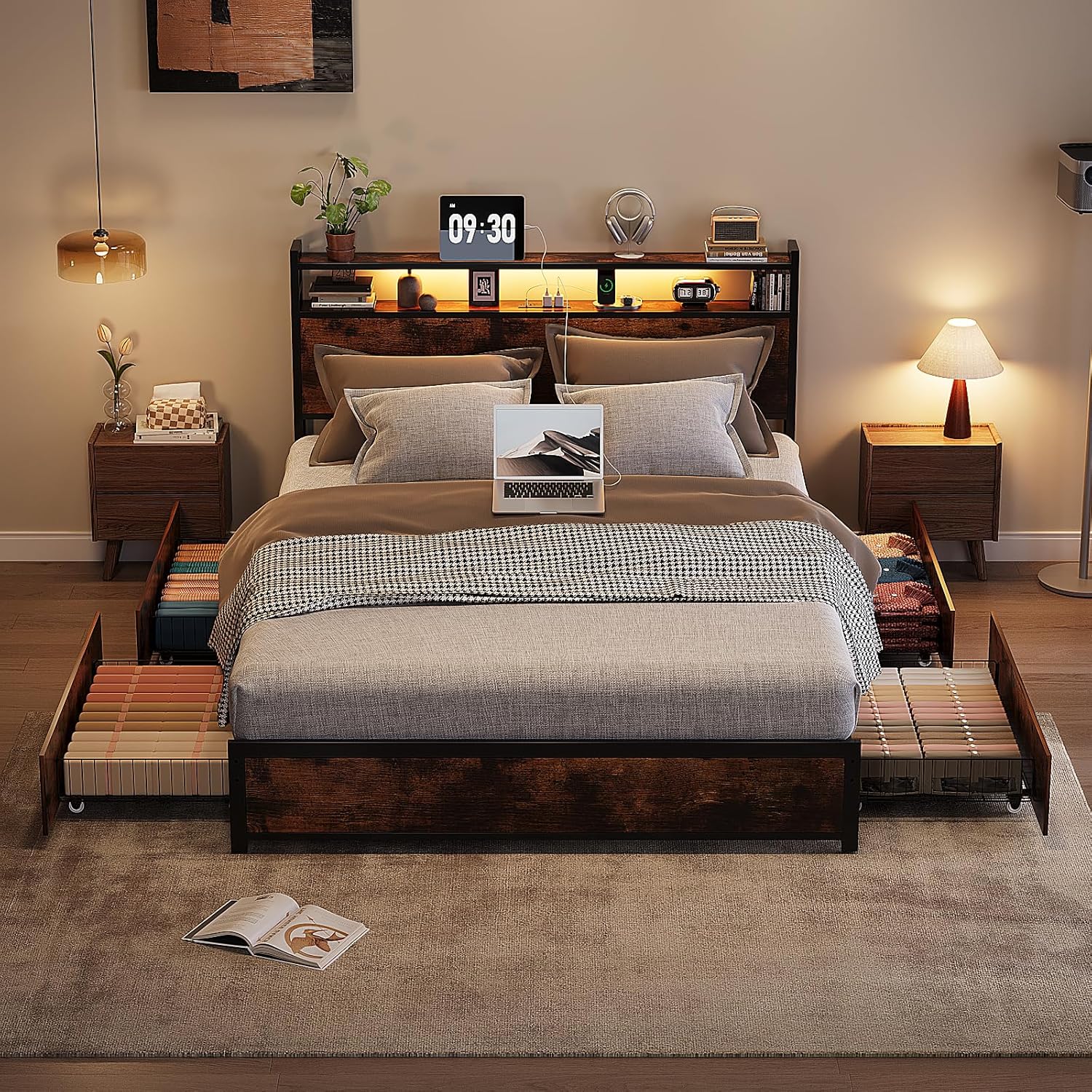

Figure 7: Bed with all four storage drawers extended, showcasing ample biltegiratze.

7. Instalatu LED argiak: Peel the backing from the LED strip and firmly stick it to the underside of the headboard shelf. Connect the LED strip plug to the charging socket on the headboard.

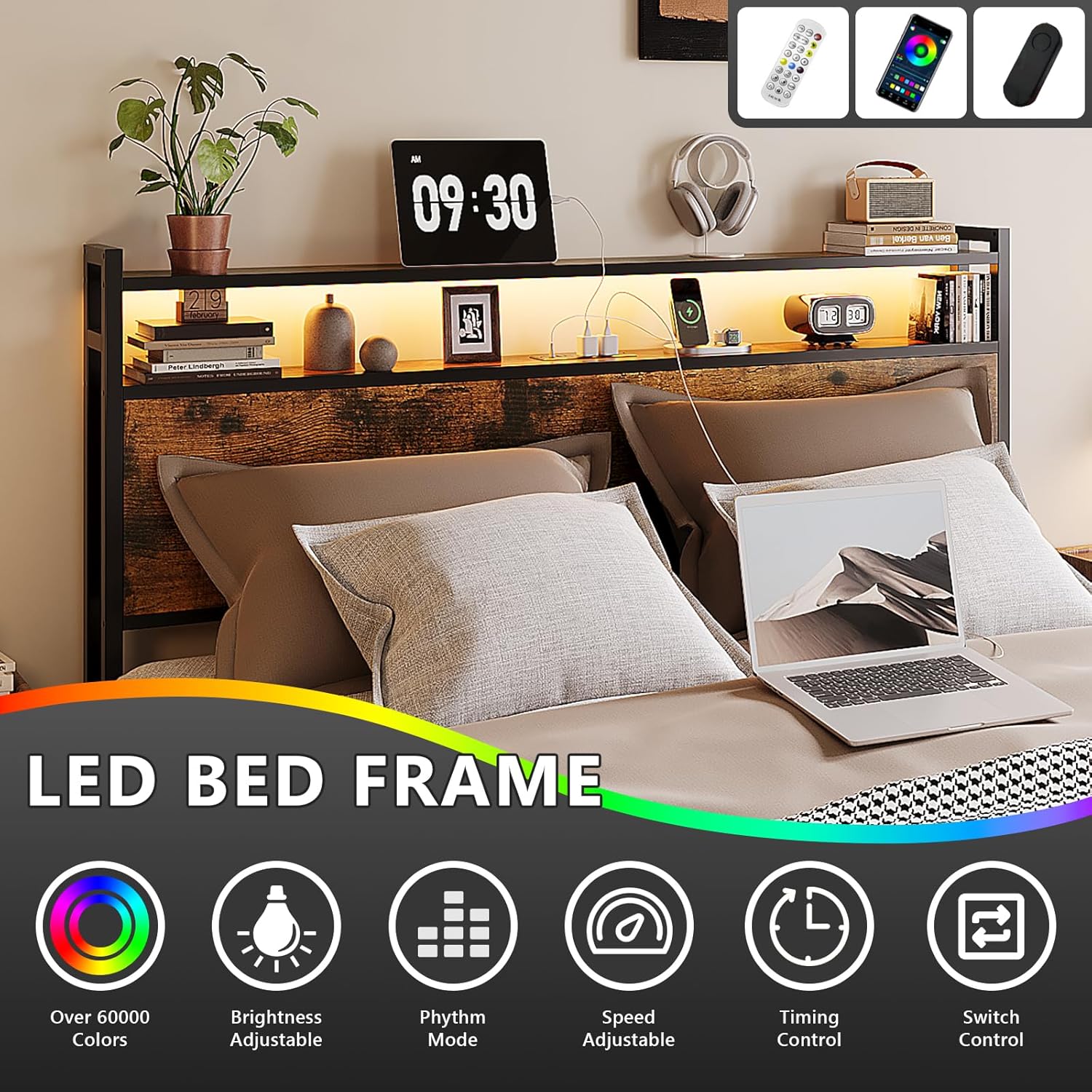

Figure 8: Headboard featuring RGB LED lights with various control options.

5. Funtzionamendu-argibideak

5.1. Kargatzeko estazioa

The integrated charging station on the headboard includes 2 AC outlets, 2 USB ports, and 1 Type-C port. Simply plug your devices into the appropriate ports for convenient charging.

5.2. LED argiak

The RGB LED light strips offer over 6000 colors, adjustable brightness levels, various scene modes, and music sync functionality. Control the lights using the provided remote control, a mobile app, or the integrated switch.

Figure 9: LED lights set to a warm tone for reading ambiance.

Figure 10: LED lights set to a cool tone for a night ambiance.

5.3. Biltegiratze tiraderak

The four under-bed drawers are on wheels for easy access. Pull them out to store clothes, books, toys, or other items. Push them back in when not in use to keep your room tidy.

5.4. Adjustable Headboard Shelf

The headboard features an adjustable shelf, allowing you to customize its position to suit your needs for storing items like books, alarm clocks, or decorative pieces.

Figure 11: Headboard with adjustable shelf for personalized storage.

6. Mantentzea

• Garbiketa: Wipe the metal and wooden surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. The headboard panels are designed to be waterproof and easy to clean.

Figure 12: Headboard material is waterproof and easy to clean.
• Loturak estutu: Aldian-aldian egiaztatu torloju eta torloju guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, berriro estutu egonkortasuna mantentzeko eta zarata saihesteko.
• Tiraderaren zainketa: Mantendu tiraderaren gurpilak hondakinik gabe funtzionamendu egokia bermatzeko.
• LED argiak: If the LED lights malfunction, check the connection to the charging socket. If issues persist, contact customer support.

7. Arazoak

8. Zehaztapenak

• Eredua: parent4d13
• Tamaina: Osoa
• Materiala: Metal frame, Wood headboard panels
• Produktuaren neurriak (L x W x H): 81.5" x 54.33" x 40.16"
• Elementuaren pisua: 90.2 kilo
• Pisu Gehienezko Gomendioa: 880 kilo
• Biltegiratzeko aukerak: 4 Under-bed drawers (55 lbs capacity each), Adjustable headboard shelf
• Kargatzeko geltokia: 2 AC outlets, 2 USB ports, 1 Type-C port
• LED argiak: RGB, 6000+ colors, adjustable brightness, scene modes, music sync
• Koltxoiaren neurri bateragarria: Full (recommended 10-12 inch thickness)
• Beharrezkoa den muntaia: Yes (clear and detailed instructions included)

9. Bermea eta laguntza

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official VINGLI website. If you have any questions or require assistance with your product, do not hesitate to contact VINGLI customer service.
