Sarrera
Thank you for choosing the Rimoody 1 Din Autoradio. This device integrates advanced features such as Wireless CarPlay, Android Auto, a 6.9-inch IPS touchscreen, Bluetooth 5.2, FM radio, and various multimedia options to enhance your driving experience. This manual provides essential information for proper installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
Segurtasun Informazioa
- Irakurri arretaz argibide guztiak instalatu eta erabili aurretik.
- Installation should be performed by a qualified professional to prevent damage to the vehicle or the device.
- Do not operate the device in a way that distracts you from driving. Always prioritize road safety.
- Saihestu gailua muturreko tenperaturen, eguzki-argiaren eraginpean denbora luzez edo hezetasunaren eraginpean jartzea.
- Erabili fabrikatzaileak zehaztutako osagarriak eta piezak soilik.
- Disconnect the vehicle's battery before installation to prevent electrical shorts.
Paketearen edukia
Egiaztatu elementu guztiak paketean daudela:
- 1 Car MP5 Player (Autoradio)
- 1 Alimentazio kablea
- 1 Horn Cable
- 1 Urruneko kontrola
- 1 Erabiltzailearen eskuliburua
- 1 Camera (Optional, if included in your purchase)
Irudia: Gainetikview of the Rimoody 1 Din Autoradio package contents, including the main unit, various cables, remote control, user manual, and an optional reverse camera.
Produktua amaituview
The Rimoody 1 Din Autoradio (Model 6286W) is designed to fit standard 1 DIN dashboard openings (178x50 mm). It features a 6.9-inch IPS touchscreen with a resolution of 1280x480, offering vibrant colors and wide viewing angles. Key functionalities include:
- Wireless and Wired CarPlay & Android Auto
- Bluetooth 5.2 for hands-free calls and audio streaming
- FM Radio with automatic search and preset stations
- Mirror Link for screen mirroring from smartphones
- Steering Wheel Control learning function
- Customizable EQ sound effects
- Multi-function USB and Type-C ports for media playback and charging
- Support for optional reverse camera and DVR functions
- Colorful backlight settings
Konfigurazioa eta instalazioa
This autoradio is compatible with vehicles equipped with standard 1 DIN dashboard kits (178x50 mm). Professional installation is recommended.
Kableatu-diagrama
Refer to the detailed wiring diagram provided in the image below and in your physical user manual for correct connections. Ensure all connections are secure to prevent malfunctions.
Image: Detailed wiring diagram for the Rimoody 1 Din Autoradio, illustrating connections for power, speakers, audio outputs, camera input, and USB ports.
- Potentzia-konexioa: Connect the power cable (red and yellow wires) to the vehicle's power supply. The black wire is for ground.
- Bozgorailuaren konexioa: Connect the horn cable to your vehicle's speakers. Ensure correct polarity.
- Reverse Camera (Optional): Connect the reverse camera input (CVBS) to the designated port. The unit will automatically display the camera feed when reverse gear is engaged.
- Antena: Connect the radio antenna to the unit.
- USB/Type-C: Connect external devices or charging cables to the USB and Type-C ports.
Funtzionamendu-argibideak
1. Haririk gabeko CarPlay eta Android Auto
Enjoy seamless smartphone integration. Connect your Apple or Android phone wirelessly via Bluetooth/Wi-Fi or wired via USB to access maps, music, calls, and apps. Activate voice control (Siri/Google Assistant) for navigation, messages, or calls, keeping your focus on the road.

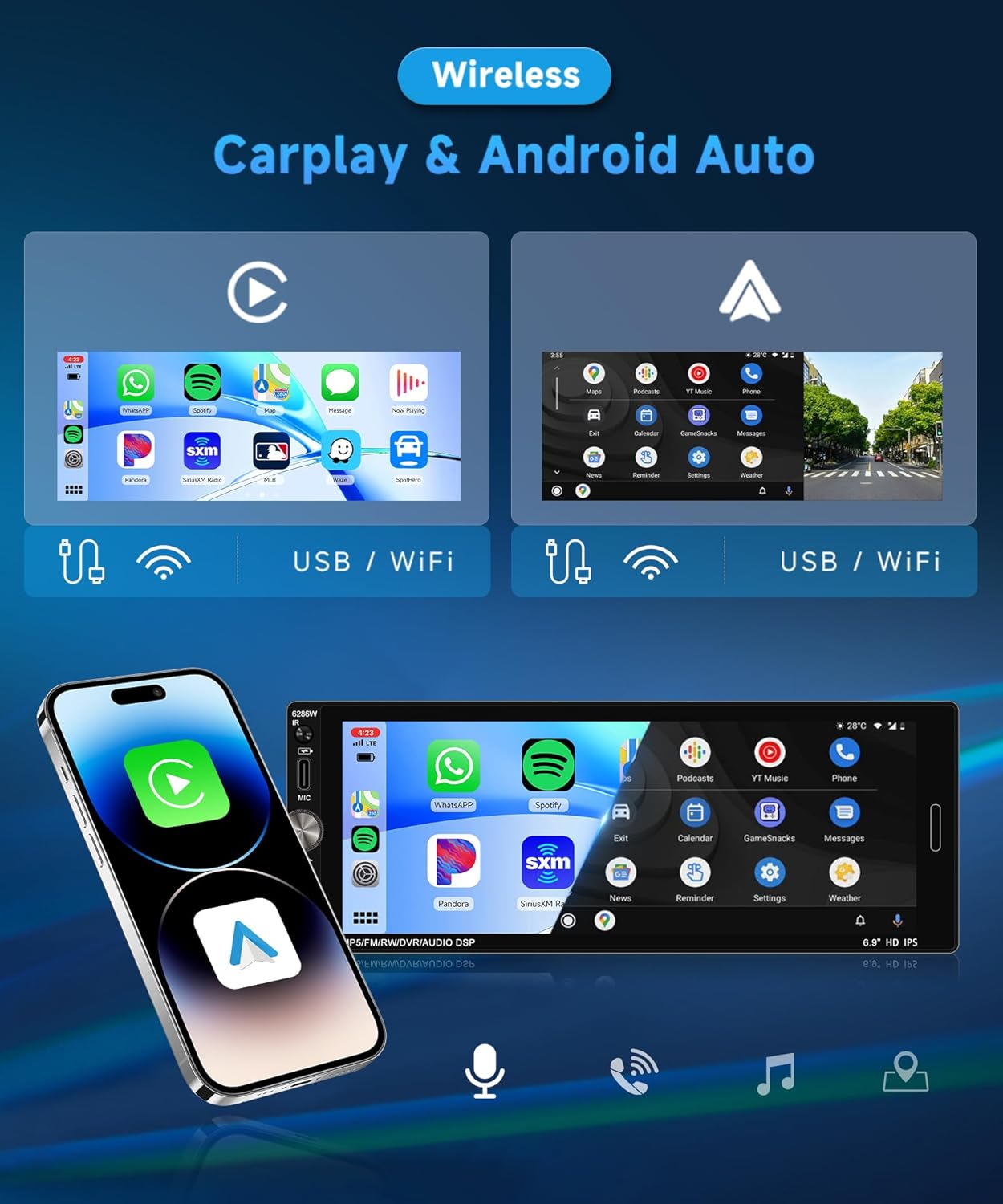

Image: Display of Wireless CarPlay and Android Auto interfaces on the 6.9-inch IPS touchscreen, demonstrating app access and connectivity options.
2. Bluetooth 5.2
Benefit from stable Bluetooth 5.2 connectivity for wireless music streaming, hands-free calls, and contact synchronization. Noise reduction technology ensures clear audio even in noisy environments. To pair, enable Bluetooth on your phone, search for the device (e.g., "Rimoody 6286W"), and connect.

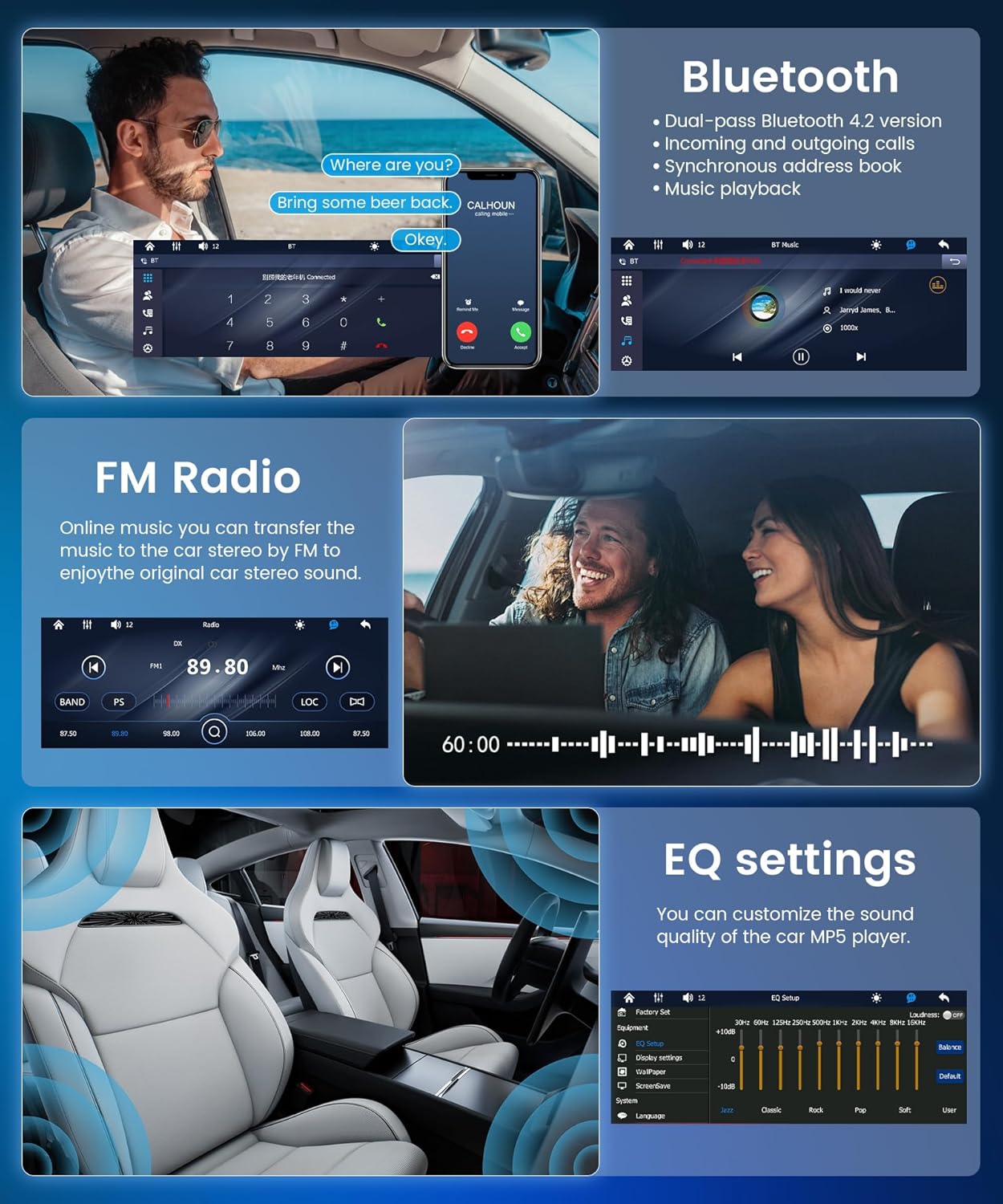

Image: The Bluetooth interface showing an active call, alongside the FM radio tuner and equalizer settings.
3. FM Irratia
The integrated FM radio automatically searches and saves up to 18 preset stations. Listen to music, news, and traffic information. Use the auto-search, semi-automatic, or precise tuning functions to find your preferred stations.
4. Ispilu-esteka
Mirror Link duplicates your smartphone screen onto the car's display, providing seamless access to your apps and media. Connect wirelessly via Bluetooth/Wi-Fi or via USB to display maps, videos, or applications on the large touchscreen.
Image: A smartphone screen being mirrored onto the Rimoody Autoradio display, illustrating the Mirror Link feature via USB or WiFi connection.
5. Bolantearen kontrola
The unit supports a steering wheel button learning function, allowing you to control essential functions directly from your steering wheel for added convenience and safety. Follow the on-screen instructions in the settings menu to program your steering wheel controls.
Image: The steering wheel control setup menu on the autoradio, next to a visual representation of a car's reverse camera view.
6. EQ ezarpenak
Customize your audio experience with the 10-band equalizer. Adjust bass, treble, and other sound parameters to achieve optimal sound quality. The unit also features a bass filter for an immersive in-car audio experience.
7. Reverse Camera (Optional)
If a reverse camera is connected, the autoradio will automatically display the rear view when the vehicle is put into reverse. This feature enhances safety by providing a clear view of obstacles, aiding in parking and maneuvering.
8. Multimedia Input (USB & Type-C)
Connect your devices to the multi-function USB and Type-C ports to enjoy your favorite music, videos, and photos. These ports also support fast charging for your devices while driving. Compatible formats include MP3/WMA/WAV/APE/FLAC for audio and RM/RMVB/AVI/MP4/MKV/3GP for video.
Image: Visual representation of multimedia input options including TF card, USB, AUX IN, and fast charging, along with the customizable colorful backlight settings.
9. Colorful Backlight Settings
Customize the unit's button backlighting with various color options to match your vehicle's interior or your personal preference.
Mantentzea
- Pantaila garbitzea: Erabili zapi leun eta lihorik gabeko bat ukipen-pantaila astiro-astiro garbitzeko. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Garbiketa orokorra: Keep the unit free from dust and debris. Use a dry cloth for cleaning the exterior.
- Software eguneraketak: Egiaztatu fabrikatzailearena webwebgunea aldian-aldian bisitatu eskuragarri dauden software eguneratzeen berri izateko, errendimendu optimoa eta funtzio berriak bermatzeko.
- Saihestu likidoak: Prevent any liquids from entering the unit, as this can cause severe damage.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Botererik ez | Kableatu okerra; Fusible erreta; Ibilgailuaren bateriaren arazoa. | Check power cable connections; Inspect and replace fuses if necessary; Verify vehicle battery voltage. |
| Soinurik ez | Bozgorailuen kableak deskonektatuta; Bolumena baxuegia; Isilarazteko funtzioa aktibo; Audio iturri okerra. | Check speaker connections; Increase volume; Deactivate mute; Select correct audio source. |
| Bluetooth konexioak huts egin du | Bluetooth not enabled on phone/unit; Device out of range; Interference. | Ensure Bluetooth is active on both devices; Move devices closer; Restart both devices. |
| CarPlay/Android Auto ez da konektatzen | Incorrect USB cable; Phone software outdated; App not installed/updated. | Use original or certified USB cable; Update phone OS and CarPlay/Android Auto app; Restart phone and unit. |
| FM irratiaren harrera eskasa | Antena ez dago konektatuta; Seinale ahula dagoen eremua; Interferentziak. | Ensure antenna is properly connected; Try tuning manually; Move to an area with better signal. |
Zehaztapenak
- Eredua: 6286W
- Pantailaren materiala: IPS
- liburukiatage: DC 12V
- Prozesadorea: F133
- Pantailaren tamaina: 6.9 hazbetekoa
- Ebazpena: 1280 x 480
- Ispilu esteka: Bateragarria
- Irrati Banda: FM
- Irrati txipa: QN8035
- Irteera potentzia: 45W (per channel), 180W total
- Funtzionamendu-tenperatura: -10 ~ 60 °C
- Bluetooth bertsioa: 5.2
- Atzeko argi koloretsua: Bateragarria
- Reverse Input: CVBS
- Boterea AmpLider Txipa: TDA7388
- Irrati maiztasuna: 87.5-108 MHz
- Audio formatuak: MP3 / WMA / WAV / APE / FLAC
- Bideo formatuak: RM/RMVB/AVI/MP4/MKV/3GP
- Irudi formatuak: JPG, BMP, PNG
- Onartutako hizkuntzak: English, Chinese, Spanish, Portuguese, Russian, Italian, German, French, Turkish, Czech, Arabic, Polish, Hebrew
- Konektibitate Teknologia: AUX, USB, Type C
- Kontroladore mota: Manual Control, Remote Control
- Gailu bateragarriak: Smartphone, Tablet, Personal Computer, Game Console, Car Display
- Audio irteera modua: Estereoa
- Inguruko soinu-kanalaren konfigurazioa: 4.0
Bermea eta laguntza
This Rimoody Autoradio comes with a 2 urteko fabrikatzailearen bermeaGorde erosketaren egiaztagiria bermearen erreklamazioetarako.
For technical support, troubleshooting assistance, or warranty inquiries, please contact Rimoody customer service through the retailer where you purchased the product or visit the official Rimoody webharremanetarako informazioa lortzeko gunea.
When contacting support, please have your product model (6286W) and purchase details ready.
