ATTACK SHARK R85 HE Wired 75% Hall Effect Rapid Trigger Mechanical RGB Gaming Keyboard User Manual

Sarrera

The ATTACK SHARK R85 HE is a high-performance wired 75% mechanical gaming keyboard designed for speed and precision. It features Hall Effect magnetic switches with adjustable actuation points, an 8000Hz polling rate, 0.05mm RT accuracy, and 0.08ms ultra-low latency. The keyboard includes a 5-layer sound dampening system for an optimal typing experience and customizable RGB lighting. It is compatible with both PC and Mac systems.

Konfigurazioa

To set up your ATTACK SHARK R85 HE keyboard, follow these steps:

Konektatu teklatua: Connect the keyboard to your computer using the provided USB-C cable. The keyboard is plug-and-play compatible with Windows and Mac operating systems.
Softwarearen instalazioa: For full customization and advanced features, download the dedicated software from the official ATTACK SHARK website or access the web-based driver. This software allows for key remapping, macro creation, RGB lighting adjustments, and magnetic switch settings.
Hasierako Kalibrazioa: After connecting and installing the software, it is recommended to perform a calibration. Refer to the 'Quick Calibration Guide' image below for detailed steps.

Quick Calibration Guide for ATTACK SHARK R85 HE Keyboard — Image: Quick Calibration Guide. This image illustrates the steps to calibrate your keyboard using the software: 1. Open the web driver or downloaded software. 2. In the "Keyboard Setting" panel, find "Travel Calibration" and click it. 3. In the pop-up window, select "Start Calibration." 4. Follow on-screen instructions, then click "Calibration Complete."

Funtzionamendu-argibideak

The ATTACK SHARK R85 HE keyboard offers a range of features for an enhanced gaming and typing experience.

1. Rapid Trigger and Magnetic Switches

The Hall Effect magnetic switches provide adjustable actuation points, allowing you to customize the key sensitivity from 0.1mm to 3.3mm. This feature, combined with Rapid Trigger technology, enables keys to activate and reset based on movement rather than a fixed point, offering unparalleled speed and precision in competitive gaming.

Erregulagarria den aktuazio-puntua: Use the software to set individual key actuation points.
Snap Key (SOCD): Enables one keystroke to trigger multiple actions.
Teklatuaren Sakatzea Dinamikoa (DKS): Allows for advanced key functionalities.

Adjustable Actuation Point for Magnetic Switches — Image: Adjustable Actuation Point. This image illustrates the components of a magnetic switch and its adjustable actuation range from 0.1-3.3mm, with a 100 million click lifespan.

Software Interface for Customizing Keyboard Settings — Image: Customize Your Play. This image displays the keyboard's software interface, showing options for custom keys, magnetic switch settings, and advanced key settings like Snap Key and Dynamic Keystroke.

2. RGB Lighting and Media Knob

The keyboard features 19 dynamic backlight modes and a unique front-facing RGB light bar, offering 16.8 million colors for a personalized setup. A convenient volume roller is integrated for instant media control.

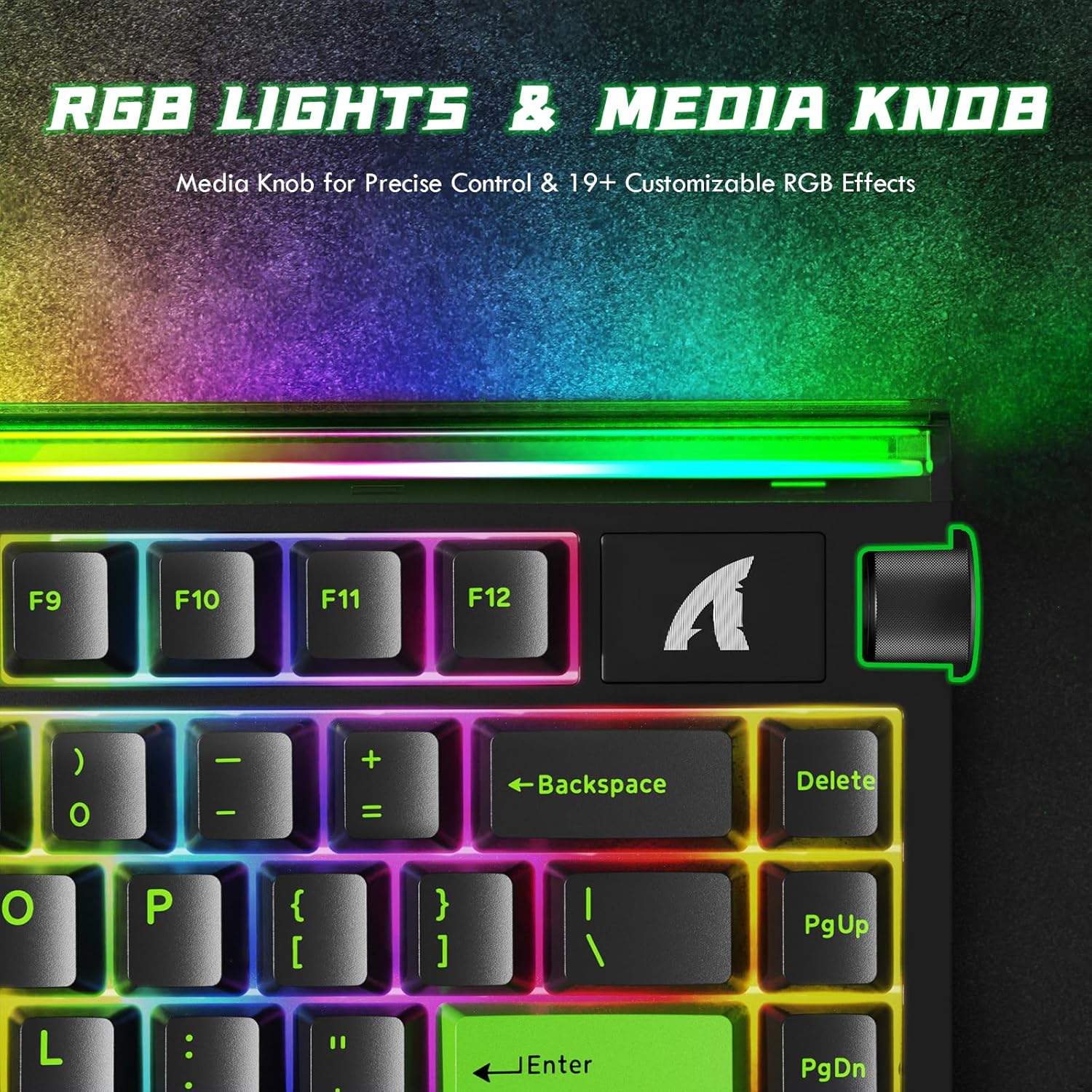

RGB Lighting and Media Knob on ATTACK SHARK R85 HE Keyboard — Image: RGB Lights & Media Knob. This image highlights the RGB lighting effects on the keycaps and the front light bar, along with the media control knob located on the top right of the keyboard.

3. Sound Dampening Sistema

The keyboard incorporates a 5-layer sound-dampening system (PE Foam, IXPE, PET, Foam, Silicone) designed to absorb metallic ping and rattle, producing a satisfying "thock" sound with each keystroke.

Five Layer Sound Dampening System Diagram — Image: Five Layer Foamed for Full Bodied. This diagram illustrates the internal 5-layer sound dampening structure, including the aluminum alloy plate, PORON foam, IXPE foam, PET film, EPDM foam, silicone dampening pad, and bottom case.

4. Performance Metrics

Experience near-zero input delay with an 8000Hz polling rate and a 256K scanning rate, ensuring rapid response and precise control.

8000Hz Polling Rate and 256KHz Scan Rate — Image: 8000Hz Polling Rate, 256KHz Scan Rate. This image highlights the ultra-fast 0.08ms response and lightning-speed performance of the keyboard.

5. Produktua amaitu daview

Image: ATTACK SHARK R85 HE Keyboard Overview. This image provides a comprehensive view of the keyboard, highlighting its key features like low latency, RT accuracy, magnetic switches, RGB lightbox, multimedia knob, 8000Hz polling rate, 256KHz scan rate, and web driver support.

6. Produktu Ofizialen Bideoak

Video: ATTACK SHARK RGB Rapid Trigger Mechanical Gaming Keyboard. This video showcases the RGB lighting effects and rapid trigger functionality of the keyboard.

Video: ATTACK SHARK R85HE RT Mechanical Keyboard. This video demonstrates the rapid trigger features and overall mechanical performance.

Video: ATTACK SHARK R85HE Magnetic Switch Mechanical Keyboard. This video focuses on the magnetic switch technology and its benefits.

Video: ATTACK SHARK R85 HE Wired RT 8K Polling Mechanical Keyboard. This video provides a detailed overview of the keyboard's wired connectivity, rapid trigger, and 8K polling rate.

Mantentzea

Mantentze egokiak zure teklatuaren iraupena eta errendimendua bermatzen ditu.

Garbiketa: Regularly clean the keycaps and chassis with a soft, dry cloth. For deeper cleaning, you may use a slightly damp zapi bat xaboi leun batekin, likidorik teklatuan sartzen ez dela ziurtatuz.
Tekla-tapoia kentzea: The keyboard features hot-swappable switches. If you need to remove keycaps for cleaning or replacement, use a keycap puller to gently lift them straight up to avoid damaging the switches.
Kableen zainketa: Kalteak ekiditeko, saihestu USB-C kablea gehiegi tolestea edo tiratzea.

Arazoak konpontzea

If you encounter issues with your keyboard, consider the following:

Teklatuak ez du erantzuten: Ensure the USB-C cable is securely connected to both the keyboard and the computer. Try connecting to a different USB port or a different computer to rule out port issues.
RGB argiztapen arazoak: If the RGB lighting is not functioning correctly, check the software settings to ensure the desired effects are selected. You may also try resetting the keyboard's lighting profiles.
Key Input Problems: If specific keys are not registering or are double-typing, ensure the magnetic switches are properly seated. If the issue persists, perform a calibration through the software as described in the Setup section.
Softwareak ez du teklatua detektatzen: Reinstall the keyboard software or web driver. Ensure your operating system is up to date.

Zehaztapenak

Ezaugarri	Xehetasuna
Marka	ERASO MARrazoa
Eredua	R85 HE
Konektibitate Teknologia	USB-C kable bidez
Teklatuaren deskribapena	Mekanikoa
Aldatu mota	Hall Effect Magnetic Switch
Bozketa-tasa	8KHz
RT zehaztasuna	0.05 mm
Latentzia	0.08 ms
Eskaneatzeko tasa	256KHz
Aktuazio-eremua	0.1-3.3 mm (erregulagarria)
Soinua Dampening	5-Layer Filling (PE Foam, IXPE, PET, Foam, Silicone)
Giltzak	Cherry Profile PBT teklak
Atzeko argiztapena	RGB (19+ modes, front-facing light bar)
Gako kopurua	84
Gailu bateragarriak	PC, Mac
Materiala	Aluminum, Plastic (PBT)
Ezaugarri bereziak	Programagarria Web Driver, RGB Lightbox, Hot-Swappable

Bermea eta Laguntza

For warranty information, technical support, or to access the latest drivers and software, please visit the official ATTACK SHARK webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzura. Gorde erosketa-agiria berme-erreklamazioetarako.
