Cooler Depot Commercial Undercounter High-Temperature Dishwasher H50-S1 User Manual

1. Sarrera

Thank you for choosing the Cooler Depot Commercial Undercounter High-Temperature Dishwasher H50-S1. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new dishwasher. Please read this manual thoroughly before using the appliance and keep it for future reference.

2. Segurtasun informazioa

Beti jarraitu oinarrizko segurtasun neurriak tresna elektrikoak erabiltzean, sute, deskarga elektriko edo lesio arriskua murrizteko.

• Ziurtatu ontzi-garbigailua behar bezala lurrera konektatuta dagoela.
• Ez erabili ontzi-garbigailua kablea edo entxufea hondatuta badu.
• Mantendu haurrak ontzi-garbigailutik urrun funtzionatzen ari den bitartean.
• Use only detergents and rinse aids specifically designed for commercial dishwashers.
• Ez tamper with safety devices or controls.
• Deskonektatu beti energia mantentze-lan edo garbiketa egin aurretik.

3. Konfigurazioa eta instalazioa

3.1 Desontziratzea eta ikuskatzea

Carefully remove the dishwasher from its packaging. Inspect the unit for any shipping damage. The stainless steel surfaces are covered with a protective film. This film should be removed before initial use. Gently peel off the film from all stainless steel surfaces.

3.2 Kokapena eta neurriak

The overall dimensions of the H50-S1 are approximately 24 inches (Length) x 25 inches (Depth) x 32 inches (Height). Ensure adequate clearance for ventilation and access for maintenance. The usable chamber height is 12 inches.

3.3 Konexio elektrikoa

This dishwasher operates on 208-240V electricity and can be used with either single-phase or 3-phase power. The booster power is 2.5Kw. Consult a qualified electrician for proper electrical installation.

3.4 Ur eta hustubide konexioak

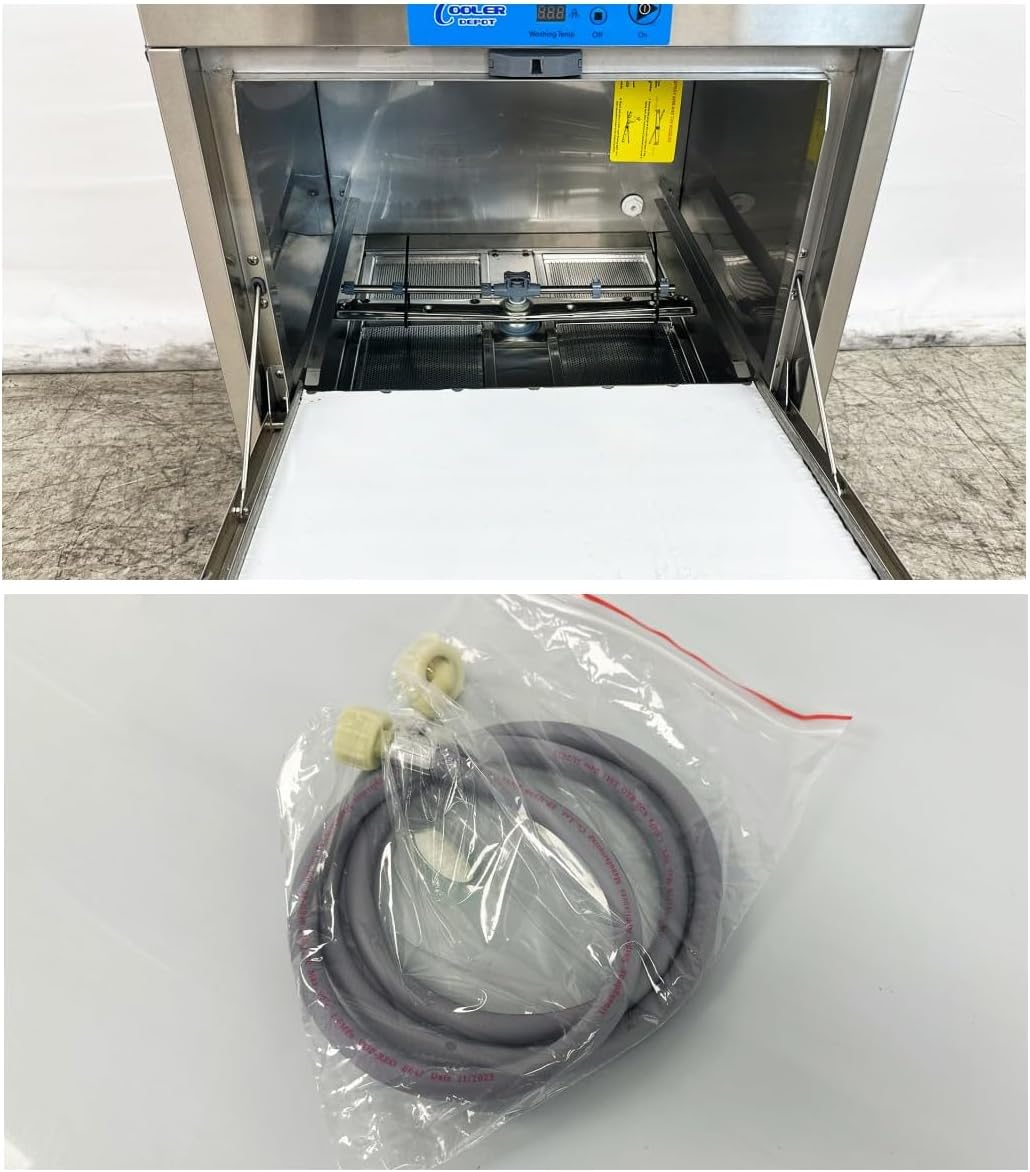

The unit includes a fill hose for water connection and a drain hose for wastewater. It also features a pumped rinse system and a cavity drain. Ensure all connections are secure and leak-free.

3.5 Chemical Dispensers

Chemical dispensers for detergent and rinse aid are included for optimal washing performance. Connect these according to the manufacturer's instructions for your chosen chemicals.

4. Funtzionamendu-argibideak

4.1 Kontrol-panela amaituview

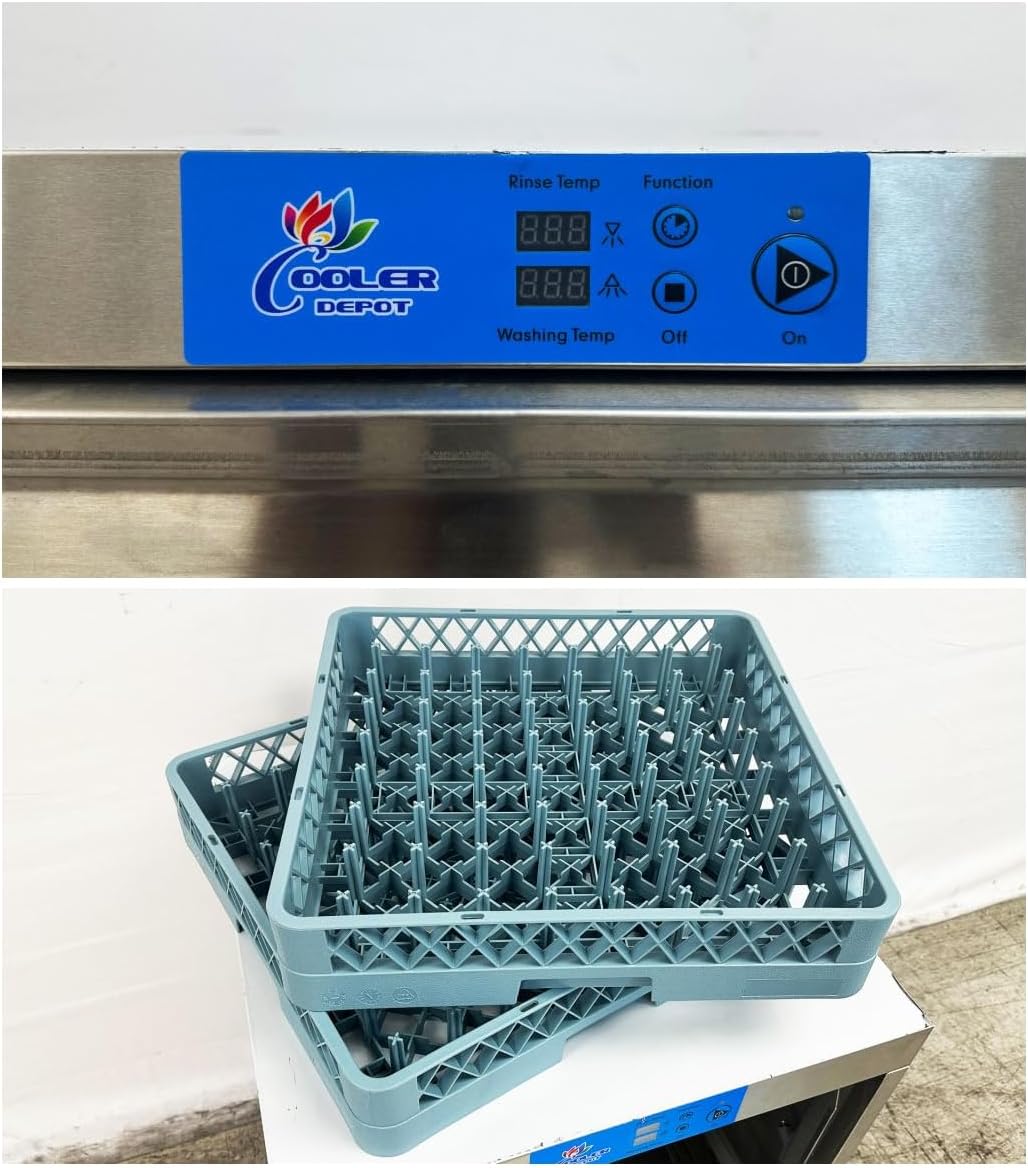

The dishwasher features easy-to-use electronic controls with a digital display for rinse and washing temperatures. The control panel includes an On/Off button and a Function button to select cycles.

4.2 Platerak kargatzea

Place dishes and glassware into the provided dish racks. The unit comes with two standard dish racks. Ensure items are loaded to allow water to reach all surfaces for effective cleaning.

4.3 Ziklo hautaketa

The H50-S1 offers three wash cycles: 120, 150, and 180 seconds. Select the appropriate cycle based on the soil level of your dishes using the Function button on the control panel.

4.4 Eragiketa abiaraztea

After loading dishes and selecting a cycle, press the 'On' button to start the washing process. The digital display will show the current rinse and washing temperatures.

5. Mantentzea

Mantentze-lan erregularrak zure ontzi-garbigailuaren errendimendu optimoa eta iraupen luzea bermatzen ditu.

• Eguneko garbiketa: Wipe down all exterior and interior surfaces with a damp oihala eta detergente leuna.
• Rinse Arms: Periodically check the rotating stainless steel wash and rinse arms for blockages or damage. Ensure the wide-angle fan nozzles are clear.
• Wash Pump Inlet Strainer: Clean the wash pump inlet strainer regularly to prevent debris buildup and ensure machine reliability.
• Deskalifikazioa: Depending on water hardness, periodic descaling may be necessary. Consult a professional for descaling procedures.

6. Arazoak

Arazoak badituzu, jarraitu honako ohiko arazoak konpontzeko urratsak. Arazo iraunkorrak badituzu, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• Ontzi-garbigailua ez da martxan jartzen: Check power connection, ensure the door is fully closed, and verify the On/Off button is pressed.
• Garbiketa emaitza txarrak: Ensure rinse arms are not blocked, check detergent and rinse aid levels, and verify correct cycle selection.
• Isurketa: Inspect all hose connections for tightness and check door seal for damage.

7. Zehaztapenak

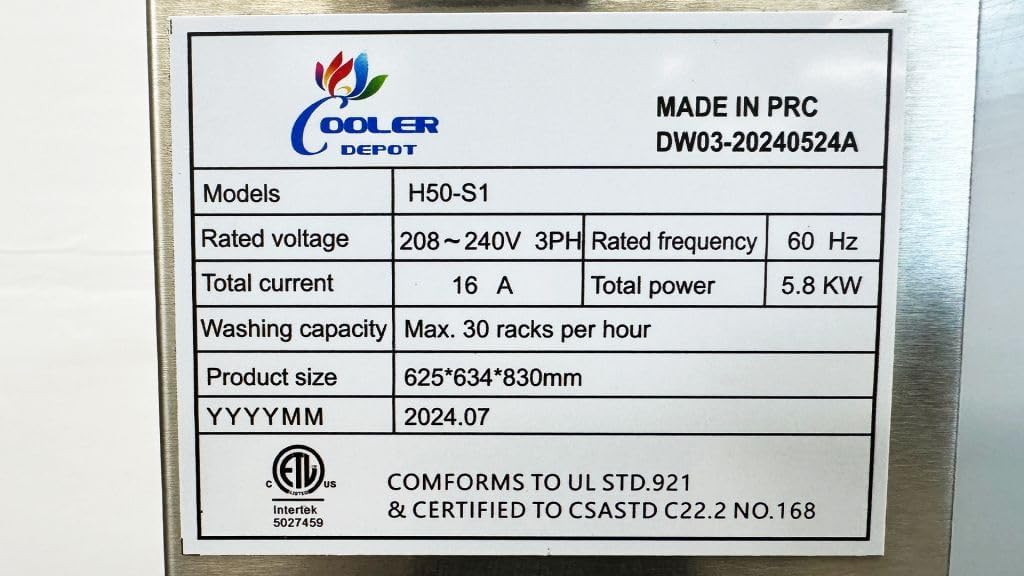

Key technical specifications for the Cooler Depot H50-S1 Dishwasher:

8. Bermea eta Laguntza

The Cooler Depot H50-S1 Commercial Dishwasher comes with a 1-year parts warranty and a 1-year labor warranty. For warranty claims, technical support, or any questions regarding your product, please contact Cooler Depot USA customer service. Keep your purchase receipt and original packaging materials for any potential returns or service needs.

9. Produktuen bideoak

9.1 Commercial Dishwasher H50-S1 Overview

1. bideoa: Ofizial bat amaitu daview of the Cooler Depot H50-S1 Commercial Dishwasher, demonstrating its features, dimensions, and control panel operation. This video also shows the removal of the protective film from the stainless steel surfaces.
