1. Sarrera
This manual provides essential instructions for the safe operation, installation, and maintenance of your LANCHEZ 13-inch Sand Filter Pump. Please read this manual thoroughly before operating the unit to ensure proper function and longevity of your pool filtration system. This sand filter pump is designed for above-ground pools, offering efficient water filtration with a 7-way valve for versatile control.

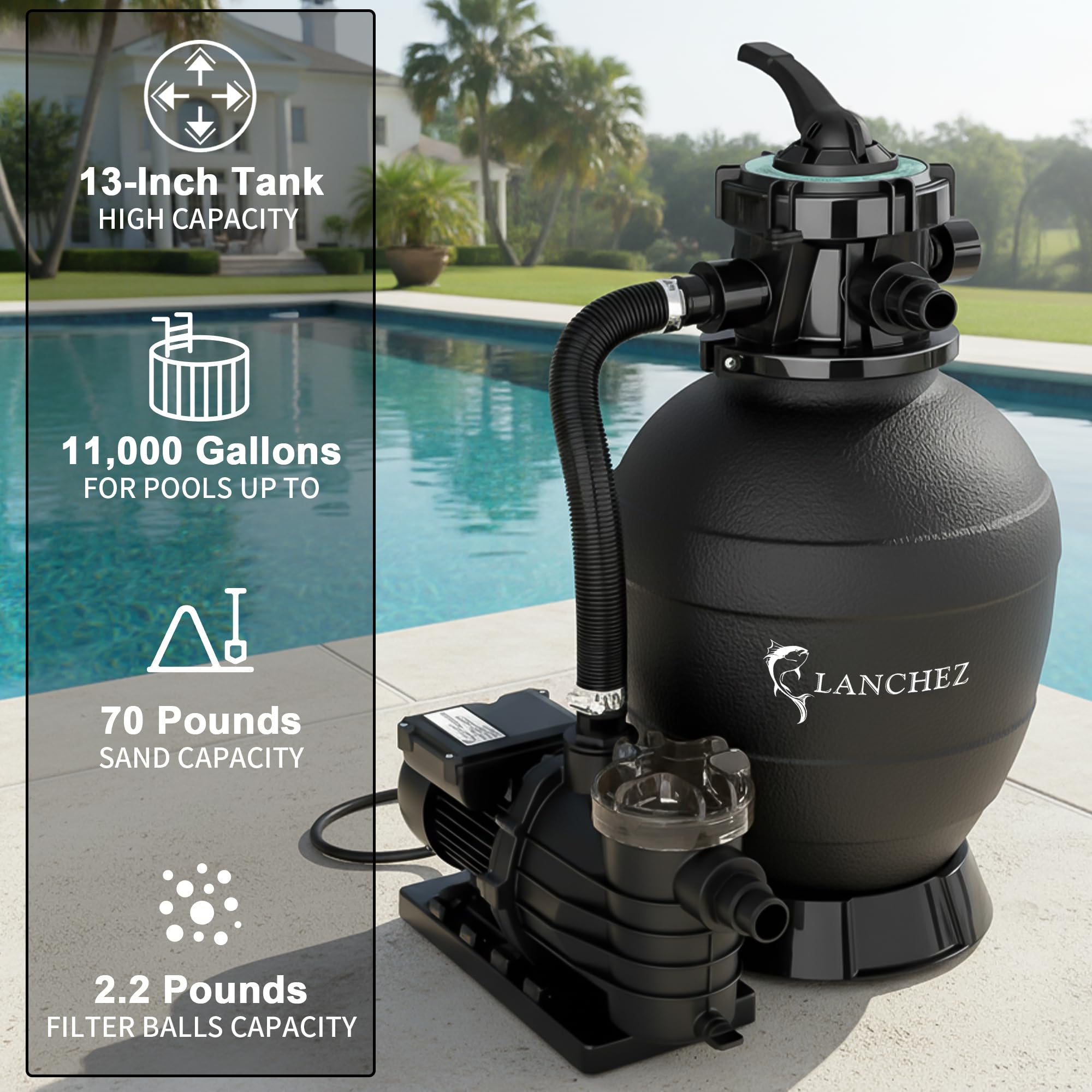

1.1. irudia: Amaituview of the LANCHEZ 13-inch Sand Filter Pump, highlighting its 13-inch tank, 11,000-gallon pool capacity, 70 pounds sand capacity, and 2.2 pounds filter balls capacity.
2. Segurtasun informazioa
OHARRA: Argibide hauek ez jarraitzeak lesio larriak edo heriotza eragin ditzake.
- Deskonektatu beti ponparen energia edozein zerbitzu edo mantentze-lan egin aurretik.
- Ensure the pump is connected to a grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI).
- Do not operate the pump if the power cord is damaged. Contact qualified service personnel for repair.
- Never operate the pump dry. Ensure the pump is fully primed with water before starting.
- Mantendu haurrak eta baimenik gabeko pertsonak ponpatik eta igerilekutik urrun funtzionatzen ari den bitartean.
- Install the pump on a solid, level surface, away from the pool edge to prevent accidental submersion.
- Ez lurperatu kable elektrikoa.
3. Paketearen edukia
Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela:
- 13-inch Sand Filter Tank
- Iragazkien Muntaia
- Ihesa
- Pump (0.75 HP)
- Oinarrizko euskarria
- 7-bideko balbula
- Brida Clamp
- O-Rings (various sizes)
- Neck Fitting (Funnel)
- Plug 1/2" 38mm MIP
- Presio-neurgailua
- Hodi egokitzaileak
- Mahuka Clamps
- 1/4" (32mm x 45cm) Hose
- 0.44lb Filter Balls (initial quantity)
- Erabiltzailearen eskuliburua
Image 3.1: Detailed breakdown of all included parts for the LANCHEZ sand filter pump system, categorized into Filter, Pump, Base, Valve, and Hose components.
4. Konfigurazioa eta instalazioa
Follow these steps for proper assembly and installation of your sand filter pump:
- Gunearen hautaketa: Choose a level, firm location for the pump, preferably on a concrete slab or sturdy base, within 10 feet of the pool. Ensure adequate drainage.
- Oinarria muntatzea: Attach the pump and filter tank to the base support as per the included diagrams.
- Add Filter Media: Remove the multi-port valve and carefully pour the recommended amount of filter sand (70 lbs) or filter balls (2.2 lbs) into the tank. Ensure the standpipe is centered during this process.
- Install Multi-Port Valve: Place the 7-way valve onto the filter tank, ensuring the O-ring is properly seated. Secure with the flange clamp.
- Connect Pump to Filter: Attach the pump to the filter tank using the provided hose and clamps.
- Connect Hoses to Pool: Connect the inlet and outlet hoses from the pump/filter system to your pool's skimmer and return lines. Ensure all connections are tight to prevent leaks.
- Ponpa leheneratzea: Before starting, ensure the pump basket is filled with water. Open all necessary valves to allow water to flow from the pool to the pump.
- Konexio elektrikoa: Plug the pump into a GFCI-protected 115V electrical outlet.

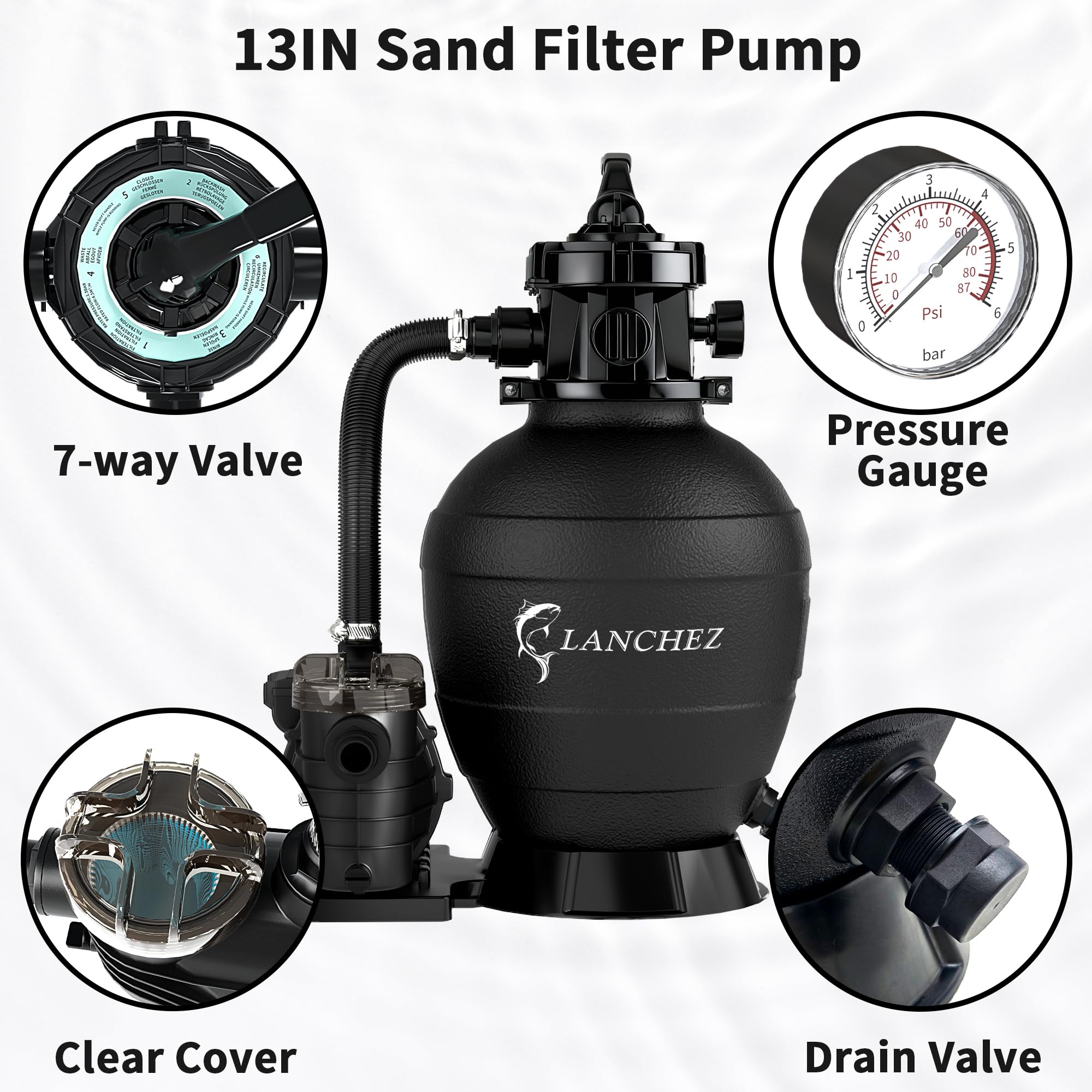

Image 4.1: Key components of the 13-inch Sand Filter Pump, including the 7-way valve, pressure gauge, clear cover for the pump basket, and drain valve.
Video 4.2: An official instructional video from Lanchez Pumps Industry Inc. demonstrating the setup process for a LANCHEZ Sand Filter Pump System. This video provides a visual guide to assembly and initial connection.
Image 4.3: A table providing pool selection tips, correlating filter size (in inches) with recommended maximum pool size (gallons), maximum flow rate (GPH), and sand capacity (lbs).
5. Funtzionamendu-argibideak
The 7-way multi-port valve allows for various operational modes. Always turn off the pump before changing the valve position.
- Iragazkia: This is the standard operating mode for daily filtration. Water passes through the filter media, and clean water returns to the pool.
- Atzera-garbiketa: Used to clean the filter media. Water flow is reversed, flushing accumulated debris out through the waste port. Perform when pressure gauge reads 8-10 PSI above starting pressure.
- GARBITU: Used after backwashing to flush any remaining debris from the valve and filter lines to the waste port, preventing it from returning to the pool.
- HONDAKINAK: Bypasses the filter and sends water directly out the waste port. Useful for lowering pool water level or vacuuming heavy debris directly to waste.
- ITXITA: Shuts off all flow to the filter and pump. Never use this setting while the pump is running.
- BIRKIRKULATU: Iragazkia saihestu eta ura zuzenean igerilekura itzultzen du. Produktu kimikoak iragazi gabe nahasteko erabilgarria.
- NEGUA: Position for winterizing the filter system.

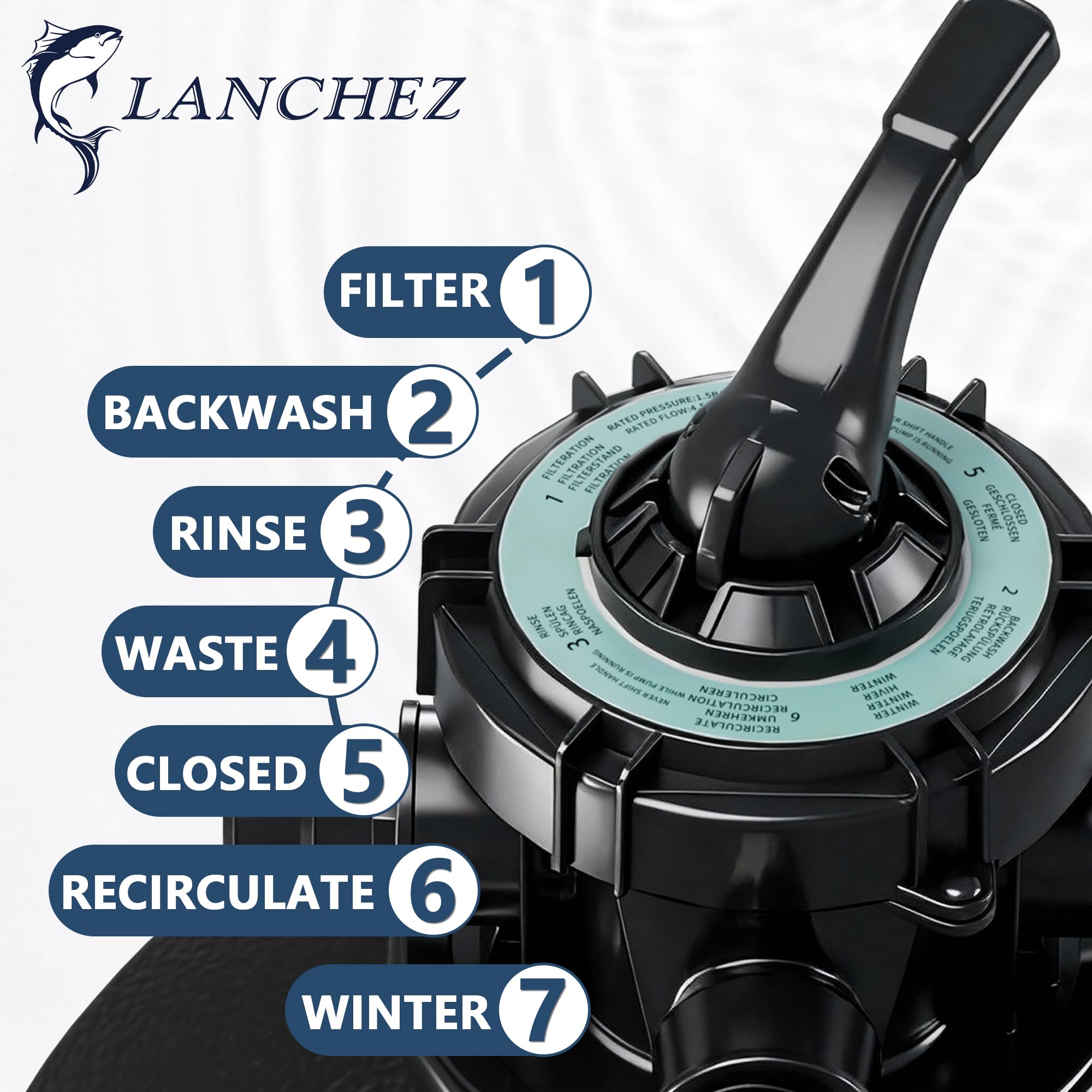

5.1 irudia: Gertuko planoa view of the 7-way valve, clearly labeling each function: Filter, Backwash, Rinse, Waste, Closed, Recirculate, and Winter.
Image 5.2: An illustrative diagram detailing the purpose of each of the 7-way valve settings: Filter, Backwash, Rinse, Waste, Closed, and Recirculate.
Image 5.3: Visual comparison of pool water clarity before and after using the LANCHEZ sand filter pump, demonstrating effective filtration.
6. Mantentzea
Regular maintenance ensures optimal performance and extends the life of your filter pump.
- Atzera-garbiketa eta ureztatzea: Perform backwashing when the pressure gauge indicates a rise of 8-10 PSI above the clean filter pressure. Follow with a rinse cycle.
- Iragazki-saskiaren garbiketa: Regularly inspect and clean the pump's strainer basket. Turn off the pump, close necessary valves, remove the clear cover, empty debris, and replace.
- Iragazki-euskarriaren ordezkapena: Sand filter media typically lasts 3-5 years. Filter balls may require cleaning or replacement more frequently depending on usage.
- Neguan egitea: Before freezing temperatures, drain all water from the pump, filter, and hoses. Store the pump and filter in a dry, protected area.
Image 6.1: Illustration of the strainer filter basket, designed to capture hairs, leaves, and gravel, with a clear lid for easy inspection.
7. Arazoak
Atal honetan ohiko arazoei eta haien irtenbideei buruzko informazioa aurkituko duzu.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ur-emari txikia / Iragazketa eskasa | Clogged strainer basket Iragazki-euskarri zikinak Aire-ihesak xurgatze-linean Ur maila baxua igerilekuan | Clean strainer basket Perform backwash and rinse cycle Egiaztatu konexio guztiak ihesak daudenik Add water to pool |
| Ponpa ez da martxan jartzen | Botererik ez Oztopo motorra Gainkarga termikoa piztu da | Check power supply and GFCI Inspect impeller for debris (with power off) Allow motor to cool, then restart |
| Igerilekura itzultzen den ura lainotuta dago | Atzera-garbiketa nahikoa ez Damaged filter media Desoreka kimikoa | Perform thorough backwash and rinse Inspect/replace filter sand or balls Test and adjust pool chemistry |
| Water leaking from pump/filter | Konexio solteak Damaged O-rings/gaskets | estutu mahuka guztiak clamps and fittings Inspect and replace worn O-rings/gaskets |
8. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Modelo zenbakia | LZ-CLP5503 |
| Tankaren Tamaina | 13 hazbetekoa |
| Zaldi-potentzia | 0.75 HP |
| Gehienezko Emaria | 3500 GPH (58 litro minutuko) |
| liburukiatage | 115 Volt |
| Harea Edukiera | 70 kilo |
| Filter Balls Capacity | 2.2 kilo |
| Produktuaren neurriak (L x W x H) | 24.8" x 15.35" x 19.68" |
| Balbula Mota | 7 bideko ataka anitzeko balbula |
| Materiala | Plastic (Reinforced Thermoplastic) |
Image 8.1: Information on the filter media capacity, specifying 70 lbs for sand and 2.2 lbs for filter balls. Note that the product includes 0.44 lbs of filter balls.
9. Bermea eta Laguntza
The LANCHEZ 13-inch Sand Filter Pump is backed by a three-year manufacturer after-sales service. Berme honek ohiko erabileran materialen eta eskulanen akatsak estaltzen ditu.
For technical support, warranty claims, or replacement parts, please contact LANCHEZ customer service. Refer to the contact information provided on the product packaging or the official LANCHEZ webgunea.
Gorde erosketaren egiaztagiria bermea balioztatzeko.
