Sarrera
This manual provides instructions for the proper installation, operation, and maintenance of your Shop-Vac HEPA Filter. This filter is specifically designed for use with Shop-Vac cordless handheld vacuum models 5430230 and 5430231. Please verify your vacuum model number to ensure precise fit and optimal performance.
Image: The Shop-Vac HEPA filter is compatible with handheld vacuum models 5430230 (cylindrical) and 5430231 (pistol grip).
The filter features a premium dual-layer filtration system, combining a HEPA media inner layer with a durable stainless steel mesh outer layer. This design is engineered for superior capture of fine dust, pet hair, and microscopic particles, providing high-efficiency filtration to maintain clean indoor air and maximum suction power.
Konfigurazioa eta Instalazioa
Installing the Shop-Vac HEPA Filter is a quick and tool-free process. Follow these steps to ensure proper fit and function:
- Ensure your Shop-Vac handheld vacuum is turned off and disconnected from any power source.
- Remove the dust cup from the vacuum according to your vacuum's specific instructions.
- Carefully remove the old filter, if present.
- Align the new HEPA filter with the slot inside the dust cup.
- Press the filter down gently and twist it clockwise to lock it securely in place. Ensure the filter is seated firmly to prevent air leaks.
- Reattach the dust cup to the vacuum, ensuring it clicks into place.
Irudia: Xehetasun handikoa view of the filter's base and the corresponding slot in the vacuum, illustrating the press and twist installation method.
Funtzionamendu-printzipioak
The Shop-Vac HEPA Filter utilizes a dual-layer design for effective particle capture:
- Stainless Steel Mesh Outer Layer: This layer acts as a pre-filter, capturing larger debris and protecting the inner HEPA media.
- HEPA Media Inner Layer: This high-efficiency particulate air (HEPA) layer captures fine dust, pet dander, pollen, and other microscopic allergens down to 0.3 microns.
This combination ensures that the vacuum maintains strong suction while effectively cleaning the air expelled from the unit. Regular cleaning of the filter, as described in the Maintenance section, is crucial for sustaining optimal performance.
Image: An exploded diagram illustrating the two components of the filter: the outer stainless steel mesh and the inner pleated HEPA filter.

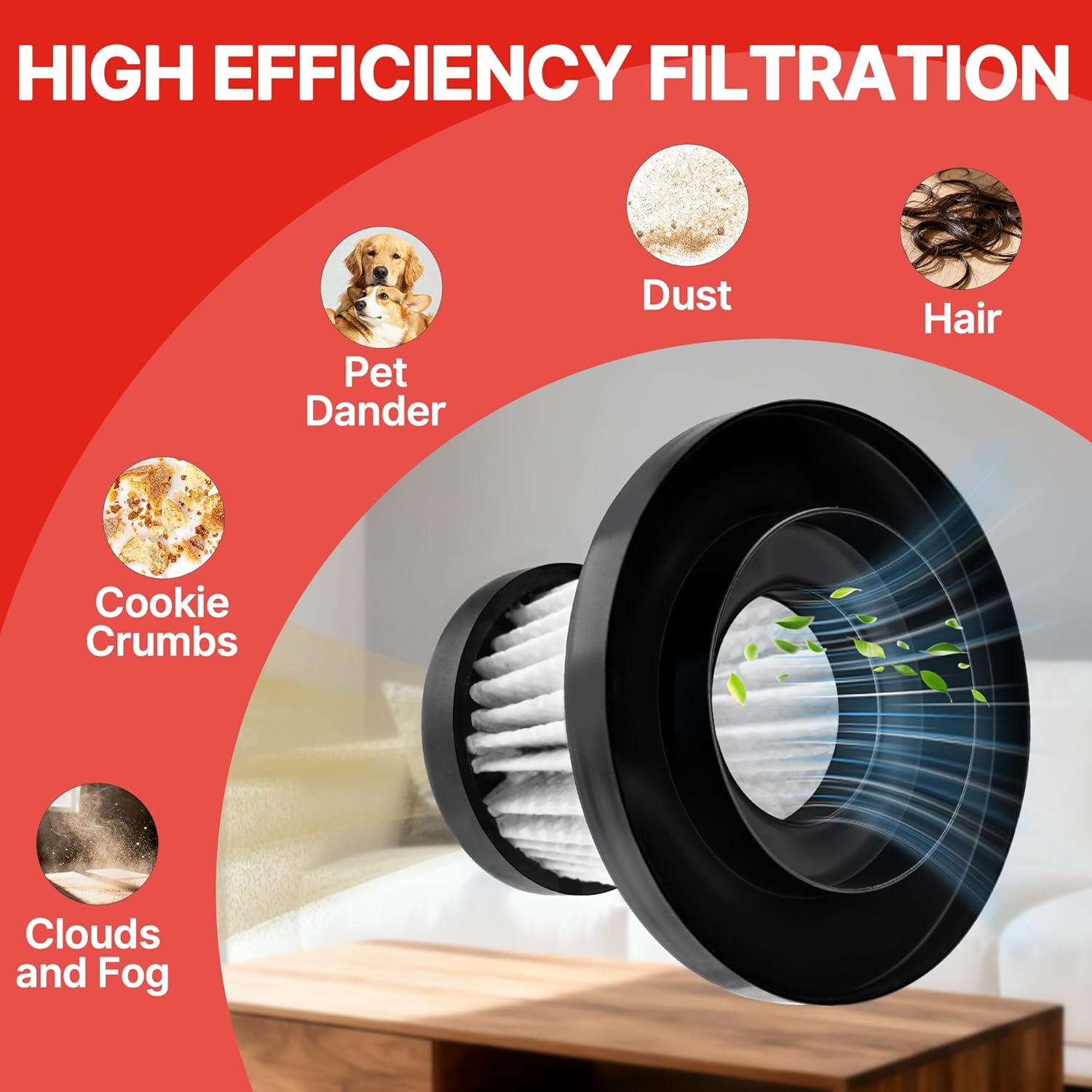

Image: Visual representation of the filter's high-efficiency capabilities, capturing common household particles such as pet dander, dust, hair, and crumbs.
Mantentzea
The Shop-Vac HEPA Filter is washable and reusable, offering a cost-effective and long-lasting solution. Proper maintenance ensures continued high performance:
- Remove the filter from the vacuum as described in the Setup section.
- Rinse the filter under running water. You can gently tap or brush off loose debris before rinsing.
- Ensure all dirt and debris are thoroughly washed away from both the stainless steel mesh and the pleated HEPA media.
- Allow the filter to air dry completely before reinstallation. This is crucial to prevent mold growth and maintain filtration efficiency. Do not use heat to dry the filter.
- Once completely dry, reinstall the filter into your vacuum.
Regular cleaning, typically after every few uses or when suction power noticeably decreases, will extend the life of your filter and maintain optimal vacuum performance.
Image: The filter being cleaned under running water, demonstrating its washable and reusable nature.
Arazoak konpontzea
If you experience issues with your Shop-Vac HEPA Filter, consider the following:
- Xurgapen murriztua: A common cause is a clogged filter. Remove and clean the filter thoroughly. Ensure it is completely dry before reinstallation. If suction remains low after cleaning, the filter may need replacement.
- Usain desatsegina: This can occur if the filter was not completely dry before reinstallation, leading to mold or mildew. Clean the filter again and ensure it is air-dried for at least 24-48 hours in a well-ventilated area.
- Iragazkia ez da egokia: Double-check that you have the correct filter for your specific Shop-Vac handheld vacuum models (5430230 or 5430231). Refer to the Setup section for proper installation technique.
- Ikusgai dauden kalteak: If the filter's HEPA media or stainless steel mesh is torn or damaged, it will not filter effectively and should be replaced.
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Denda-Vac |
| Materiala | Stainless Steel, HEPA Media |
| Product Dimensions (H x Top Dia. x Bottom Dia.) | 1-3/4" (4.45 cm) x 1-1/2" (3.8 cm) x 2" (5.1 cm) |
| Berrerabilgarritasuna | Berrerabilgarria (garbigarria) |
| Dakarten osagaiak | HEPA iragazkia |
| Bateragarritasuna | Shop-Vac Cordless Handheld Vacuum Models 5430230 and 5430231 |
Image: Visual representation of the filter's dimensions, indicating height and diameter measurements.
Bermea eta Laguntza
This Shop-Vac HEPA Filter is provided without an explicit warranty. For product support or inquiries regarding compatibility and usage, please refer to the official Shop-Vac website or contact their customer service directly. Always ensure you are using genuine Shop-Vac replacement parts for optimal performance and to avoid potential damage to your vacuum.
