Generic IMD08 1800 in-lbs Cordless Impact Driver Instruction Manual

1. Sarrera

Thank you for choosing the Generic IMD08 1800 in-lbs Cordless Impact Driver. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and retain it for future reference.

2. Segurtasun informazioa

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool.

Erabili norberaren babeserako ekipoak. Erabili beti begi-babesak. Baldintza egokietarako erabiltzen diren babes-ekipoek, esaterako, hauts-maskara, irristagaitzak diren segurtasun-oinetakoak, txano gogorrak edo entzumen-babesak kalte pertsonalak murriztuko dituzte.

3. Produktua amaitu daview

The Generic IMD08 Cordless Impact Driver is designed for efficient fastening and loosening tasks. It features a brushless motor, multiple speed settings, and an integrated LED work light.

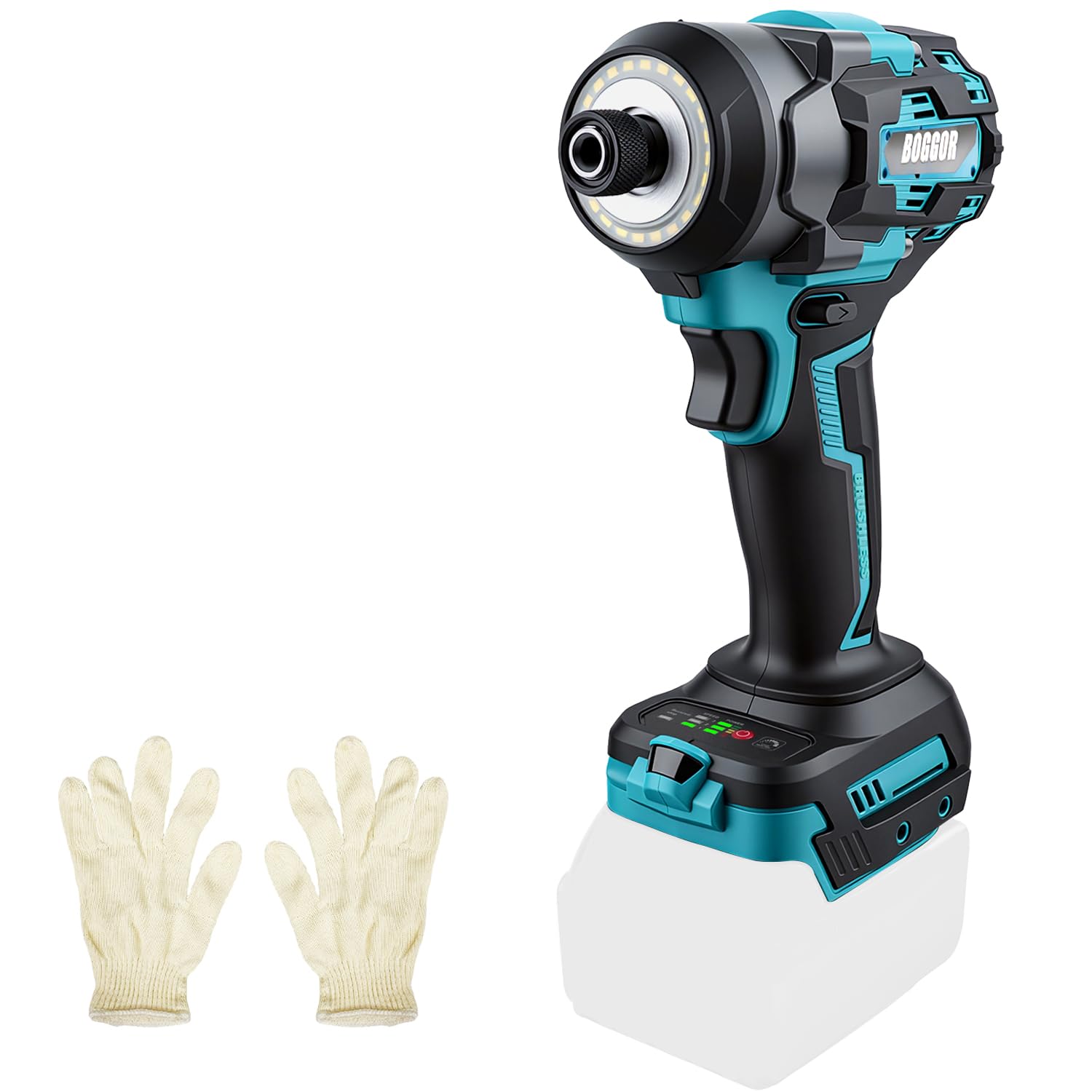

The Generic IMD08 Cordless Impact Driver, featuring a compact design and 1/4 inch hex chuck.

The compact design of the impact driver, weighing 1.25 kg, makes it easy to handle and maneuver.

4. Konfigurazioa

4.1 Bateriaren instalazioa

This impact driver is compatible with Makita 18V batteries (e.g., BL1815, BL1840, BL1820, BL1850). For optimal performance, a 4Ah battery or higher is recommended.

The impact driver is compatible with Makita 18V batteries. For optimal performance, a 4Ah battery or higher is recommended.

To install the battery, align the battery with the tool's receptacle and slide it in until it clicks securely into place. To remove, press the release button on the battery and slide it out.

4.2 Bit-eko instalazioa eta kentzea

The impact driver uses a 1/4 inch hex chuck for quick bit changes.

To install a bit, pull the coupler forward, insert the bit into the chuck, and release the coupler to secure it.

To remove a bit, pull the coupler forward and pull the bit straight out.

5. Funtzionamendu-argibideak

5.1 Piztu/Itzaltzea

To power on the tool, press the trigger. The tool will start operating. Release the trigger to turn off the tool.

5.2 Abiadura ezarpenak

The impact driver features 4-speed settings (0-2300 RPM) for versatile use. These include 3 forward speeds, 1 reverse speed, and auto-stop technology. Adjust the speed according to the material and fastener type.

This image illustrates the four distinct speed modes available on the impact driver, detailing their respective RPM and torque outputs for various applications.

5.3 Forward and Reverse Modes

Use the direction selector switch to choose between forward rotation (for tightening screws) and reverse rotation (for loosening screws). Place the switch in the center position to lock the trigger and prevent accidental operation.

The impact driver features clear forward and reverse modes for tightening and loosening screws, controlled by a simple selector.

5.4 Auto-Stop Safety Function

The intelligent resistance detection feature halts rotation instantly to prevent stripped screws and material damage. This provides precise torque control for tasks like furniture assembly, cabinet installation, and general DIY jobs. Integrated voltage protection safeguards against overloads.

5.5 LED lanerako argia

The built-in LED work light illuminates the work area for better visibility, especially in low-light conditions.

The integrated LED work light provides illumination for improved visibility in dimly lit environments.

5.6 Aplikazioak

This impact driver is suitable for a variety of tasks, including tightening or loosening screws, automotive repairs, and home renovation projects.

The impact driver is suitable for a wide range of applications, including woodworking, furniture assembly, and general repairs.

5.7 Produktuaren erakustaldi bideoa

6. Mantentzea

Mantentze-lan erregularrak zure inpaktu-bihurgailuaren iraupena eta errendimendu optimoa bermatzen ditu.

• Garbiketa: Mantendu tresnaren aireztapen-irekidurak garbi gehiegi berotzea saihesteko. Erabili zapi leun eta lehor bat.amp zapi bat kanpoaldea garbitzeko. Ez erabili produktu kimiko gogorrik edo garbitzaile urratzailerik.
• Bateria zaintzea: Store batteries in a cool, dry place away from direct sunlight. Do not expose batteries to extreme temperatures. Follow the manufacturer's instructions for charging and discharging.
• Bitaren mantentze-lanak: Ensure bits are clean and free from debris before insertion. Replace worn or damaged bits to maintain efficiency and prevent damage to fasteners.

7. Arazoak

Inpaktu-makinarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

8. Zehaztapenak

9. Bermea eta Laguntza

The product includes a 1-year service warranty. For any questions, technical support, or warranty claims, please contact the seller directly through your purchase platform.
