aowoka S24-1 Computer Speakers Instruction Manual

Sarrera

Thank you for choosing the aowoka S24-1 Computer Speakers. This USB-powered sound bar is designed to deliver clear stereo sound with versatile connectivity options, including Bluetooth and 3.5mm AUX. It features a multifunctional knob for easy control and integrated RGB lighting effects to enhance your audio experience. Please read this manual carefully to ensure proper setup and operation.

Paketearen edukia

• aowoka S24-1 Computer Speakers
• Integrated USB-A Power and 3.5mm AUX Audio Cable
• Erabiltzailearen eskuliburua (dokumentu hau)

Produktua amaituview

Familiarize yourself with the main components of your aowoka S24-1 speakers.

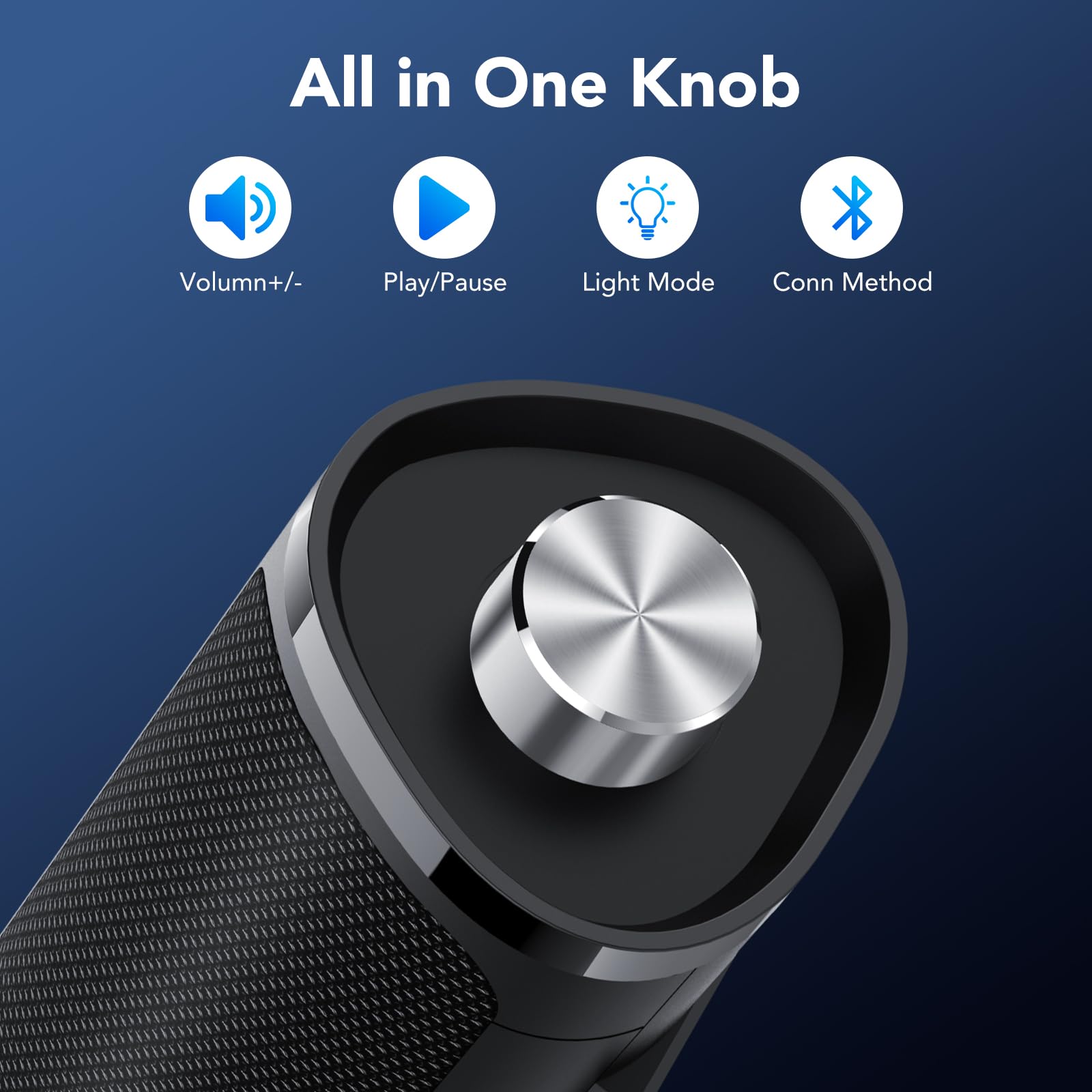

Multifunctional Control Knob

Image: The control knob allows for volume adjustment, play/pause, light mode switching, and connection mode selection.

• Sakatu luzea (2 segundo): Piztu/Itzali
• Klik bakarra: Erreproduzitu/Pausatu audioa
• Egin klik bikoitza: Switch between Bluetooth and AUX connection modes
• Klik hirukoitza: Switch RGB light modes
• Rotate clockwise/counter-clockwise: Egokitu bolumena

RGB Argiztapen Efektuak

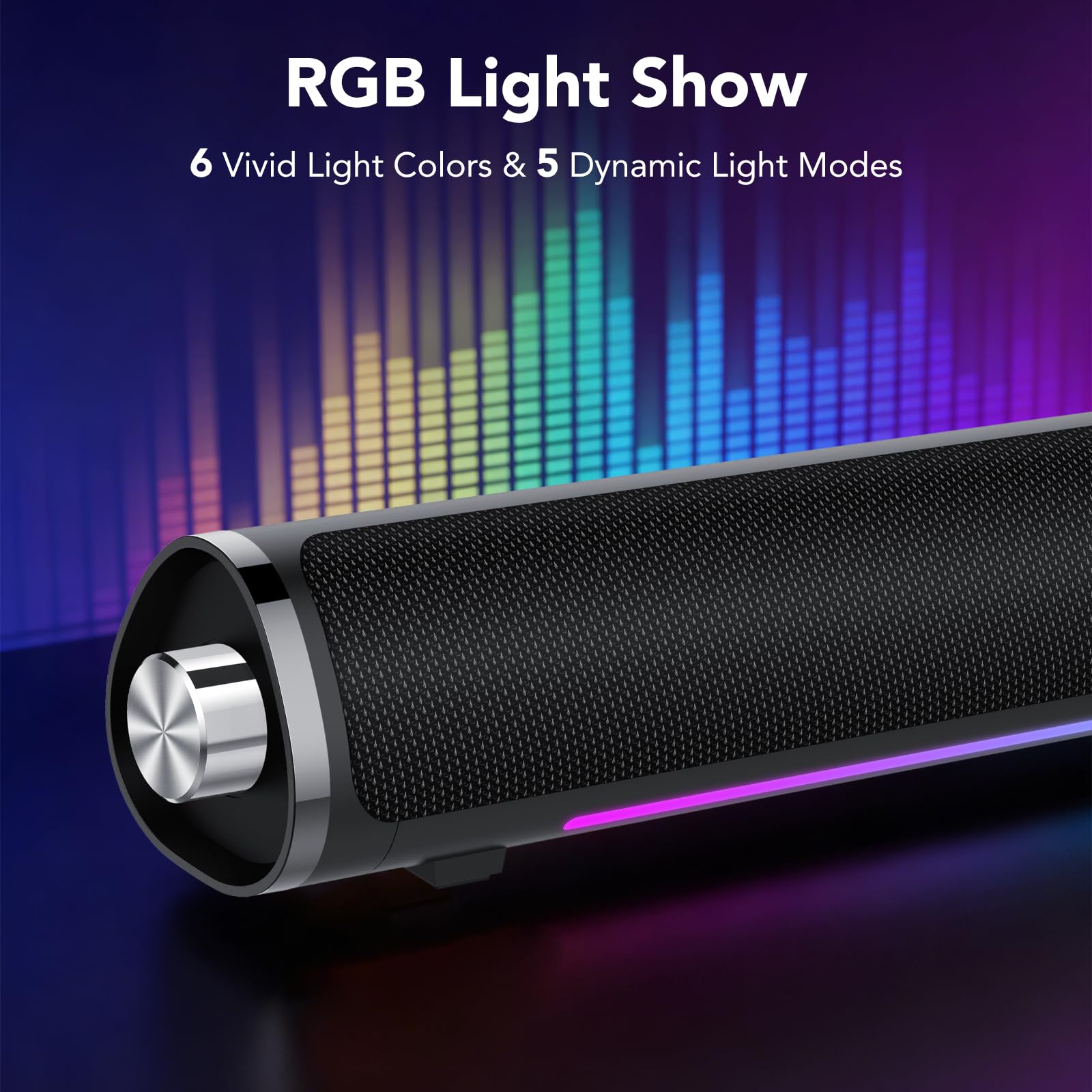

Image: The speaker features 6 vivid light colors and 5 dynamic light modes.

The speaker includes integrated RGB lighting with multiple colors and effects. These can be controlled via the multifunctional knob.

Konfigurazio Argibideak

Follow these steps to set up your aowoka S24-1 speakers.

Potentzia-konexioa

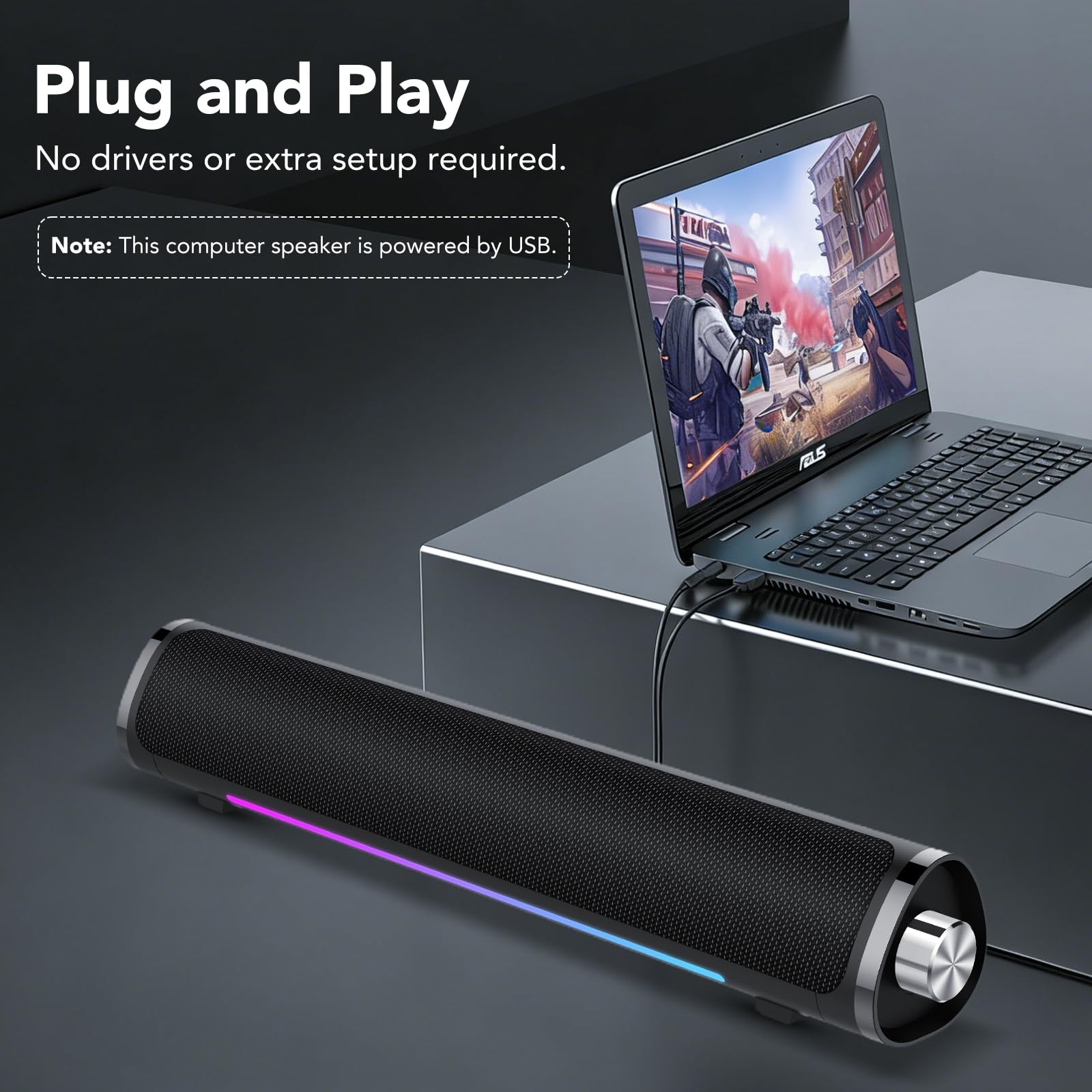

Image: The speaker requires USB power for operation.

1. Locate the integrated USB-A cable.
2. Plug the USB-A connector into an available USB port on your computer, laptop, or a USB power adapter (not included). The speaker requires power to function.

Audio Connection (2 Ways)

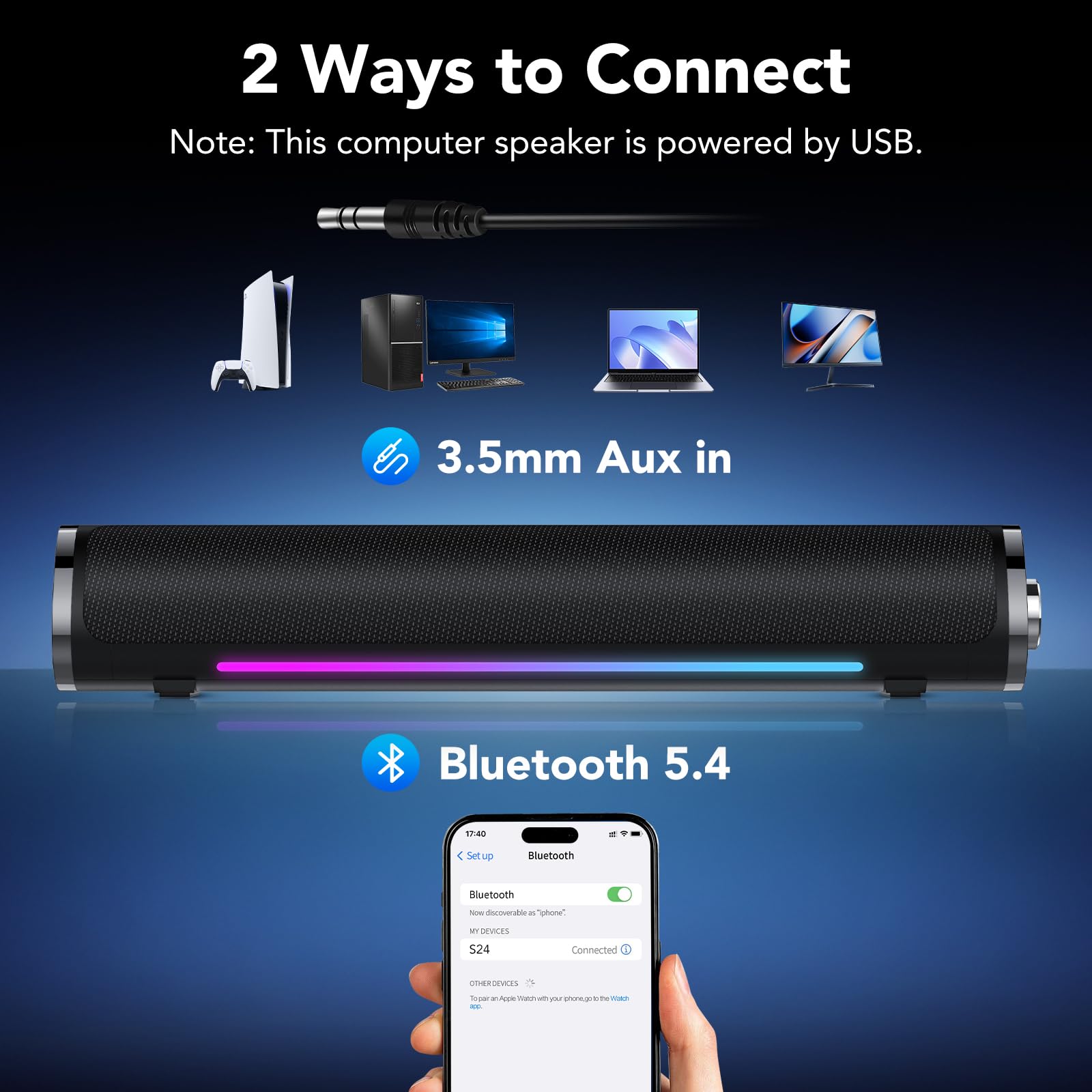

Image: The speaker supports both 3.5mm AUX and Bluetooth 5.4 connectivity.

Method 1: 3.5mm AUX Connection

1. Ziurtatu bozgorailua piztuta dagoela.
2. Plug the 3.5mm audio jack (integrated with the USB power cable) into the audio output port of your device (e.g., computer, laptop, tablet, smartphone).
3. If the speaker does not automatically switch to AUX mode, double-click the multifunctional knob to select AUX mode.
4. You may need to select the speaker as the audio output device in your computer's sound settings.

2. metodoa: Bluetooth konexioa

1. Ziurtatu bozgorailua piztuta dagoela.
2. Double-click the multifunctional knob to switch to Bluetooth mode. The speaker will enter pairing mode, indicated by a flashing light.
3. On your device (e.g., smartphone, tablet, Bluetooth-enabled computer), go to Bluetooth settings and search for available devices.
4. Select "S24" from the list of devices to pair. Once connected, the speaker will indicate a successful connection, and the light will stop flashing.

Note: The speaker is universally compatible with devices featuring a 3.5mm AUX audio output or Bluetooth connectivity.

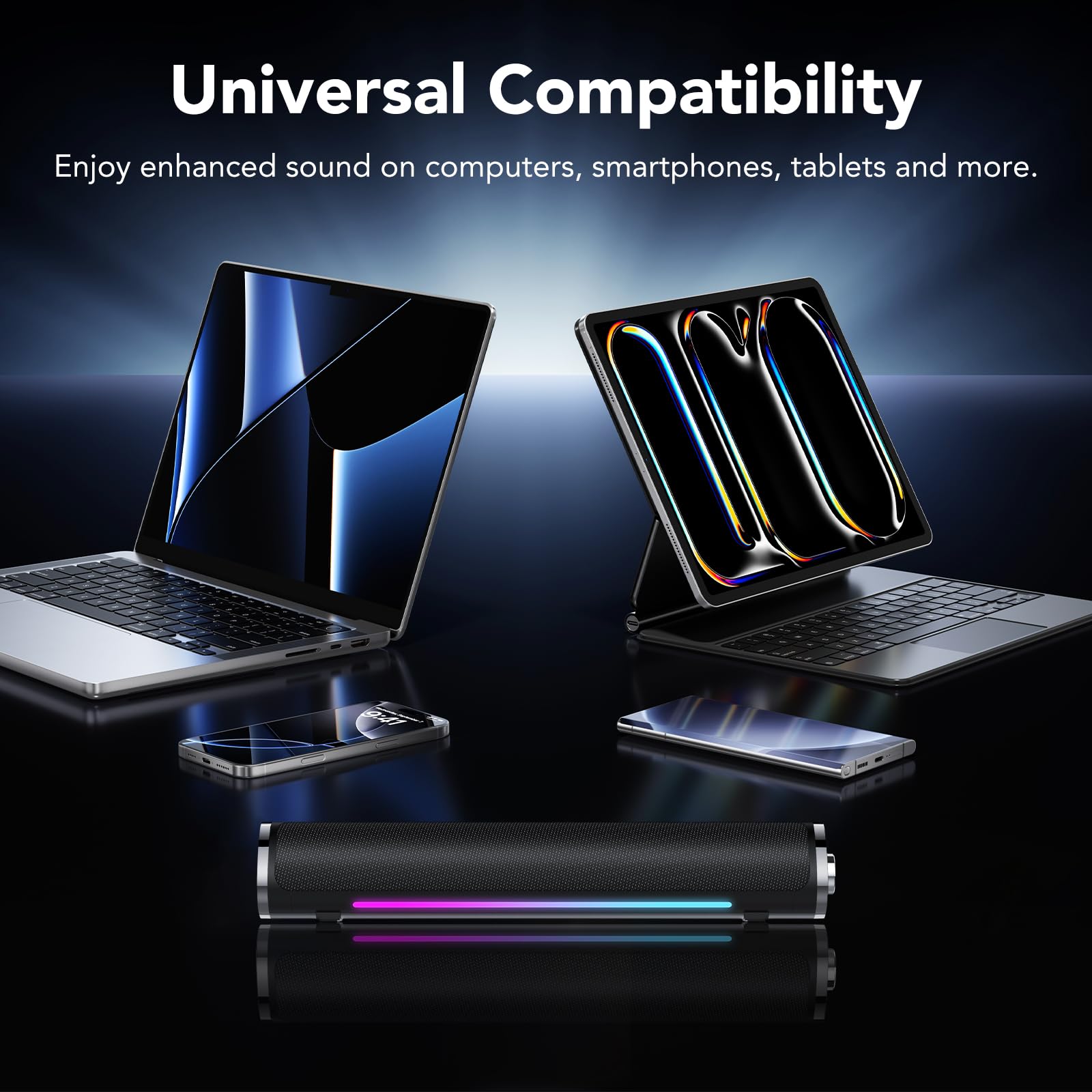

Image: The speaker is compatible with various devices like computers, laptops, tablets, and smartphones.

Funtzionamendu-argibideak

Control your aowoka S24-1 speakers using the multifunctional knob.

• Piztu/Itzali: Long press the knob for 2 seconds.
• Bolumen kontrola: Rotate the knob clockwise to increase volume, counter-clockwise to decrease volume.
• Erreproduzitu/Pausatu: Single click the knob to play or pause audio.
• Aldatu konexio modua: Double click the knob to toggle between Bluetooth and 3.5mm AUX modes.
• Aldatu argiztapen efektuak: Triple click the knob to cycle through the 6 lighting colors and 5 dynamic lighting effects.

Mantentzea

Zure bozgorailuen iraupena eta errendimendu optimoa bermatzeko, jarraitu mantentze-jarraibide hauek:

• Garbiketa: Use a soft, dry cloth to wipe the speaker's surface. Do not use liquid cleaners or abrasive materials.
• Biltegiratzea: Gorde bozgorailuak leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
• Manipulazioa: Avoid dropping the speakers or subjecting them to strong impacts.
• Uraren esposizioa: Keep the speakers away from water and high humidity. They are not waterproof.

Arazoak konpontzea

If you encounter any issues with your aowoka S24-1 speakers, please refer to the following solutions:

Zehaztapenak

Bermea eta Laguntza

aowoka products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official aowoka webgunea.

Mesedez, gorde zure erosketa-froga berme-erreklamazioetarako.
