Generic Carburetor Instruction Manual

Sarrera

This manual provides essential instructions for the installation, operation, and maintenance of your new Generic Carburetor. This carburetor is designed as a direct replacement for BILT HARD 7HP 212cc 4-Stroke OHV Horizontal Shaft engines, ensuring compatibility and optimal performance. Please read this manual thoroughly before attempting any installation or operation.

Produktua amaituview

The Generic Carburetor is manufactured to meet original factory specifications, ensuring a perfect fit and reliable performance. It comes as a complete assembly, ready for installation without the need for additional parts.

1. irudia: Aurrealdea view of the Generic Carburetor, showing the main body, fuel bowl, and throttle linkage.

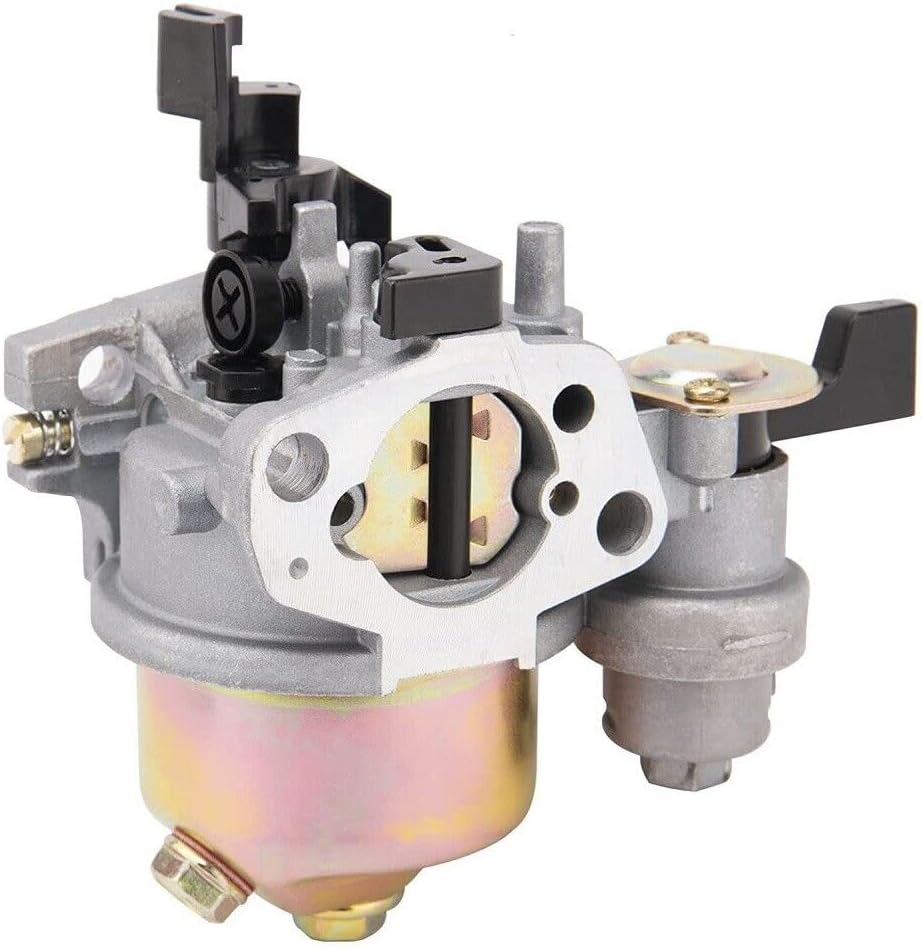

2. irudia: Atzeko aldean view of the Generic Carburetor, highlighting the air intake and choke mechanism.

3. irudia: Aldea view of the Generic Carburetor, illustrating the various linkages and connections.

Segurtasun Informazioa

Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Ziurtatu motorra guztiz itzalita eta hoztuta dagoela edozein lan hasi aurretik.
• Deskonektatu txinparta kablea ustekabean abiarazterik ez izateko.
• Lan egin ondo aireztatutako gune batean, erregaiaren lurrunak arnastea saihesteko.
• Erabili babes pertsonaleko ekipamendu egokia, eskularruak eta begien babesa barne.
• Handle fuel with extreme care; it is highly flammable.

Konfigurazioa eta Instalazioa

This carburetor is designed for direct replacement. Follow these steps for proper installation:

1. Prestaketa: Ensure the engine is off, cool, and the spark plug wire is disconnected. Place a drip pan beneath the carburetor area to catch any spilled fuel.
2. Fuel Line Disconnection: Locate and disconnect the fuel line from the old carburetor. Clamp the fuel line if necessary to prevent fuel leakage.
3. Linkage Disconnection: Carefully disconnect any throttle and choke linkages attached to the old carburetor. Note their positions for reassembly.
4. Carburetor Removal: Remove the mounting bolts or nuts securing the old carburetor to the engine. Gently pull the old carburetor away from the engine, ensuring all gaskets are removed.
5. Juntagailuen instalazioa: Install new gaskets (if provided or required) on the engine mounting surface and between the carburetor and air filter housing.
6. New Carburetor Installation: Position the new Generic Carburetor onto the engine studs, ensuring it aligns correctly with the intake manifold. Secure it with the mounting bolts or nuts, tightening them evenly.
7. Linkage Reconnection: Reconnect the throttle and choke linkages to the new carburetor in their original positions. Ensure smooth operation of both mechanisms.
8. Fuel Line Reconnection: Reconnect the fuel line to the new carburetor. Remove any clamps used to stop fuel flow.
9. Azken egiaztapenak: Double-check all connections for tightness and proper routing. Ensure there are no kinks in the fuel line. Reconnect the spark plug wire.

Funtzionamendu-argibideak

After successful installation, follow these general steps to operate your engine:

1. Erregai-hornidura: Ensure the engine has an adequate supply of fresh, clean fuel. Open the fuel shut-off valve if present.
2. Choke Operation: For a cold engine, move the choke lever to the "FULL CHOKE" position. For a warm engine, the choke may not be necessary or only a partial choke might be required.
3. Throttle Position: Set the throttle lever to the "FAST" or "START" position.
4. Motorra martxan jartzea: Pull the recoil starter handle firmly and smoothly until the engine starts. If the engine has an electric start, engage the starter switch.
5. Txokearen doikuntza: Once the engine starts and runs smoothly, gradually move the choke lever to the "OFF" or "RUN" position. If the engine falters, move the choke back slightly until it runs smoothly, then continue to open the choke.
6. Inaktiboen doikuntza: If the engine idles too high or too low after warming up, consult your engine's specific manual for idle speed adjustment procedures.

Mantentzea

Regular maintenance ensures the longevity and optimal performance of your carburetor. Always perform maintenance with the engine off and cool.

• Fuel System Cleanliness: Use fresh, clean fuel. Stale or contaminated fuel can clog carburetor passages. Consider using a fuel stabilizer if the engine will be stored for extended periods.
• Erregai-iragazkia: Regularly inspect and replace the fuel filter (if equipped) to prevent debris from reaching the carburetor.
• Aire-iragazkia: A clean air filter is crucial for proper engine operation. Inspect and clean or replace the air filter according to your engine manufacturer's recommendations. A dirty air filter can cause rich fuel mixtures and poor performance.
• Karburagailuaren garbiketa: If performance issues arise due to fuel contamination, the carburetor may need to be disassembled and cleaned. This typically involves removing the fuel bowl, float, and jets, and cleaning them with carburetor cleaner. This procedure should only be performed by individuals with appropriate mechanical knowledge.
• Linkage Inspection: Periodically check all throttle and choke linkages for wear, damage, or looseness. Ensure they move freely without binding.

Arazoak konpontzea

Aipatu arazo ohikoenak eta haien balizko irtenbideak:

If these troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician.

Zehaztapenak

• Marka: Generikoa
• Modelo zenbakia: 1
• Fabrikatzailea: Generikoa
• ASIN: B0GG37298D
• Bateragarritasuna: Direct replacement for BILT HARD 7HP 212cc 4-Stroke OHV Horizontal Shaft engines.
• Paketearen edukia: 1x Carburetor Kit (as pictured)

Bermea eta Laguntza

For warranty information or technical support regarding this Generic Carburetor, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
