1. Sarrera
This manual provides essential information for the safe and efficient operation of your Generic TopTherm Filter Fan SK3326.117. This product is designed for efficient ventilation, built for durability, and offers ease of installation. Please read this manual thoroughly before installation and use.
Ezaugarri nagusiak:
- High quality construction
- Zerbitzu-bizitza luzea
- Highly efficient and energy saving operation
- Zarata gutxiko irteera
- Easy to install design
2. Segurtasun informazioa
Bete beti segurtasun neurri hauek gailuari lesioak eta kalteak saihesteko:
- Ziurtatu energia-iturria deskonektatuta dagoela instalazioa, mantentze-lanak edo garbiketa egin aurretik.
- Ez erabili haizagailua kable edo entxufe hondatuak baditu.
- Mantendu eskuak eta objektu arrotzak mugikorreko piezetatik urrun funtzionamenduan zehar.
- Install the fan in a well-ventilated area, away from flammable materials.
- This device is intended for industrial use. Consult a qualified electrician for installation if unsure.
3. Paketearen edukia
Egiaztatu elementu guztiak paketean daudela:
- 1 x TopTherm Filter Fan SK3326.117
- 1 x Erabiltzailearen eskuliburua (dokumentu hau)
4. Konfigurazioa eta instalazioa
Follow these steps for proper installation of the filter fan:
- Aukeratu kokapen egokia: Select a flat, stable surface or enclosure panel with adequate space for airflow and maintenance. Ensure the mounting surface can support the weight of the fan.
- Prepare the mounting cutout: Based on the fan's dimensions, create the necessary cutout in the enclosure panel. Refer to the fan's technical drawings for precise measurements.
- Haizagailua muntatu: Insert the filter fan into the prepared cutout. Secure it using the provided fasteners (e.g., screws, clamps) according to the manufacturer's instructions. Ensure a tight seal to prevent dust ingress.
- Connect electrical wiring: Connect the fan to the appropriate power supply. Ensure all wiring complies with local electrical codes and safety standards. Double-check all connections before applying power.
- Install filter mat: Open the filter cover and insert the filter mat. Ensure it is correctly seated to maximize filtration efficiency.

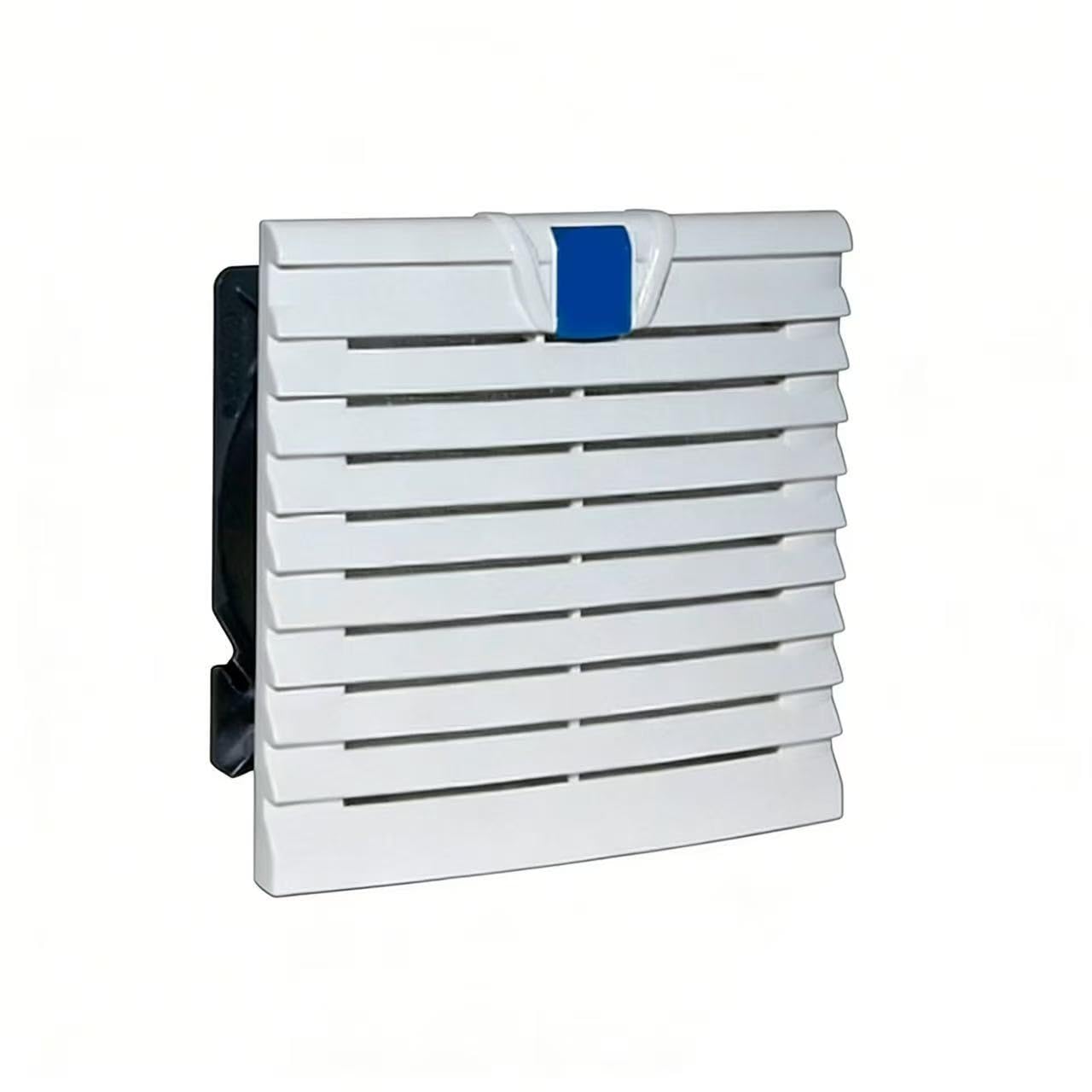

Figure 1: Generic TopTherm Filter Fan SK3326.117. This image displays the fan unit, highlighting its compact design and the front grille for air intake.
5. Funtzionamendu-argibideak
Once installed and wired correctly, the filter fan operates automatically to maintain the desired temperature within the enclosure. No specific user interaction is typically required for basic operation.
- Piztu: Apply power to the circuit connected to the filter fan. The fan will begin operating.
- Jarraipena: Periodically check the airflow and temperature within the enclosure to ensure optimal performance.
- Itzali: Disconnect power from the circuit to stop the fan.
6. Mantentzea
Regular maintenance ensures the longevity and efficiency of your filter fan.
- Iragazki-esterillaren ordezkapena: The filter mat should be inspected regularly (e.g., monthly) and replaced when it appears dirty or clogged. A clogged filter reduces airflow and efficiency.
- Garbiketa: Periodically clean the exterior of the fan with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ikuskapena: Annually inspect electrical connections and fan blades for any signs of wear or damage.
Warning: Always disconnect power before performing any maintenance.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Fan ez da martxan jartzen | Ez dago elikadura hornidurarik | Egiaztatu konexio elektrikoak eta zirkuitu-hauslea. |
| Fan ez da martxan jartzen | Kableatu akastuna | Egiaztatu konexio elektriko guztiak ondo eta ondo daudela. |
| Aire-fluxua murriztu | Iragazki-esterilla buxatua | Replace the filter mat. |
| Aire-fluxua murriztu | Obstruction in air path | Inspect for and remove any obstructions. |
| Ezohiko zarata edo bibrazioa | Loose mounting or damaged fan blades | Tighten mounting screws. Inspect fan blades for damage; replace if necessary. |
8. Zehaztapenak
- Modelo zenbakia: SK3326.117
- ASIN: B0GS5DDSN3
- Fabrikatzailea: Alemania
- Lehen eskuragarri dagoen data: 11ko martxoaren 2026a
- (Additional technical specifications such as voltage, current, airflow, and dimensions would typically be listed here if available.)
9. Bermea eta Laguntza
This Generic TopTherm Filter Fan SK3326.117 comes with a Urtebeteko bermea erosketa-datatik aurrera, materialen eta fabrikazioaren akatsak estaliz, erabilera normalaren pean.
For technical support, warranty claims, or service inquiries, please contact your supplier or the manufacturer's authorized service center. Please have your model number (SK3326.117) and purchase date available when contacting support.
Note: The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or normal wear and tear.
