DWVO 20x40ft Arch Party Tent Instruction Manual

Sarrera

This manual provides detailed instructions for the safe and proper assembly, operation, and maintenance of your DWVO 20x40ft Arch Party Tent. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The DWVO Arch Party Tent features a patented arch-shaped structure designed for efficient rainwater runoff and enhanced stability. It is constructed with heavy-duty galvanized steel and upgraded PE cloth for durability.

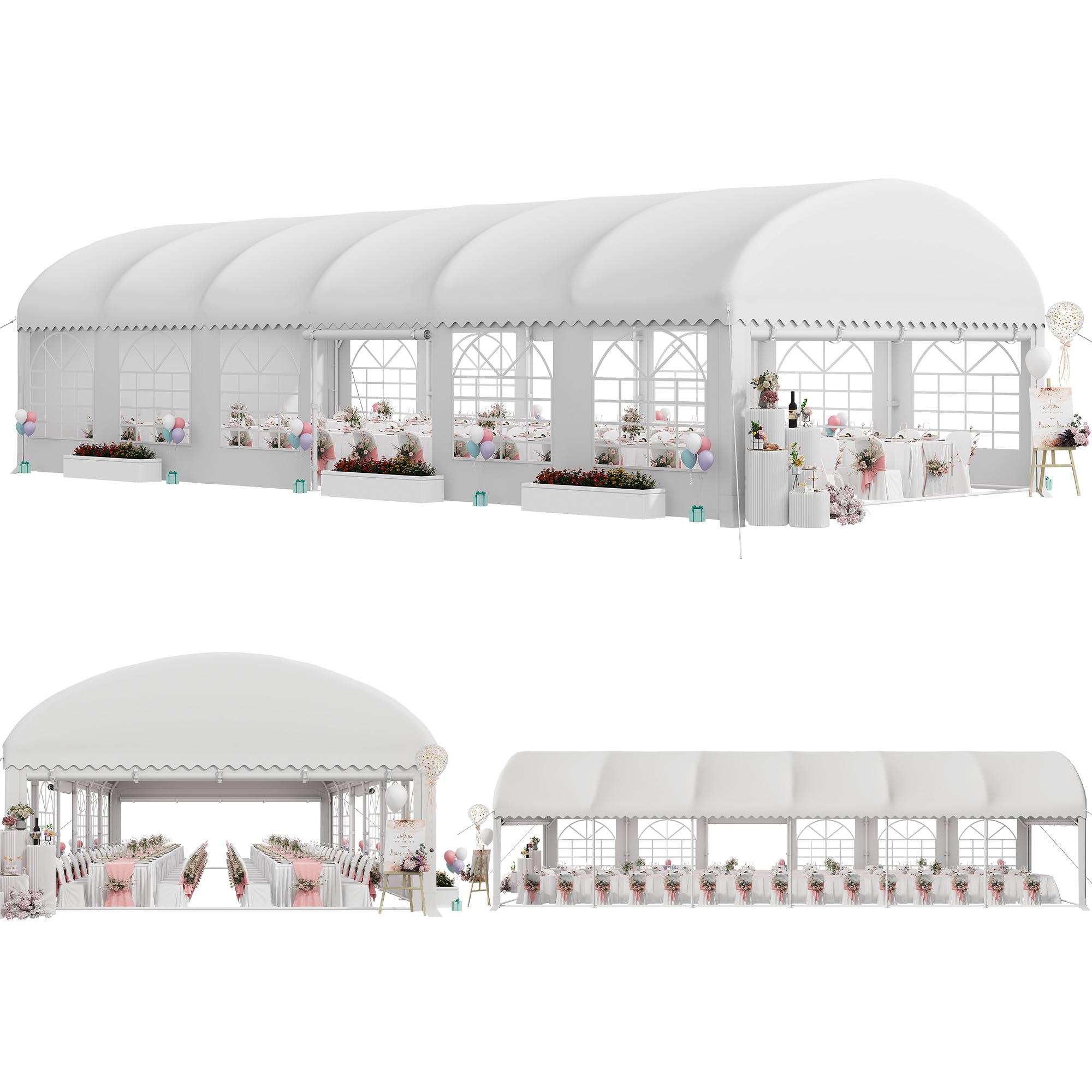

Image: The DWVO 20x40ft Arch Party Tent, fully assembled and decorated for an outdoor event.

Segurtasun Informazioa

OHARRA:

• This party tent material is NOT FIREPROOF. Always keep it away from open flames, grills, heaters, or any ignition source.
• Take preventative measures to avoid wind when wind speed reaches 25 mph or higher. Disassemble the tent in strong winds or severe weather conditions to prevent damage or injury.
• Ensure proper anchoring using ground nails for grassy surfaces or expansion screws for cement surfaces to improve stability.
• Professional installation is highly recommended for optimal safety and stability.
• Ez zintzilikatu objektu astunak dendaren egituratik.
• Mantendu haurrak eta maskotak dendaren ondotik urrun muntatzen eta desmuntatzen ari diren bitartean.

Paketearen edukia

Your DWVO 20x40ft Arch Party Tent comes packaged in 3 boxes. Please verify all components are present before beginning assembly. The package includes:

• Galvanized steel frame components (tubes and connectors)
• Upgraded PE cloth roof cover
• Removable PE sidewalls with zipper doors and 160-gram PVC windows
• Ground nails / stakes
• Lotzeko sokak
• Storage bags (3 units)
• Assembly hardware (e.g., spring pins, elastic bands)

Note: Boxes may arrive separately.

Konfigurazio Argibideak

Assembly typically requires at least 4 people. Follow these steps for proper setup:

1. Gunearen hautaketa eta prestaketa

Choose a flat, level area for the tent. Clear the area of any sharp objects, debris, or obstructions. Ensure adequate space around the tent for anchoring and movement.

2. Markoen Muntaketa

Begin by laying out all frame components. The frame is constructed from heavy-duty galvanized steel with 1.5-inch (38 mm) diameter steel tubes and reinforced metal joints measuring 1.66 inches (42 mm).

• Connect the arch-shaped roof sections using the provided connectors. Ensure all spring pins engage securely.
• Assemble the vertical support legs and attach them to the arch sections.
• Connect the base rails to complete the frame structure.

Image: Illustration comparing the 1.5-inch thickened tubing of the DWVO tent frame with a thinner 1.2-inch frame tube from other tents, highlighting the strengthened and reinforced structure.

Irudia: Xehetasun handikoa view of key connection and anchoring components including spring pin connections, elastic bands for fabric attachment, enclosed ground link design, and tie-rope spikes for securing the tent.

3. Roof Cover Installation

Carefully drape the upgraded PE cloth roof cover over the assembled frame. Ensure it is centered and evenly distributed. Secure the roof cover to the frame using the elastic bands and other provided fasteners. The patented arch shape facilitates rapid rainwater runoff.

Image: Graphic illustrating the all-weather strength of the tent's durable PE tarpaulin, highlighting its resistance to UV, rain, and snow.

4. Alboko hormaren eranskina

Attach the removable PE sidewalls as needed. The sidewalls feature zipper doors and 160-gram PVC windows for light and ventilation. They can be assembled or disassembled flexibly depending on your event requirements.

Image: Diagram illustrating the flexible sidewall application, showing the tent with no sidewalls, partial sidewalls, and full sidewalls.

5. Anchoring and Stabilization

Proper anchoring is crucial for tent stability. Use ground nails for grassy surfaces and expansion screws for cement surfaces. Secure all tie-down ropes to the ground anchors. Ensure the tent is taut and stable.

Funtzionamendu-argibideak

Once assembled, the DWVO Arch Party Tent provides a spacious shelter for various outdoor events. It accommodates gatherings of 80+ people standing or 75-80 seated at 5ft trestle tables, offering 800 sq ft of shade area.

Image: Product size diagram indicating the tent's dimensions (20ft W x 40ft L x 9.8ft H) and capacity for seated or standing guests.

• Aireztapena: Utilize the removable sidewalls and zipper doors to adjust ventilation as needed, especially on hot days.
• Eguraldi-baldintzak: Monitor weather forecasts. While the tent is waterproof and offers UPF 30 UV protection, it is not designed for extreme weather. Disassemble the tent if winds exceed 25 mph or during heavy snowfall.
• Lighting and Heating: If using lighting or heating elements, ensure they are placed safely and away from tent fabric. Remember the tent material is NOT FIREPROOF.

Mantentzea

• Garbiketa: Clean the tent fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to dry completely before storage to prevent mildew.
• Markoaren ikuskapena: Regularly inspect the steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or connections.
• Biltegiratzea: When not in use, disassemble the tent and store all components in the provided storage bags in a dry, cool place, away from direct sunlight and extreme temperatures.
• Konponketa: For minor tears in the fabric, use a suitable repair kit. For significant damage, contact customer support.

Arazoak konpontzea

• Karpa-ezegonkortasuna:
  • Ensure all frame connections are secure and spring pins are fully engaged.
  • Verify that ground anchors (nails/screws) are properly installed and tie-down ropes are taut.
  • Check for strong winds; disassemble if wind speeds exceed 25 mph.
• Ur-pilaketa teilatuan:
  • The arch design is intended to prevent pooling. Ensure the roof cover is stretched tightly and evenly over the frame.
  • Check for any sagging areas and adjust tension if possible.
• Isurketa:
  • Inspect the roof and sidewalls for any tears or punctures. Repair as necessary.
  • Ensure all seams are properly covered and sealed.
• Falta diren piezak:
  • Refer to the package contents list. If parts are missing, contact DWVO customer support immediately.

Zehaztapenak

Bermea eta Laguntza

For warranty information, missing parts, or technical assistance, please contact DWVO customer support. Refer to your purchase documentation for specific warranty terms and contact details.

Askotan fabrikatzailearen webgune ofizialean aurki dezakezu laguntza-harremanetarako informazioa. webgunearen bidez edo produktua erosi zen dendariaren bidez.
