1. Sarrera
The Intermatic K4021C is a 120-Volt fixed position thermal photocontrol designed for automatic control of outdoor lighting. This device senses ambient light levels to turn lights on at dusk and off at dawn, providing energy efficiency and convenience. It is suitable for both commercial and residential applications, including standard outlet boxes, post lamps, and wall packs.
Ohar garrantzitsua: This photocontrol is NOT FOR LED APPLICATIONS.
2. Segurtasun informazioa
WARNING: Risk of Electric Shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. Installation should be performed by a qualified electrician in accordance with all national and local electrical codes.
- Ensure the power supply matches the device's voltage balorazioa (120 Volt).
- Do not exceed the maximum load ratings: 8.3 Amps, 1800 Watts for Tungsten; 15 Amps, 1000 VA for Magnetic Ballast.
- Protect wiring from sharp edges and abrasion.
- Ziurtatu konexio guztiak seguru eta behar bezala isolatuta daudela.
3. Instalatzeko jarraibideak
The K4021C photocontrol is designed for easy integration into various lighting fixtures. It features a 3/8-inch-18 threaded side mounting with a locking nut and washer gasket for secure installation. The unit comes with 9-inch leads for wiring connections.
3.1 Muntaketa
- Choose a mounting location where the photocontrol's sensor will receive unobstructed natural light during the day and will not be affected by artificial light sources at night (e.g., nearby streetlights, windows).
- Drill a suitable hole (if not already present) for the 3/8-inch-18 threaded nipple.
- Insert the threaded nipple of the photocontrol through the mounting hole.
- Secure the photocontrol using the provided locking nut and washer gasket. Ensure a tight seal to prevent moisture ingress.

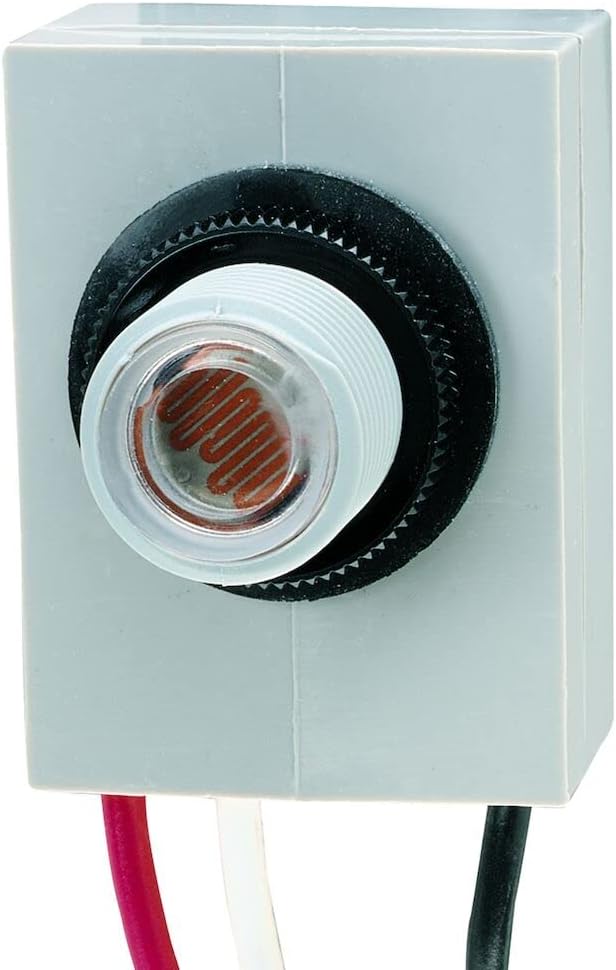

1. irudia: Angeludun view of the Intermatic K4021C photocontrol, highlighting the threaded nipple and locking nut for secure mounting.
3.2 Kableatua
The K4021C photocontrol has three color-coded wire leads:
- Hari beltza: Connect to the 120-Volt AC Line (Hot) input.
- Hari zuria: Connect to the Neutral wire.
- Hari gorria: Connect to the Load (lighting fixture) input.
- Ensure power is OFF at the circuit breaker before making any connections.
- Connect the black wire of the photocontrol to the incoming 120-Volt AC Line (Hot) wire from the power source.
- Connect the white wire of the photocontrol to the Neutral wire from the power source and to the Neutral wire of the lighting fixture.
- Connect the red wire of the photocontrol to the Hot wire of the lighting fixture.
- Lotu kable-konexio guztiak kable-azkoin edo konektore egokiekin.
- Carefully tuck all wires into the junction box or fixture, ensuring no wires are pinched.
- Restore power and test the unit.

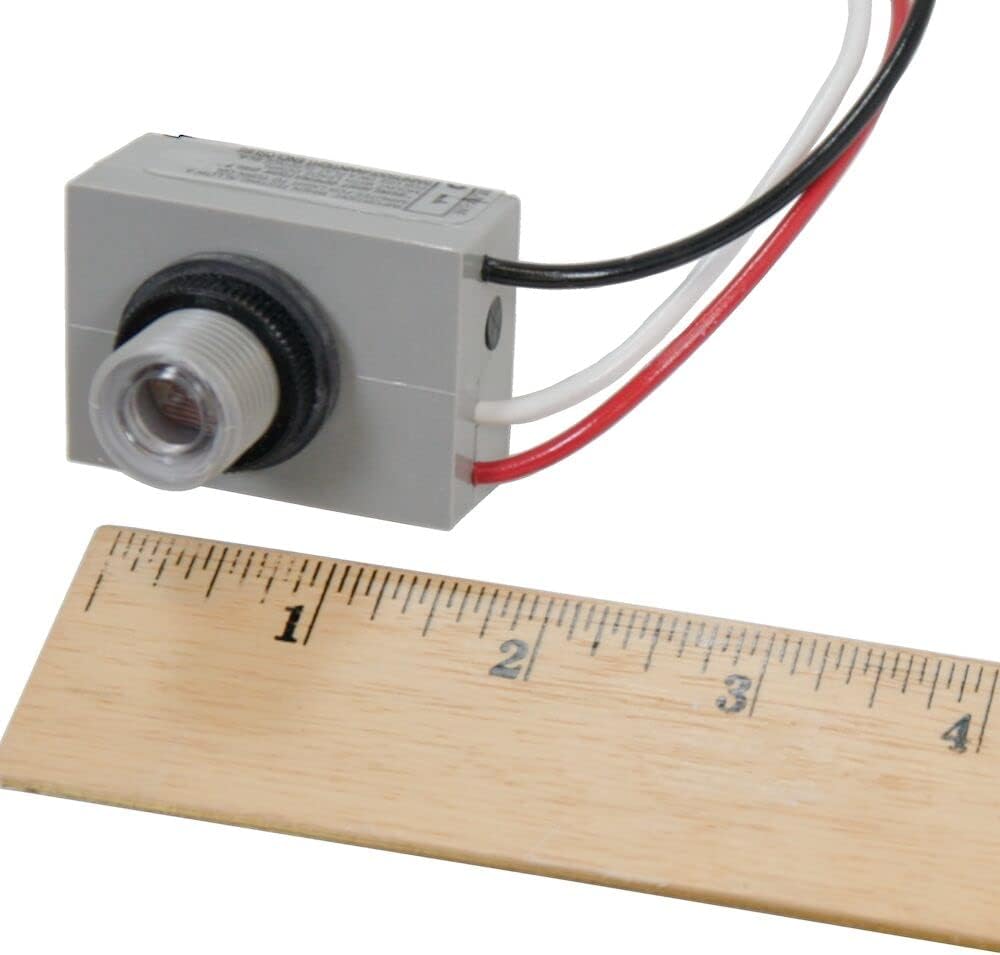

2. irudia: Aurrealdea view of the Intermatic K4021C photocontrol, showing the black, white, and red wire leads for electrical connections.
Figure 3: Close-up of the Intermatic K4021C photocontrol, detailing the light sensor and wire connections.
4. Funtzionamendua
The K4021C photocontrol operates automatically based on ambient light levels:
- Activation ON (at Dusk): The photocontrol will turn the connected lighting fixture ON when the ambient light level drops to approximately 1-5 footcandles.
- Activation OFF (at Dawn): The photocontrol will turn the connected lighting fixture OFF when the ambient light level rises to approximately 3-15 footcandles.
4.1 Delay Feature
This photocontrol incorporates a delay feature to prevent unwanted ON/OFF switching due to transient light changes, such as car headlights, lightning, or other temporary light sources. This ensures stable and reliable operation of your lighting system.
1. bideoa: Produktu ofiziala amaitu daview video for the Intermatic K4021C Thermal Photocontrol, demonstrating its features and applications, including the dusk-to-dawn operation and delay feature.
5. Mantentzea
The Intermatic K4021C photocontrol is designed for maintenance-free operation. However, periodic inspection is recommended to ensure optimal performance:
- Keep the photocontrol's sensor lens clean and free from dirt, dust, or obstructions that could interfere with light sensing.
- Periodically check wiring connections for tightness and signs of corrosion.
- Ensure the photocontrol is securely mounted and not loose.
6. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argiak piztuta egoten dira egunean zehar. | Sensor is obstructed or receiving insufficient light. | Clean the sensor lens. Relocate the photocontrol to an area with more direct natural light. |
| Argiak ez dira pizten gauez. | No power to the photocontrol; faulty wiring; sensor receiving too much artificial light. | Check circuit breaker. Verify wiring connections. Relocate the photocontrol away from artificial light sources. |
| Lights flicker or cycle ON/OFF rapidly. | Sensor is exposed to intermittent light sources (e.g., car headlights, reflections). | The built-in delay feature should mitigate this. If persistent, try to shield the sensor from transient light sources or relocate. |
| Photocontrol does not respond. | Unit failure; incorrect wiring. | Verify all wiring connections. If problem persists, the unit may need replacement. |
7. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Modelo zenbakia | K4021C |
| Bolumen eragileatage | 120 Volt AC |
| Egungo balorazioa | 15 Amps |
| Wolframioaren karga | 1800 Watt |
| Magnetic Ballast Load | 1000 VA |
| Eragiketa modua | ON-OFF (Dusk-to-Dawn) |
| Kontaktu mota | Normalean irekita |
| Konektore mota | Clamp |
| Terminala | Botoia |
| Materiala | Polikarbonatoa |
| Hari-buruak | 9-Inch, #18 AWG |
| Muntaketa | 3/8-Inch-18 NPSM Threaded Stem |
| Neurriak (L x W x H) | 8 x 8 x 8 hazbete (Produktuaren neurriak) |
| Elementuaren pisua | 0.96 ontza |
| Nazioarteko Babesteko Balorazioa | IP54 |
| Gailu bateragarriak | Fluorescent, HID, Incandescent |
| Kolorea | White (Housing) |
8. Bermea eta Laguntza
This Intermatic K4021C photocontrol comes with a 5 urteko bermea from the date of purchase. For warranty claims or technical support, please contact Intermatic customer service. Keep your proof of purchase for warranty validation.
