Moen Eva Chrome Two-Handle Centerset Bathroom Sink Faucet (Model 6410)

1. Produktua amaitu daview

The Moen Eva Two-Handle Centerset Lavatory Faucet with Drain Assembly is designed to provide a blend of style and functionality for your bathroom. This faucet features a swan-like spout and a three-hole mount with a 4-inch centerset design for straightforward installation. The two petal-like lever handles allow for precise control of water temperature and flow. The Eva faucet delivers an aerated stream of up to 1.2 gallons per minute, meeting WaterSense criteria for water efficiency without compromising water pressure.

Ezaugarri nagusiak:

• Tenperatura kontrola: Two-handle lever handles for easy water temperature adjustment.
• Diseinu polifazetikoa: Chrome finish offers a highly reflective, mirror-like appearance suitable for various decorating styles.
• Estiloa: Transitional design for a timeless bathroom aesthetic.
• Koordinazio Bilduma: Designed to coordinate with other faucets and accessories within the Eva Collection.
• Seguru ziurtatua: Edateko Uraren Segurtasun Lege Federala eta NSF 61 arauak betetzen ditu, edateko ur garbia bermatuz.
• ADA betetzen duena: Meets Americans with Disabilities Act (ADA) specifications for accessibility.
• Iraunkortasuna: Moen-en Bizitza Osoko Berme Mugatuak babesten du.

Image 1.1: Moen Eva Chrome Faucet in a contemporary bathroom.

2. Zehaztapenak

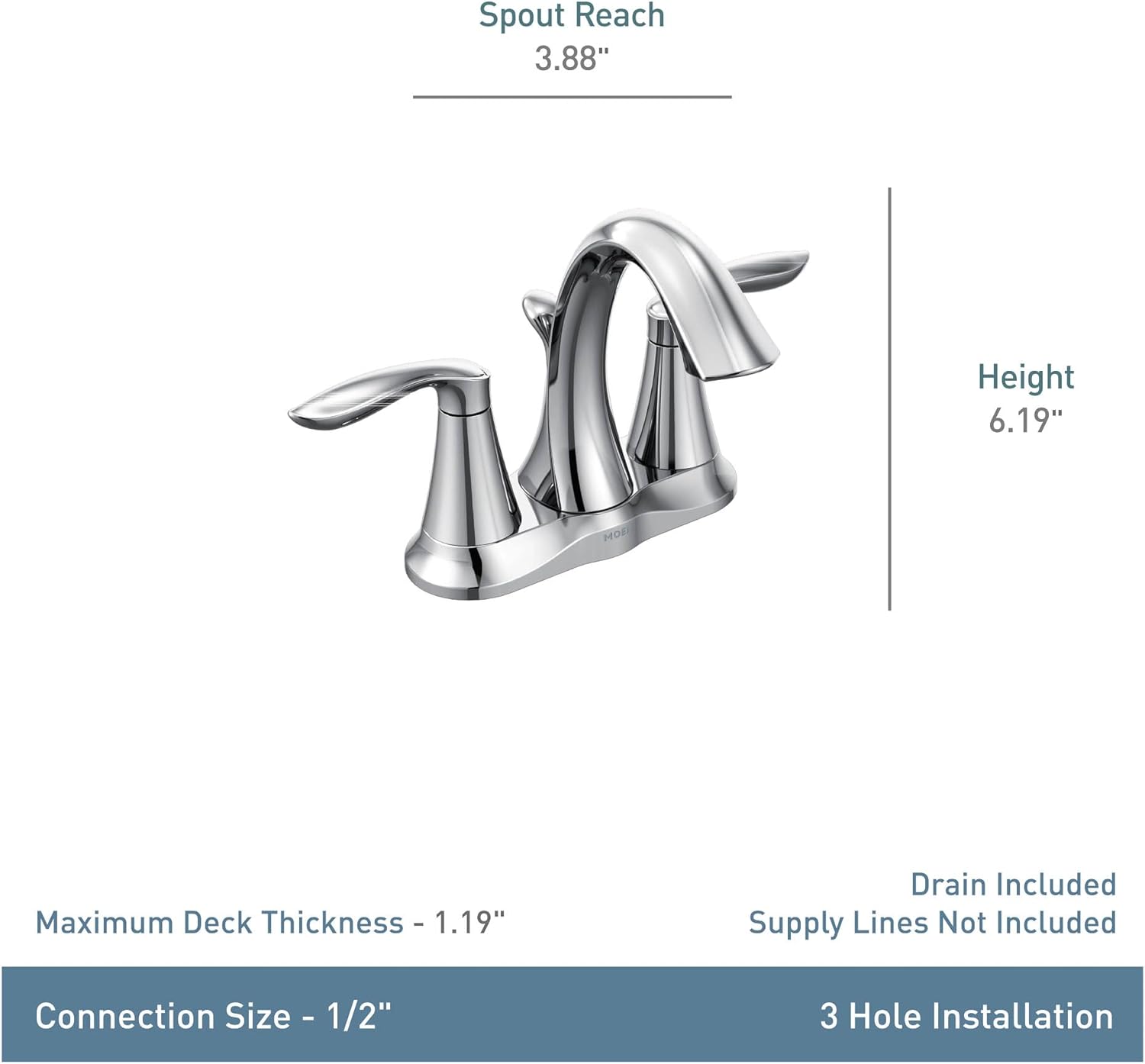

Image 2.1: Faucet Dimensions.

Image 2.2: WaterSense Certification.

3. Instalazioa

The Moen Eva faucet is designed for a 3-hole installation setup on your bathroom sink deck. Ensure your sink has three pre-drilled holes with a 4-inch centerset configuration for proper fitting. Refer to the included installation guide for detailed step-by-step instructions and necessary tools. It is recommended to turn off the main water supply before beginning installation.

Installation Steps Summary:

1. Prepare the sink area by ensuring it is clean and dry.
2. Mount the faucet body and handles into the pre-drilled holes on the sink deck.
3. Secure the faucet from underneath the sink using the provided hardware.
4. Connect the hot and cold water supply lines to the corresponding faucet inlets.
5. Install the drain assembly according to the instructions, ensuring a watertight seal.
6. Berrezarri ur-hornidura eta egiaztatu ihesak.

Image 3.1: 3-Hole Sink Configuration.

4. Funtzionamendua

Operating your Moen Eva faucet is straightforward. The faucet features two lever handles for controlling water flow and temperature, and a drain stopper for filling the sink.

Uraren emaria eta tenperatura:

• To turn on the water, lift either the left (hot) or right (cold) lever handle.
• Adjust the water flow by raising or lowering the handles.
• Nahastu ur beroa eta hotza bi heldulekuak aldi berean doituz nahi den tenperatura lortzeko.

Hustubidearen Muntaketa:

• The faucet includes a drain assembly with a lift rod located behind the spout.
• Pull up on the lift rod to close the drain stopper and fill the sink.
• Push down on the lift rod to open the drain stopper and allow water to drain.

Image 4.1: Faucet in operation with water flowing.

5. Mantentzea

Proper care and maintenance will help preserve the finish and functionality of your Moen Eva faucet.

Garbiketa jarraibideak:

• Garbitu kromo akabera aldizka zapi leun eta lehor batekinamp oihal.
• Use mild soap and water for general cleaning. Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the finish.
• Erabili ondoren, garbitu txorrota lehor ur-orbanak eta mineralen metaketa saihesteko.
• For stubborn water spots, a solution of equal parts white vinegar and water can be used, followed by rinsing and drying.

6. Arazoak

If you encounter any issues with your Moen Eva faucet, please refer to the following common troubleshooting tips:

• Ur emaria baxua: Egiaztatu aireztagailua hondakinez beteta dagoen. Deskonektatu aireztagailua tututik eta garbitu. Ziurtatu ur-hornidurako balbulak guztiz irekita daudela.
• Txorrota ihes egiten ari da: Tighten any loose connections on the supply lines. If the leak is from the spout, the internal cartridges may need replacement.
• Tenperatura arazoak: Verify that the hot and cold supply lines are connected correctly. Ensure your water heater is functioning properly.
• Stiff Handles: Over time, mineral buildup can cause handles to become stiff. Cleaning around the base of the handles and applying a silicone-based lubricant may help.

For more complex issues or if troubleshooting steps do not resolve the problem, contact Moen customer support or a qualified plumber.

7. Bermea eta Laguntza

Your Moen Eva Chrome Two-Handle Centerset Bathroom Sink Faucet is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For specific details regarding warranty coverage, claims, or technical support, please visit the official Moen webwebgunean edo jarri harremanetan bere bezeroarentzako arreta zerbitzuarekin.

Harremanetarako informazioa:

• Moen Ofiziala Webgunea: www.moen.com
• Bezeroarentzako laguntza: Kontsultatu Moen-i webwebgunea uneko harremanetarako zenbakiak eta laguntza ordutegia ikusteko.

8. Baliabide osagarriak

Moen Brand Video:

Video 8.1: An official brand video from Moen Incorporated, highlighting the company's commitment to water experiences and design.
