1. Sarrera
Thank you for choosing the Taylor #1523 Indoor/Outdoor Thermometer & Humidity Guide. This device is designed to provide accurate indoor and outdoor temperature readings, along with indoor humidity levels. Please read this manual carefully to ensure proper setup, operation, and maintenance of your thermometer.

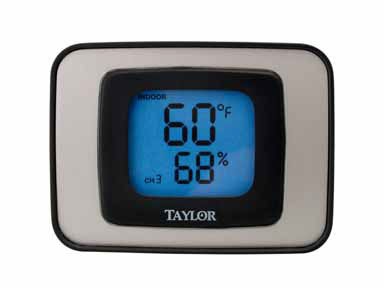

Image 1: Taylor #1523 Indoor/Outdoor Thermometer and Humidity Guide. This image shows the front view of the thermometer unit, displaying temperature and humidity readings.
2. Produktuaren ezaugarriak
- Simultaneous display of indoor and outdoor temperature.
- Displays indoor humidity levels.
- Switchable temperature units (Celsius or Fahrenheit).
- Records and displays minimum and maximum temperature/humidity readings.
- Atzeko argia argi gutxiko baldintzetan erraz irakurtzeko.
- Versatile placement: desktop stand or wall-mountable.
3. Paketearen edukia
- Taylor #1523 Thermometer Unit
- Outdoor Temperature Sensor (wired)
- Erabiltzailearen eskuliburua
Note: One AAA battery is required for operation and is not typically included.
4. Konfigurazioa
4.1 Bateriaren instalazioa
- Bilatu bateriaren konpartimentua unitatearen atzealdean.
- Kendu bateriaren konpartimentuaren estalkia.
- Insert one (1) AAA battery, ensuring correct polarity (+ and -).
- Jarri bateriaren konpartimentuaren estalkia.
4.2 Sentsoreen kokapena
- Barruko Unitatea: Place the main thermometer unit indoors in a location away from direct sunlight, heat sources, or drafts that could affect temperature and humidity readings. It can be placed on a desktop using its integrated stand or mounted on a wall using the keyhole slot on the back.
- Kanpoko sentsorea: Route the wired outdoor temperature sensor outside. For accurate readings, place the sensor in a shaded area, protected from direct sunlight and precipitation. Ensure the cable is not pinched or damaged.
5. Funtzionamendua
The control buttons are located on the back of the unit, except for the backlight button which is on the top.
5.1 Display Readings
- The display will show the current indoor temperature, outdoor temperature, and indoor humidity.
5.2 Changing Temperature Units (C/F)
- Sakatu C / F button on the back of the unit to toggle between Celsius and Fahrenheit temperature displays.
5.3 Viewing Minimum/Maximum Readings (MIN/MAX)
- Sakatu MIN / MAX button on the back of the unit to cycle through current, minimum, and maximum recorded values for temperature and humidity.
5.4 Clearing Minimum/Maximum Readings (CLEAR)
- Bitartean viewing the MIN/MAX readings, press the ARGI button on the back of the unit to reset the recorded minimum and maximum values.
5.5 Atzeko argia
- Press the button located on the top of the unit to activate the backlight for a few seconds, improving visibility in dark environments.
6. Mantentzea
- Garbiketa: To clean the unit, wipe it with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the plastic casing edo pantaila.
- Bateria ordezkatzea: Replace the AAA battery when the display becomes dim or stops functioning. Ensure proper polarity during installation.
- Biltegiratzea: Unitatea denbora luzez gordetzen baduzu, kendu bateria isuriak saihesteko.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Pantailarik ez edo pantaila iluna | Bateria baxua edo agortuta; bateria gaizki instalatuta. | Ordeztu AAA pila, polaritate zuzena ziurtatuz. |
| Tenperatura/hezetasun irakurketa zehaztugabeak | Unit or sensor placed in direct sunlight, near heat/cold sources, or in drafts. | Relocate the unit and/or outdoor sensor to a more appropriate, stable environment. Ensure the outdoor sensor is in shade. |
| Kanpoko tenperatura ez da bistaratzen | Outdoor sensor cable is disconnected or damaged. | Check the connection of the outdoor sensor cable to the main unit. Inspect the cable for any visible damage. |
8. Zehaztapenak
- Eredua: #1523
- Neurriak: 6.5 x 5.9 x 1.8 hazbete (elementu paketea)
- Pisua: 4 ontza (Paketearen pisua)
- Materiala: Plastikoa
- Energia iturria: 1 x AAA bateria (ez dago barne)
- UPC: 077784015230
- Zaintzeko jarraibideak: Garbitu
9. Bermea eta Laguntza
Taylor provides a limited warranty for its products. For specific warranty details, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Taylor website. You may also contact Taylor customer service directly for assistance.
Taylor Customer Service: www.taylorusa.com/support
