Casio W751 Black Watch Band Instruction Manual

Sarrera

This manual provides instructions for the proper installation, care, and maintenance of your new Casio W751 Black Resin Watch Band. This band is an original Casio replacement part, designed specifically for the Casio W751 watch model.

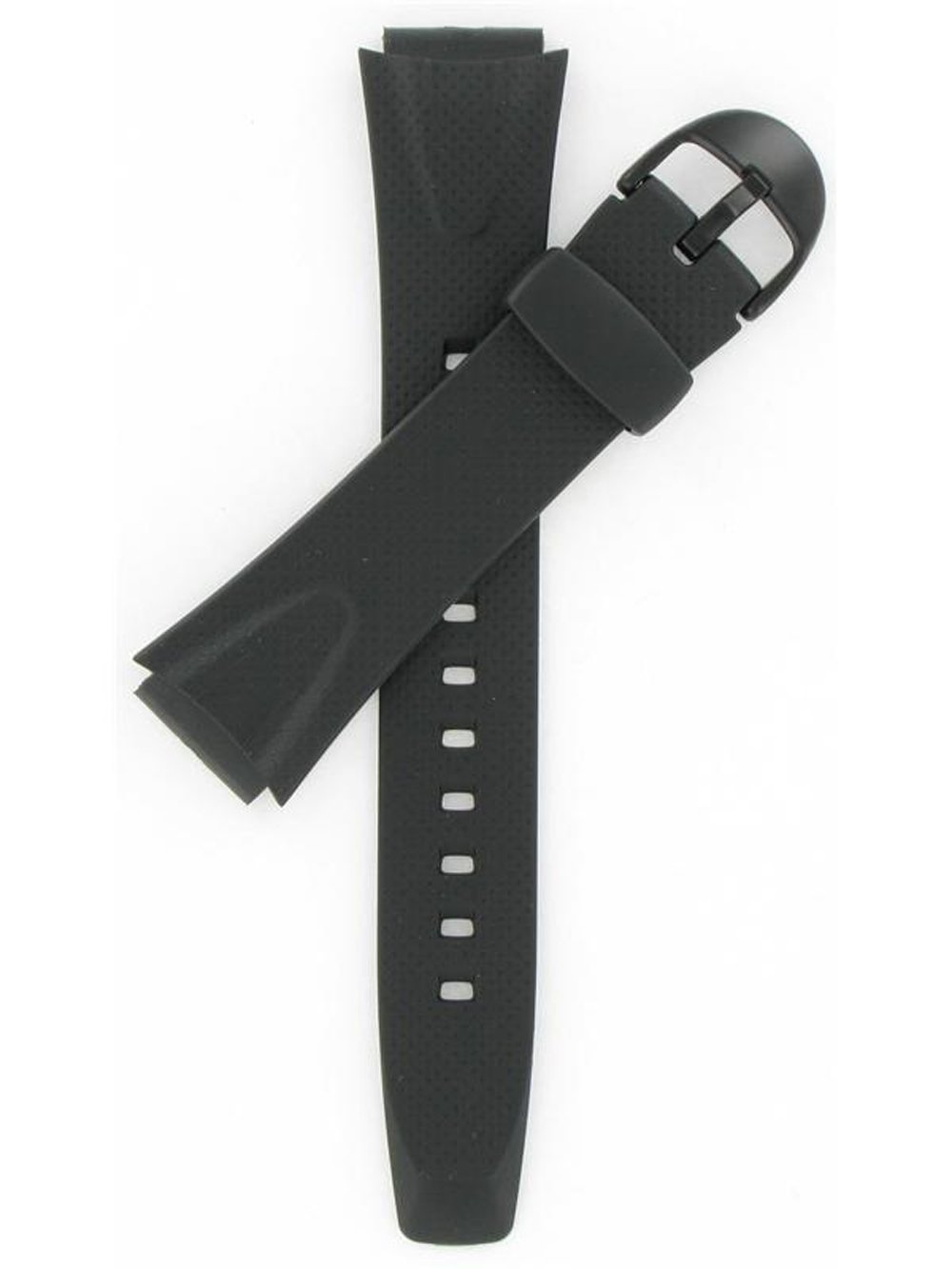

Image: The Casio W751 Black Resin Watch Band, showing its black resin material and buckle.

Konfigurazioa eta Instalazioa

Installing your new watch band requires careful handling to avoid scratching your watch or the new band. It is recommended to use a spring bar tool for this process.

1. Prestatu zure lan-eremua: Lay your watch face down on a soft, clean cloth to protect it from scratches.
2. Remove the Old Band:
   • Locate the spring bars that hold the current watch band to the watch lugs.
   • Using a spring bar tool, gently compress one end of the spring bar and carefully pull the band away from the watch lug.
   • Repeat for the other end of the spring bar and then for the second half of the watch band.
   • Keep the old spring bars if they are in good condition, as some replacement bands may not include new ones.
3. Install the New Band:
   • Insert one end of a spring bar into one of the holes on the new watch band.
   • Place the spring bar into one of the watch lugs, ensuring one end of the spring bar is securely seated in the lug hole.
   • Using the spring bar tool, compress the other end of the spring bar and guide it into the opposite lug hole.
   • Gently tug on the band to ensure both ends of the spring bar are securely seated in the lug holes. A slight click may be heard.
   • Repeat this process for the second half of the watch band.
4. Azken egiaztapena: Ensure both halves of the band are firmly attached and cannot be easily pulled off the watch lugs.

If you are unsure about the installation process, it is advisable to seek assistance from a professional watch repair technician.

Erabilera eta doikuntza

Once installed, the Casio W751 Black Resin Watch Band is ready for use. Adjust the buckle to achieve a comfortable and secure fit on your wrist. The band should be snug enough to prevent the watch from sliding freely, but not so tight as to restrict circulation or cause discomfort.

Mantentzea eta zaintzea

To ensure the longevity and appearance of your resin watch band, follow these care guidelines:

• Garbiketa: Wipe the band regularly with a soft, damp cloth to remove dirt, sweat, and oils. For more thorough cleaning, use a mild soap solution and rinse thoroughly with clean water. Avoid harsh chemicals or abrasive cleaners.
• Lehortzea: After cleaning or exposure to water, dry the band completely with a soft cloth.
• Saihestu muturreko baldintzak: Prolonged exposure to direct sunlight, high temperatures, or extreme cold can affect the resin material over time.
• Kimikoak: Avoid contact with solvents, oils, perfumes, and other chemicals, as these can degrade the resin.

Arazoak konpontzea

• Band Does Not Fit: Ensure you have the correct band for your specific Casio W751 watch model. The lug width of this band is 18mm. If the band is too wide or too narrow, it may not be compatible.
• Difficulty Installing Spring Bars: Ensure the spring bars are correctly aligned with the lug holes. Sometimes, a small amount of pressure and wiggling is needed. If you are struggling, verify the spring bar length is appropriate for the band and watch.
• Band Feels Loose After Installation: Double-check that both ends of the spring bars are fully seated in the lug holes. Gently pull on the band to confirm it is secure.

Zehaztapenak

Bermea eta Laguntza

This watch band is an original Casio replacement part. For specific warranty information regarding this product, please refer to the documentation provided with your original Casio W751 watch or contact Casio customer support directly. Warranty terms typically cover manufacturing defects.

For technical support or further assistance with installation or product inquiries, please contact the retailer from whom you purchased the band or visit the official Casio webbezeroarentzako arreta-zerbitzuko harremanetarako datuak lortzeko webgunea.
