Whirlpool 3406653 Wire Harness Instruction Manual

1. Sarrera

This manual provides essential instructions for the proper installation, maintenance, and troubleshooting of the Whirlpool 3406653 Wire Harness. This genuine replacement part is designed for use in compatible Whirlpool dryers. Please read this manual thoroughly before attempting any installation or repair to ensure safe and correct operation.

2. Segurtasun informazio garrantzitsua

OHARRA: To reduce the risk of fire, electric shock, or injury to persons, read and follow all instructions carefully.

• Always disconnect power to the appliance before servicing. Failure to do so can result in serious injury or death.
• Erabili norberaren babeserako ekipamendu egokia, hala nola eskularruak eta segurtasun-betaurrekoak.
• If you are unsure about any part of the installation process, consult a qualified appliance technician.
• Ziurtatu konexio guztiak ondo isolatuta eta ondo finkatuta daudela instalazioa egin ondoren.
• Mantendu haurrak eta maskotak lan-eremutik urrun.

3. Produktua amaitu daview

The Whirlpool 3406653 Wire Harness is a genuine OEM (Original Equipment Manufacturer) replacement part designed to connect various electrical components within your dryer. It ensures proper electrical signal transmission for the dryer's functions, including sensor operation. This harness is critical for the correct functioning of the appliance.

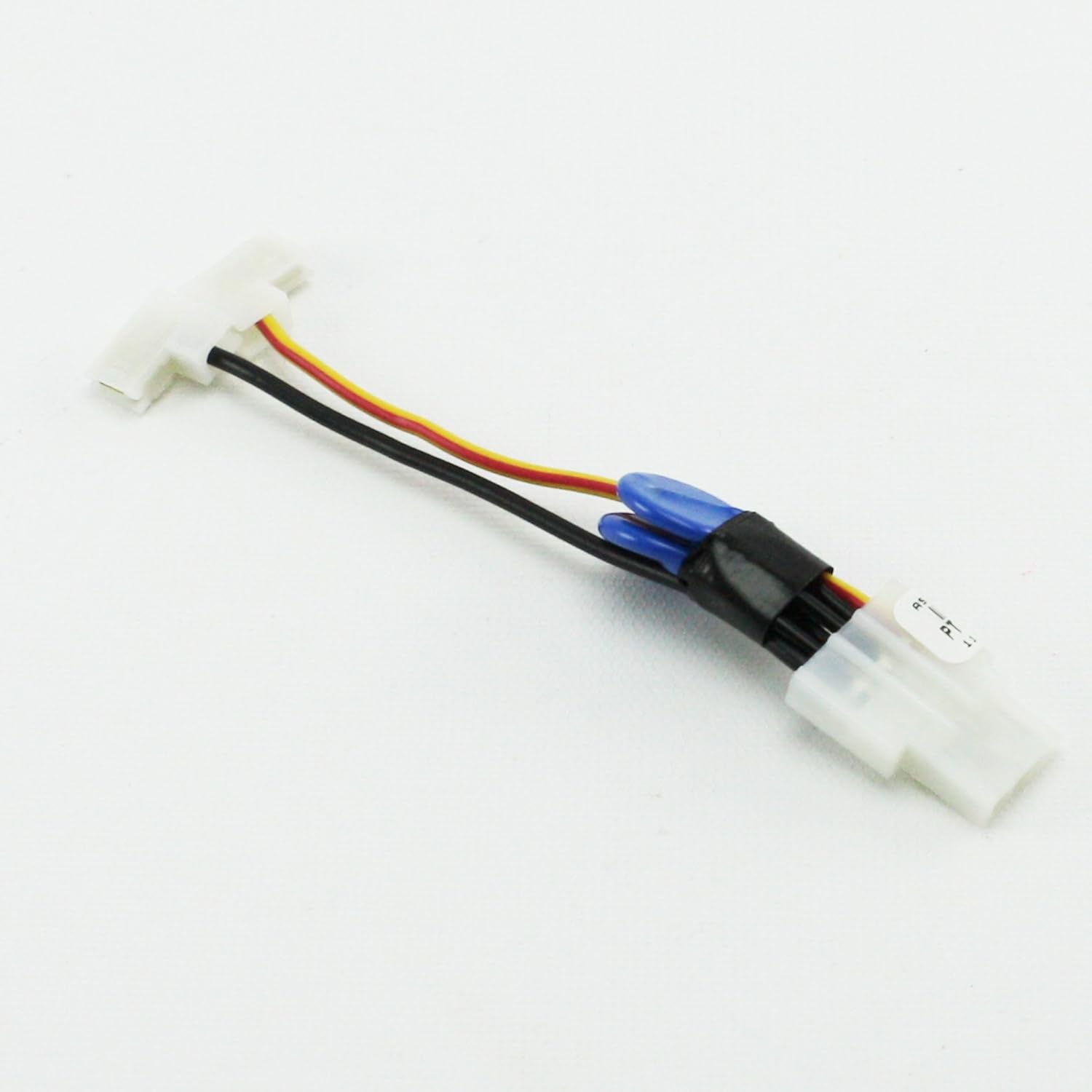

1. irudia: Aurrealdea view of the Whirlpool 3406653 Wire Harness. This image shows the multi-colored wires and connectors.

2. irudia: Atzekoa view of the Whirlpool 3406653 Wire Harness, showing a label with part information.

4. Instalatzeko jarraibideak

Replacing a wire harness requires careful attention to detail. The following steps provide a general guide. Always refer to your specific dryer model's service manual for detailed disassembly and reassembly instructions.

4.1. Beharrezko tresnak

• Bihurkinak (Phillips eta flathead)
• Nut drivers or wrenches (various sizes, as needed for your dryer model)
• Orratz-sudurrezko aliketak
• Wire cutters/strippers (if any wire modification is required, though typically not for a harness replacement)
• Multimeter (for testing continuity, optional but recommended)
• Laneko eskularruak
• Segurtasun betaurrekoak

4.2. Prestaketa

1. Deskonektatu energia: Deskonektatu lehorgailua entxufe elektrikotik edo itzali lehorgailuari korrontea ematen dion etengailua.
2. Sarbide-panela kentzea: Depending on your dryer model, you may need to remove the top panel, front panel, or rear access panel to reach the wire harness. Refer to your dryer's service manual for specific instructions.
3. Locate Existing Harness: Identify the wire harness that needs replacement. Note its routing and how it connects to various components (e.g., sensors, control board, heating element). Taking photos before disconnection can be very helpful.

4.3. Removal of Old Wire Harness

1. Deskonektatu kableak: Carefully disconnect each connector of the old wire harness from its corresponding component. Pay attention to the color coding and connector types.
2. Release Clips/Ties: Release any clips, ties, or fasteners that secure the harness in place.
3. Kendu arnesa: Gently remove the old wire harness from the appliance.

4.4. Installation of New Wire Harness

1. Route New Harness: Carefully route the new Whirlpool 3406653 Wire Harness in the same path as the old one. Ensure it does not interfere with moving parts or sharp edges.
2. Konektatu kableak: Connect each connector of the new harness to its corresponding component. Ensure each connection is firm and fully seated. Match wire colors and connector types.
3. Arnes segurua: Secure the new harness with any clips, ties, or fasteners that were removed earlier, ensuring it is properly supported and not pinched.

4.5. Instalazio osteko egiaztapenak

1. Ikus-ikuskapena: Double-check all connections and ensure the harness is routed correctly and not damaged.
2. Lehorgailua berriro muntatu: Kendutako panelak edo estalkiak berriro jarri.
3. Berrezarri boterea: Konektatu lehorgailua berriro entxufe elektrikora edo piztu etengailua.
4. Proba funtzionamendua: Run a short cycle on the dryer to confirm proper operation. Listen for any unusual noises and observe if all functions are working as expected.

5. Mantentzea

The Whirlpool 3406653 Wire Harness is designed for durability and typically requires no routine maintenance. However, periodic visual inspection during other dryer maintenance (e.g., cleaning lint traps, checking vents) can help identify potential issues early.

• Ensure the harness remains free from kinks, pinches, or excessive tension.
• Keep the area around electrical connections clean and free of lint or debris.
• If any signs of wear, fraying, or damage are observed, the harness should be replaced immediately.

6. Arazoak

If your dryer experiences issues after replacing the wire harness, consider the following troubleshooting steps:

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance technician.

7. Zehaztapenak

8. Bermea eta laguntza

As a genuine Whirlpool replacement part, this wire harness is manufactured to high-quality standards. For specific warranty information regarding genuine Whirlpool parts, please refer to the documentation provided with your original appliance or contact Whirlpool customer support directly. Using genuine parts helps ensure the longevity and proper functioning of your appliance.

For technical assistance or to locate authorized service providers, please visit the official Whirlpool website or consult your dryer's user manual.
