Sarrera
Thank you for choosing the BENRO Tripod KIT Universal A500FBH2 (Model BE2155). This universal tripod kit is designed for stability and versatility, ideal for photographers and videographers. Please read this manual carefully before using your tripod to ensure proper operation and to maximize its lifespan.
Paketearen edukia
Before proceeding with setup, please verify that all components are present in your package:
- BENRO Tripod with clamps
- BH2 Ball Head (pre-attached)
- Tripod Bag with carrying handle
- 3 Foam Handles (pre-attached)

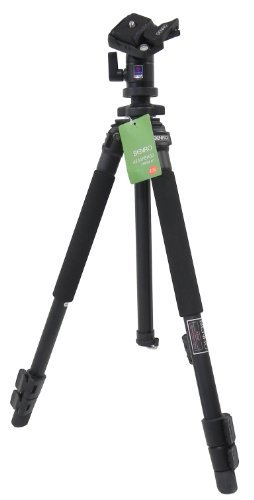

Image: BENRO Tripod KIT Universal A500FBH2 with included BH2 ball head and foam handles.
Konfigurazio Argibideak
- Tripodea deskonprimitu: Carefully remove the tripod from its carrying bag.
- Hankak luzatu:
Locate the leg clamps on each tripod leg. Flip open the clamps to release the leg sections. Extend each leg section to the desired height. Close the clamps firmly to secure the leg sections in place. Ensure all clamps are securely fastened before mounting any equipment.
Image: Illustration of tripod leg extension and clamp mekanismoa.
- Hanka angeluak doitu:
Each leg can be independently adjusted to different angles for stability on uneven terrain. Press the leg angle lock release near the top of each leg and set the leg to one of the available angle positions. Ensure all three legs are set to a stable configuration.
- Mounting the Camera/Device:
The BH2 ball head is pre-attached. To mount your camera or cellphone (with an appropriate adapter, not included), first ensure the quick release plate is detached from the ball head. Attach the quick release plate to the bottom of your camera/device by screwing it in securely. Then, slide the quick release plate with your camera/device into the ball head receiver until it locks into place. Always double-check that your device is securely mounted before letting go.
Funtzionamendu-argibideak
Using the BH2 Ball Head
The BH2 ball head allows for smooth and precise positioning of your camera. It features a main locking knob and a panning lock knob.
- Main Locking Knob: Loosen this knob to allow the ball to move freely, enabling you to tilt and swivel your camera to any angle. Tighten it firmly to lock the camera in the desired position.
- Panoramikoaren blokeo-botoia: This knob controls the rotation of the ball head base. Loosen it to pan your camera horizontally (360 degrees). Tighten it to lock the panning movement.
Adjusting Center Column Height
The tripod features a center column for additional height adjustment. Loosen the center column locking knob (usually located below the ball head mount) and extend or retract the center column to the desired height. Tighten the knob firmly to secure the column.
Kontuz: Extending the center column too high can reduce the tripod's stability, especially with heavy equipment. Always ensure the tripod remains stable.
Mantentzea
- Garbiketa: Erabilera bakoitzaren ondoren, batez ere hauts edo hareazko inguruneetan, garbitu tripodearen hankak eta burua oihal leun eta lehor batekin. Zikinkeria egoskorra bada, garbitu apur batamp oihal bat erabil daiteke, eta ondoren berehala lehortu.
- Lubrifikazioa: Moving parts, such as leg clamps and the ball head mechanism, may benefit from occasional light lubrication with a silicone-based lubricant. Avoid using oil-based lubricants as they can attract dust.
- Biltegiratzea: Store the tripod in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures.
- Ikuskapena: Periodically inspect all screws, clamps, and joints for tightness. Tighten any loose components to ensure safe operation.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Tripodea ezegonkorra da. | Hanka clamps not fully secured; legs not spread wide enough; center column extended too high; uneven ground. | Ensure all leg clamps are locked. Spread legs to maximum stable angle. Retract center column if possible. Adjust leg lengths for uneven surfaces. |
| Ball head movement is stiff or jerky. | Dust/dirt in mechanism; insufficient lubrication; main locking knob too tight. | Clean the ball head thoroughly. Apply a small amount of silicone lubricant. Loosen the main locking knob slightly. |
| Camera not securely attached to ball head. | Quick release plate not tightened to camera; quick release plate not fully engaged in ball head. | Ensure the quick release plate screw is tight on the camera. Re-insert the quick release plate into the ball head until it clicks or locks securely. |
Zehaztapenak
| Modelo zenbakia | BE2155 (Kit A500FBH2) |
| Gehienezko Karga Edukiera | 8 kg |
| Hanka atalak | 3 segments (2 pull-outs) |
| Buru Mota | BH2 Ball Head |
| Materiala | Rubber (for foam handles), other components typically aluminum alloy. |
| Kolorea | Beltza |
| Produktuaren neurriak (LxWxH) | 30 x 10 x 20 cm (tolestuta) |
| Elementuaren pisua | 1.5 kg |
| Gailu bateragarriak | Camera, Cellphone (with adapter) |
| Fabrikatzailea | BENRO, Benro Usa |
| Jatorrizko Herrialdea | Txina |
Bermearen informazioa
BENRO products are manufactured to high quality standards. For specific warranty terms and conditions applicable to your region, please refer to the warranty card included with your product or visit the official BENRO website. Typically, BENRO offers a limited warranty against manufacturing defects from the date of purchase. Keep your purchase receipt as proof of purchase for any warranty claims.
Bezeroarentzako Arreta
Should you encounter any issues or have questions regarding your BENRO Tripod KIT Universal A500FBH2, please contact BENRO customer support or your local distributor. Contact information can usually be found on the BENRO official webgunean edo produktuaren ontzian.
Sareko baliabideak: For additional information, product registration, and frequently asked questions, please visit the official BENRO webgunea: www.benro.com
