Cen-Tech 750W Continuous/1500W Peak Power Inverter User Manual

1. Sarrera

This manual provides essential information for the safe and efficient operation of your Cen-Tech 750W Continuous/1500W Peak Power Inverter. This device converts 12V DC battery power into 115V AC household power, allowing you to operate various electronics and small appliances from your vehicle or other 12V power sources. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Segurtasun informazio garrantzitsua

OHARRA: Failure to follow these instructions may result in electric shock, fire, serious injury, or death. Always exercise extreme caution when working with electrical equipment.

• Deskarga elektrikoaren arriskua: Ez ireki inbertsorearen casing. There are no user-serviceable parts inside. Contact qualified service personnel for repairs.
• Sute arriskua: Ez erabili inbertsorerik material sukoien, gasen edo lurrunen ondoan. Ziurtatu aireztapen egokia dagoela inbertsorearen inguruan.
• Aireztapen egokia: The inverter generates heat during operation. Ensure it is placed in a well-ventilated area, away from direct sunlight or heat sources.
• Polaritate zuzena: Always connect the inverter to a 12V DC battery with the correct polarity (red to positive, black to negative). Incorrect connection can damage the inverter and battery.
• Gainkarga babesa: Do not exceed the inverter's continuous power rating (750W) or peak power rating (1500W). Overloading can cause damage and fire.
• Hezetasun-esposizioa: Do not expose the inverter to rain, moisture, or water. This can cause electric shock or damage.
• Haurrak eta maskotak: Mantendu inbertsore-makina haurren eta animalien eskura ez dagoen leku batean.
• Gailu medikoak: This inverter is not designed for use with life-support systems or other medical devices.

3. Produktuaren ezaugarriak

The Cen-Tech 750W Power Inverter is designed for reliable performance and includes the following key features:

• Etengabeko potentzia: Provides up to 750 watts of continuous power.
• Potentzia maximoa: Capable of handling up to 1500 watts for starting products with high surge requirements.
• Modified Sine Wave Output: Efficiently converts 12V DC to 115V AC with up to 87% efficiency.
• Saltoki anitz: Features two 115V AC power outlets for connecting various devices.
• USB kargatzeko ataka: Includes a 5V/500mA USB port for charging compatible devices.
• Babes integrala: Built-in safeguards against low/high voltage, low/high temperatures, low/high currents, short circuits, and overloads.
• Konexio erraza: Comes with heavy-duty input cables equipped with alligator clips for direct battery connection.
• Egoera adierazlea: An LED indicator light provides operational status.

4. Paketearen edukia

Mesedez, egiaztatu paketea elementu hauek dituen:

• Cen-Tech 750W Continuous/1500W Peak Power Inverter
• Heavy-duty input cables with alligator clips
• Erabiltzailearen eskuliburua (dokumentu hau)

5. Konfigurazioa eta instalazioa

Follow these steps to properly set up your power inverter:

1. Aukeratu kokapena: Select a dry, well-ventilated area for the inverter. Ensure it is away from direct sunlight, heat sources, and flammable materials. The inverter should be placed on a stable, flat surface.
2. Bateria prestatu: Ziurtatu 12V-ko korronte zuzeneko bateria guztiz kargatuta dagoela eta egoera onean dagoela. Itzali bateriara konektatutako karga guztiak.
3. Connect Input Cables:
   • Konektatu GORRIA alligator clip cable to the POSITIBOA (+) terminal of the 12V battery.
   • Konektatu BELTZA alligator clip cable to the NEGATIBOA (-) terminal of the 12V battery.

   GARRANTZITSUA: Ensure connections are secure and correct polarity is observed to prevent damage to the inverter or battery. A loose connection can cause overheating.

4. Piztu: Once the battery connections are secure, turn on the inverter using its power switch (if applicable). The LED indicator light should illuminate.

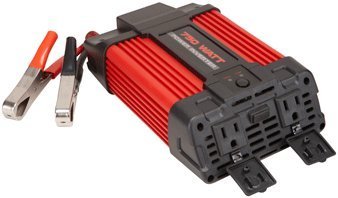

Image 1: Cen-Tech 750W Power Inverter connected to a 12V battery using the provided alligator clips. The image shows the compact design and the input/output ports.

6. Funtzionamendu-argibideak

After successful setup, you can begin using your power inverter:

1. Piztu inbertsore-sistema: Ensure the inverter's power switch is in the "ON" position. The LED indicator should confirm it is powered.
2. Konektatu korronte alternoko gailuak: Plug your 115V AC devices into the inverter's AC outlets. Ensure the total wattage of all connected devices does not exceed 750 watts continuously or 1500 watts peak.
3. Konektatu USB gailuak: For charging USB-powered devices, plug them into the 5V/500mA USB port.
4. Kontrolatu bateriaren maila: Keep an eye on your 12V battery's charge level. Prolonged use can drain the battery. The inverter has low voltage protection and will shut down if the battery voltage baxuegi jaisten da.
5. Itzali: When finished, first disconnect all AC and USB devices from the inverter. Then, turn off the inverter's power switch. Finally, disconnect the alligator clips from the battery, starting with the black (negative) clip, then the red (positive) clip.

Oharra: Some sensitive electronic devices may not operate correctly with a modified sine wave inverter. Consult your device's manufacturer for compatibility if issues arise.

7. Mantentzea

Mantentze-lan erregularrak zure inbertsorearen errendimendu optimoa eta iraupena bermatzen ditu:

• Garbiketa: Mantendu inbertsorea garbi eta hautsik eta hondakinik gabe. Erabili zapi lehor bat kanpoaldea garbitzeko. Ez erabili garbitzaile likidorik.
• Aireztapena: Periodically check that the ventilation openings are not blocked. Clear any obstructions to ensure proper airflow.
• Kable konexioak: Regularly inspect the input cables and alligator clips for any signs of wear, damage, or corrosion. Ensure connections remain tight and secure.
• Biltegiratzea: When not in use for extended periods, store the inverter in a cool, dry place, away from direct sunlight and extreme temperatures. Disconnect it completely from the battery.

8. Arazoak

Zure inbertsorearekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:

9. Zehaztapenak

10. Bermea eta Laguntza

Information regarding product warranty and customer support was not provided in the available product data. For warranty details or technical assistance, please refer to the product packaging or contact the manufacturer directly.
