Sarrera
This manual provides essential information for the safe and efficient operation of your Behringer EP4000 Power Amplifier. Please read this manual thoroughly before operating the device to ensure proper usage and to prevent damage.
The Behringer EP4000 is a professional-grade power amplifier designed for demanding audio applications, offering robust power output and reliable performance for sound reinforcement systems.
Segurtasun-argibideak
Beti jarraitu segurtasun neurri hauek deskarga elektriko, sute edo lesio arriskua murrizteko:
- Energia iturria: Konektatu unitatea zehaztutako bolumeneko korronte alternoko entxufe batera soilik.tage.
- Lurreratzea: Ziurtatu kablea behar bezala lurrera konektatuta dagoela. Ez hondatu lurrerako entxufea.
- Aireztapena: Ez blokeatu aireztapen-irekidurak. Ziurtatu aire-fluxu egokia unitatearen inguruan.
- Ura eta hezetasuna: Ez jarri unitatea euripean edo hezetasunean. Ez jarri likidoz betetako objekturik unitatearen gainean.
- Zerbitzua: Konponketa guztiak zerbitzu-langile kualifikatuei eskatu. Ez saiatu produktu hau zeuk konpontzen.
- Garbiketa: Garbitu zapi lehor batekin bakarrik.
Produktua amaituview
The Behringer EP4000 features a robust design suitable for professional audio environments. Below are images illustrating the front and rear panels of the ampbiziagoa.

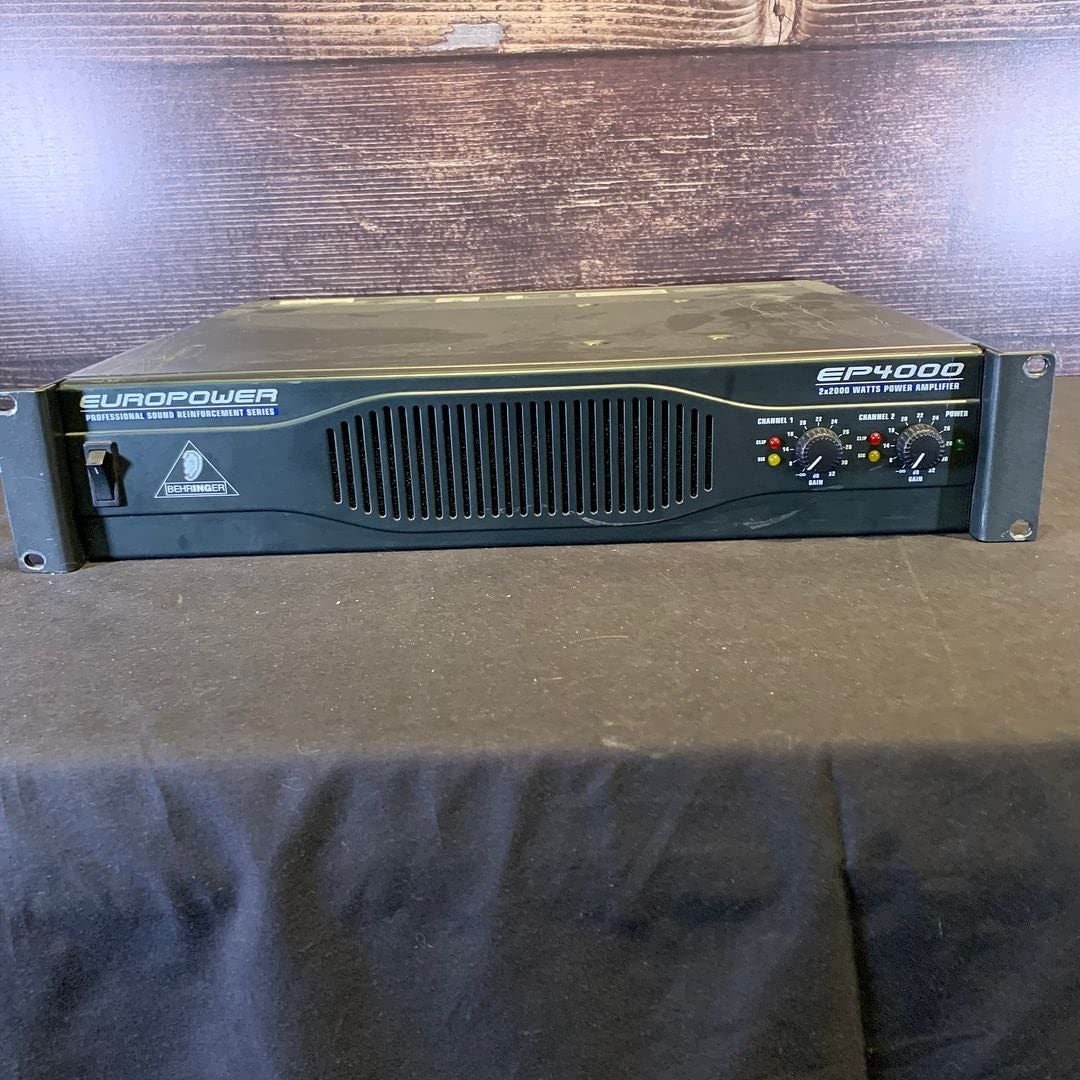

1. irudia: Front panel of the Behringer EP4000 Power Ampargitzaile. Hau view shows the power switch, ventilation grille, and control knobs for Channel 1 and Channel 2, including gain controls and LED indicators for signal, clip, and protection.

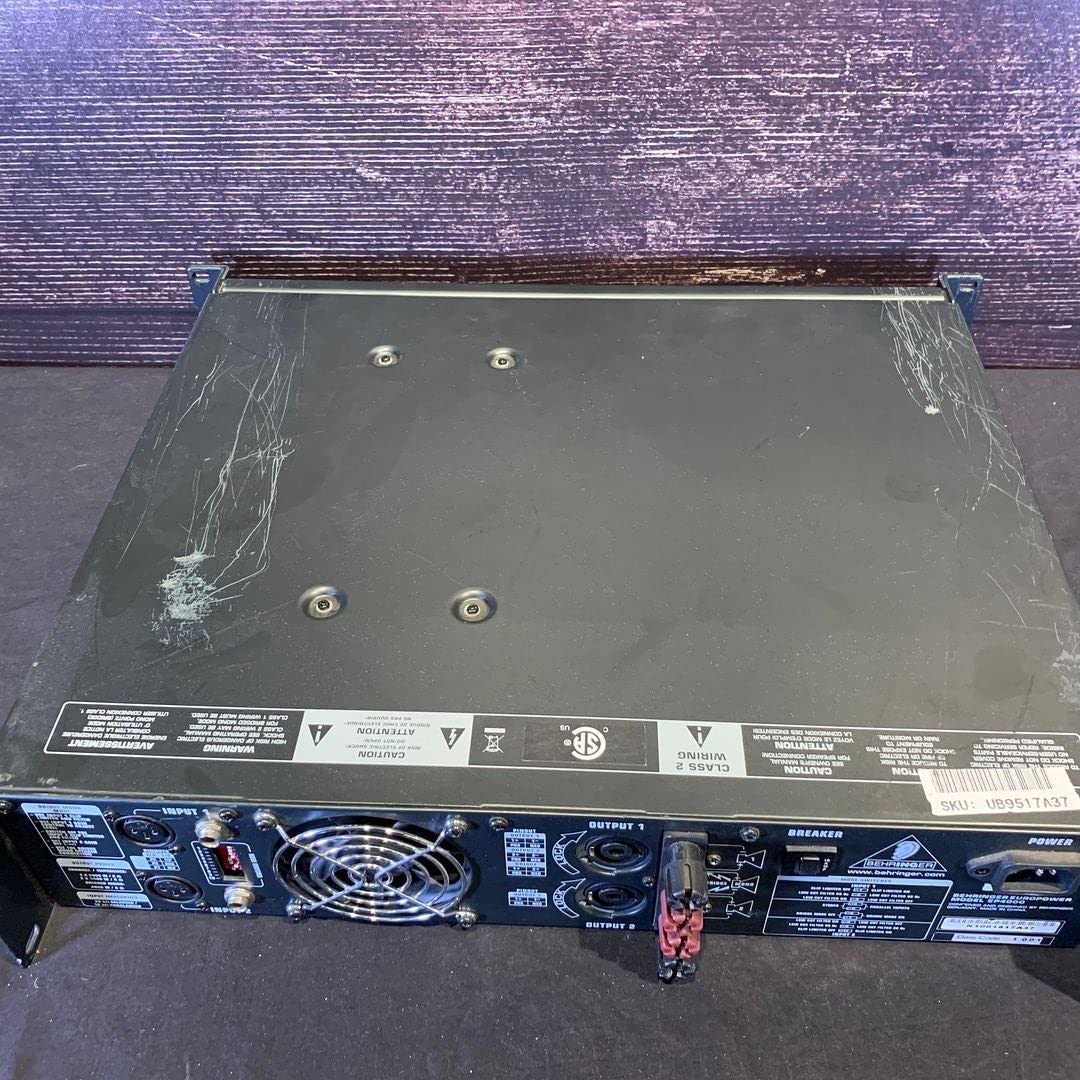

2. irudia: Rear panel of the Behringer EP4000 Power Ampargitzaile. Hau view displays the input connectors (XLR and 1/4" TRS), output connectors (Speakon and binding posts), mode switches (stereo, parallel, bridge), and the power input with a circuit breaker.
Konfigurazioa
- Despaketatzea: Kontu handiz deskargatu amplifier and inspect it for any signs of damage during transit. Retain the original packaging for future transport.
- Lekua: Jarri amplifier on a stable, flat surface or mount it in a standard 19-inch rack. Ensure adequate ventilation space around the unit (at least 4 inches on all sides). Do not place it near heat sources or in direct sunlight.
- Potentzia-konexioa: Before connecting to power, ensure the amplifier's power switch is in the OFF position. Connect the supplied AC power cord to the amplifier's power inlet and then to a grounded electrical outlet.
- Sarrerako konexioak: Konektatu zure audio iturria (nahasgailua, aurrebista)ampbizigarria, etab.) -ri amplifier's input jacks (XLR or 1/4" TRS) on the rear panel. Use balanced cables for optimal performance and noise rejection.
- Irteerako konexioak: Konektatu bozgorailuak amplifier's output terminals (Speakon or binding posts). Ensure correct polarity (+ to + and - to -) for all connections. Verify that the speaker impedance matches the amplifier-en zehaztapenak.
- Modu aukeraketa: Select the desired operating mode (Stereo, Parallel, or Bridge) using the switches on the rear panel.
- Modu estereo: Kanal bakoitzak modu independentean funtzionatzen du, bozgorailu bereizi bat kontrolatuz.
- Modu Paraleloa: Both inputs are summed, and the signal is sent to both channels, driving separate speakers. Useful for driving multiple speakers from a mono source.
- Zubi modua: Combines the power of both channels into a single, higher-power output for a single speaker. Only use with speakers rated for the higher power and impedance.
Funtzionamendu-argibideak
- Piztu: After all connections are made and verified, turn on your audio source first, then turn on the Behringer EP4000 Power Ampbiziagoa.
- Gain Control: Slowly turn up the gain controls for Channel 1 and Channel 2 on the front panel to the desired listening level. Start with the gain at minimum and gradually increase.
- Jarraipen-adierazleak:
- SEINALE LED: Audio-seinalea dagoenean pizten da.
- CLIP LED: Illuminates when the output signal is clipping (distorting). Reduce the gain immediately if this LED lights up frequently.
- BABESTU LED: Pizten da baldin eta amplifier enters protection mode due to overheating, short circuit, or other fault conditions. The amplifier will mute its output. Turn off the unit, resolve the issue, and then power it back on.
- Itzali: When finished, turn off the Behringer EP4000 Power Amplifier first, then turn off your audio source. This prevents loud pops or thumps through your speakers.
Mantentzea
Mantentze-lan erregularrak zure iraupena eta errendimendu optimoa bermatzen ditu ampbiziagoa.
- Garbiketa: Hautsa bota amplifier regularly with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure ventilation grilles are free from dust and debris.
- Aireztapena: Periodically check that the cooling fans are operating correctly and that airflow is not obstructed.
- Konexioak: Occasionally check all cable connections for secure fit and signs of wear.
- Biltegiratzea: gordez gero amplifier for an extended period, keep it in a cool, dry place, ideally in its original packaging or a protective case.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Botererik ez | Kablea deskonektatuta; Entxufea akastuna; Amplifier circuit breaker tripped. | Check power cord connection; Test power outlet; Reset circuit breaker on rear panel. |
| Ez dago soinu irteerarik | Input cables disconnected/faulty; Output cables disconnected/faulty; Speakers not connected/faulty; Amplifier in PROTECT mode; Gain controls set too low. | Check all input and output cable connections; Verify speaker functionality; Check PROTECT LED and resolve issue; Increase gain controls. |
| Distorted sound (CLIP LED on) | Sarrerako seinalea altuegia; Amplifier overloaded; Speaker impedance mismatch. | Reduce input signal level from source; Reduce amplifier gain; Verify speaker impedance matches amplifikatzaileen zehaztapenak. |
| Amplifier overheats (PROTECT LED on) | Insufficient ventilation; Obstructed cooling fans; Overloaded operation. | Ensure adequate airflow around the unit; Clean ventilation grilles; Reduce load or operating time. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Eredua | EP4000 |
| Marka | Behringer |
| Kanal kopurua | 2 |
| Muntatze Mota | Freestanding, Rack-mountable (standard 19-inch) |
| Potentzia Irteera | High-power professional ampbiziagoa |
| Sarrerak | XLR, 1/4"-ko TRS |
| Irteerak | Speakon, Binding Posts |
| Moduak | Stereo, Parallel, Bridge |
Note: Full technical specifications, including detailed power output ratings at various impedances, can be found on the official Behringer website or in the complete product datasheet.
Bermea eta Laguntza
For detailed warranty information, terms, and conditions, please refer to the warranty card included with your product or visit the official Behringer website. Technical support and service inquiries should be directed to Behringer customer service.
Behringer Ofiziala Webgunea: www.behringer.com
