Sarrera
Thank you for choosing the Sun Joe Corded Electric Garden Cultivator, Model TJ599E. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new garden tool. Please read this manual thoroughly before first use and keep it for future reference.
The Sun Joe TJ599E is designed for efficient soil preparation, aerating, and breaking up compacted soil. It features a 2.5-Amp motor and durable steel tines, cultivating an area up to 6.3 inches wide and 6 inches deep.

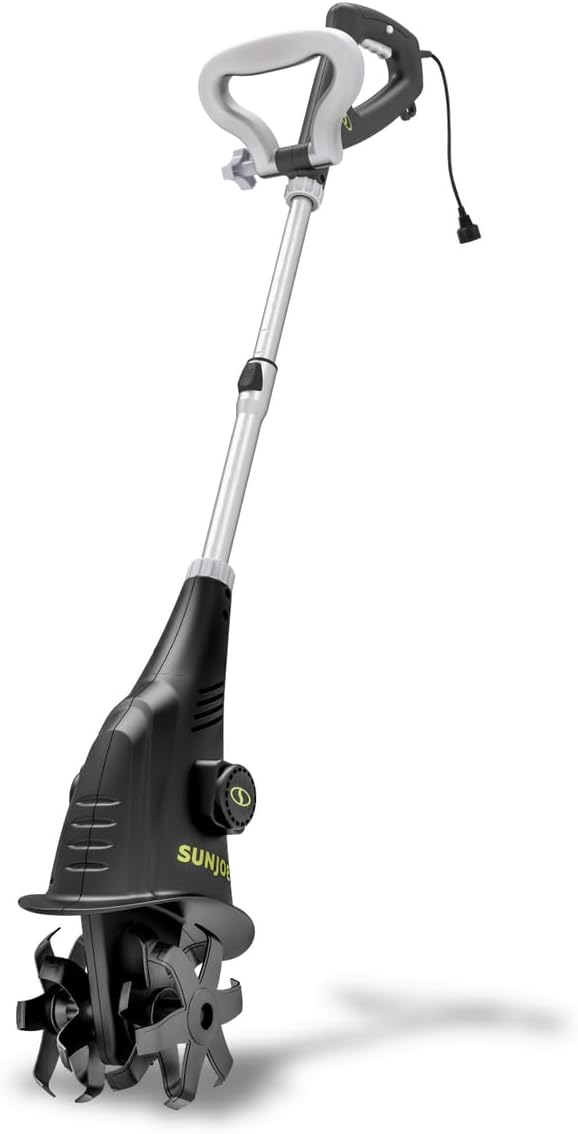

Image: The Sun Joe Corded Electric Garden Cultivator TJ599E, showcasing its compact design and steel tines.
Segurtasun Informazioa
Jarraitu beti oinarrizko segurtasun neurriak produktu hau erabiltzean sute, deskarga elektriko eta lesio pertsonalen arriskua murrizteko.
- Irakurri argibide guztiak: Familiarize yourself with the controls and proper use of the cultivator.
- Babes pertsonalerako ekipamendua: Wear appropriate eye protection, sturdy footwear, and gloves during operation.
- Clear the work area: Remove any stones, sticks, wires, or other debris that could be thrown by the tines.
- Keep hands and feet away: Ensure hands and feet are clear of the tines at all times, especially during operation.
- Secure extension cords: Use only outdoor-rated extension cords that are in good condition and properly rated for the tool's amperage. Ensure the cord is routed safely to prevent tripping or entanglement.
- Saihestu baldintza hezeak: Do not operate the cultivator in wet grass or soil, or in the rain.
- Deskonektatu erabiltzen ez duzunean: Always disconnect the power supply before cleaning, adjusting, or servicing the unit.
Produktua amaituview
The Sun Joe TJ599E Corded Electric Garden Cultivator consists of several key components:
- Motor-etxebizitza: 2.5 ditu-Amp electric motor.
- Ardatz teleskopikoa: Allows for adjustable length to suit user height.
- Helduleku ergonomikoa: Provides a comfortable grip and control during operation.
- Altzairuzko hortzak: Four durable, high-quality steel blades for cultivating soil.
- Segurtasun etengailua: Ustekabeko abiaraztea saihesten du.
- Cord Retainer: Secures the extension cord connection.
Konfigurazioa
Your Sun Joe Cultivator requires minimal assembly. Follow these steps:
- Heldulekuaren muntaia: Attach the ergonomic handle to the main shaft. Ensure it is securely fastened with the provided hardware.
- Adjust Telescoping Shaft: Loosen the locking mechanism on the telescoping shaft. Extend or retract the shaft to a comfortable operating height, then securely tighten the locking mechanism.
- Konektatu energia: Connect a suitable outdoor extension cord to the cultivator's power cord. Use the cord retainer to prevent accidental disconnection during use.

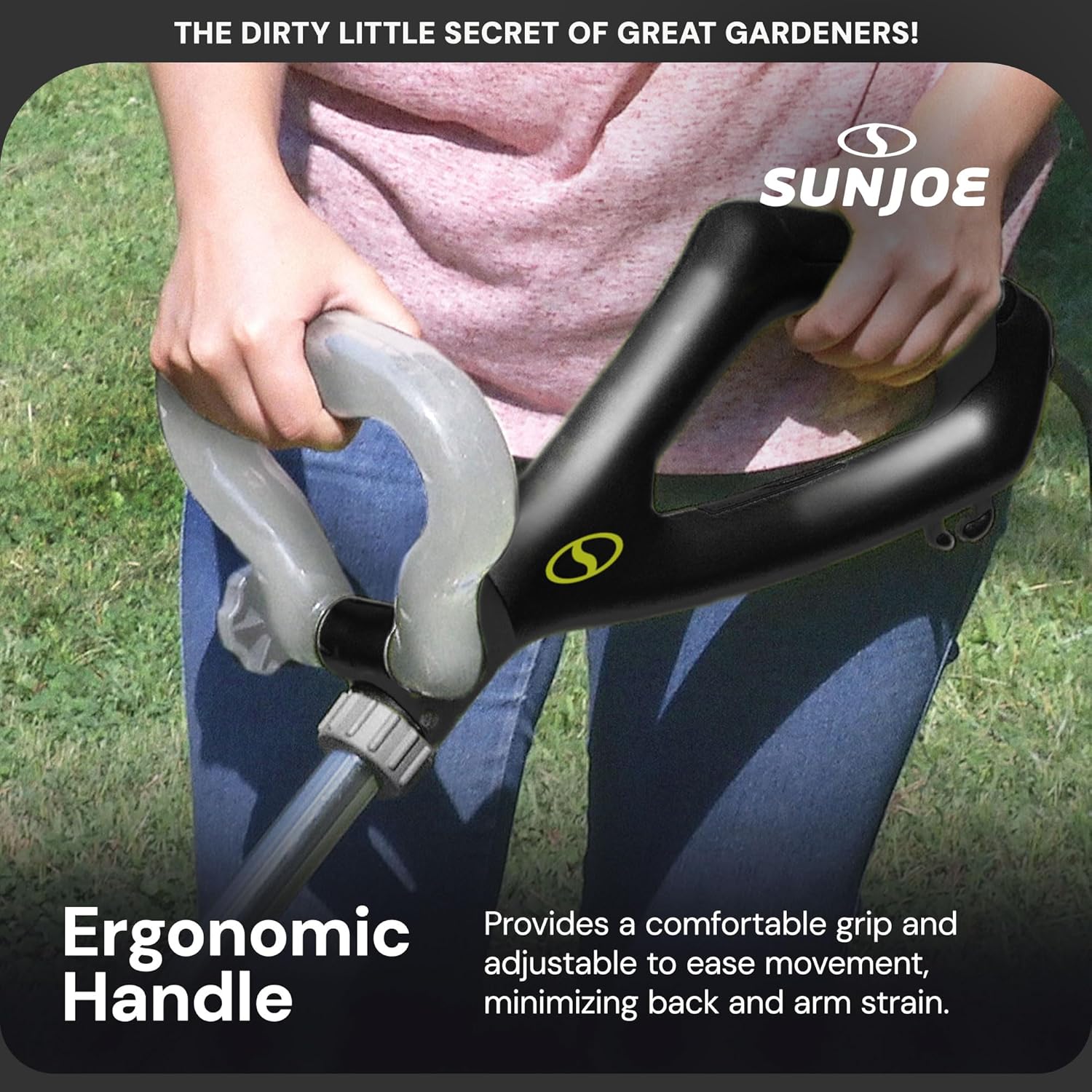

Image: Close-up of the ergonomic handle, designed for comfortable grip and reduced strain during operation.
Funtzionamendu-argibideak
Before operating, ensure the work area is clear of obstructions and you are wearing appropriate safety gear.
- Starting the Cultivator: Press and hold the safety lock button, then squeeze the trigger switch to start the motor. Release the safety lock button once the motor starts.
- Cultivating Technique: Guide the cultivator slowly over the soil. Allow the tines to dig into the ground. For deeper cultivation, make multiple passes over the same area.
- Working in Rows: Work in straight lines, overlapping slightly with each pass to ensure even cultivation.
- Handling Tough Soil: If the tines encounter very hard or compacted soil, do not force the unit. Lift the cultivator slightly and allow the tines to break up the soil gradually.
- Stopping the Cultivator: Release the trigger switch to stop the motor. Always unplug the unit when finished or before making any adjustments.
Video: Sun Joe 2.5-Amp Electric Garden Cultivator Demo Video. This video demonstrates the cultivator in action, showing how it effectively breaks up soil for gardening tasks.
Image: The Sun Joe Cultivator actively tilling soil in a garden bed, demonstrating its effectiveness in preparing ground for planting.

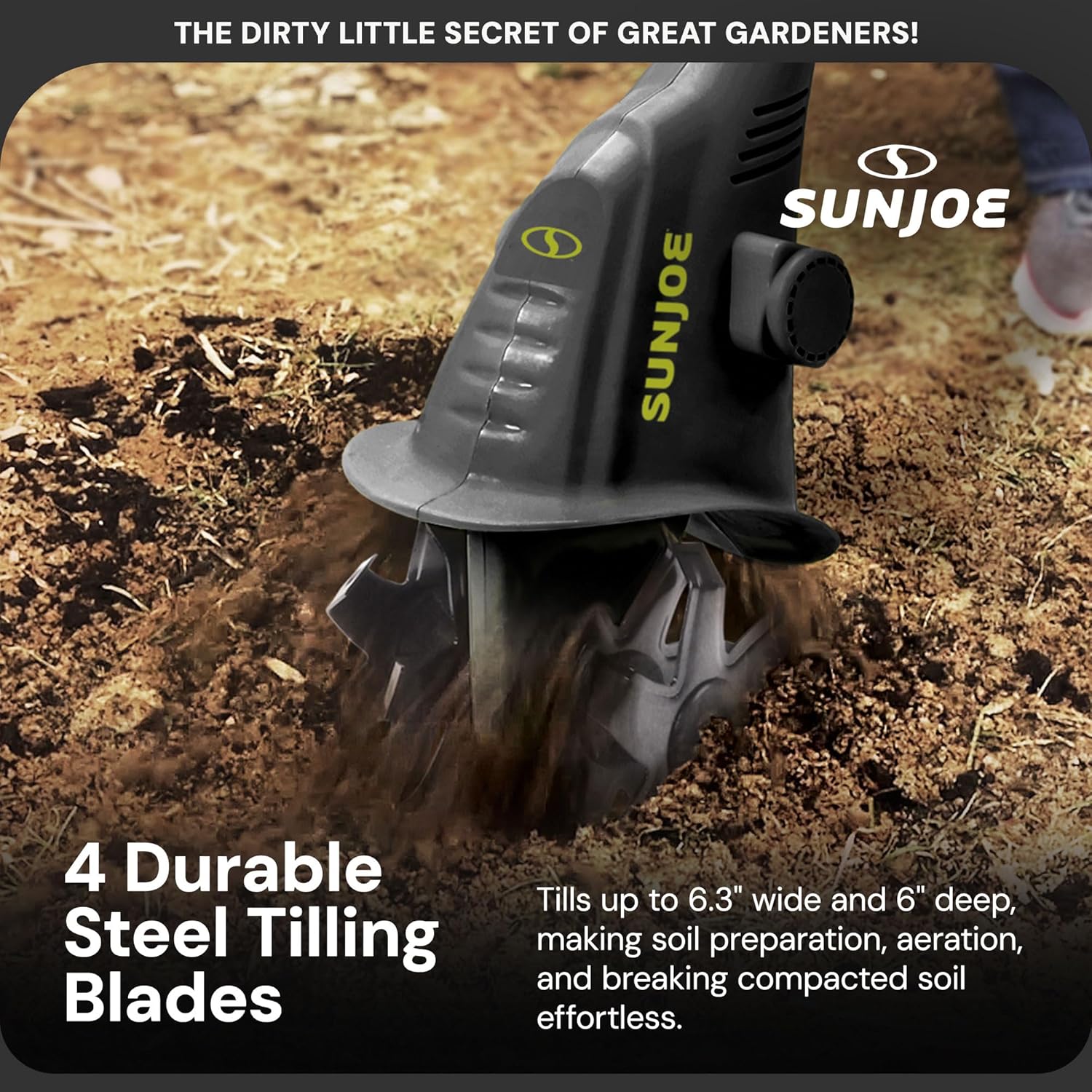

Irudia: Xehetasun zehatza view of the cultivator's four durable steel tines as they churn through soil, highlighting their design for effective cultivation.
Mantentzea
Regular maintenance ensures the longevity and optimal performance of your cultivator.
- Garbiketa: After each use, unplug the cultivator and clean the tines and housing. Remove any soil, grass, or debris that may have accumulated. Use a stiff brush or cloth.
- Hortzen ikuskapena: Regularly inspect the steel tines for wear, damage, or bending. Replace damaged tines immediately to maintain performance and safety.
- Kableen ikuskapena: Check the power cord and extension cord for any cuts, fraying, or damage. Do not use if damaged.
- Biltegiratzea: Store the cultivator in a dry, protected area away from moisture and extreme temperatures. Protect the equipment from freezing temperatures.
Arazoak konpontzea
If you encounter issues with your cultivator, refer to the following table for common problems and solutions.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Cultivator does not start | No power supply; Safety switch not engaged; Damaged cord | Check power outlet and extension cord; Ensure safety lock button is pressed before trigger; Inspect and replace damaged cords. |
| Tines not rotating effectively | Debris wrapped around tines; Worn or damaged tines; Overly compacted soil | Unplug and clear debris; Inspect and replace tines if necessary; Make shallower passes or pre-loosen very hard soil. |
| Gehiegizko bibrazioa | Bent or unbalanced tines; Loose components | Unplug and inspect tines for damage; Check all fasteners for tightness. |
Zehaztapenak
Detailed specifications for the Sun Joe Corded Electric Garden Cultivator TJ599E:
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Eguzki Joe |
| Modelo zenbakia | TJ599E |
| Energia iturria | Kable elektrikoa |
| Motorra | 2.5-Amp |
| Zabaltzea | 6.3 hazbetekoa |
| Laburpena | 6 hazbetekoa |
| Tinak | 4 Durable Steel Tines |
| Elementuaren pisua | 9.9 kilo |
| Produktuaren neurriak | 5" L x 8" W x 17" H |
| Materiala | Altzairu aleazioa |
Image: The Sun Joe Cultivator with an overlay indicating its key dimensions: 5" depth, 8" width, 17" height, and 9.9 pounds weight.
Bermea eta Laguntza
Sun Joe produktu honek babesten du 2 Urteko Babes Plana. For specific warranty details, claims, or technical support, please refer to the official Sun Joe webgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzuarekin.
Informazio gehiago eta laguntza baliabideak aurki ditzakezu bisitatuz Sun Joe denda Amazonen.
