1. Sarrera
This manual provides detailed instructions for the installation, operation, and maintenance of your Alpine SWS-12D4 12-inch Dual-Voice-Coil 4-Ohm Subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure proper use and optimal performance. Retain this manual for future reference.
Figure 1: Alpine SWS-12D4 12-inch Subwoofer. This image shows a side view of the subwoofer, highlighting its cone and the robust magnet structure.
2. Segurtasun informazioa
Beti bete segurtasun neurri hauek instalazioan eta funtzionamenduan zehar:
- Instalazio profesionala gomendatzen da: For optimal performance and safety, professional installation by an authorized Alpine dealer is highly recommended.
- Potentzia deskonexioa: Before starting any installation, disconnect the negative terminal of your vehicle's battery to prevent electrical shorts and damage.
- Kableatua: Ensure all wiring is correctly connected and insulated to prevent short circuits and potential fire hazards. Use appropriate gauge wire for power and speaker connections.
- Muntaketa: Securely mount the subwoofer to prevent it from becoming a projectile in the event of a sudden stop or collision.
- Aireztapena: Ziurtatu subwoofer-aren inguruan aireztapen egokia eta ampberogailua saihesteko berogailua.
- Bolumen mailak: Bolumen maila altuetan denbora luzez egoteak entzumen kalteak eragin ditzake. Egokitu bolumena maila eroso batera.
- Likidoaren esposizioa: Do not expose the subwoofer to moisture or liquids.
3. Konfigurazioa eta instalazioa
3.1 Itxituraren Baldintzak
The Alpine SWS-12D4 subwoofer is designed to perform optimally in a sealed or ported enclosure. Refer to the subwoofer's technical specifications or Alpine's official website for recommended enclosure volumes and port dimensions. An improperly sized enclosure can negatively impact sound quality and subwoofer longevity.
3.2 Subwooferra muntatzea
The SWS-12D4 is designed for flush mounting. Ensure the mounting surface is rigid and capable of supporting the subwoofer's weight. Cut a circular opening in the enclosure baffle that matches the subwoofer's cutout diameter. Secure the subwoofer using appropriate screws, ensuring an airtight seal between the subwoofer frame and the enclosure.
3.3 Kableatu konfigurazioak
The SWS-12D4 features a Dual-Voice-Coil (DVC) design with two 4-ohm voice coils. This allows for flexible wiring options to match your ampLikidatzailearen inpedantzia-eskakizunak. Konfigurazio ohikoenak hauek dira:
- Kableatu paraleloa (2 Ohm): Konektatu bi bobinaren terminal positiboak elkarrekin, eta bi bobinaren terminal negatiboak elkarrekin. Ondoren, konektatu positibo konbinatua ampbizigarriaren irteera positiboa eta negatibo konbinatua amplifier's negative output. This results in a 2-ohm load.
- Serieko kableatua (8 Ohm): Konektatu bobina baten terminal positiboa beste bobinaren terminal negatiboarekin. Ondoren, konektatu gainerako terminal positiboa amplifter-aren irteera positiboa eta gainerako terminal negatiboa amplifier's negative output. This results in an 8-ohm load.
Egiaztatu beti zure amplifier's stable impedance range before wiring. Incorrect impedance can damage your ampargitzaile edo subwoofer.

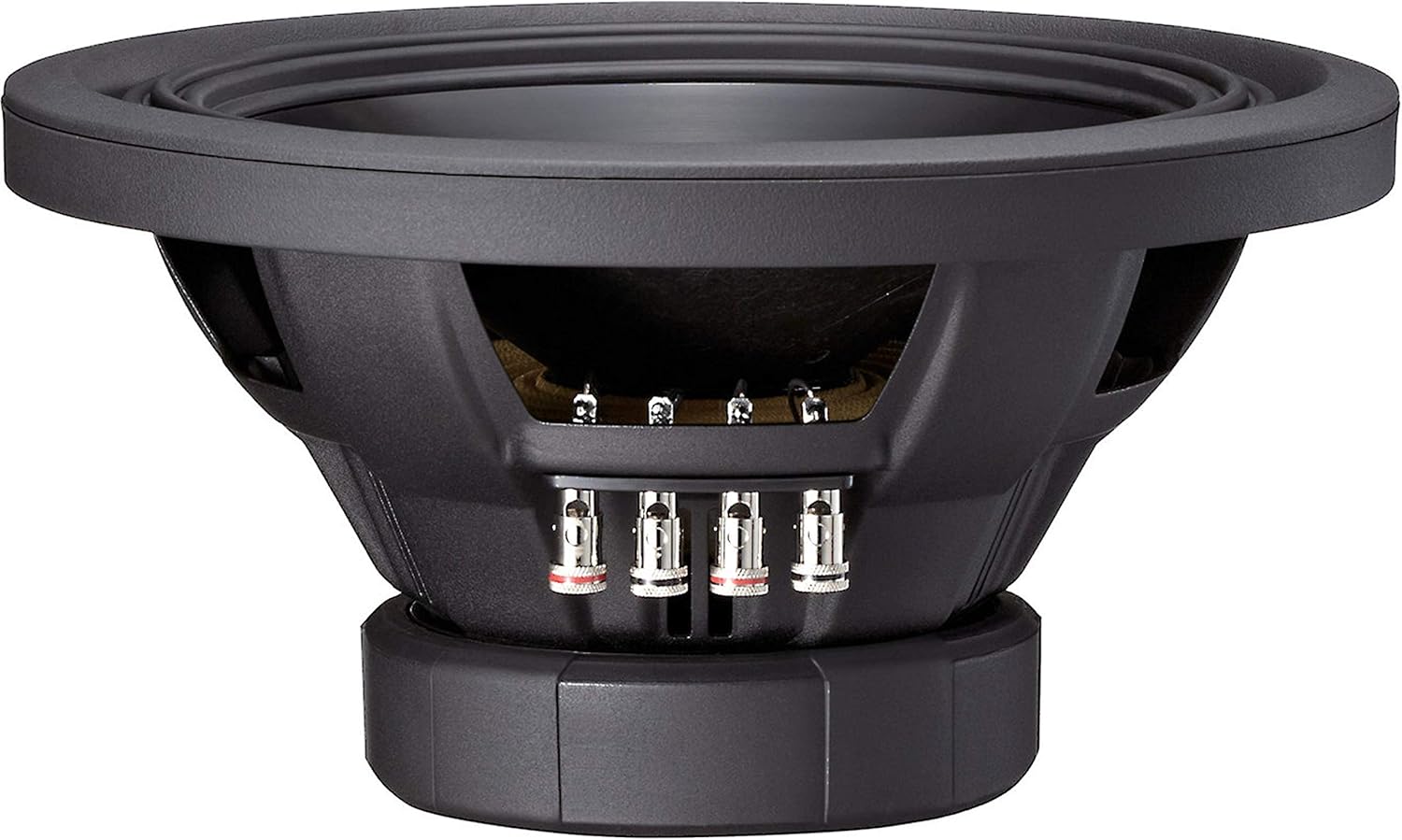

2. Irudia: Atzealdea view of the Alpine SWS-12D4 subwoofer. This image displays the dual voice coil terminals, essential for understanding wiring configurations.
4. Subwoofer-aren funtzionamendua
4.1 Hasierako piztea eta martxan jartzea
After installation, perform an initial power-up at a low volume. Gradually increase the volume to ensure all connections are secure and the subwoofer is functioning correctly. A break-in period of several hours at moderate listening levels is recommended to allow the subwoofer's suspension components to loosen and achieve optimal performance.
4.2 Amplifier Ezarpenak
Egokia amplifier settings are crucial for sound quality and subwoofer longevity. Adjust the following on your ampbiziagoa:
- Irabazi: Ezarri amplifter-irabazia irteerako bolumenarekin bat etortzekotage of your head unit. Do not use the gain control as a volume knob; it should be set to prevent clipping.
- Behe-iragazkia (LPF): Set the LPF to filter out high frequencies, typically between 60 Hz and 100 Hz, allowing only bass frequencies to reach the subwoofer.
- Iragazki subssonikoa: If available, set the subsonic filter to protect the subwoofer from playing frequencies below its resonant frequency, which can cause damage.
- Baxu Boost: Baxuen indartzea neurriz erabili, erabiltzen baduzu behintzat. Baxuen indartze gehiegiak mozketa eragin dezake eta subwooferra kaltetu.
3. irudia: Goikoa view of the Alpine SWS-12D4 subwoofer. This image shows the cone and surround, which are critical for sound reproduction and require careful handling.
5. Mantentzea
The Alpine SWS-12D4 subwoofer requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Garbiketa: Aldian-aldian, garbitu subwoofer konoa eta ingurua oihal leun eta lehor batekin hautsa eta hondakinak kentzeko. Saihestu produktu kimiko gogorrak edo gehiegizko hezetasuna erabiltzea.
- Ikuskapena: Regularly inspect the speaker terminals and wiring for corrosion or loose connections. Ensure the mounting screws are tight.
- Ingurumena babestea: Babestu subwooferra muturreko tenperaturetatik, eguzki-argitik eta hezetasunetik.
6. Arazoak
Subwooferrarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Soinurik ez |
|
|
| Soinu distortsionatua |
|
|
| Baxu-irteera ahula |
|
|
If problems persist, contact an authorized Alpine service center or your dealer for assistance.
7. Zehaztapenak
| Ezaugarri | Deskribapena |
|---|---|
| Modelo zenbakia | SWS-12D4 |
| Hizlari mota | Subwoofer |
| Subwoofer-aren diametroa | 12 hazbete |
| Ahots-bobinaren konfigurazioa | Dual Voice Coil (DVC) |
| Inpedantzia Nominala | 4 Ohms per voice coil (can be wired to 2 Ohms or 8 Ohms total) |
| Potentzia gailurraren manipulazioa | 1500 Watt |
| Muntatze Mota | Flush mendia |
| Elementuaren pisua | 14 kilo |
| Fabrikatzailea | Alpetarra |
| GTIN / UPC | 793276011848 |
8. Bermea eta Laguntza
8.1 Bermearen informazioa
Alpine products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Alpine webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.
8.2 Bezeroarentzako laguntza
If you require technical assistance, have questions about your product, or need to arrange for service, please contact Alpine customer support. Contact information can typically be found on the Alpine webgunean edo zure produktuarekin batera emandako dokumentazioan.
Alpeetako Ofiziala Webgunea: www.alpine-usa.com
