Autel MaxiSYS MS906 Pro-TS OBD2 Diagnostic Scanner User Manual

1. Produktua amaitu daview

Ezaugarri nagusiak

Advanced Diagnostic Capabilities: Integrated advanced features, comprehensive TPMS functions, and OE-level diagnostic capabilities.
ECUaren kodeketa: Online and offline ECU coding for vehicle customization, hidden feature activation, module matching, and performance optimization. Supports BMW F/E chassis, Porsche, VW, Nissan, and offline adaptation for Ford, Mazda, Jaguar, Vauxhall, Opel.
Bidirectional Control & All-System Diagnostics: Full bidirectional control with over 3000 active tests for various vehicle components. OE-level all-system diagnostics for over 160 vehicle brands, including reading/clearing 8000+ DTCs, 5-in-1 graph live data, and freeze frame data.
Zerbitzu-funtzio zabalak: Over 40 advanced maintenance services such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS, Injector Coding, Throttle Match, Suspension Calibration, Gearbox Learn, and Battery Registration.
TPMS Functions: Comprehensive TPMS functions including activation of 315MHz and 433MHz sensors, various relearn procedures (OBDII, Automatic, Stationary), sensor programming, RKE and RF signal strength testing, and TPMS diagnostics.
Ezaugarri aurreratuak: Includes battery testing with BT506, endoscope support (MV108S/MV105S), one-click Wi-Fi report printing, Auto Scan 2.0 for rapid scanning, a 16 MP camera for VIN/license plate scans, pre/post-sale reports, FCA automatic authentication, VAG guided functions, power balance, component matching, and remote desk functionality.
Broad Vehicle Coverage: Supports over 160 brands (1996-2026+) with compatibility for DoIP (BMW E/F/G, Volvo 2018+, Land Rover/Jaguar 2017+) and CAN FD (GM 2019+) protocols.
Superior Hardware: Octa-core CPU, Android 10.0 OS, 8-inch 1920x1200 display, 4GB RAM + 128GB ROM, and an 11600mAh battery.

Produktuaren osagaiak

The Autel MaxiSYS MS906 Pro-TS package typically includes the diagnostic tablet, a VCI (Vehicle Communication Interface) unit, necessary cables, and a power adapter. Specific contents may vary.

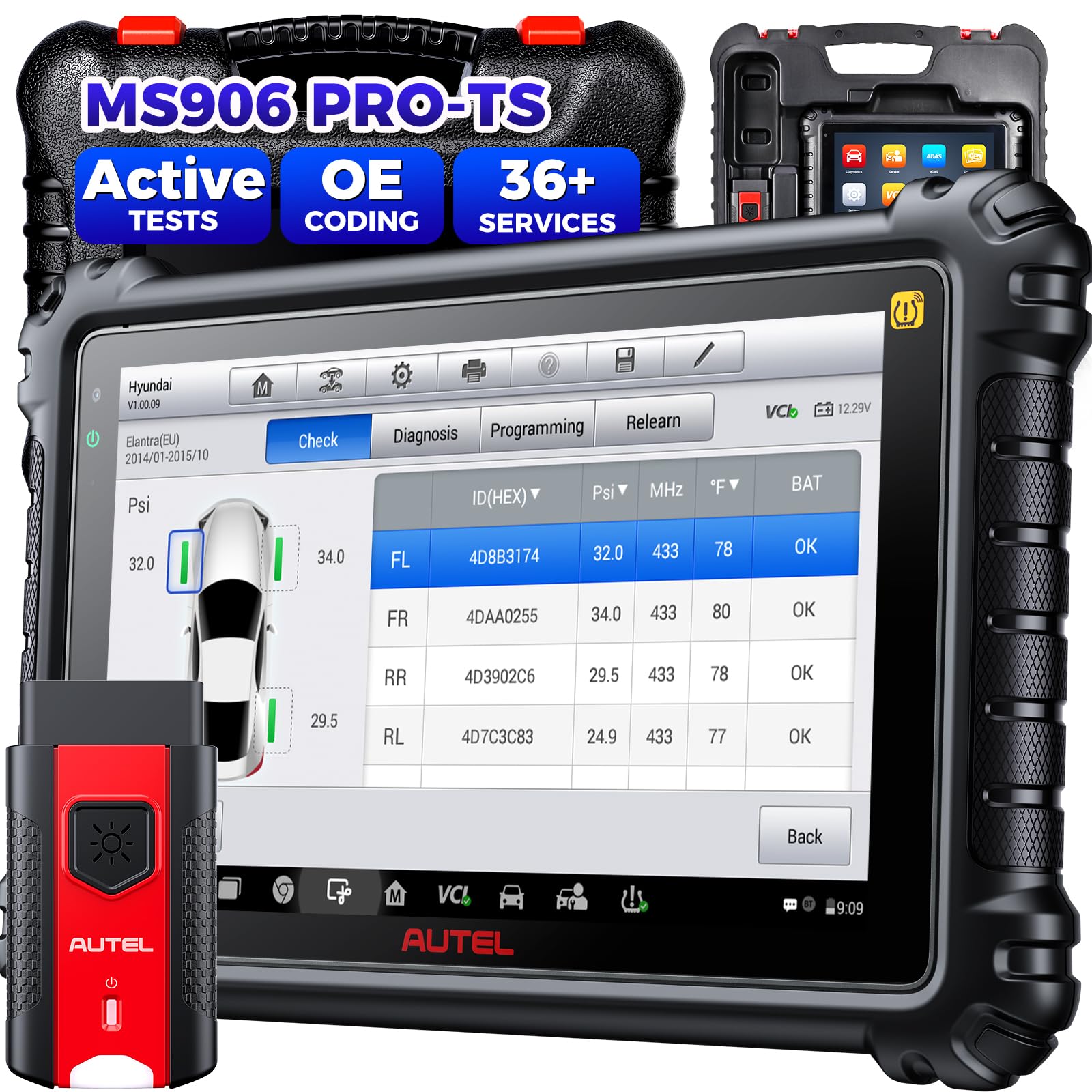

Autel MaxiSYS MS906 Pro-TS Diagnostic Scanner

Image: The Autel MaxiSYS MS906 Pro-TS diagnostic tablet with its VCI unit.

2. Konfigurazioa

2.1 Hasierako piztea

Ziurtatu gailua guztiz kargatuta dagoela edo energia-iturri batera konektatuta dagoela.
Eduki sakatuta pizteko botoia tableta pizteko.
Follow the on-screen instructions to complete the initial setup, including language selection and Wi-Fi connection.

2.2 Ibilgailuarekin konektatzea

Kokatu ibilgailuaren OBD2 ataka, normalean gidariaren aldeko aginte-panelean.
Connect the VCI unit to the vehicle's OBD2 port.
Ensure the VCI unit is wirelessly connected to the MaxiSYS MS906 Pro-TS tablet via Bluetooth.
Jarri ibilgailuaren piztea ON posizioan (motorra itzalita).

Connecting Autel MaxiSYS MS906 Pro-TS to vehicle OBD2 port

Image: Illustration of connecting the diagnostic tool to a vehicle's OBD2 port.

3. Funtzionamendu-argibideak

3.1 Ibilgailuen diagnostikoak

Menu nagusitik, hautatu "Diagnostics".
Choose the vehicle manufacturer and model. The device supports automatic VIN detection.
Hautatu "Auto Scan" to perform a comprehensive scan of all available systems.
Review the detected Diagnostic Trouble Codes (DTCs) and live data.
Erabili "Clear Codes" function to erase DTCs after repairs are completed.

Autel MaxiSYS MS906 Pro-TS diagnostic screen showing vehicle data

Irudia: A view of the diagnostic screen displaying vehicle information and scan results.

3.2 TPMS Functions

The MS906 Pro-TS offers extensive TPMS capabilities:

Sentsorearen aktibazioa: Activate 315MHz and 433MHz TPMS sensors.
Sensor Relearn: Perform various relearn procedures (OBDII, Automatic, Stationary).
Sentsoreen programazioa: Program Autel MX-Sensors to replace faulty OEM sensors.
TPMS Diagnostics: Read sensor data, clear TPMS DTCs, and reset TPMS MIL.

Autel MaxiSYS MS906 Pro-TS TPMS functions interface

Image: The TPMS menu showing options for sensor activation, relearn, and programming.

3.3 Zerbitzu-funtzioak

Access a wide range of service functions from the "Service" menu. These include:

Olioa Berrezarri
Aparkaleku-balazta elektronikoaren (EPB) berrezarpena
Bateriaren Kudeaketa Sistemaren (BMS) Berrezarri
Gidatze-angelu-sentsorea (SAS) Kalibrazioa
ABS Brake Bleeding
Injektorearen kodeketa
Throttle Body Relearn
Suspensioaren kalibrazioa
Gearbox Learning

Autel MaxiSYS MS906 Pro-TS service functions menu

Image: A display of various maintenance and service functions available on the device.

4. Mantentzea

Keep the device clean using a soft, dry cloth. Avoid abrasive cleaners.
Regularly update the software to ensure optimal performance and the latest vehicle coverage. Connect to Wi-Fi and navigate to "Eguneratu" menu nagusian.
Gorde gailua leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
Kargatu bateria aldizka, maiz erabiltzen ez bada ere, bateriaren osasuna mantentzeko.

5. Arazoak

Arazoa	Kausa posiblea	Irtenbidea
Gailua ez da pizten.	Bateria baxua edo korronte-egokigailuaren arazoa.	Charge the device for at least 30 minutes. Check power adapter and cable connections.
Ezin da ibilgailura konektatu.	Loose OBD2 connection, VCI not paired, or vehicle ignition off.	Ensure VCI is securely connected to OBD2 port. Verify VCI Bluetooth pairing. Turn vehicle ignition to ON.
Softwarearen eguneraketak huts egin du.	Wi-Fi konexio ezegonkorra edo biltegiratze nahikoa ez.	Ensure a stable internet connection. Clear unnecessary files to free up storage. Try updating again.
Pantailak ez du erantzuten.	Softwarearen akatsa edo aldi baterako blokeoa.	Perform a forced restart by holding the power button for 10-15 seconds.

6. Zehaztapenak

Fabrikatzailea: Autel
Eredua: Autel MaxiSYS MS906 Pro-TS
Produktuaren neurriak: 26 x 8 x 18 cm
Pisua: 931 g
Sistema eragilea: Android 10.0
Prozesadorea: Octa-core
Pantaila: 8 hazbeteko, 1920 x 1200 bereizmena
Memoria: 4 GB RAM + 128 GB ROM
Bateria: 11,600 mAh
liburukiatage: 18 Volt

7. Bermea eta Laguntza

The Autel MaxiSYS MS906 Pro-TS comes with a 1 urteko bermea. Autel provides frequent software updates and lifetime technical support. For any questions or assistance, please contact Autel customer service. Online services are available 24/7.

For support in languages other than English (e.g., Spanish or Portuguese), please provide your device's serial number (S/N) when contacting support.
