TOTOLINK N150RT 150Mbps Haririk gabeko-N bideratzailearen erabiltzailearen eskuliburua

1. Sarrera

This manual provides detailed instructions for the installation, configuration, and operation of your TOTOLINK N150RT 150Mbps Wireless-N Router. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance. Keep this manual for future reference.

2. Produktua amaitu daview

2.1 Ezaugarri nagusiak

• 150 Mbps haririk gabeko bideratzailea
• Supports Wireless Repeater/Access Point modes
• VLAN euskarria
• IPTV compatibility
• Multiple SSIDs for network segmentation
• Quality of Service (QoS) for bandwidth management
• Complies with 802.11n standard
• Advanced WPA/WPA2 encryption for security

2.2 Paketearen edukia

Egiaztatu elementu guztiak zure paketean daudela:

• TOTOLINK N150RT Wireless-N Router
• Elikatze-moldagailua
• Instalazio azkarraren gida
• Internet Cable (Ethernet cable)
• Flyer (additional documentation)

2.3 Deskribapen fisikoa

The TOTOLINK N150RT router features a compact design with essential indicators and ports for network connectivity.

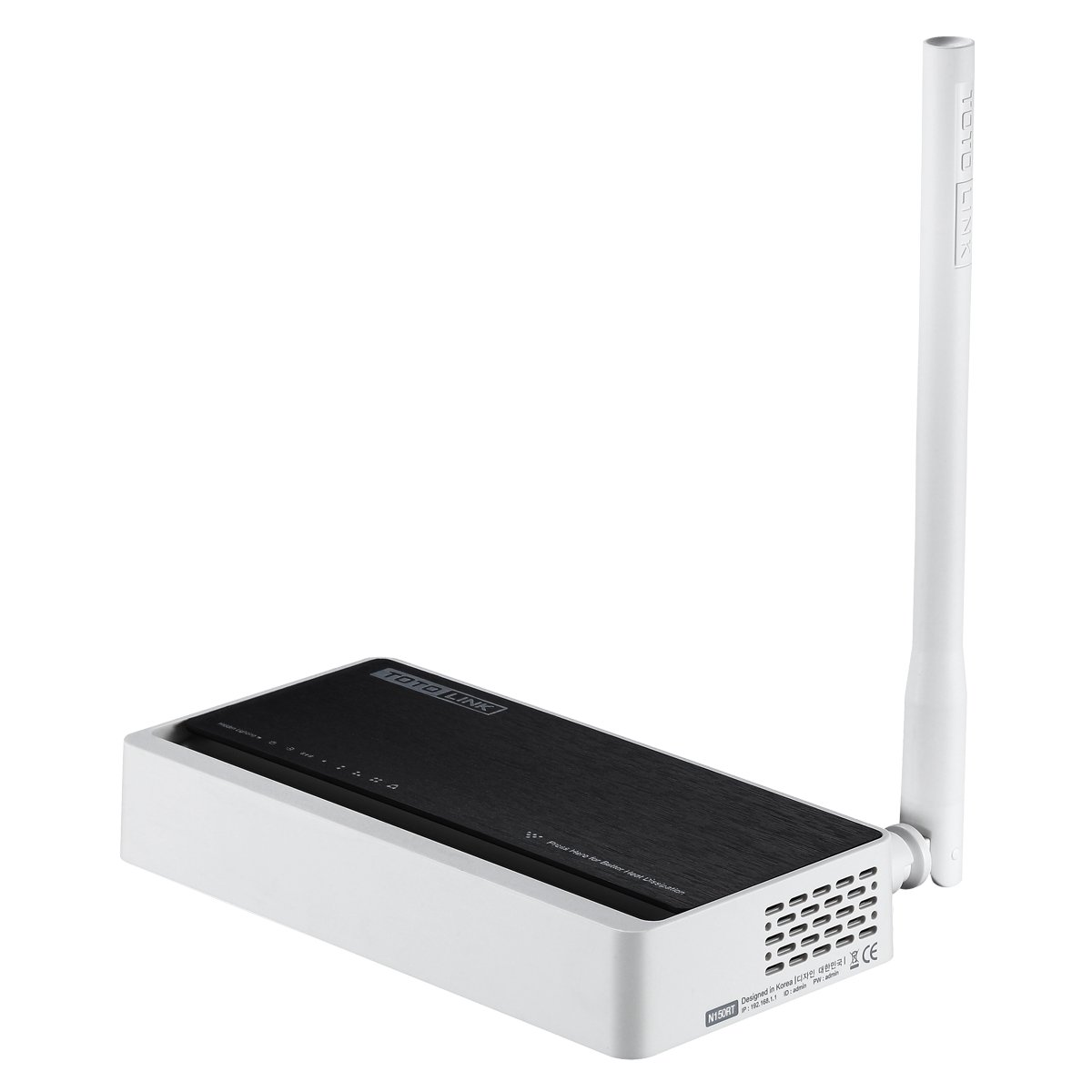

1. irudia: Aurrealdea eta Goikoa View of the TOTOLINK N150RT Router. This image shows the router from a slightly elevated front-right angle, highlighting the TOTOLINK branding on the top surface and the single external antenna on the right side.

2. irudia: Atzekoa View of the TOTOLINK N150RT Router with Ports (Angled). This image displays the rear panel of the router from an angled perspective, showing the WAN port (yellow), four LAN ports (orange), a reset button, a WPS button, and the power switch.

3. irudia: Atzekoa View of the TOTOLINK N150RT Router with Ports (Straight). This image provides a direct view of the router's rear panel, clearly showing the layout of the WAN port, four LAN ports, reset button, WPS button, and power switch, alongside the external antenna.

LED adierazleak:

• Power LED: Potentzia-egoera adierazten du.
• WAN LED: Indicates connection status to the internet.
• LAN LEDak (1-4): Indicate connection status for each wired LAN port.
• WLAN LEDa: Haririk gabeko jarduera adierazten du.

Portuak eta botoiak:

• WAN ataka (horia): Zure modem edo Interneteko zerbitzu hornitzailearen sarera konektatzen da.
• LAN Ports (Orange, 1-4): Connects to wired devices such as computers, gaming consoles, or network printers.
• WPS/RST botoia: Used for Wi-Fi Protected Setup (WPS) or to reset the router to factory defaults (press and hold).
• Switch potentziala: Routerra piztu edo itzaltzen du.
• Power Jack: Emandako energia-egokitzailera konektatzen da.

3. Konfigurazio gida

3.1 Hardware konexioa

1. Itzali: Ensure your modem and router are powered off.
2. Connect Modem to Router: Connect one end of an Ethernet cable to the LAN port of your modem and the other end to the WAN ataka (horia) of the N150RT router.
3. Connect Computer to Router (Optional): For initial setup, connect one end of an Ethernet cable to a LAN port (orange) on the N150RT router and the other end to your computer's Ethernet port. Alternatively, you can connect wirelessly after the router is powered on.
4. Konektatu energia: Connect the provided power adapter to the router's power jack and then plug it into a power outlet.
5. Piztu: First, power on your modem and wait for it to fully boot up (usually indicated by stable internet LED). Then, power on the N150RT router using the power switch.
6. Egiaztatu LEDak: Check the Power, WAN, and WLAN LEDs on the router. The Power LED should be solid, the WAN LED should indicate an active connection, and the WLAN LED should be blinking or solid.

3.2 Hasierako konfigurazioa (Web Interfazea)

1. Sarbide bideratzailea: Ireki a web browser (e.g., Chrome, Firefox, Edge) on a computer connected to the router (either wired or wirelessly).
2. Sartu IP helbidea: In the browser's address bar, type the default IP address of the router (commonly 192.168.1.1 or 192.168.0.1) and press Enter. Refer to the label on the bottom of your router or the Quick Installation Guide for the exact default IP.
3. Saioa hasi: A login prompt will appear. Enter the default username and password (commonly admin for both). If these do not work, check the router's label or manual.
4. Exekutatu konfigurazio-morroia: Upon successful login, you will typically be guided through a Quick Setup Wizard. Follow the on-screen instructions to configure your internet connection type (e.g., PPPoE, Dynamic IP, Static IP) and wireless network settings (SSID and password).
5. Aldatu lehenetsitako pasahitza: For security, it is highly recommended to change the default login password for the router's web interfazea.

4. Funtzionamendu-argibideak

After initial setup, you can access the router's web interface to manage various network settings and advanced features.

4.1 Oinarrizko haririk gabeko ezarpenak

• SSID (sarearen izena): Customize your Wi-Fi network name.
• Segurtasun modua: Select WPA2-PSK (AES) for optimal security.
• Password (Pre-Shared Key): Set a strong, unique password for your Wi-Fi network.

4.2 Ezaugarri aurreratuak

The N150RT router supports several advanced functionalities accessible through its web interfazea:

• Wireless Repeater/Access Point Mode: Configure the router to extend an existing Wi-Fi network or act as a simple access point. Refer to the router's online help or full user manual for specific steps.
• VLAN (Sare Lokal Birtuala): Allows for logical segmentation of your network. This is typically used in more complex network environments.
• IPTV: Specific settings may be available to optimize performance for Internet Protocol Television services.
• Hainbat SSID: Create separate wireless networks (e.g., one for guests, one for private use) with different security settings.
• QoS (zerbitzuaren kalitatea): Prioritize network traffic for certain applications or devices to ensure smoother performance for critical services like online gaming or video streaming.
• Firewall eta segurtasuna: Configure firewall rules, MAC address filtering, and other security features to protect your network.

5. Mantentzea

5.1 Firmware eguneratzea

Regularly checking for and installing firmware updates is crucial for security, stability, and new features. Visit the official TOTOLINK website for your model (N150RT) to download the latest firmware. The update process is usually performed via the router's web interface under a "System Tools" or "Firmware Upgrade" section.

5.2 Fabrika berrezarri

A factory reset restores the router to its original default settings. This can be useful for troubleshooting persistent issues or when reconfiguring the router from scratch.

• 1. metodoa (Hardware botoia): Bideratzailea piztuta dagoela, luze sakatu WPS/RST botoia on the rear panel for approximately 5-10 seconds until the LEDs flash. Release the button, and the router will reboot with factory defaults.
• 2. metodoa (Web Interfazea): Hasi saioa bideratzailearen web interface. Navigate to "System Tools" or "Administration" and look for a "Factory Defaults" or "Backup & Restore" option. Select "Restore Factory Defaults" and confirm.

Note: Performing a factory reset will erase all your custom settings, including Wi-Fi name and password. You will need to reconfigure the router after a reset.

6. Arazoak

6.1 Interneterako sarbiderik ez

• Egiaztatu kableak: Ziurtatu Ethernet kable guztiak portu egokietara ondo konektatuta daudela (WANetik modemera, LANetik gailuetara).
• Modemaren egoera: Egiaztatu zure modema behar bezala funtzionatzen duela eta Interneteko konexio aktiboa duela.
• Routerraren LEDak: Check the WAN LED on the router. If it's off or red, there might be an issue with the internet connection from your ISP or modem.
• Berrabiarazi gailuak: Power cycle your modem, then the router, and then your computer/device. Wait a few minutes after each device powers on.
• ISP ezarpenak: Confirm your internet connection type (PPPoE, Dynamic IP, Static IP) and credentials are correctly configured in the router's web interfazea.

6.2 Ezin da Wi-Fira konektatu

• WLAN LEDa: Ensure the WLAN LED on the router is active.
• SSID igorpena: Check if your Wi-Fi network name (SSID) is being broadcast. If it's hidden, you'll need to manually enter it on your device.
• Pasahitza: Double-check that you are entering the correct Wi-Fi password. Passwords are case-sensitive.
• Distantzia/Interferentzia: Move closer to the router or check for sources of interference (e.g., cordless phones, microwaves).
• Gailuaren bateragarritasuna: Ensure your device's wireless adapter supports 802.11n or compatible standards.

6.3 Haririk gabeko abiadura motela

• Interferentzia: Change the wireless channel in the router's settings to avoid interference from neighboring networks.
• Routerraren kokapena: Position the router in a central location, away from obstructions and other electronic devices.
• Firmwarea: Ziurtatu bideratzailearen firmwarea eguneratuta dagoela.
• Bandwidth Usage: Check if multiple devices are heavily using the network (e.g., streaming, large downloads). QoS settings can help manage this.

7. Zehaztapenak

The following table outlines the technical specifications for the TOTOLINK N150RT Wireless-N Router:

8. Bermea eta Laguntza

For warranty information, technical support, and additional resources, please refer to the official TOTOLINK website or contact their customer support directly. Details regarding warranty periods and service procedures are typically provided with your purchase documentation or on the manufacturer's webgunea.

Always ensure you are using official support channels for assistance with your TOTOLINK N150RT router.
