VOLTCRAFT DSO-2020 USB PC Oscilloscope User Manual

1. Sarrera

The VOLTCRAFT DSO-2020 USB is a PC-based digital storage oscilloscope designed for precise signal measurement and analysis. This device connects to your computer via USB, utilizing software to display and process waveforms. It features a 20 MHz bandwidth, two independent channels, and a real-time sampling rate of 48 MSa/s, making it suitable for various electronic testing and development applications. This manual provides essential information for the safe and effective use of your oscilloscope.

2. Segurtasun informazioa

Mesedez, irakurri eta ulertu segurtasun-jarraibide guztiak gailua erabili aurretik. Jarraibide hauek ez jarraitzen badituzu, lesioak edo gailuari kalteak eragin diezazkiokezu.

• Always connect the oscilloscope to a computer using a certified USB cable.
• Ensure proper grounding of the PC and the measurement setup to prevent electrical shock.
• Ez gainditu gehienezko sarrera bolumenatage ratings for each channel (e.g., MAX 45V for CH1/CH2).
• Saihestu gailua heze edo lehorrean erabiltzea.amp baldintzak.
• Ez ireki gailua casing; ez dago erabiltzaileak konpondu dezakeen piezarik barruan.
• Use only probes and accessories specified for this oscilloscope.

3. Produktua amaitu daview

The VOLTCRAFT DSO-2020 USB is a compact unit designed for portability and ease of use with a personal computer. Below are images illustrating the device and its key connection points.

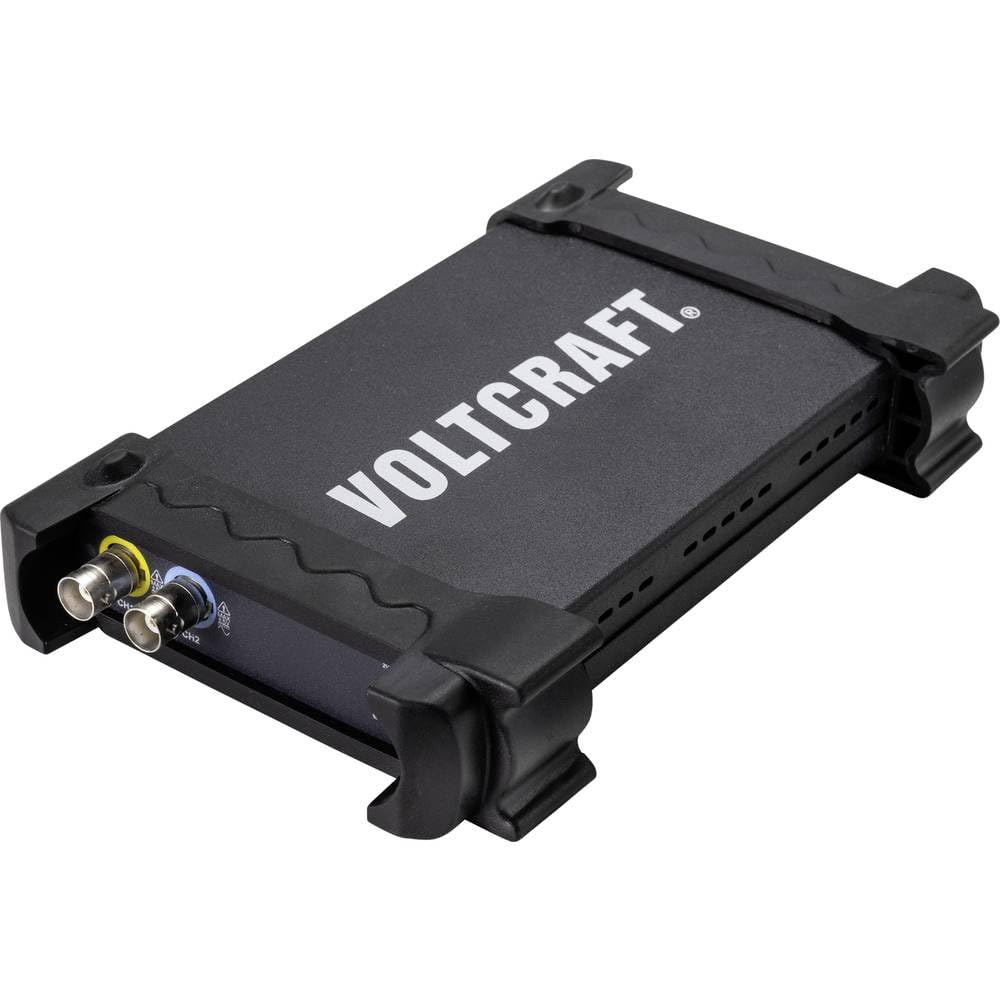

3.1. irudia: Aurrealdea view of the VOLTCRAFT DSO-2020 USB PC Oscilloscope, showing its compact design and protective casing.

3.2. irudia: Angeludun view of the oscilloscope, highlighting the USB-B port for PC connection and the USBXI port.

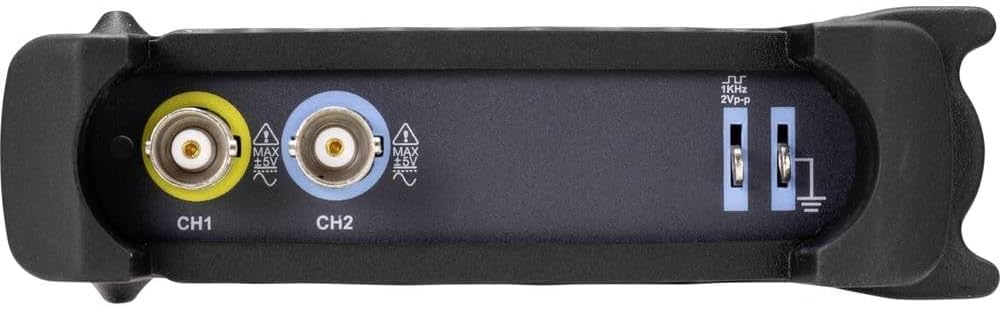

3.3. Irudia: Atzealdea view showing the BNC input connectors for Channel 1 (CH1) and Channel 2 (CH2), along with the 1KHz 2Vp-p calibration output and ground terminals.

4. Konfigurazioa

4.1 Software-instalazioa

Before connecting the DSO-2020 USB, install the necessary software and drivers on your computer. Refer to the included software CD or the manufacturer's website for the latest version and installation instructions. Typically, this involves running an installer and following on-screen prompts.

4.2 Hardware konexioa

1. Connect the USB cable from the DSO-2020 USB device to an available USB port on your computer.
2. Once connected, your operating system should detect the device. If drivers were installed correctly, the device should be recognized by the oscilloscope software.
3. Connect your oscilloscope probes to the CH1 and/or CH2 BNC input connectors as required for your measurement. Ensure probes are securely attached.
4. For accurate measurements, perform probe compensation if using passive probes. Refer to your probe's manual for specific instructions.

5. Funtzionamendu-argibideak

This section outlines the basic steps for operating your VOLTCRAFT DSO-2020 USB oscilloscope.

5.1 Softwarea abiaraztea

After successful installation and connection, launch the VOLTCRAFT oscilloscope application from your computer's desktop or start menu. The software interface will display a virtual oscilloscope screen, similar to a traditional benchtop unit.

5.2 Basic Signal Acquisition

1. Konektatu seinalea: Lotu zunda neurtu nahi duzun zirkuituaren puntura.
2. Kanalaren hautaketa: In the software, enable the desired channel (CH1 or CH2).
3. Eskala bertikala (Volt/Div): Adjust the vertical scale to fit the signal amplitude on the screen.
4. Eskala horizontala (Denbora/Division): Adjust the horizontal scale to view the signal's period or frequency.
5. Trigger ezarpenak: Configure the trigger source, type (edge, pulse), and level to stabilize the waveform. The software provides controls similar to a physical oscilloscope.
6. Konfigurazio automatikoa: Utilize the automatic setup function within the software. This feature automatically adjusts the vertical and horizontal settings to display the input signal optimally.

5.3 Data Processing and Export

The DSO-2020 USB allows for advanced data processing and storage:

• Uhin-formaren biltegiratzea: Captured waveforms can be saved directly to your computer for later analysis.
• Neurketa-funtzioak: The software includes various automatic measurement functions (e.g., Vpp, Vrms, Frequency, Period).
• Datuen esportazioa: Measurement data can be exported to formats such as Excel for further analysis and reporting.
• LaborategiaVIEW Bateragarritasuna: The device is compatible with LabVIEW, allowing for integration into custom measurement and automation systems.

6. Mantentzea

Mantentze egokiak zure osziloskopioaren iraupena eta zehaztasuna bermatzen ditu.

• Garbiketa: Erabili zapi leun eta lehor bat gailuaren kanpoaldea garbitzeko. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Biltegiratzea: Store the oscilloscope in a dry, dust-free environment when not in use. Avoid extreme temperatures.
• Zunda zaintzea: Handle probes carefully. Avoid bending or stressing the cables. Store them properly to prevent damage.
• Software eguneraketak: Regularly check the VOLTCRAFT weberrendimendu eta bateragarritasun optimoa bermatzeko software eta kontrolatzaileen eguneratzeetarako gunea.

7. Arazoak

Atal honek aurki ditzakezun arazo ohikoenei heltzen die.

• Ez da gailua ezagutzen:
  • Ensure the USB cable is securely connected to both the oscilloscope and the PC.
  • Egiaztatu gidariak behar bezala instalatuta daudela. Beharrezkoa bada, berriro instalatu.
  • Probatu beste USB ataka bat zure ordenagailuan.
• Ez da seinalerik bistaratzen:
  • Check that the probe is properly connected to the input channel and the circuit under test.
  • Ensure the correct channel is enabled in the software.
  • Adjust the vertical (Volts/Div) and horizontal (Time/Div) scales.
  • Check trigger settings; an incorrect trigger level can prevent a stable display.
  • Verify the signal source is active and within the oscilloscope's measurement range.
• Uhin-forma ezegonkorra:
  • Adjust the trigger level and trigger type (e.g., edge trigger).
  • Ensure the trigger source is set to the channel with the signal.
  • Check for noise in the measurement environment.

8. Zehaztapenak

The following table details the technical specifications of the VOLTCRAFT DSO-2020 USB PC Oscilloscope.

9. Bermea eta Laguntza

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or visit the official VOLTCRAFT website. Contact details for customer support can typically be found on the manufacturer's product page or in the included warranty card.
