PORTER-CABLE 20V MAX Reciprocating Saw

1. Sarrera

Thank you for choosing the PORTER-CABLE 20V MAX Reciprocating Saw (PCC670B). This powerful cordless tool is designed for aggressive cutting applications across various materials. This manual provides essential information for safe operation, proper maintenance, and optimal performance of your reciprocating saw. Please read all instructions carefully before use.

2. Segurtasun Jarraibide Orokorrak

OHARRA: Irakurri tresna elektriko honekin emandako segurtasun-abisu, argibide, ilustrazio eta zehaztapen guztiak. Behean zerrendatzen diren argibide guztiak ez betetzeak deskarga elektrikoa, sutea edo/edo lesio larriak eragin ditzake.

• Always wear eye protection, such as safety glasses or goggles, and hearing protection when operating power tools.
• Mantendu lan-eremua garbi eta ondo argiztatuta. Eremu nahasiak edo ilunek istripuak gonbidatzen dituzte.
• Ez erabili tresna elektrikoak atmosfera lehergarrietan, adibidez, likido sukoiak, gasak edo hautsak daudenean.
• Mantendu haurrak eta ingurukoak urrun, erreminta elektrikoa erabiltzen duzun bitartean. Distrakzioek kontrola galtzea eragin dezakete.
• Jantzi behar bezala. Ez erabili arropa solterik edo bitxirik. Mantendu zure ilea eta arropa zati mugikorretatik urrun.
• Avoid accidental starting. Ensure the switch is in the off-position before connecting to a battery pack, picking up, or carrying the tool.
• Ez ezazu gainditzen. Mantendu oin eta oreka egokia uneoro.
• Erabili zure aplikaziorako tresna elektriko egokia. Ez behartu tresna.
• Deskonektatu bateria tresna elektrikotik doikuntzak egin, osagarriak aldatu edo tresna elektrikoak gorde aurretik.
• Tresna elektrikoak mantentzea. Begiratu pieza mugikorren desegokitasuna edo lotura, piezak apurtzea eta tresna elektrikoaren funtzionamenduan eragina izan dezakeen beste edozein egoera.

3. Osagaiak eta Ezaugarriak

Familiarize yourself with the parts of your PORTER-CABLE reciprocating saw for safe and effective use.

This image highlights the key features of the PORTER-CABLE 20V MAX Reciprocating Saw, including its tool-free blade release for quick changes, a pivoting shoe for consistent material contact, a high-performance drivetrain, a comfortable contoured handle, and a variable speed trigger for precise control.

• Tool-Free Blade Release: Allows for quick and easy blade changes without additional tools.
• Pivoting Shoe: Helps maintain constant contact with the material being cut, improving stability and control.
• High Performance Drivetrain: Delivers a 1-inch stroke length and 0-3,000 SPM (strokes per minute) for aggressive cutting speed.
• Contoured Overmolded Handle: Designed for enhanced comfort and grip during extended use.
• Abiadura aldakorra abiarazlea: Provides greater control over cutting speed, allowing adjustment for different materials and applications.

4. Konfigurazioa

4.1. Bateriaren instalazioa

The PORTER-CABLE PCC670B is a tool-only unit. A 20V MAX lithium-ion battery and charger (sold separately) are required for operation.

1. Ensure the saw's trigger is in the OFF position.
2. Lerrokatu bateria-paketea tresnaren bateria-atakarekin.
3. Sartu bateria-paketea tresnan, ondo lotu arte klik egin arte.
4. Bateria kentzeko, sakatu bateriaren paketeko askatzeko botoia eta irristatu kanporantz.

4.2. Pala instalatzea eta kentzea

This saw features a tool-free blade release for quick and easy blade changes.

1. Pala bat instalatzeko: Biratu pala clamp collar counter-clockwise. Insert the blade shank fully into the clamp. Release the collar to secure the blade. Tug on the blade to ensure it is firmly seated.
2. Pala bat kentzeko: Biratu pala clamp collar counter-clockwise. The blade will release.

5. Funtzionamendua

5.1. Hasi eta Gelditu

• To start the saw, depress the variable speed trigger.
• To stop the saw, release the variable speed trigger.
• Abiadura aldakorreko abiarazleak ebaketa-abiadura kontrolatzeko aukera ematen du aplikatutako presioa aldatuz.

A hand is shown adjusting the variable speed trigger of the PORTER-CABLE reciprocating saw, illustrating the control available for different cutting applications.

5.2. Ebaketa Teknikak

• Ebaketa orokorra: Hold the saw firmly with both hands. Place the pivoting shoe against the workpiece. Depress the trigger and allow the blade to reach full speed before engaging the material. Apply steady, even pressure.
• Cutting in Tight Spaces: The saw's compact 14.5-inch length allows access to confined areas. Ensure adequate clearance around the blade and tool body.
• Pivoting Shoe: Utilize the pivoting shoe to maintain consistent contact with the material, especially on irregular surfaces, for improved stability and reduced vibration.

A user demonstrates cutting into a wooden wall stud with the PORTER-CABLE reciprocating saw, showcasing its application in construction or demolition tasks.

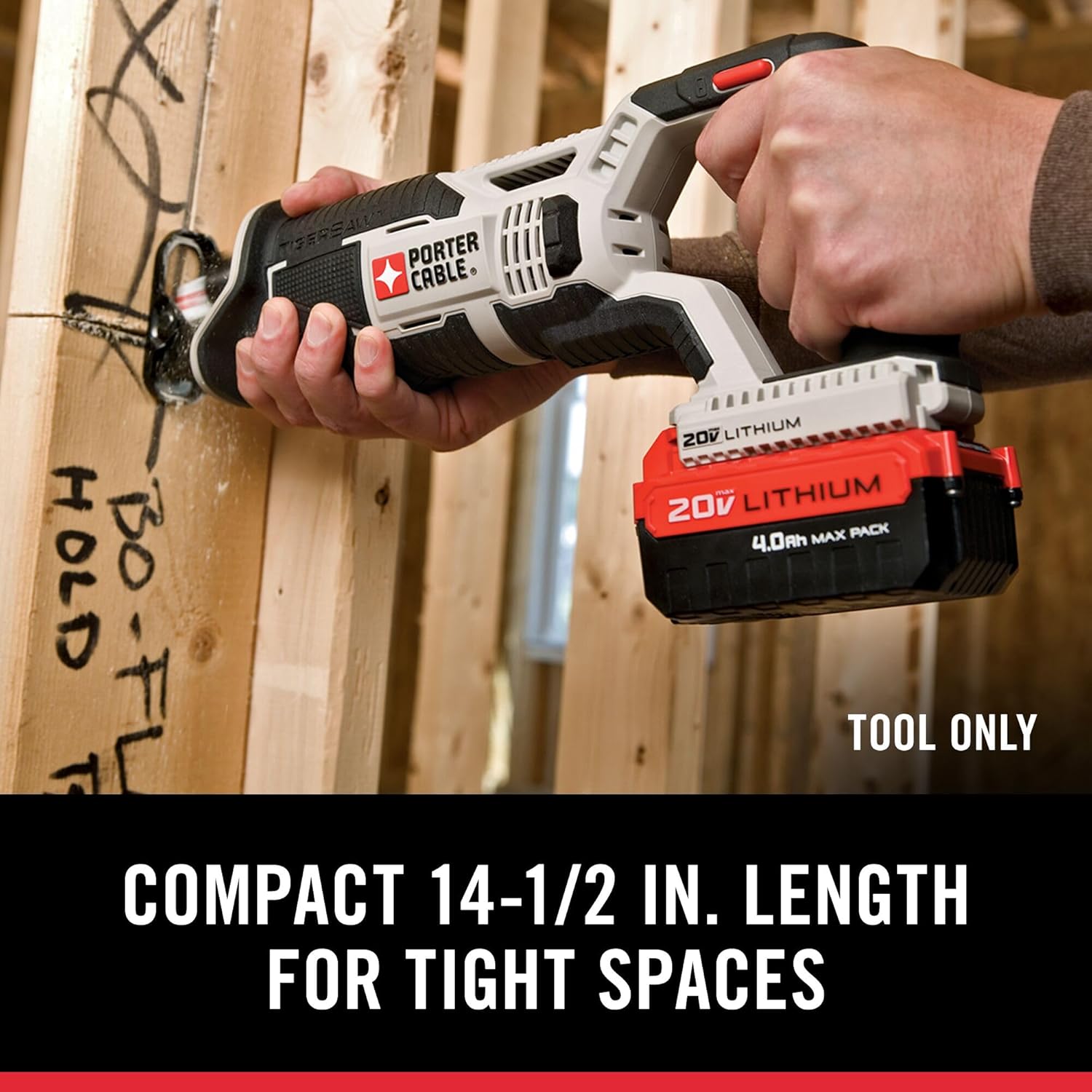

Hurbileko irudi hau view shows the PORTER-CABLE reciprocating saw in action, cutting through a wooden beam. The image emphasizes the tool's compact design, allowing access to confined spaces.

The pivoting shoe of the PORTER-CABLE reciprocating saw is shown maintaining constant contact with the material, which helps stabilize the saw during cutting operations.

6. Mantentzea

6.1. Garbiketa

• Keep the tool's air vents clean to prevent overheating.
• Use a clean cloth to wipe down the tool. Do not use solvents or harsh chemicals.
• Regularly remove sawdust and debris from the blade clamp eremua.

6.2. Pala zaintzea

• Always use sharp, undamaged blades appropriate for the material being cut.
• Replace dull or bent blades immediately to ensure efficient cutting and prevent strain on the tool.

7. Arazoak

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information, technical support, or to purchase replacement parts and accessories, please refer to the official PORTER-CABLE webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria erosketaren frogagiri gisa.
